Rear Seat Back Cushion Cover and Pad Replacement (with 60 Percent Seat)

Preliminary Procedures

1. Remove the rear seat. Refer to Rear Seat Replacement .
2. Remove the rear seat recliner covers. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 40 Percent Seat)  or Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat)  and Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 60 Percent Seat)  or Rear Seat Recliner Outer Finish Cover Replacement - Outboard (with 40 Percent Seat) .
3. Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement .
4. Remove the seat belt opening cover, if equipped. Refer to Rear Seat Shoulder Belt Opening Bezel Replacement (with 60 Percent Seat) .
5. Remove the rear child seat bracket trim cover. Refer to Child Seat Bracket Trim Cover Replacement .
6. Remove the rear seat latch release strap bezel. Refer to Rear Seat Latch Release Strap Bezel Replacement .
7. Remove the rear seat back panel. Refer to Rear Seat Back Cushion Panel Replacement (with 60 Percent Seat) .
8. Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement .
9. Remove the rear seat center belt anchor bolt.
10. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .

Procedure

1. Disconnect the rear seat back cushion cover j-channel.
2. Disconnect the straps from the rear seat back cushion cover to the bottom of the seat cushion.

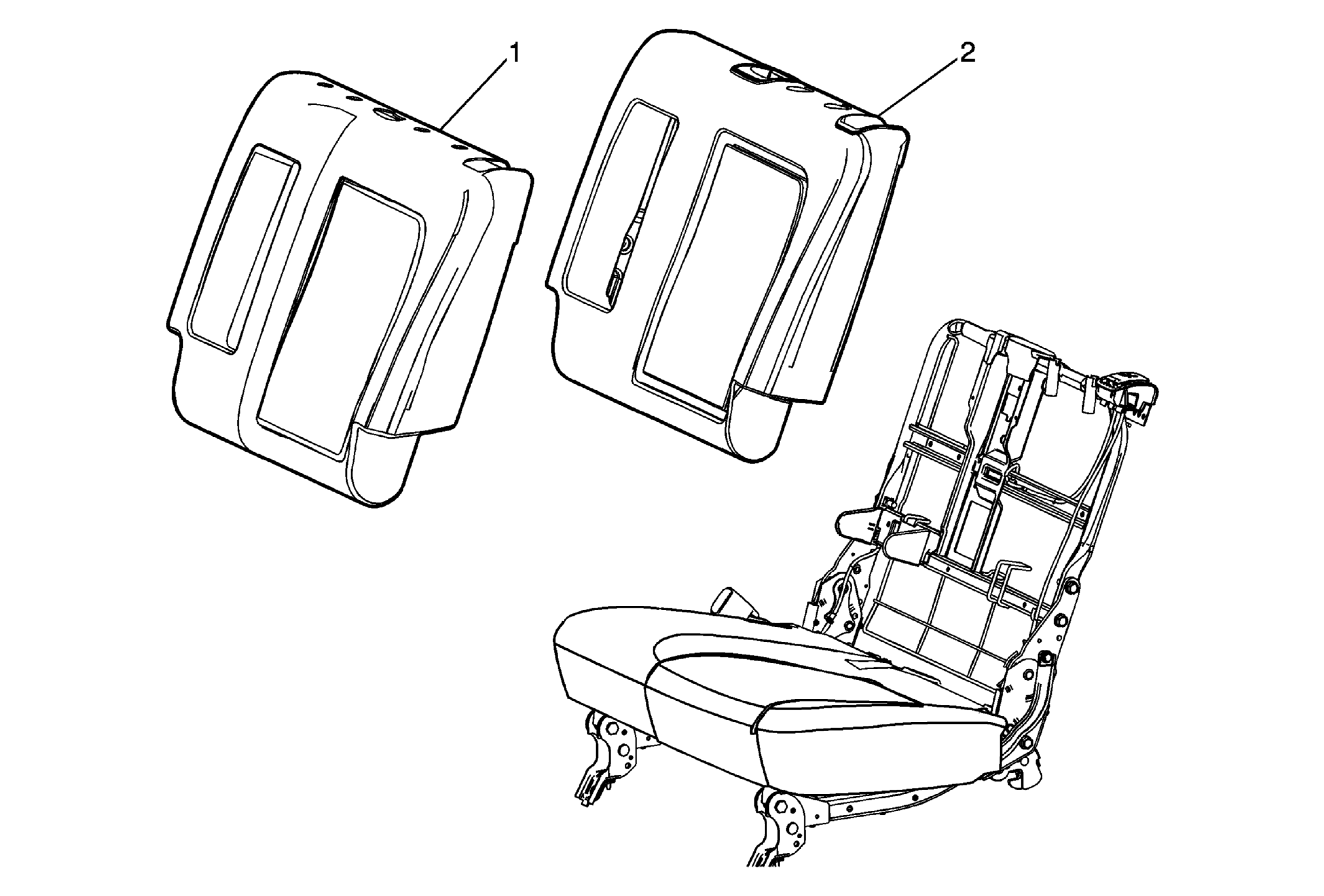

3. Remove the rear seat back cushion cover from the rear seat back cushion pad.
