Rear Seat Recliner Outer Finish Cover Replacement - Inboard (with 60 Percent Seat)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

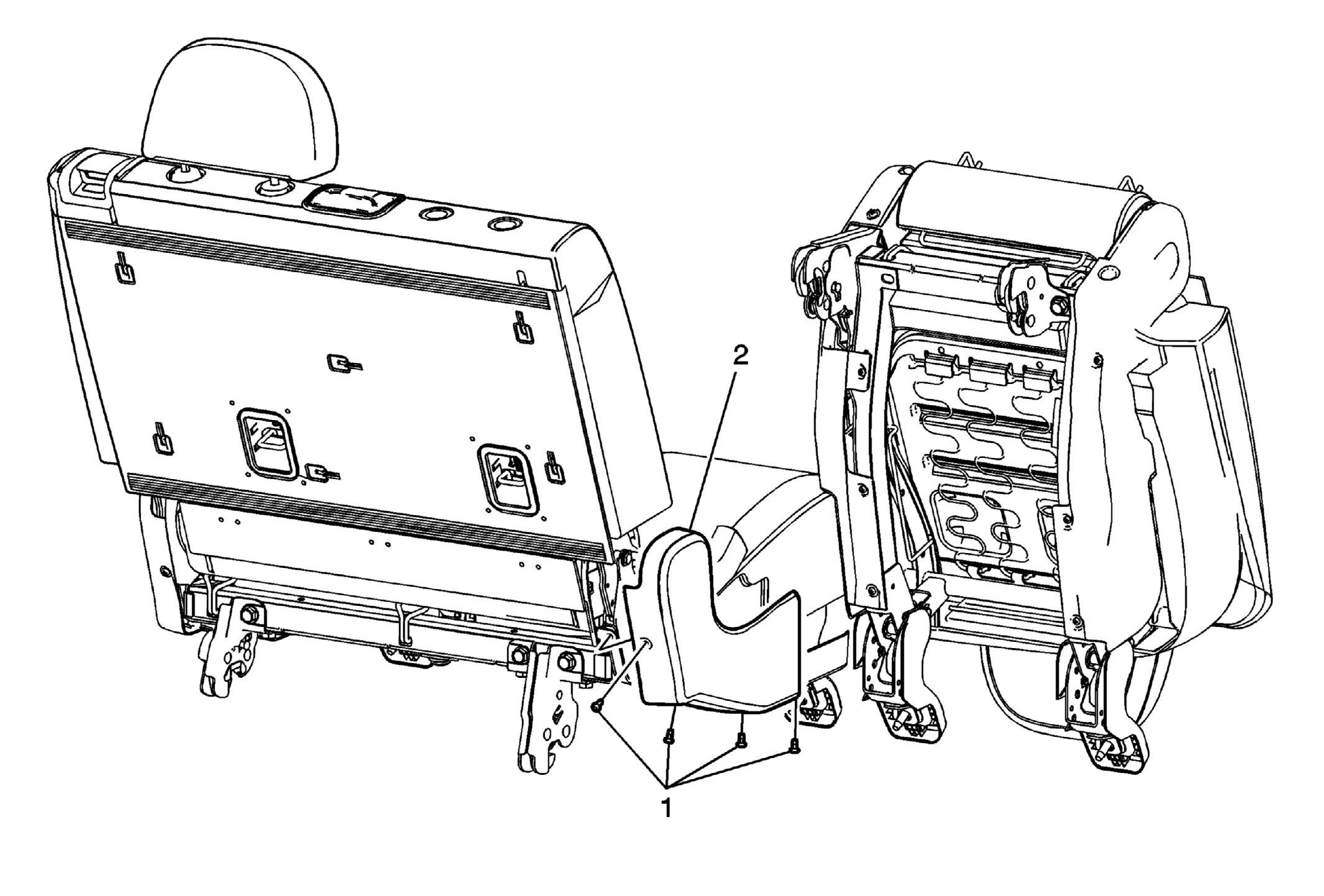

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Recliner Outer Finish Cover Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tip: Release the rear seat latches to fold the seat up by pressing forward on the latch button located on the inboard side of each of the lower latches. Tighten: 2 N.m (18 lb in) |
| 2 | Rear Seat Recliner Outer Finish Cover - Inboard |
