Front Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

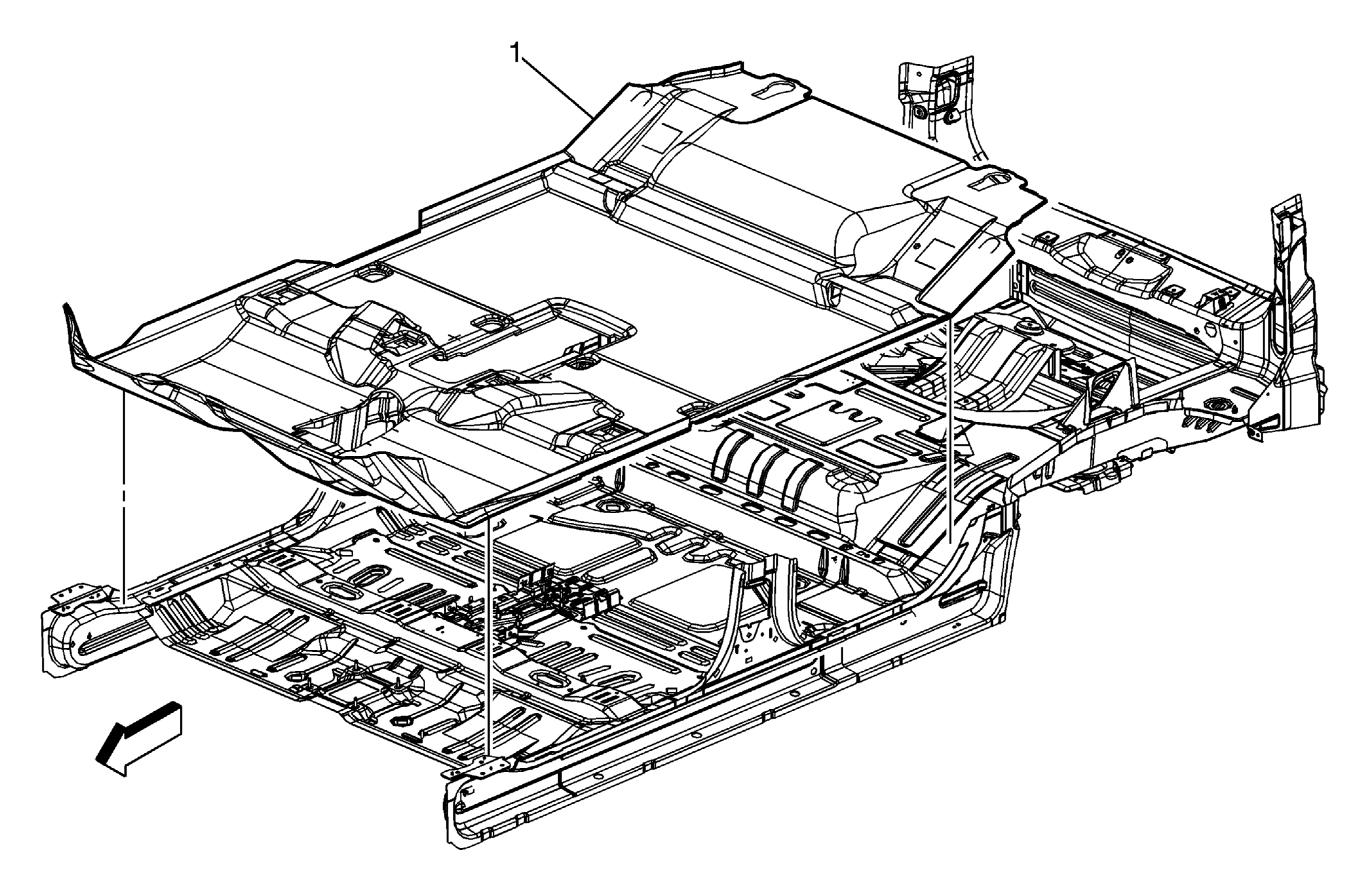

Fig 1: View Of Front Floor Panel Carpet Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Front Seat Replacement - Bucket . Remove the rear seats. Refer to Rear Seat Replacement . Remove the front carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Remove the rear carpet retainers. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement . Remove the center console trim panels and the center console. Refer to Front Floor Console Replacement . Remove lower center pillar garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
1	Front Floor Panel Carpet Assembly Procedure: Remove the floor carpet by pulling the carpet from under the center pillar assemblies and lifting the carpet out of the vehicle.

Callout

Component Name

Preliminary Procedures

Remove the front seats. Refer to Front Seat Replacement - Bucket .
Remove the rear seats. Refer to Rear Seat Replacement .
Remove the front carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Remove the rear carpet retainers. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .
Remove the center console trim panels and the center console. Refer to Front Floor Console Replacement .
Remove lower center pillar garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .

Front Floor Panel Carpet Assembly
Procedure:
Remove the floor carpet by pulling the carpet from under the center pillar assemblies and lifting the carpet out of the vehicle.
