Front Seat Replacement - Bucket

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

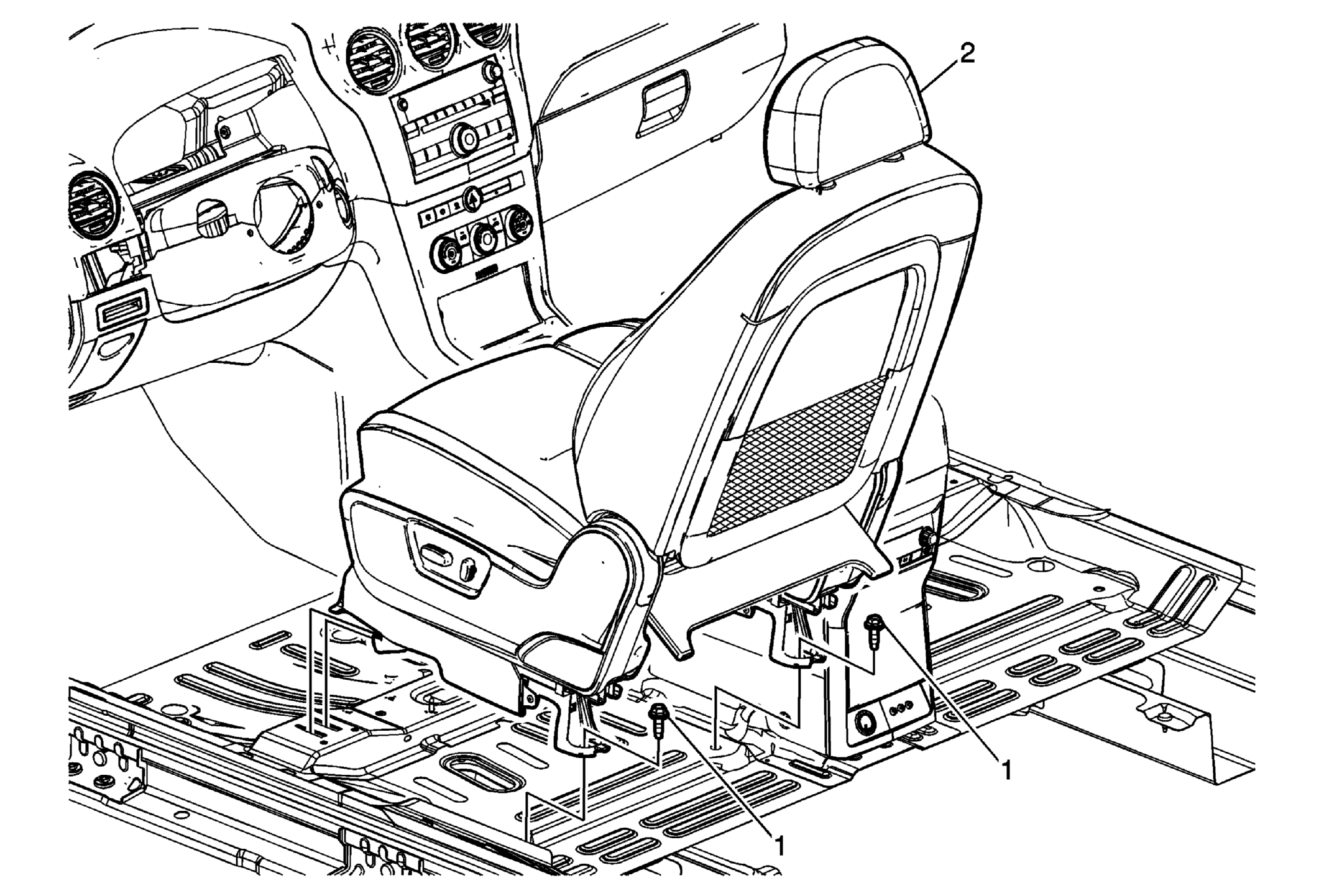

Fig 1: Front Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Assembly Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Front Seat Assembly Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Lift the seat upward at the rear of the seat. Disconnect the electrical connectors. Slide the seat rearward to disengage the adjuster hooks holding the seat to the floor pan.

Callout

Component Name

Front Seat Assembly Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Front Seat Assembly

Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Lift the seat upward at the rear of the seat.
Disconnect the electrical connectors.
Slide the seat rearward to disengage the adjuster hooks holding the seat to the floor pan.
