Rear Side Door Opening Floor Carpet Retainer Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

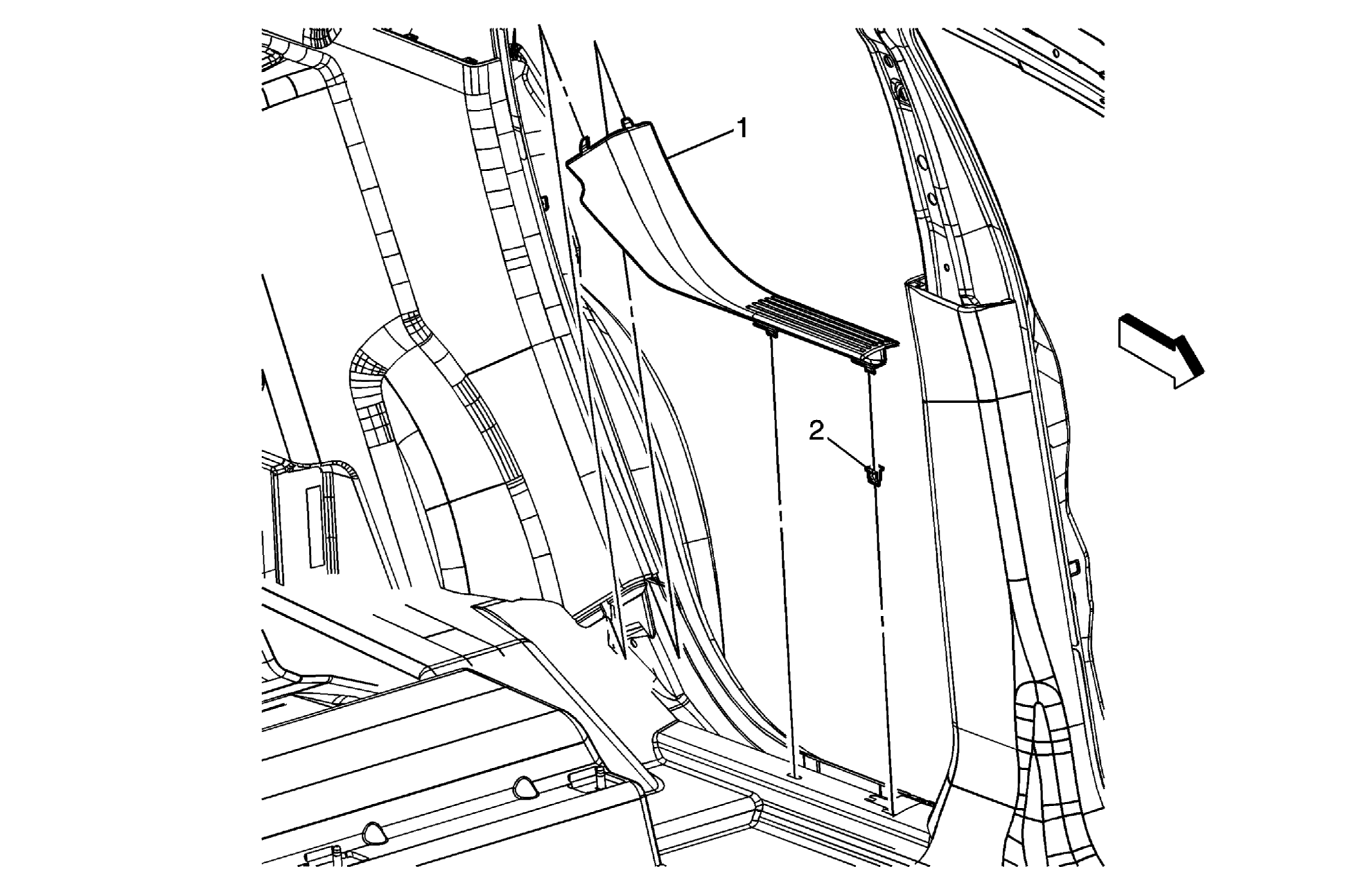

Fig 1: View Of Rear Side Door Opening Floor Carpet Retainer & Clips

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Opening Floor Carpet Retainer Tip: Pull up at the front of the carpet retainer to disengage the retainer clips then rotate the rear of the retainer away from the bodyside trim panel.
2	Retainer Clip (Qty: 2)
