Radiator Lower Grille Replacement (VUE)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

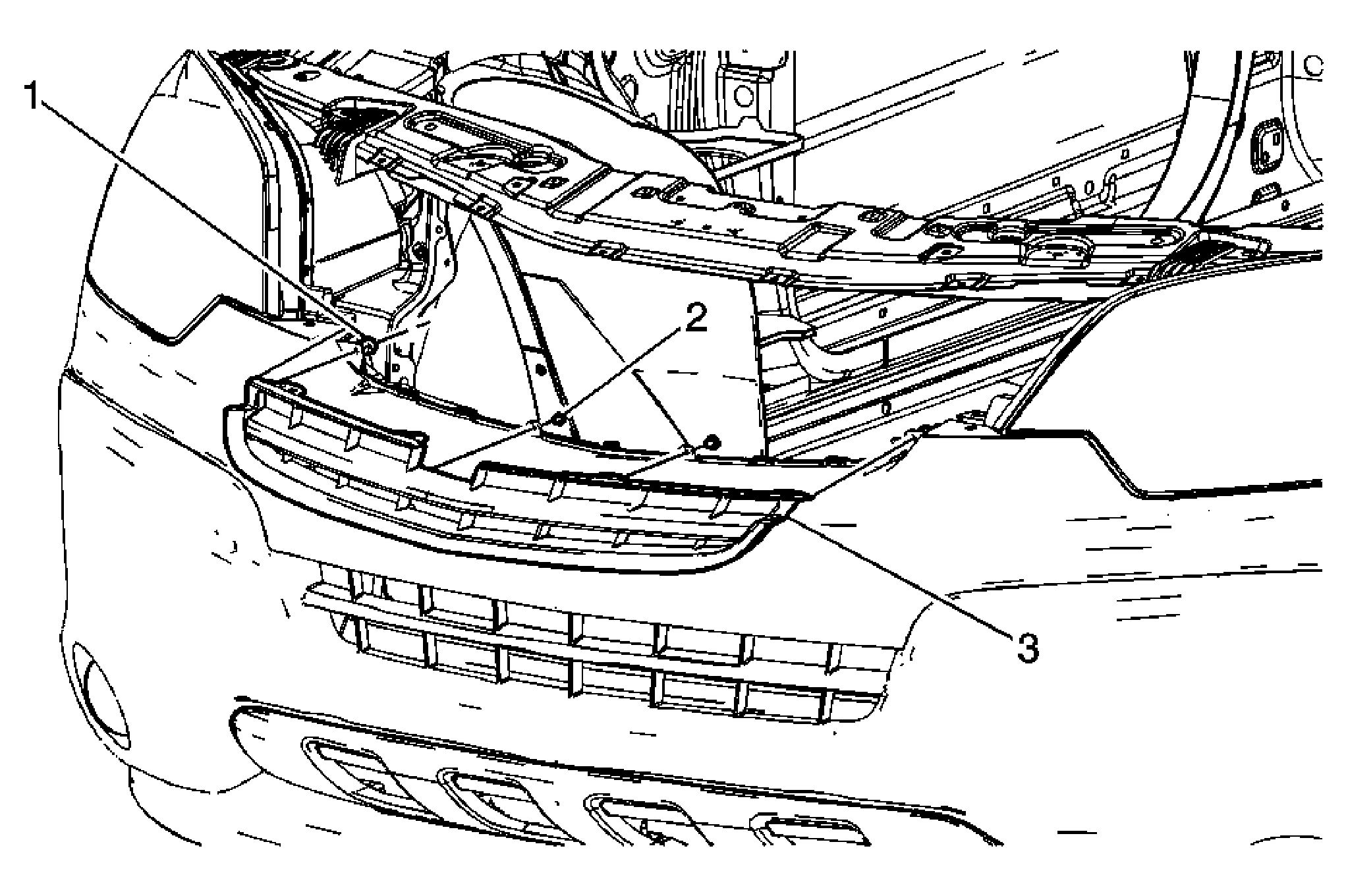

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the radiator grille upper opening cover. Refer to Radiator Opening Upper Cover Replacement . |
|
| 1 | Radiator Lower Grille Assembly Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 4 N.m (35 lb in) |
| 2 | Radiator Lower Grille Assembly Screw (Qty: 2) Tighten: 4 N.m (35 lb in) Tip: Remove the lower grille clip button from the lower center bumper fascia. |
| 3 | Radiator Lower Grille Assembly Procedure: Transfer the grille molding to the new radiator lower grille assembly. Refer to Lower Grille Molding Replacement . |
