Lower Grille Molding Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

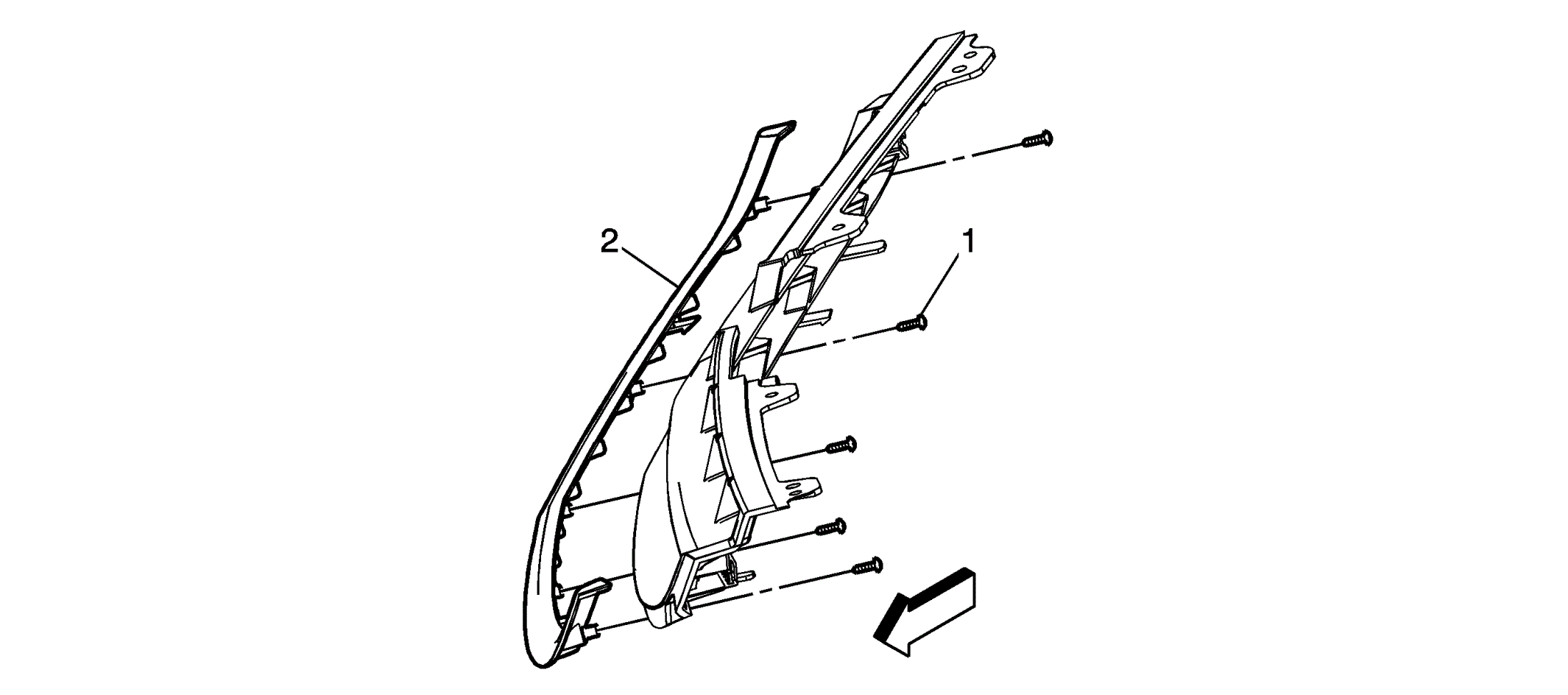

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the lower radiator grille. Refer to Radiator Lower Grille Replacement (Red Line) or Radiator Lower Grille Replacement (VUE) . |
|
| 1 | Lower Radiator Grille to Molding Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Radiator Lower Grille Molding Procedure: Release the 2 integral retaining tabs securing the lower molding to the lower radiator grille. |
