Radiator Lower Grille Replacement (Red Line)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

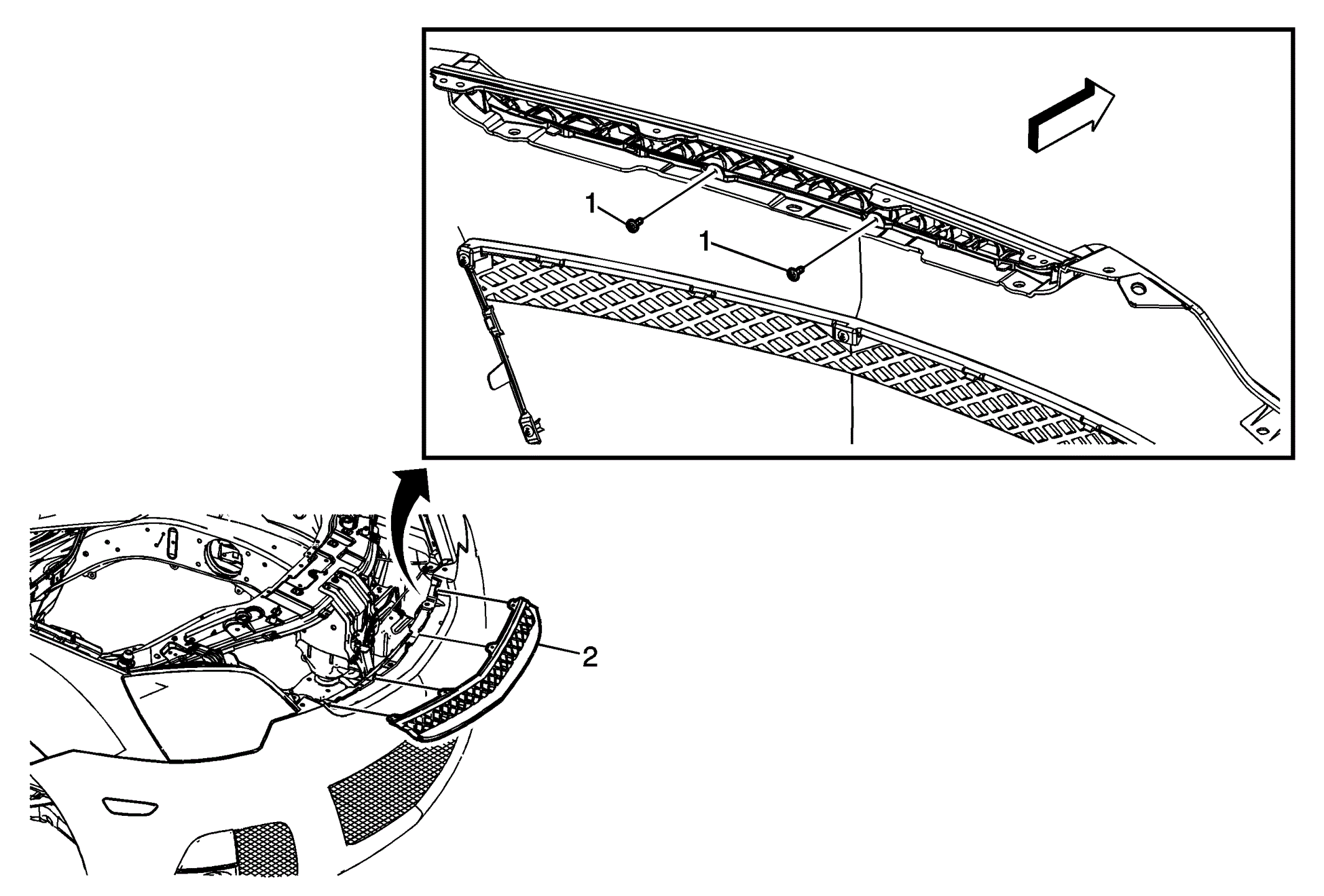

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the radiator grille opening cover. Refer to Radiator Opening Upper Cover Replacement . |
|
| 1 | Radiator Lower Grille Assembly Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 4 N.m (35 lb in) |
| 2 | Radiator Lower Grille Assembly |
