Front Floor Console Side Trim Panel Replacement - Right Side

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

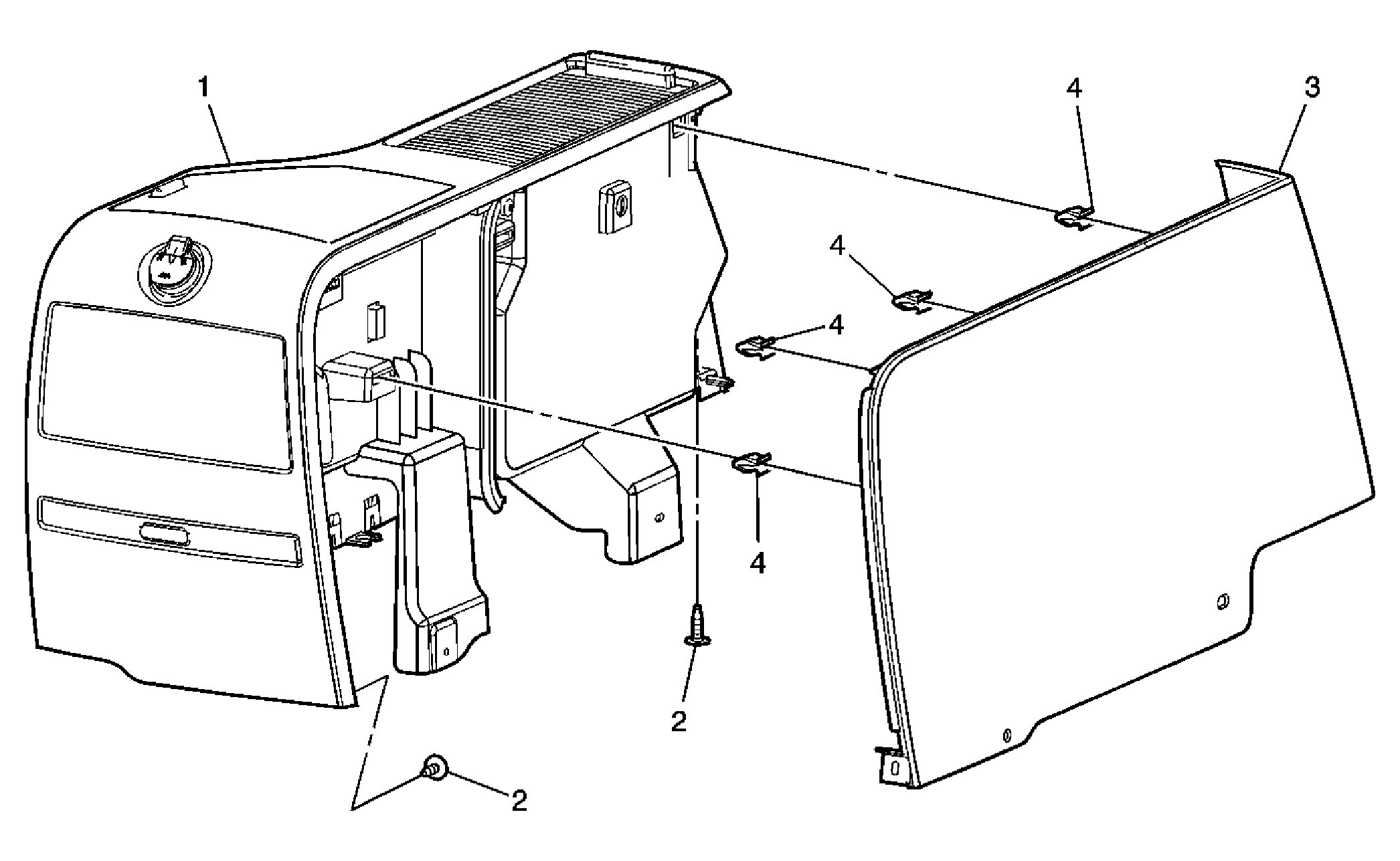

Fig 1: Front Floor Console Side Trim Panel And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Floor Console Assembly Refer to Front Floor Console Replacement .
2	Front Floor Console Trim Panel Screws (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Front Floor Console Trim Panel Assembly
4	Retainer Clips (Qty: 4)

Fig 1: Console Trim Panel And Components

Courtesy of GENERAL MOTORS CORP.

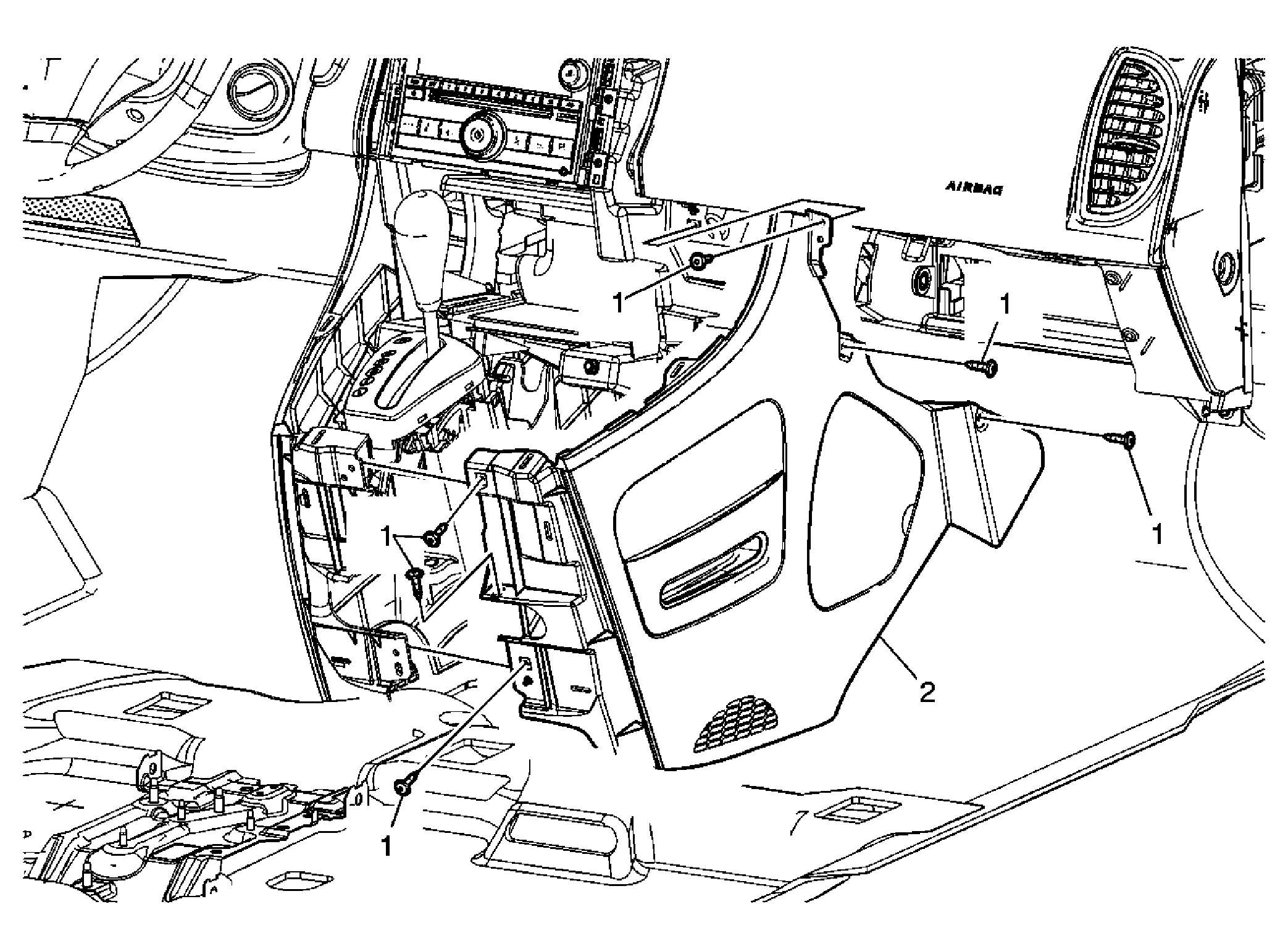

Front Floor Console Side Trim Panel Replacement - Right Side

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the instrument panel center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement . Remove the console rear trim plate. Refer to Console Trim Plate Replacement .
1	Console Right Side Trim Panel Screws (Qty: 6) Tighten: 2 N.m (18 lb in)
2	Console Trim Panel Assembly - Right

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the instrument panel center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement .
Remove the console rear trim plate. Refer to Console Trim Plate Replacement .

Console Right Side Trim Panel Screws (Qty: 6)

Tighten: 2 N.m (18 lb in)

Console Trim Panel Assembly - Right
