Instrument Panel Accessory Bezel Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

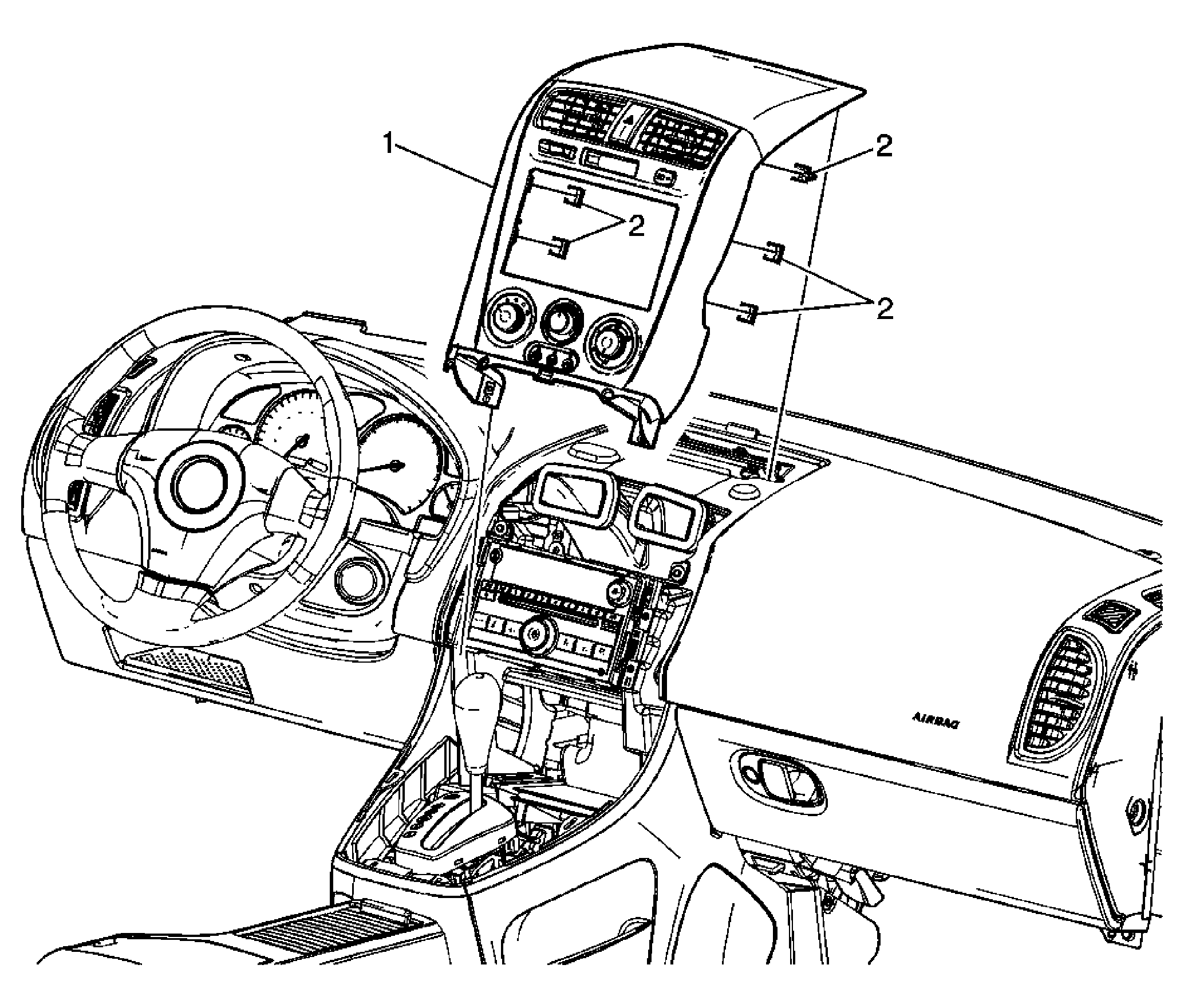

Fig 1: Trim Bezel Replacement
GM1641234Courtesy of GENERAL MOTORS CORP.
Instrument Panel Accessory Bezel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the instrument panel storage compartment. Refer to Instrument Panel Storage Compartment Replacement .
1 Instrument Panel Center Trim Bezel
Tip:  Disconnect the electrical connectors.
2 Retainer Clips (Qty: 6)
