Front Floor Console Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

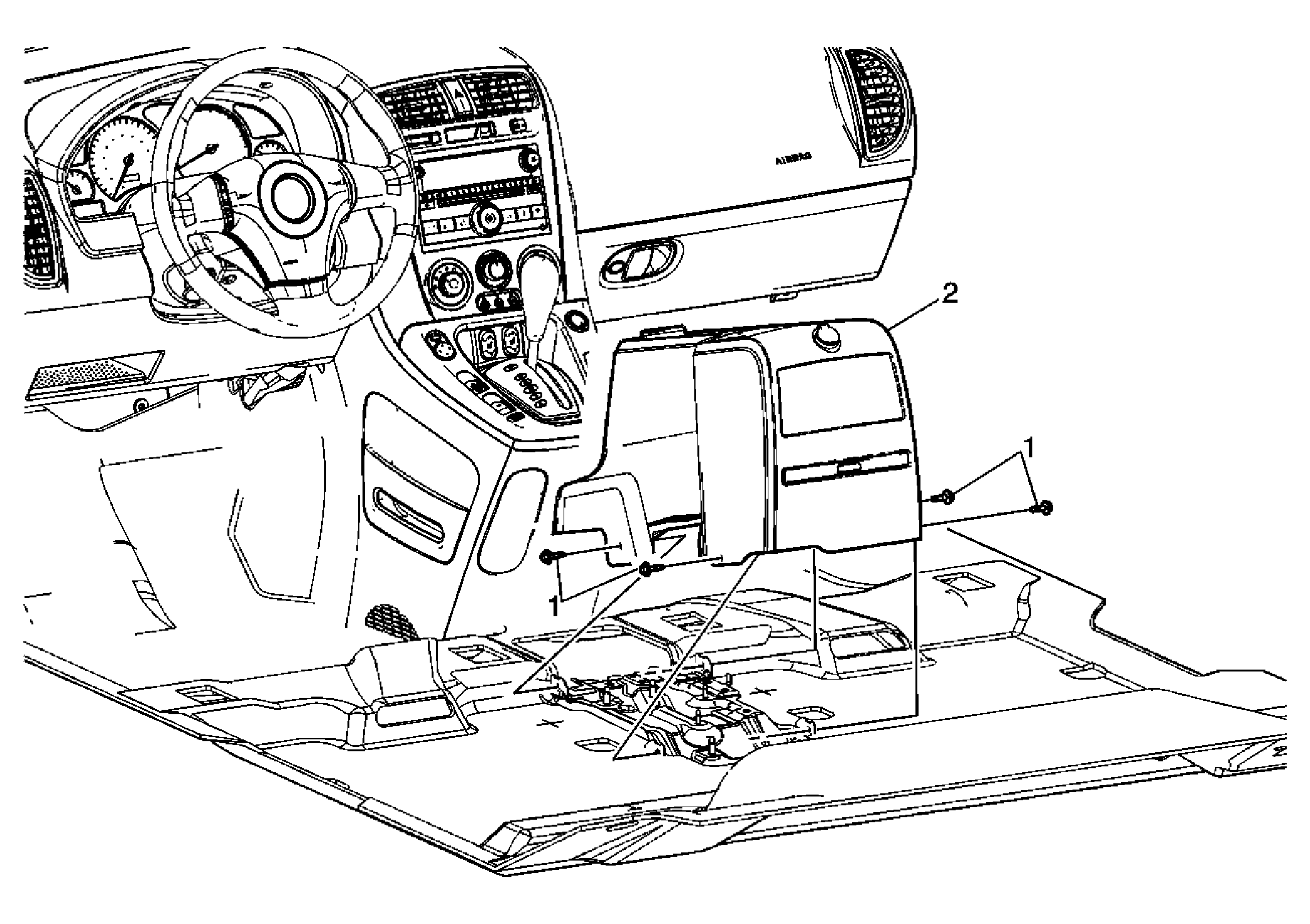

Fig 1: Front Floor Console And Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Floor Console Bolts (Qty: 4) Tip: Access the console bolts by positioning the front seats either full forward or full rearward. Tighten: 10 N.m (89 lb in)
2	Front Floor Console Assembly
