Second Coast Clutch Assemble
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
- J 28585 Snap Ring Remover. See Special Tools .
- J 23327 Clutch Spring Compressor. See Special Tools .
- J 41236 Coast Clutch Spring Compressor. See Special Tools .
- J 45164 Spring Compressor Bridge. See Special Tools .
- Apply automatic transmission fluid to the new second coast clutch piston seals.

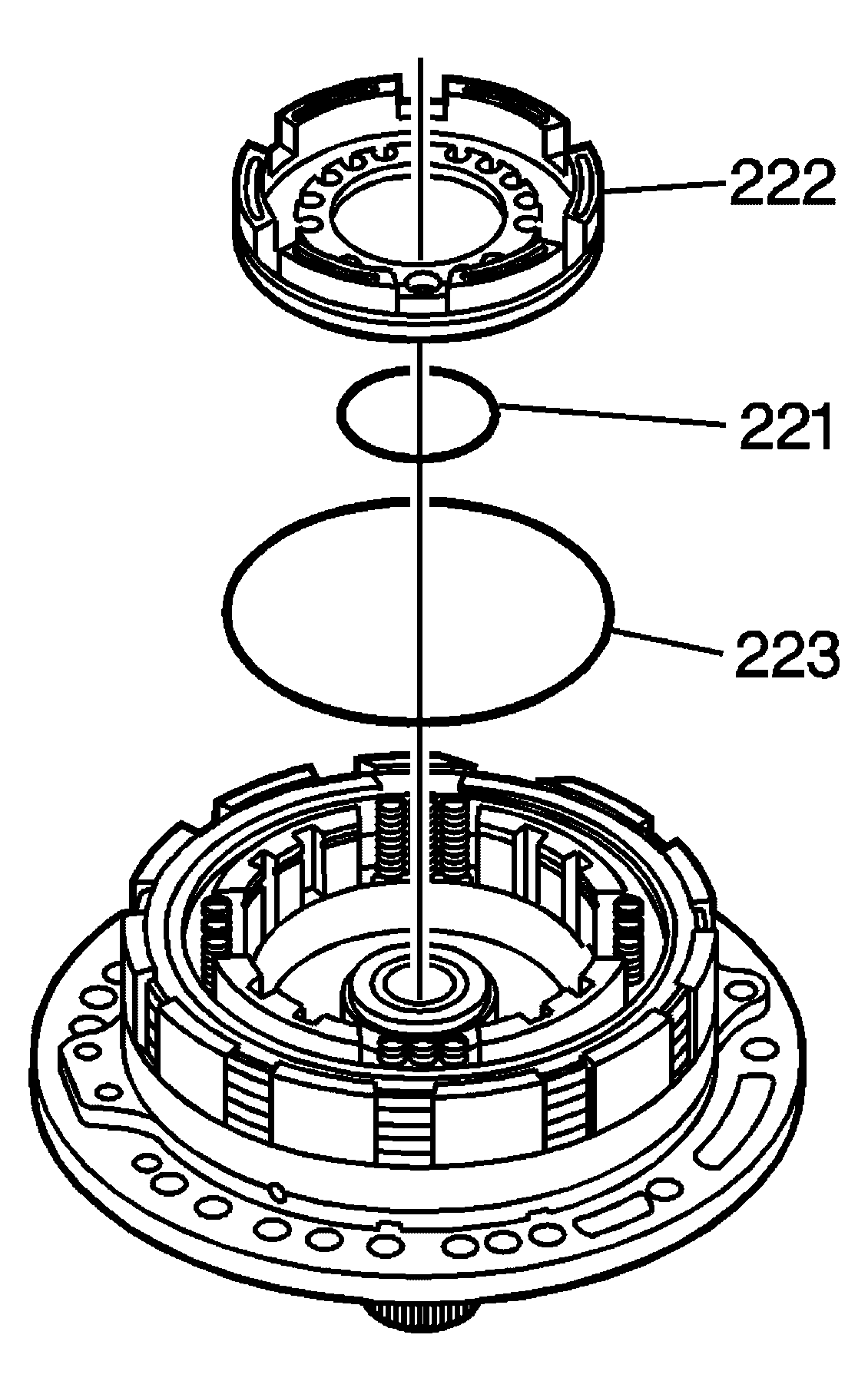

- Install the new inner seal (221) and the outer seal (223) onto the second coast clutch piston (222).
- Apply automatic transmission fluid to the inner surfaces of the fluid pump stator shaft assembly.
- Press the second coast clutch piston (222) into the fluid pump stator shaft assembly.

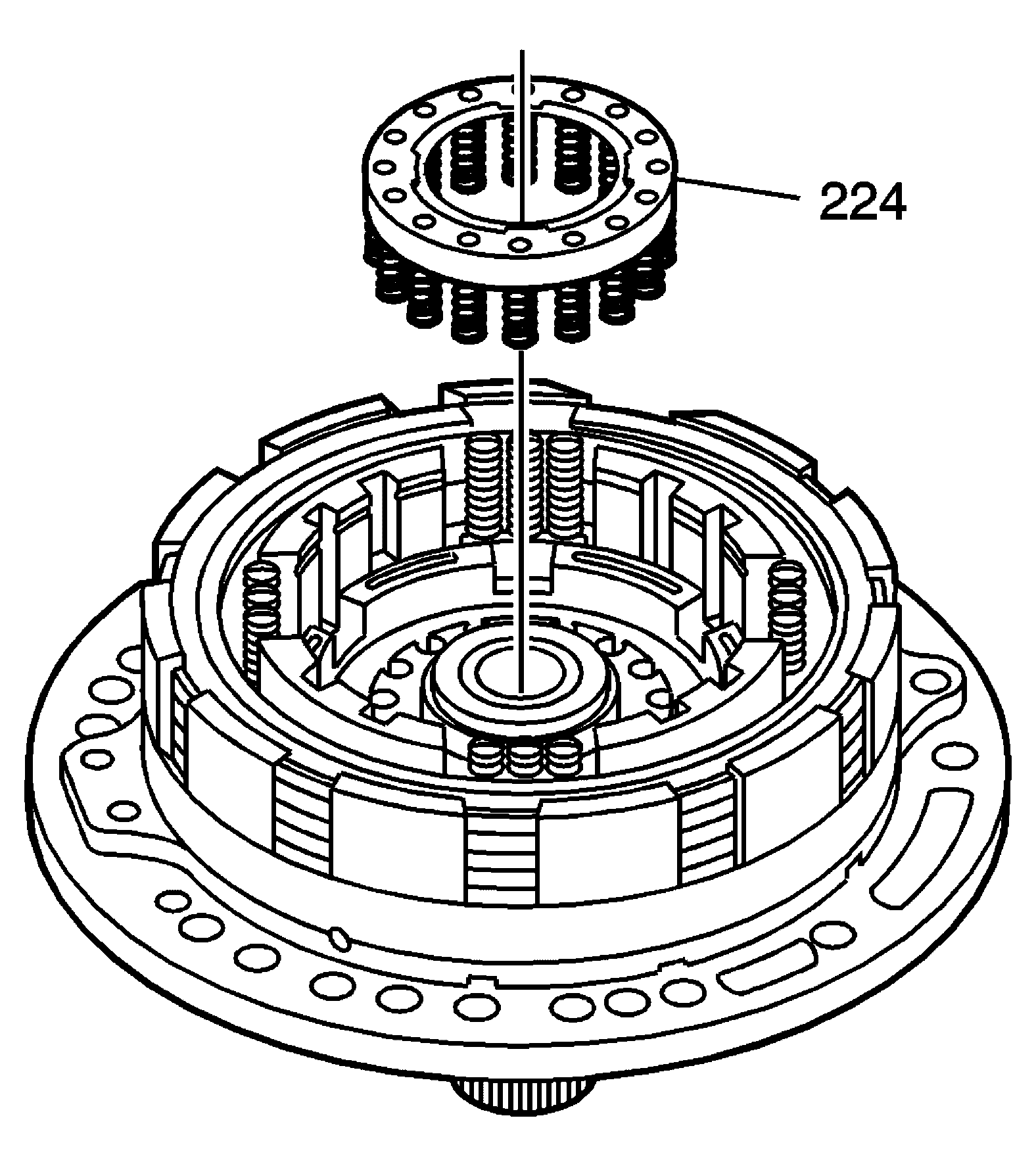

- Install the second coast clutch spring assembly (224) making sure to index the springs into the notches in the second coast clutch piston.
- Place the J 21420-2 (1) and J 23327-2 (3), which are part of J 23327 , and J 41236 (2) on the second coast clutch spring (224), and compress the springs. See Special Tools .
- Using snap ring pliers, install the second coast clutch spring retaining ring (225) into the groove of the fluid pump stator shaft assembly.
- Install a steel plate (227) then a fiber plate (228). Repeat this sequence until all 6 plates have been installed.
- Install the second coast clutch backing plate (229).
- Using J 45164 (2), J 21420-2 (4) and J 23327-2 (1), which are part of J 23327 , compress the second clutch spring. See Special Tools .
- Using J 28585 (3), install the second coast clutch backing plate retaining ring (230) into the groove of the fluid pump stator shaft assembly. See Special Tools .
IMPORTANT:
Make sure that you have the correct number of clutch plates, and that they are in the correct order.
