Park/Neutral Position Switch Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required:

J 45404 Transmission Indicator Alignment Tool. See Special Tools .

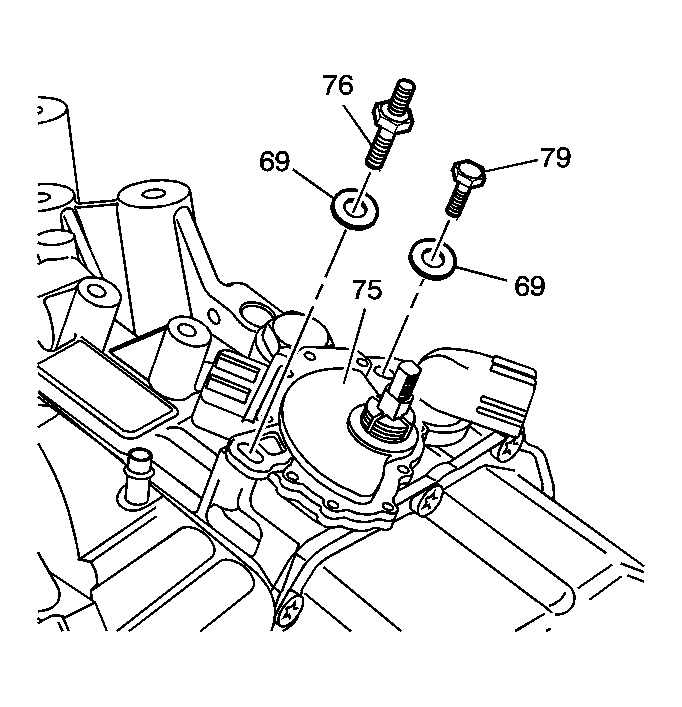

Fig 1: View Of Park/Neutral Position Switch & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the park/neutral position switch (75) to the manual shift detent lever assembly.
Install the park/neutral position switch stud (76), bolt (79), and flat washers (69) and hand tighten until tight enough to hold the park/neutral position switch in place, but still loose enough to allow adjustment by hand.

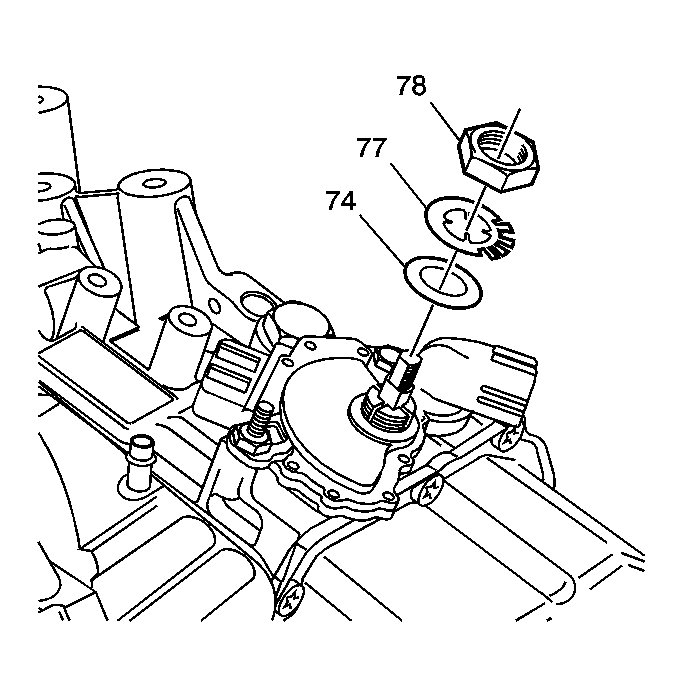

Fig 2: View Of Flat Washer, Lock Washer & Manual Shaft Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the park/neutral position switch flat washer (74), lock tab washer (77), and nut (78).
Tighten: Tighten the park/neutral position switch nut to 7 N.m (62 lb in).

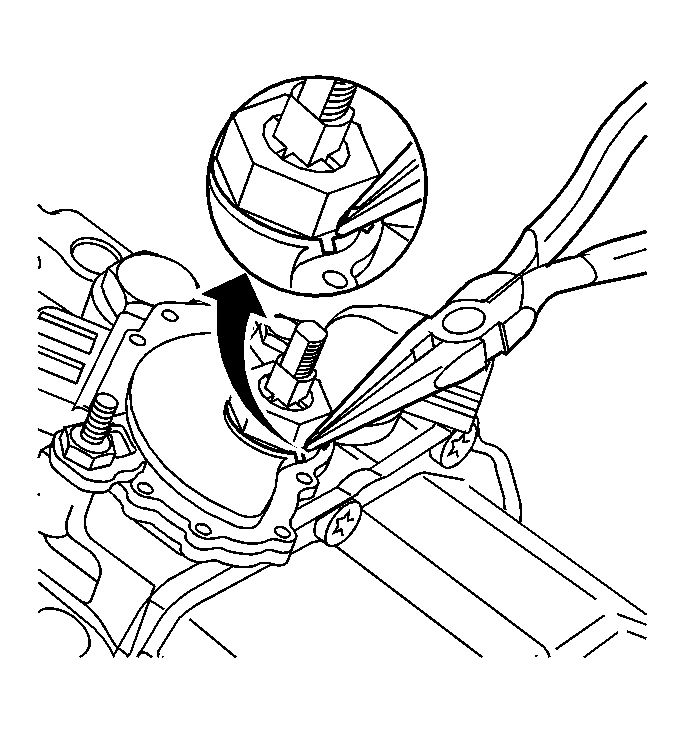

Fig 3: Securing Nut

Courtesy of GENERAL MOTORS CORP.

Bend the tabs on the lock tab washer to secure the nut.

Fig 4: View Of J 45404 Installed On Manual Shaft

Courtesy of GENERAL MOTORS CORP.

Place the manual shift detent lever assembly in the Neutral (N) position.
Install the J 45404 to the manual shift detent lever assembly. See Special Tools .
Rotate the park/neutral position switch until the neutral base line on the switch assembly lines up with the indicator line on J 45404 . See Special Tools .
Tighten the park/neutral position switch stud (76) and the park/neutral position switch bolt (79).
Tighten: Tighten the park/neutral position switch stud and bolt to 25 N.m (18 lb in).
Remove J 45404 from the manual shift detent lever assembly. See Special Tools .
