Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper instrument panel assembly (1) to the vehicle. Ensure that the retaining clips (2) are fully engaged. Secure the assembly to the lower instrument panel with the 3 screws (3).
  2. Connect any necessary connectors.
  3. Install the left I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY LEFT  .
  4. Install the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
  5. Install the I/P cluster assembly. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT  .
  6. Install the I/P cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  7. Install the passenger side inflatable restraint. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  8. Install the wiper switch assembly. Refer to WIPERS/WASHER SWITCH REPLACEMENT .

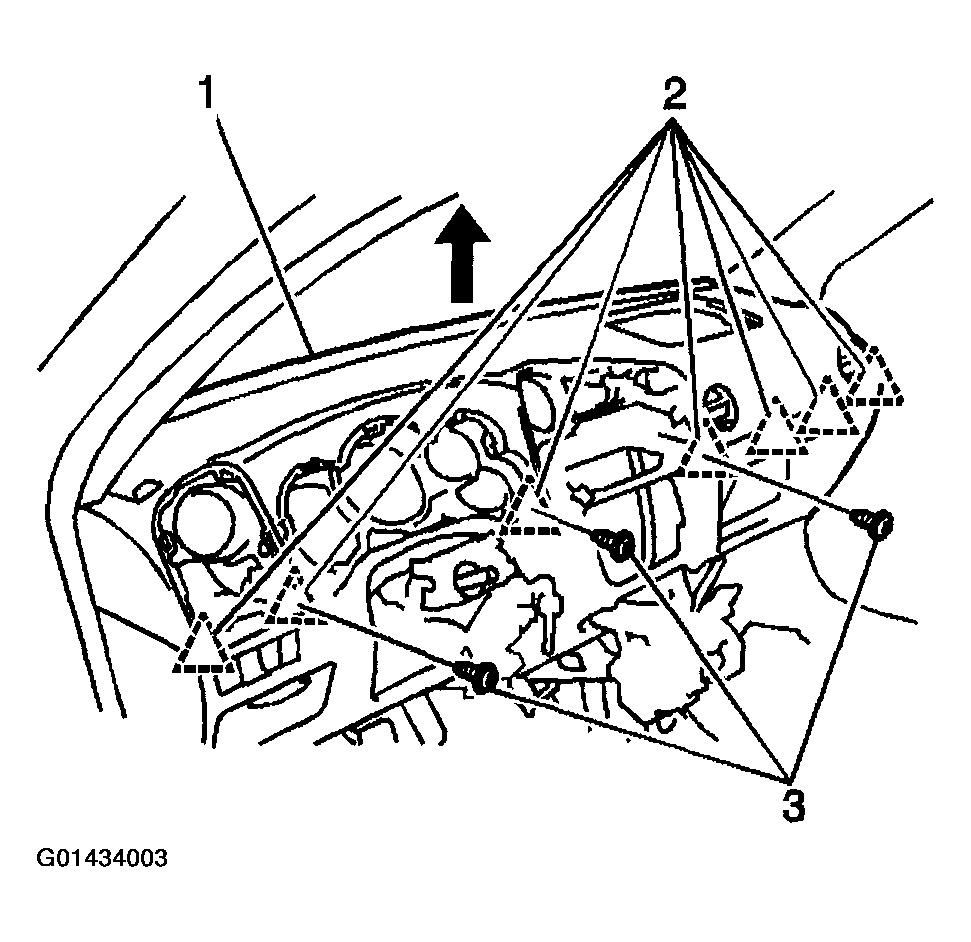

    Fig 1: Installing Trim Pad
    G01434003Courtesy of GENERAL MOTORS CORP.
  9. Install the head lamp switch assembly. Refer to HEADLAMP SWITCH REPLACEMENT .
  10. Install the upper and lower steering column covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
  11. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT .
  12. Install the steering wheel inflatable restraint. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  13. Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE  .
  14. Install the radio. Refer to RADIO REPLACEMENT .
  15. Install the I/P center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER  .
  16. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM and SIR Disabling and DISABLING & ACTIVATING AIR BAG SYSTEM .
  17. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
