Removal & Installation (Driver-side)

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 3  under DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Remove bolts retaining driver-side air bag module to steering wheel. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector. See Fig 1. Disconnect air bag module connector. Remove driver-side air bag module.
  3. To install, reverse removal procedure. Tighten driver-side air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ZONE 3  under DISABLING & ACTIVATING AIR BAG SYSTEM.>>

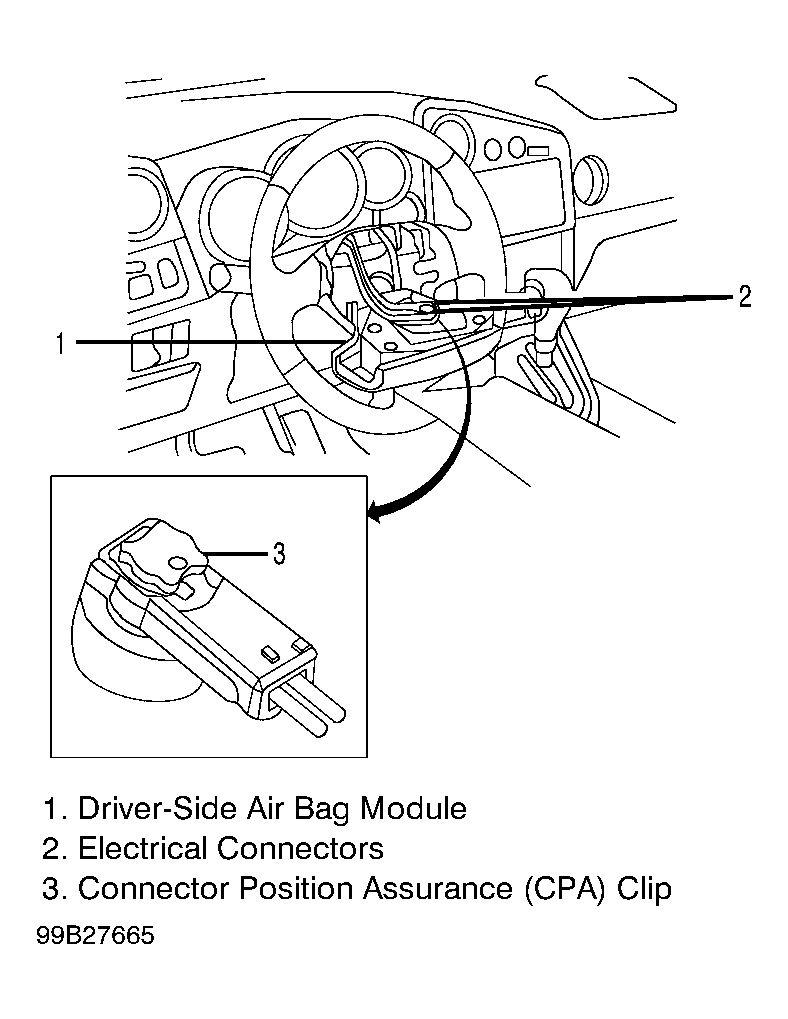

Fig 1: Identifying Driver-side Air Bag Module
G99B27665Courtesy of GENERAL MOTORS CORP.
