Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door in order to gain access to the center roller bracket pin.
  2. Support the rear of the sliding door.
  3. Remove the pin from the center roller bracket.
  4. Position the center roller bracket to the front radius of the sliding door center track.
  5. Remove the left or right rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  6. Release cable tension. Refer to CABLE TENSION ADJUSTMENT - SLIDING DOOR (REGULAR METHOD)  or CABLE TENSION ADJUSTMENT - SLIDING DOOR (ALTERNATE METHOD)  or CABLE TENSION ADJUSTMENT - SLIDING DOOR (WITH RPO E59)  .

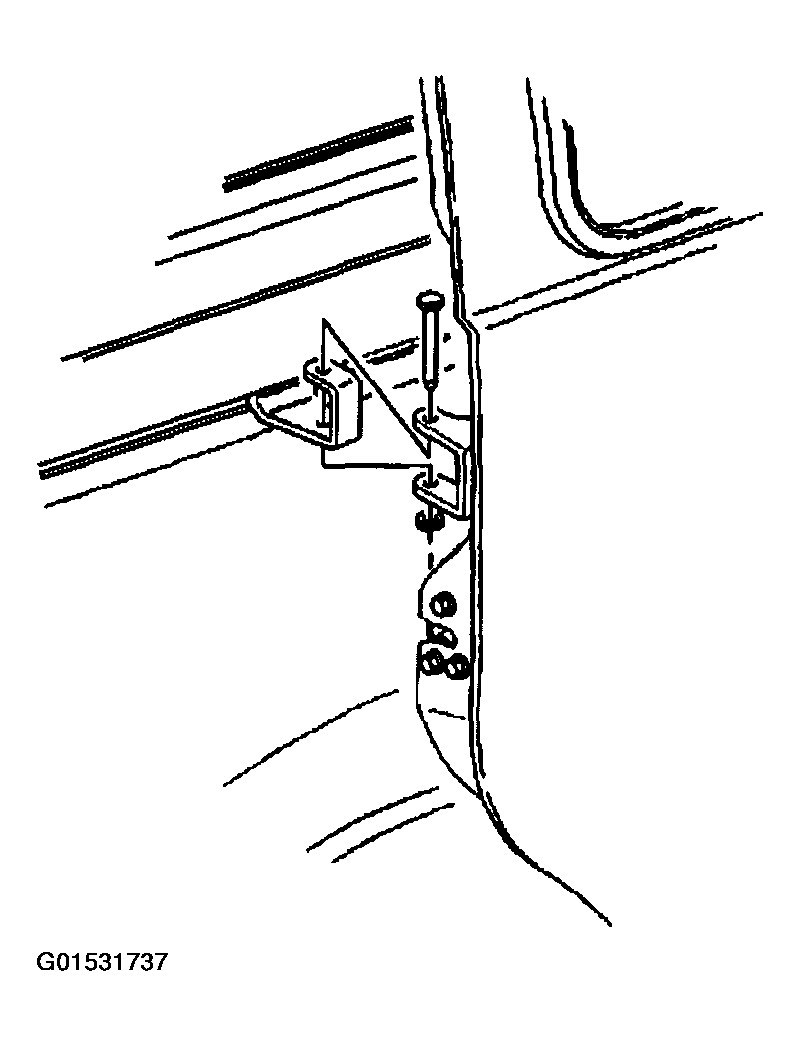

    Fig 1: Removing Pin From Center Roller Bracket
    G01531737Courtesy of GENERAL MOTORS CORP.
  7. Lift the center roller bracket upwards and remove the bracket from the center track.

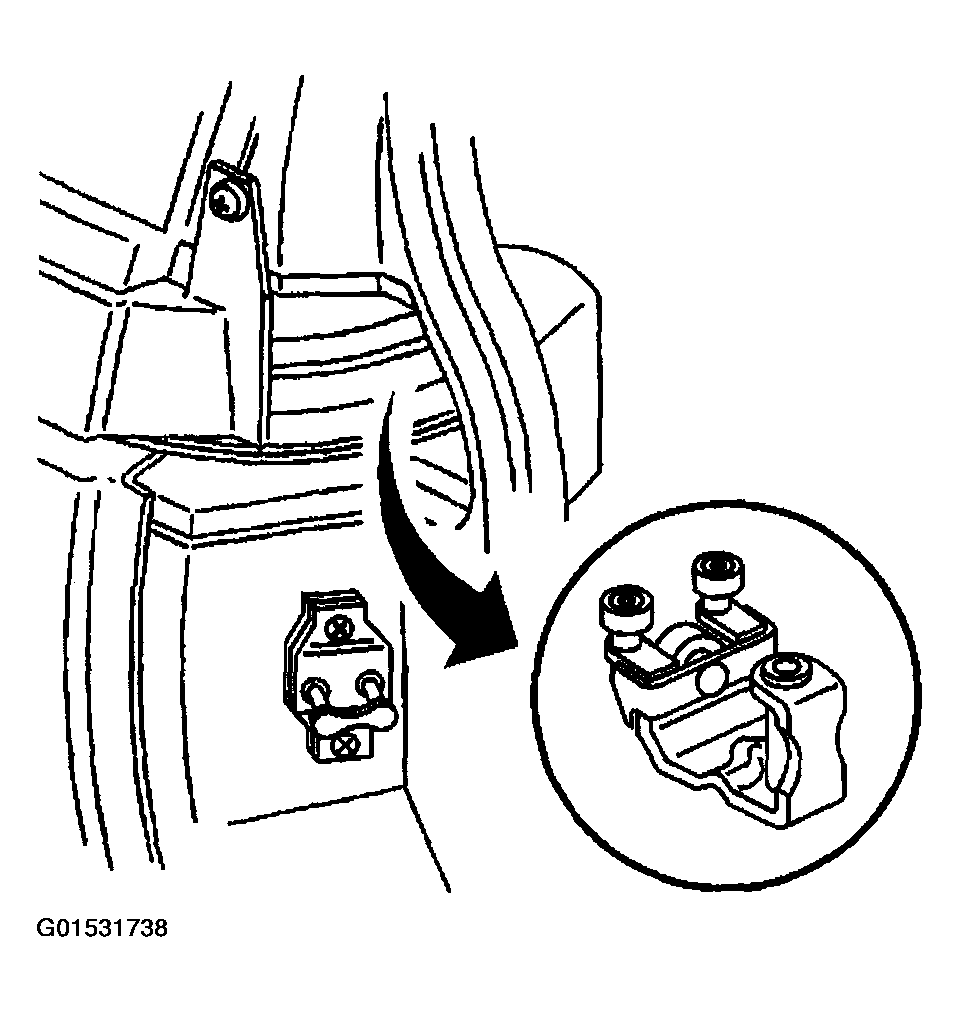

    Fig 2: Removing Bracket From Center Track
    G01531738Courtesy of GENERAL MOTORS CORP.
  8. Detach the cable ends (power sliding door only).

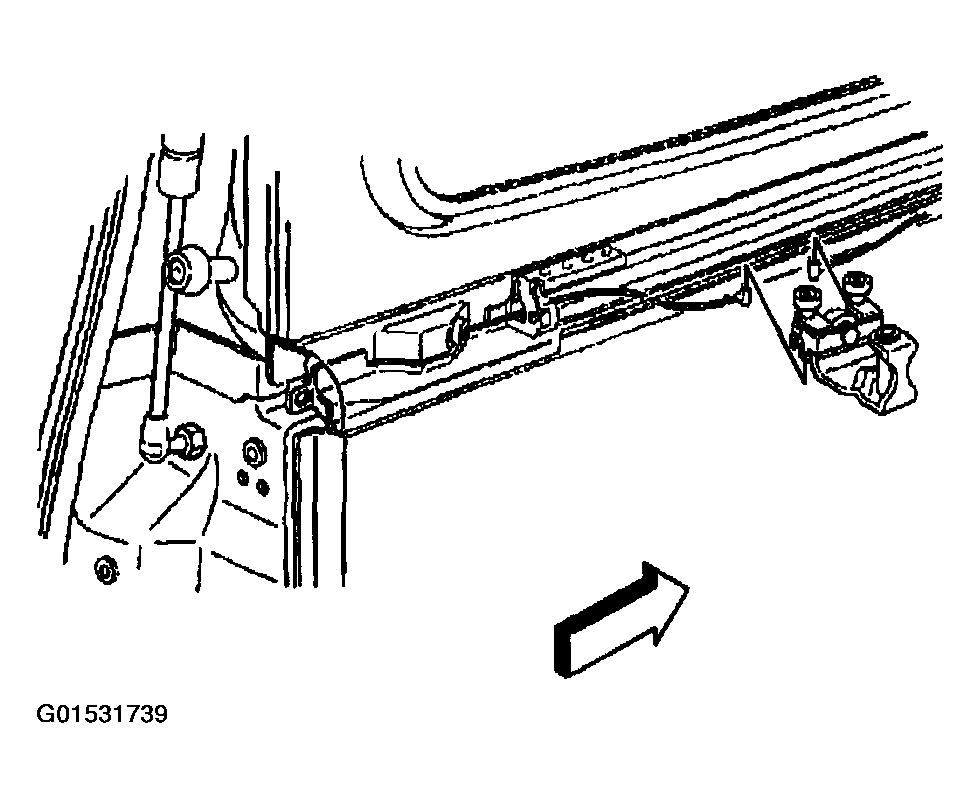

    Fig 3: Detaching Cable Ends
    G01531739Courtesy of GENERAL MOTORS CORP.
