Cable Tension Adjustment - Sliding Door (With RPO E59)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Perform the following steps in order to detention the left power sliding door:

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Position the door so that the release tab (1) on the take-up guide is visible in the take up guide window.

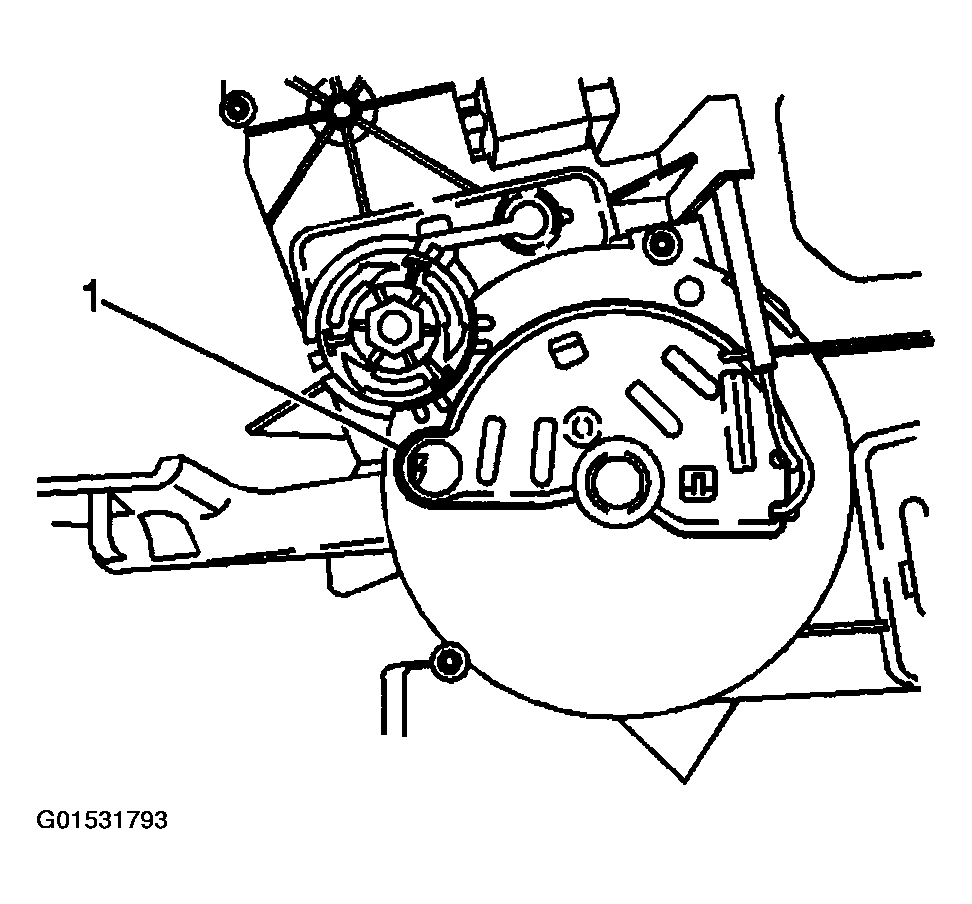

    Fig 1: Identifying Release Tab on Take-Up Guide
    G01531793Courtesy of GENERAL MOTORS CORP.
  3. Insert a #2 flat-bladed screwdriver into the take-up guide window against the outer side of the take-up guide release tab.
  4. Pry the take-up guide inward approximately 2 mm (1/16 in) in order to disengage the teeth of the take-up guide and drum.
  5. While holding the take-up guide inward, pull the door in the open direction to release the cable tension.
  6. Remove the #2 flat-bladed screwdriver from the take-up guide window.

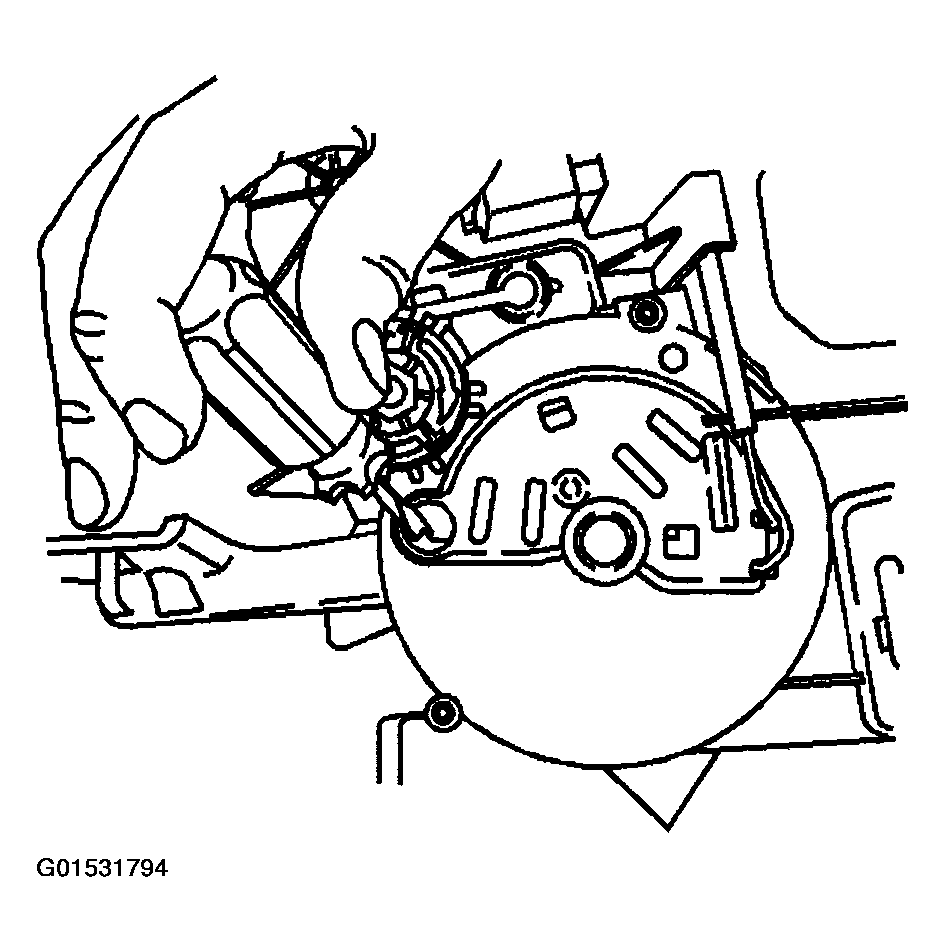

    Fig 2: Disengaging Take-Up Guide and Drum Teeth
    G01531794Courtesy of GENERAL MOTORS CORP.
  7. Position the door so that the slot (1) in the take-up guide is visible in the take-up guide window.

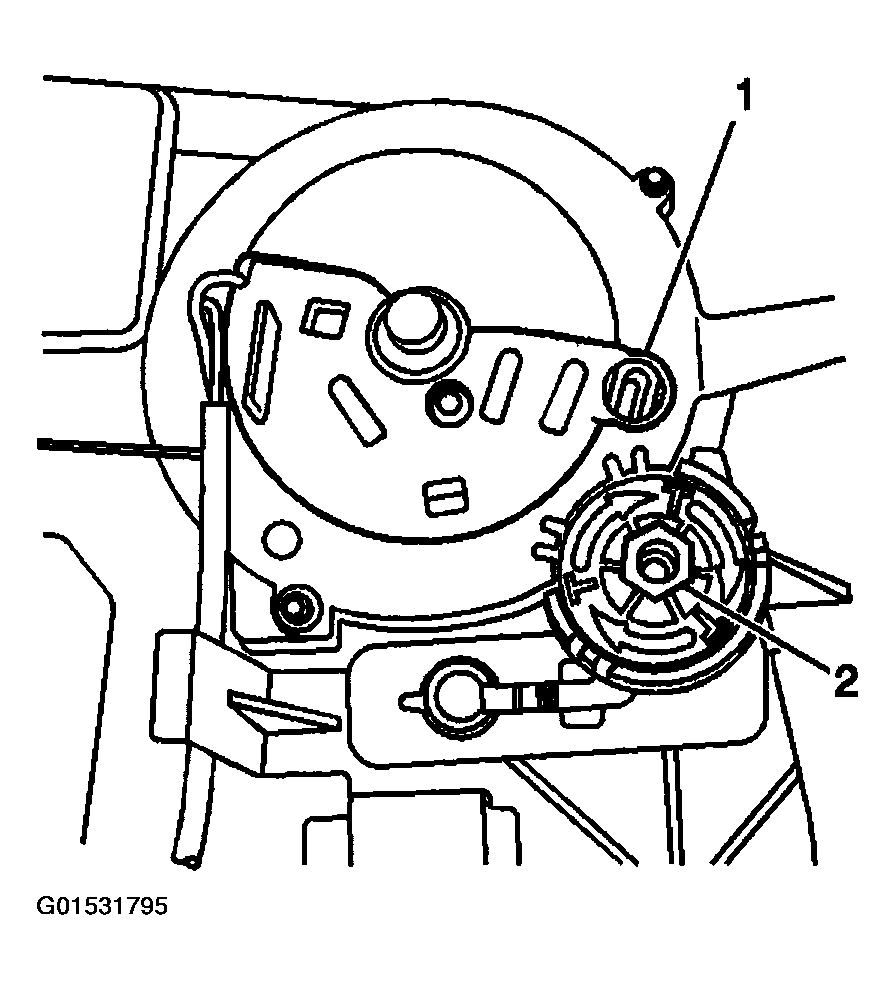

    Fig 3: Identifying Slot in Take-up Guide
    G01531795Courtesy of GENERAL MOTORS CORP.

Perform the following steps in order to tension the left power sliding door:

Important:  Do Not insert the screwdriver more than 5 mm (1/4 in) into the slot in the take-up guide window or damage to the teeth may occur.

  1. Insert a #2 flat-bladed screwdriver into the take up guide slot.
  2. Position the door to the closed position approximately 20 to 25 mm (1 in) in order to seat the #2 flat-bladed screwdriver in the take-up guide slot (1) and take-up window.

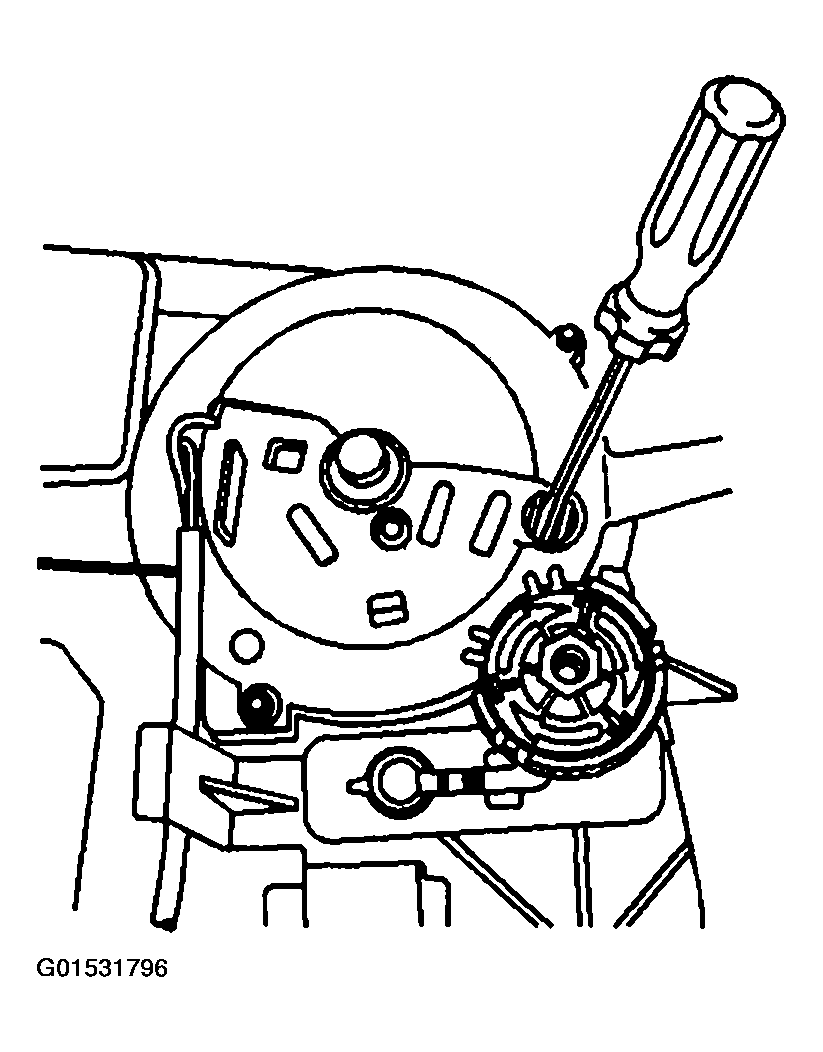

    Fig 4: Inserting Screwdriver Into Take Up Guide Slot
    G01531796Courtesy of GENERAL MOTORS CORP.
  3. While holding the take-up guide (1) in place, turn the hex nut (2) clockwise to tension the cable.

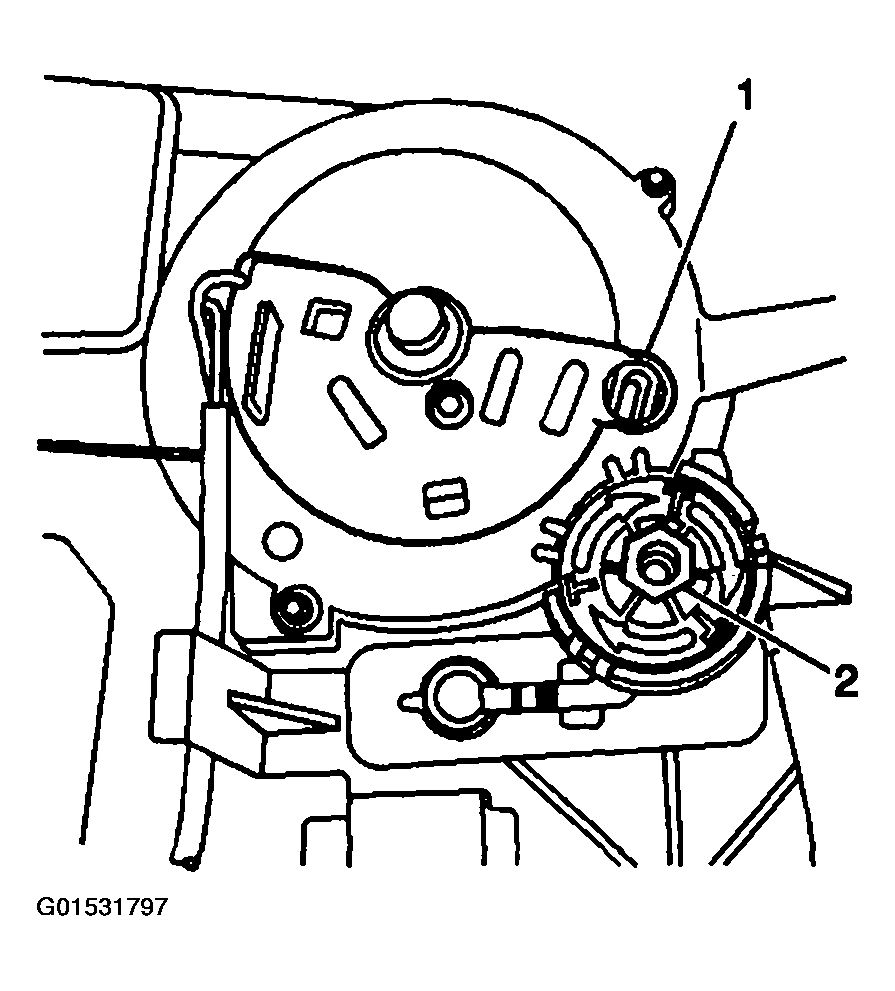

    Fig 5: Turning Hex Nut
    G01531797Courtesy of GENERAL MOTORS CORP.
  4. While turning the hex nut, observe the position of the front pulley in the viewing slot (1), when the center hub of the pulley is in line with the white indicator on the viewing slot, the cable is properly tensioned.
  5. Remove the #2 flat-bladed screwdriver from the take-up guide window

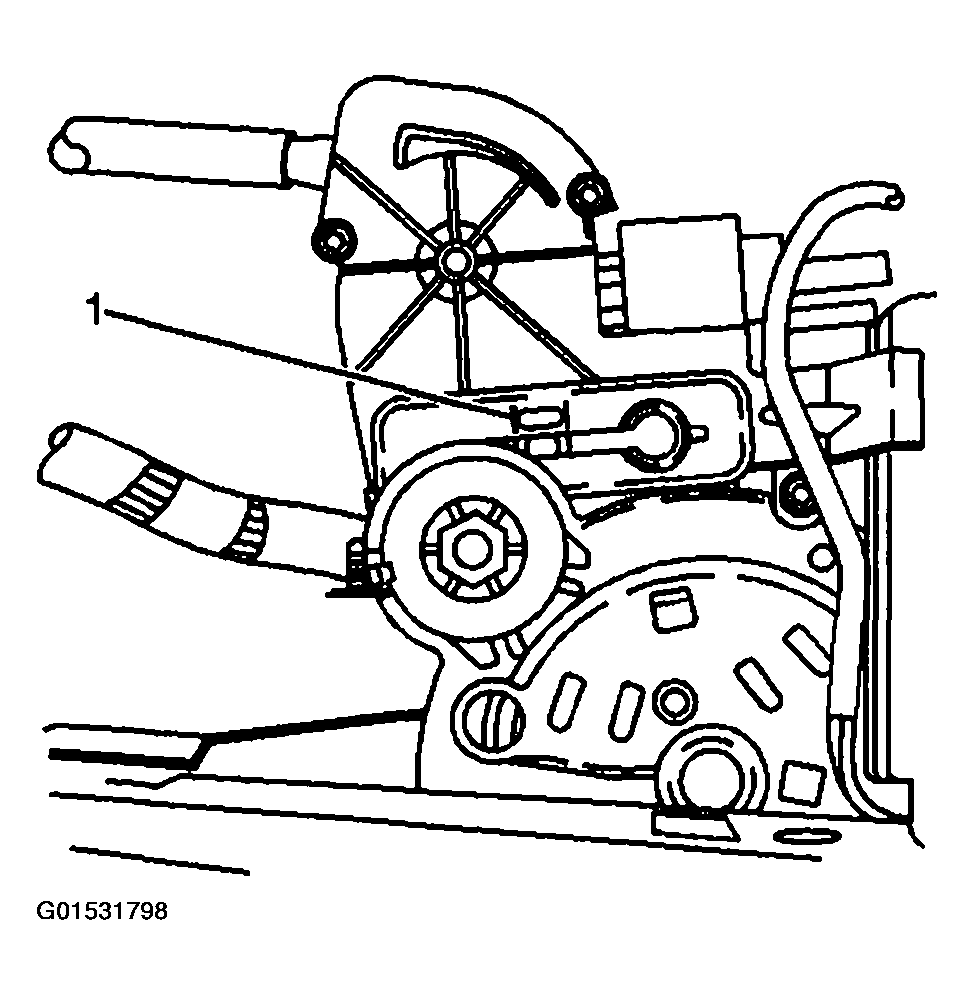

    Fig 6: Position Of Front Pulley In Viewing Slot
    G01531798Courtesy of GENERAL MOTORS CORP.
