Cable Tension Adjustment - Sliding Door (Alternate Method)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  2. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  3. Position the sliding door center roller bracket at the front of the track. Ensure that the bracket is 25 mm (1 in) away from the forward radius and that the cable tension adjuster nut is accessible in the adjuster window located on the Power Sliding Door motor clutch assembly.
  4. Use 2 medium Phillips head screwdrivers in order to move the cable tension indicators to the uppermost portion of the tension indicating windows. Hold the tension indicators in place in order to reduce the amount of force that is required to turn the adjuster nut.
  5. Insert the chuck end of a 9 mm (3/8 in) drill bit into the tensioning slot in the actuator motor.
  6. Complete the following steps simultaneously until you feel resistance in the cable. Resistance indicates that the cable is taut:
    • Grasp the tension adjusting nut with pliers.
    • Push the nut inward.
    • Turn the nut counterclockwise.
  7. Release the inward pressure on the nut and allow the nut to lock into place.
  8. Release the cable tension indicators.
  9. Verify that the cable tension indicators are located between both the front and rear double blocks marked on the PSD module housing. The tension is acceptable if the indicators are slightly high but are touching the indicator marks. If the indicators are below the indicator marks, repeat step 6 through step 11 until you obtain enough tension. If the tension is too high, push in on the adjuster nut in order to release the tension, then repeat step 6 through step 11.
  10. Operate the sliding door manually.
  11. Position the door as described in step 5. Verify that the tension is correct. If the tension is incorrect, repeat Step 6 through step 11 until you obtain the correct tension.
  12. Install the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER in Interior Trim.
  13. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  14. Perform the reinitialization procedure. Refer to POWER SLIDING DOOR (PSD) RE-INITIALIZATION  .

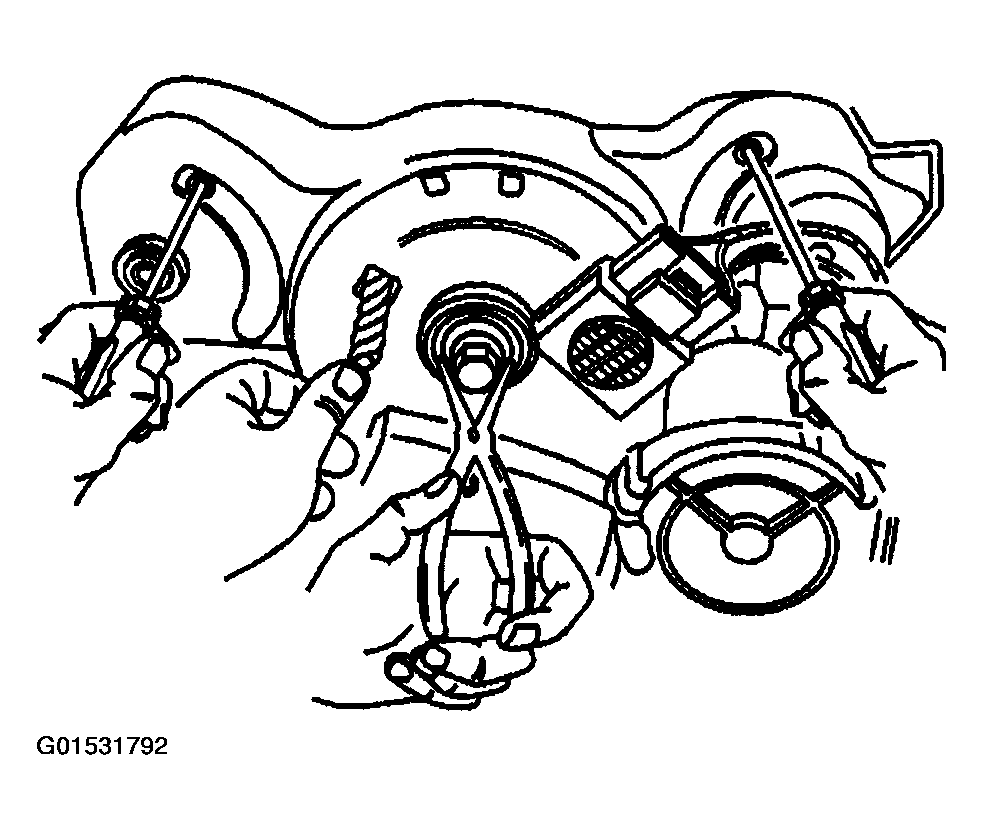

    Fig 1: Identifying Cable Tension Adjustment - Sliding Door
    G01531792Courtesy of GENERAL MOTORS CORP.
