Steering Column Tilt Head Housing - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 23653-SIR Steering Column Lock Plate Compressor
J 42137 Steering Column Lock Plate Compressor Adapter

Install the inner race (1).
Install the upper bearing inner race seat (2).
Install the upper bearing spring (3).
Install the turn signal cancel cam assembly (4). Lubricate with synthetic grease.

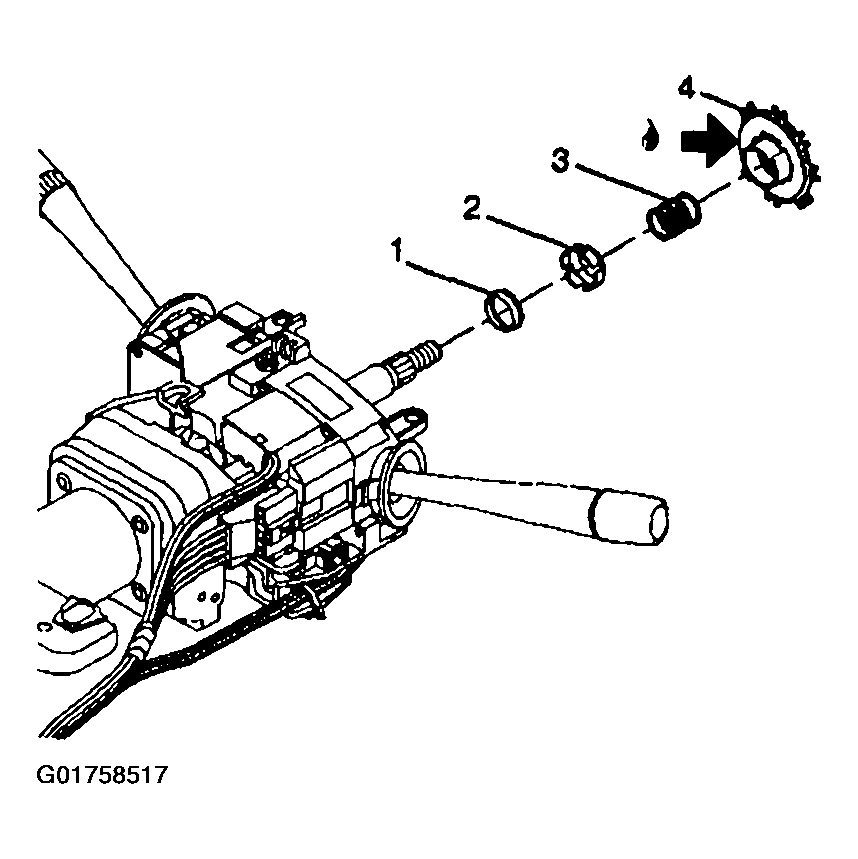

Fig 1: Installing Inner Race, Inner Race Seat, Spring And Cancel Cam Assembly Removed
Courtesy of GENERAL MOTORS CORP.
Install the cam orientation plate (1).
Install the new bearing retainer (2) using tools J 23653-SIR and J 42137. The bearing retainer must be firmly seated in the groove on the race and upper shaft assembly.
Install the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.

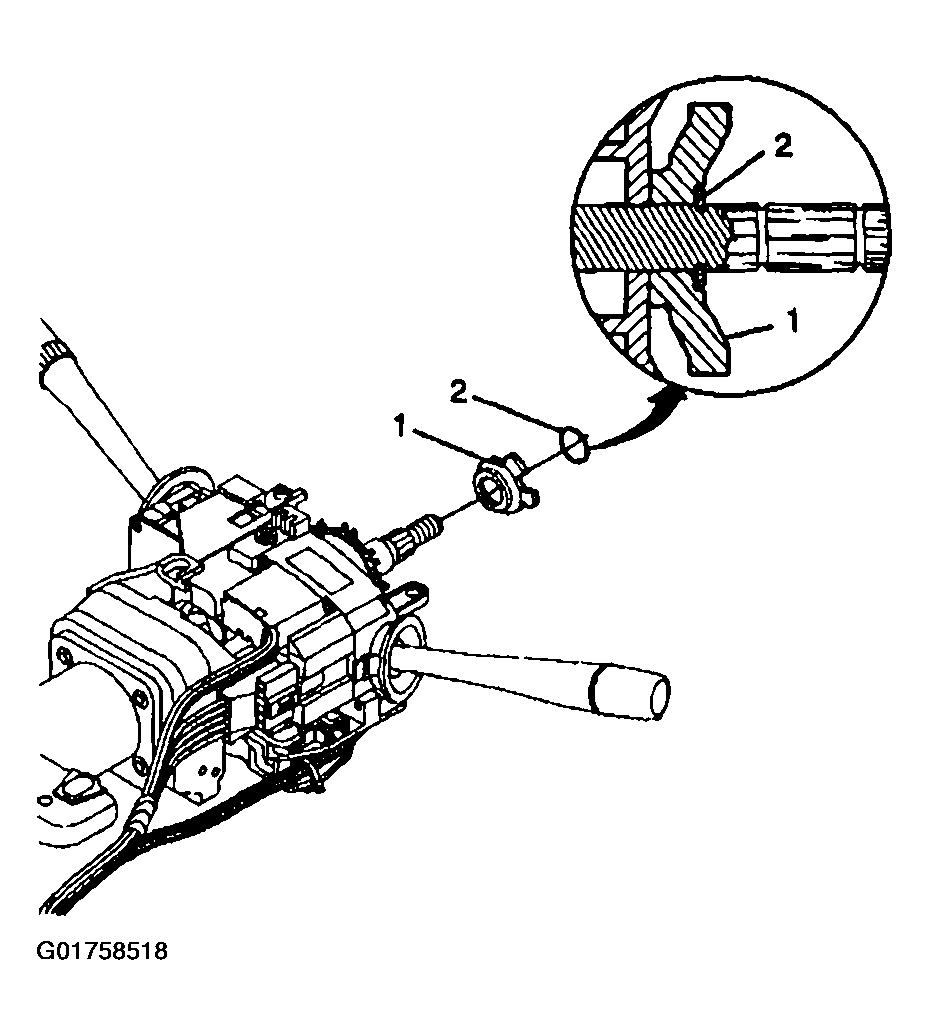

Fig 2: Cam Orientation Plate And New Bearing Retainer
