Steering Column Trim Covers - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE
  1. Assemble the upper trim cover (2) and secure by using 2 Torx® head screws (1).

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

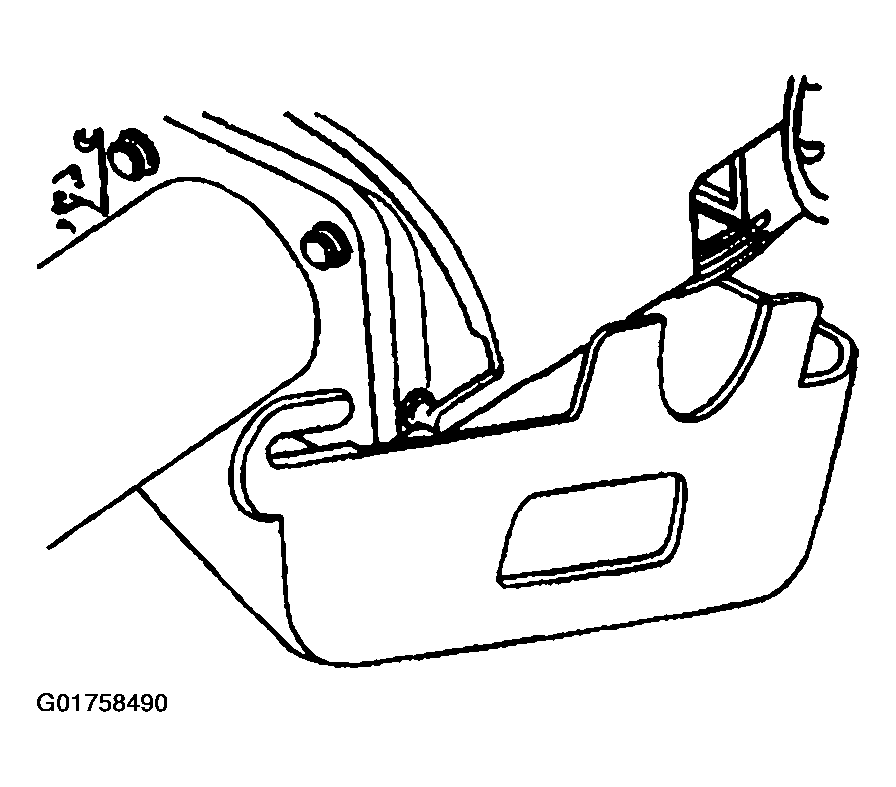

    Fig 1: Installing Upper Trim Cover And Torx® Head Screws
    G01758490Courtesy of GENERAL MOTORS CORP.
  2. Install the lower trim cover to the upper trim cover.

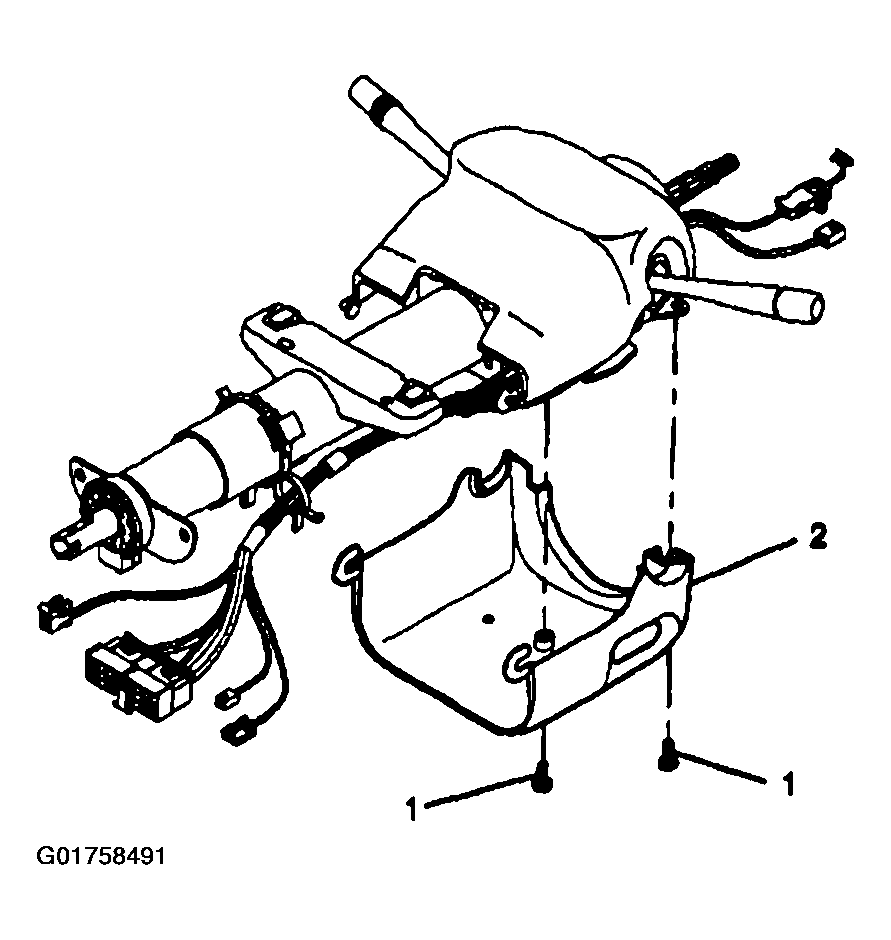

    Fig 2: Install Lower Trim Cover To Upper Trim Cover
    G01758491Courtesy of GENERAL MOTORS CORP.
  3. Assemble the lower trim cover (2) and secure by using 2 pan head tapping screws (1).

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  4. Install the steering column into the vehicle. Refer to Steering Column Replacement
  5. Install the steering wheel onto the steering column. Refer to Steering Wheel Replacement
  6. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle
  7. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.

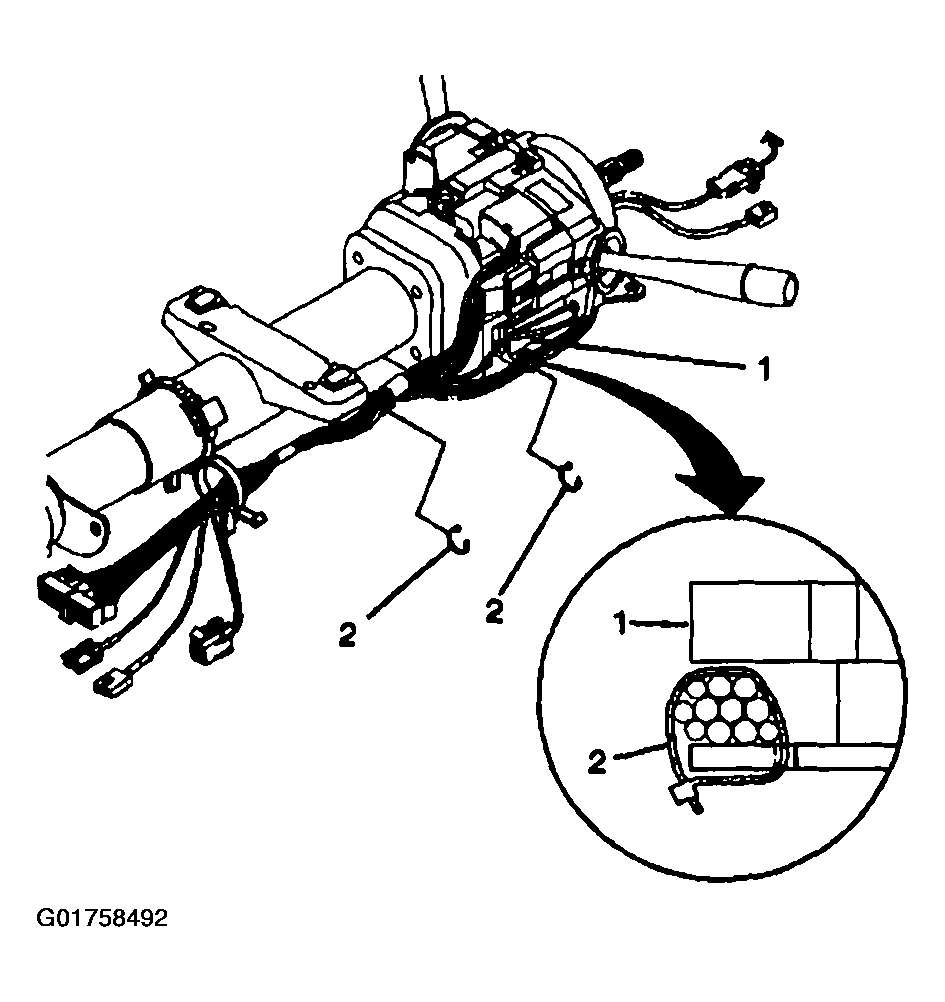

    Fig 3: Removing Wire Harness Strap From Upper Tilt Head Assembly
    G01758492Courtesy of GENERAL MOTORS CORP.
