Removal & Installation (Driver-side)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 3  under DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Turn ignition on. Turn steering wheel so that 2 holes on back of steering wheel are accessible. Install Air Bag Module Remover (J-44298) into holes. See Fig 1. Release driver-side air bag module spring clips. Turn steering wheel 180 degrees and release remaining 2 spring clips.
  3. Pull driver-side air bag module away from steering wheel. Remove Connector Position Assurance (CPA) clip from driver-side air bag connector and disconnect connector. See Fig 2. Make note of wire positioning for use during installation. Remove horn ground lead from steering wheel. Turn horn contact lead 1/4 turn counterclockwise to release from steering wheel. Remove horn contact lead from steering column. Remove driver-side air bag module.
  4. To install, reverse removal procedure. Ensure wires are positioned properly. Activate air bag system. See ZONE 3  under DISABLING & ACTIVATING AIR BAG SYSTEM.
Fig 1: Identifying Air Bag Module Remover
G99B23979Courtesy of GENERAL MOTORS CORP.

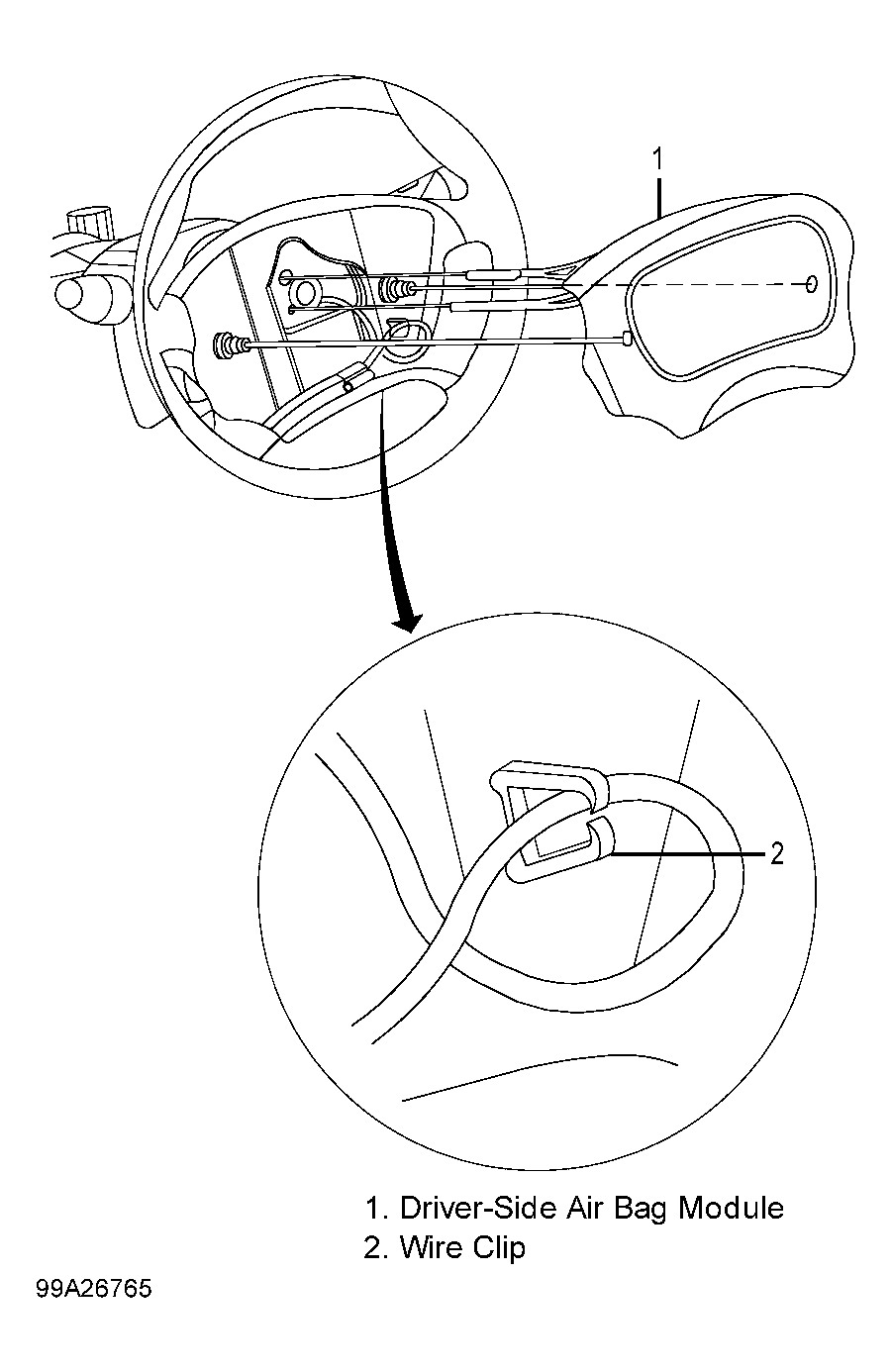

Fig 2: Identifying Driver-side Air Bag Module
G99A26765Courtesy of GENERAL MOTORS CORP.
