Zone 3

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.
  2. Remove access panel from end of driver-side instrument panel. Remove AIR BAG fuse (15-amp) from instrument panel fuse block. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector, located under instrument panel, left of steering column. See Fig 1.

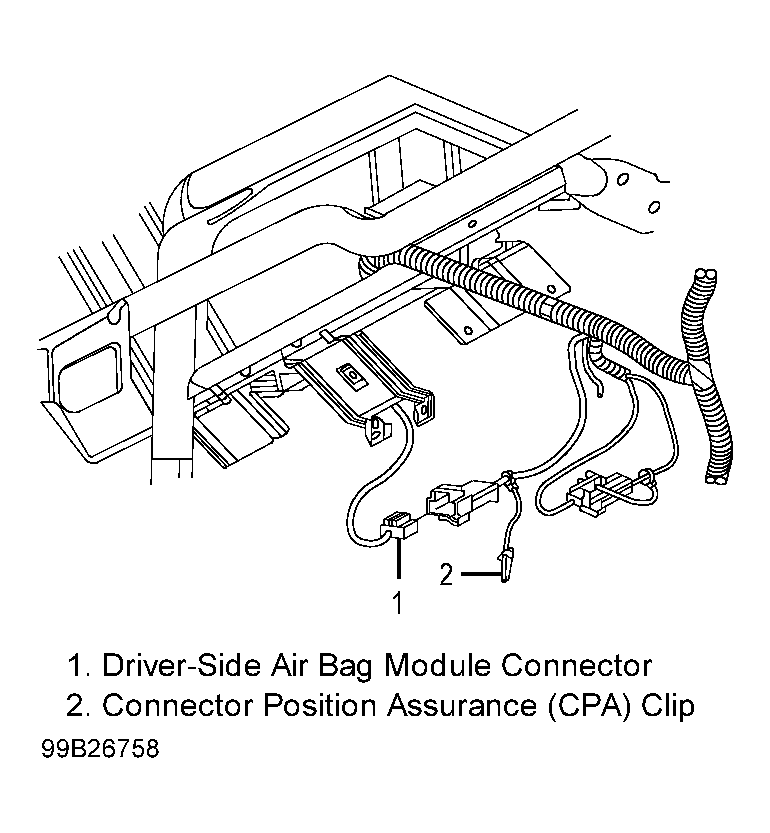

Fig 1: Identifying Driver-side Air Bag Module Connector
G99B26758Courtesy of GENERAL MOTORS CORP.
