Turn Signal Switch Housing - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper tilt head components. Refer to Steering Column Tilt Head Housing - Disassemble - Off Vehicle .
  3. Remove the turn signal and multifunction switch assembly only. Refer to Turn Signal & Multifunction Switch Assembly - Disassemble - Off Vehicle .
  4. Slide the signal switch housing assembly off of the steering column shaft assembly.

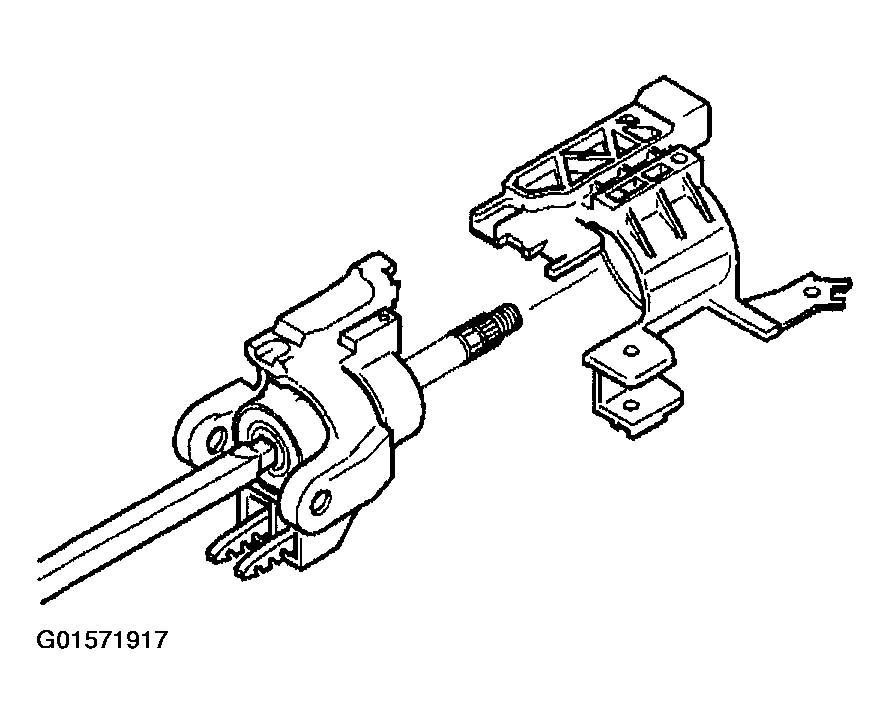

    Fig 1: Signal Switch Housing Assembly
    G01571917Courtesy of GENERAL MOTORS CORP.
