Turn Signal & Multifunction Switch Assembly - Disassemble - Off Vehicle
WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle .

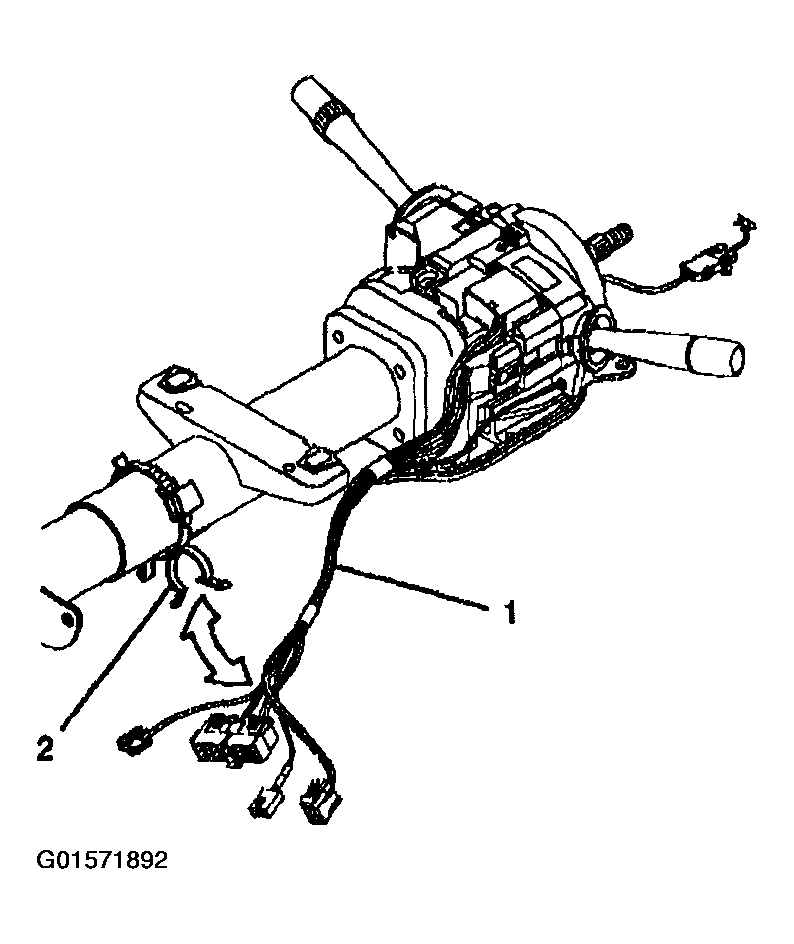

- Pop the wire harness assembly (1) out of the wire harness strap (2).
- Remove the small wire harness straps from the wire harness assembly (1).
- Disconnect the connectors of the turn signal and multifunction switch assembly.

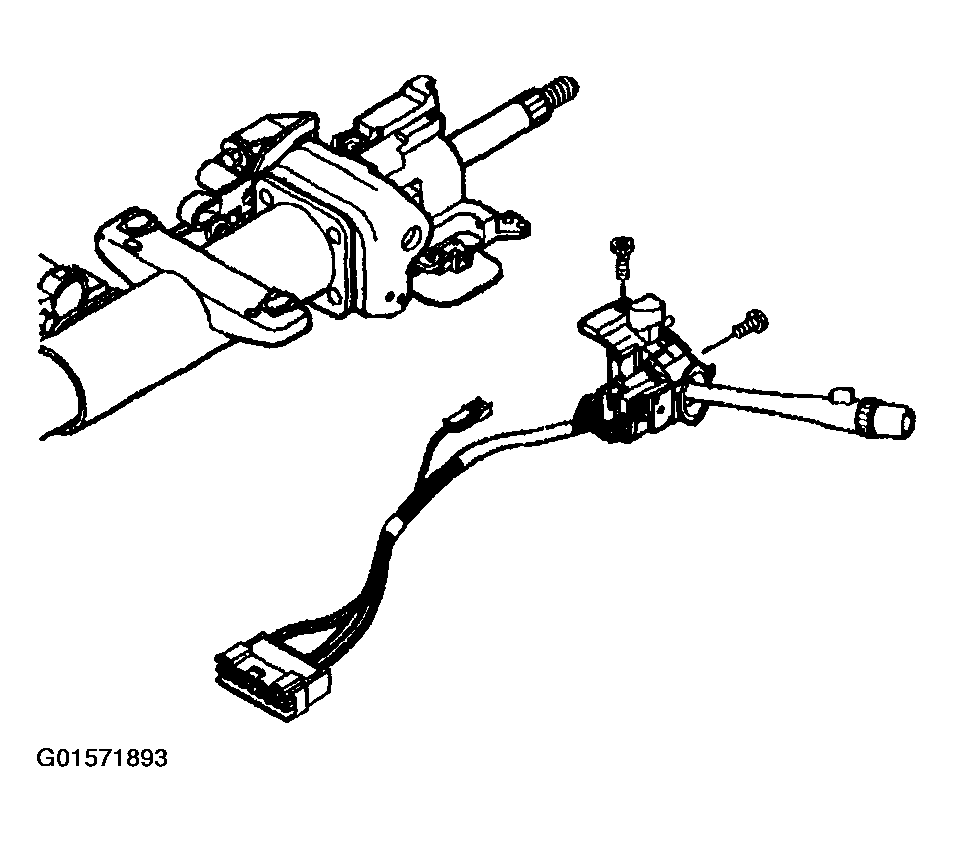

- Remove the 2 pan head tapping screws from the turn signal and multifunction switch assembly. Remove the turn signal and multifunction switch assembly.
