Removal Procedure
WARNING:
The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.
WARNING:
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Without draining the engine coolant and without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement (LGX)Radiator Surge Tank Replacement (LSY)
- Thoroughly clean the brake master cylinder of any accumulated dirt and debris.
Brake Pipe Fitting (1) - Disconnect
- Plug the brake master cylinder outlet port to prevent brake fluid loss and contamination.
- Brake Pipe Clip (2) - Release
Drivetrain and Front Suspension Cradle (1) - Remove - Drivetrain and Front Suspension Cradle Replacement
Brake Pipe Clip (1) - Release
Brake Pipe Clip (1) - Release
Brake Pipe Clip (1) - Release

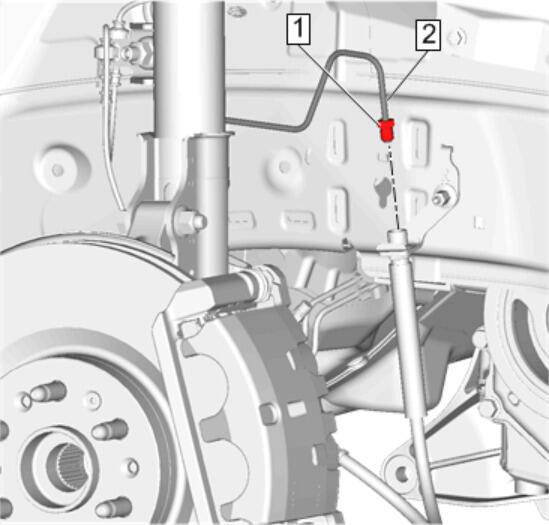

Brake Pipe Fitting (1) - Disconnect
- Brake Pipe (2) - Remove
