Removal Procedure

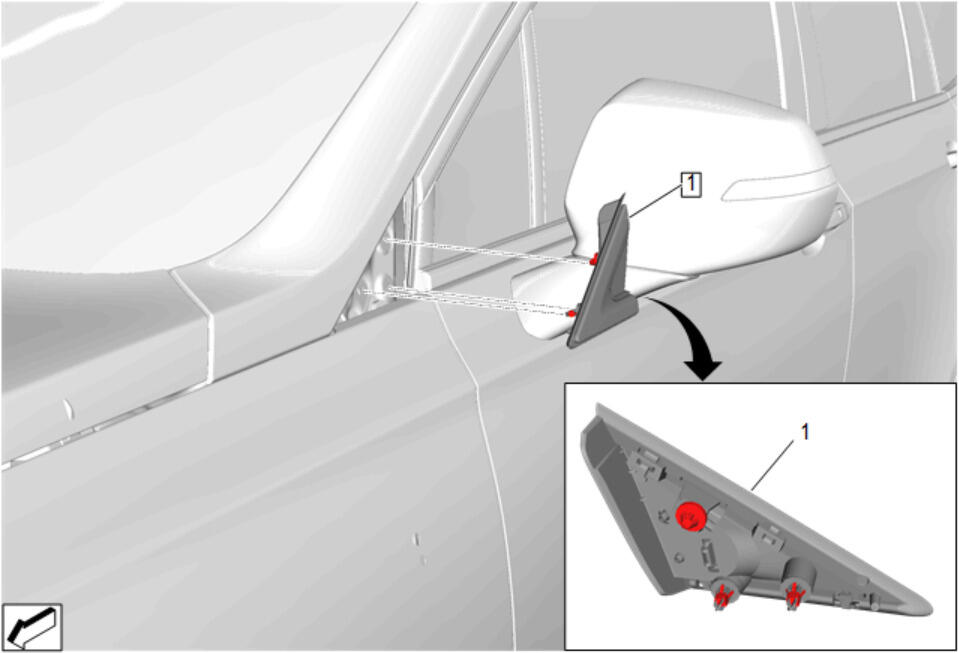

GM5190996Courtesy of GENERAL MOTORS COMPANY
  1. Front Fender Upper Rear Molding (1) - Remove - Front Fender Upper Rear Molding Replacement

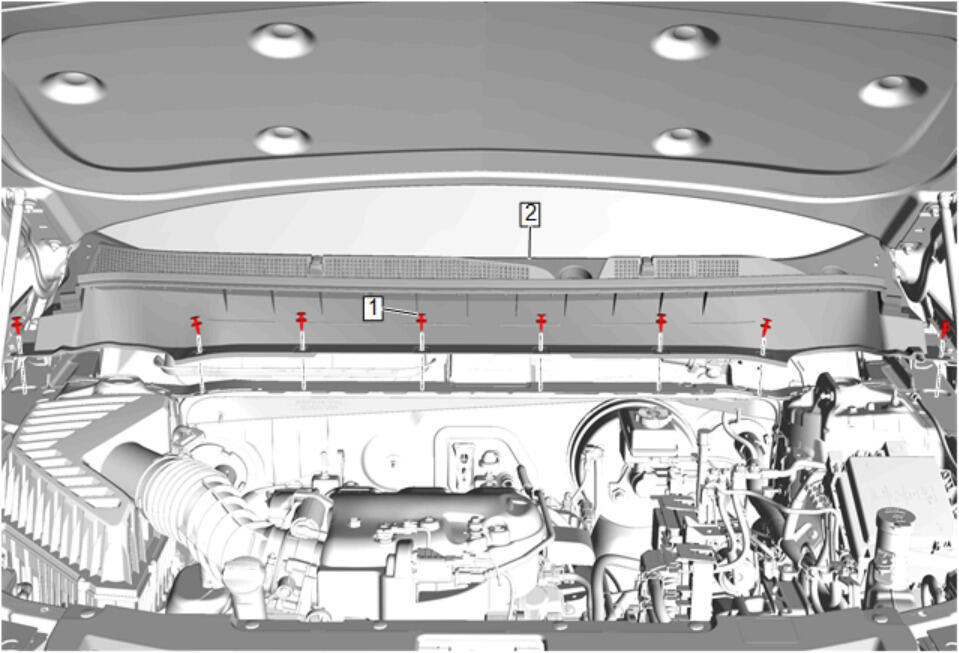

    GM5206147Courtesy of GENERAL MOTORS COMPANY
  2. Air Inlet Grille Panel (2) - Remove - Air Inlet Grille Panel Replacement
    GM5131612Courtesy of GENERAL MOTORS COMPANY
  3. Using the appropriate tool, release the foam insulation on the front compartment side rail baffle (1) from the fender.

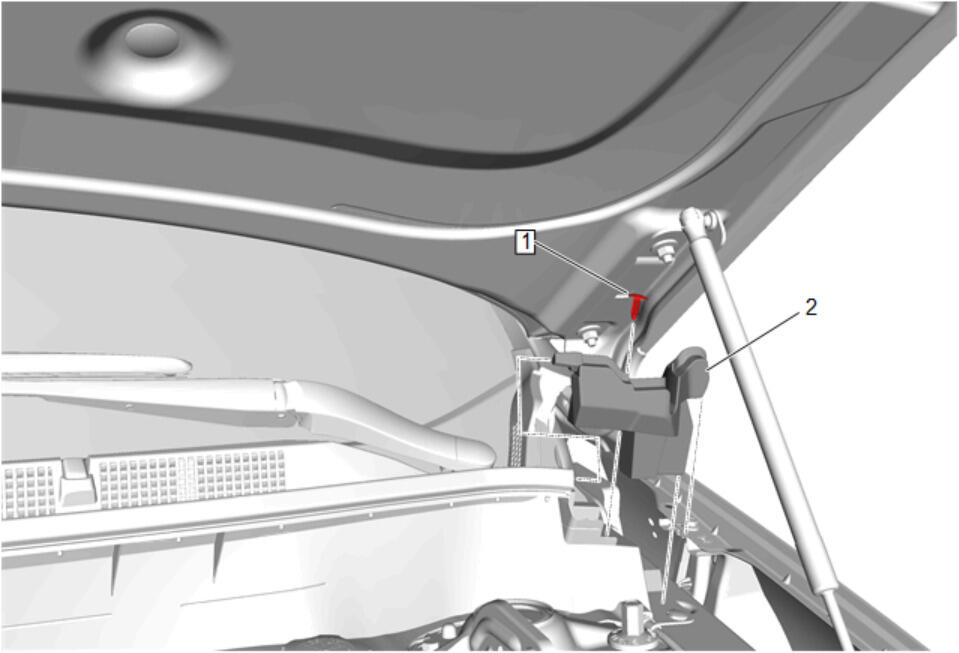

    GM5192536Courtesy of GENERAL MOTORS COMPANY
  4. Hood Rear Outer Air Inlet Seal (2) - Remove - Hood Rear Outer Air Inlet Seal Replacement
    GM5206423Courtesy of GENERAL MOTORS COMPANY
  5. Front Fender Insulator (2) - Remove - Front Fender Insulator Replacement
  6. Front Bumper Fascia Guide - Remove - Front Bumper Fascia Guide Replacement

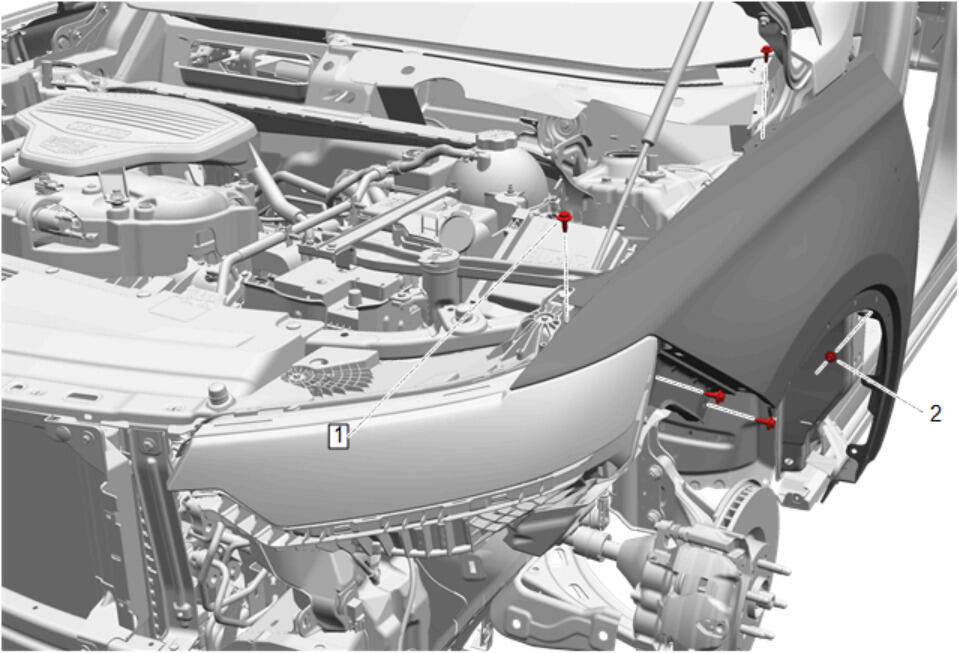

    GM5207041Courtesy of GENERAL MOTORS COMPANY
  7. Front Fender Bolt (1) - Remove [4x]
  8. Front Fender Nut (2) - Remove

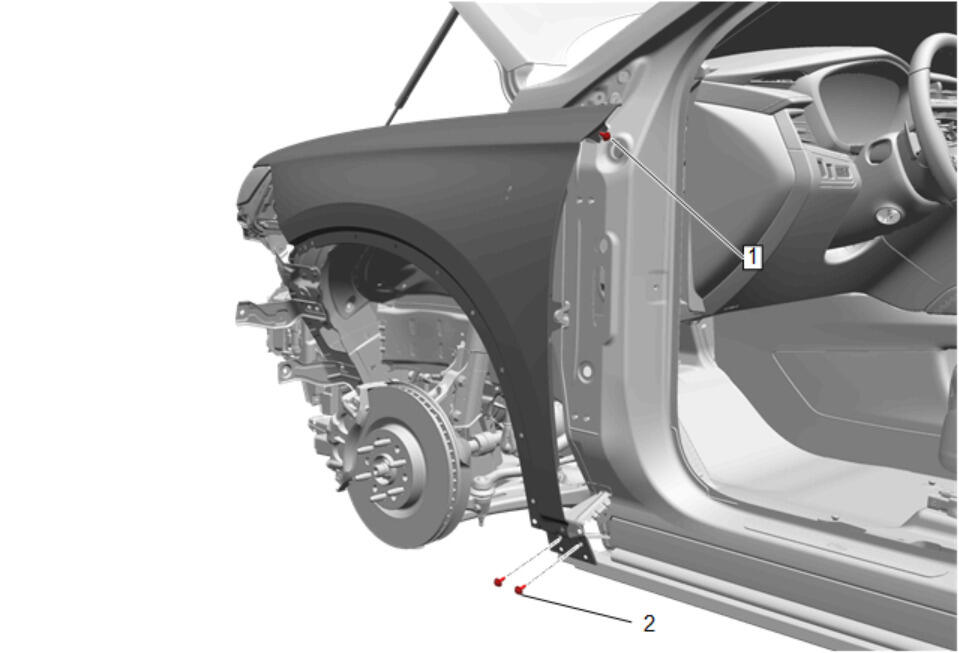

    GM5207042Courtesy of GENERAL MOTORS COMPANY
  9. Front Fender Bolt (1) - Loosen
  10. Front Fender Bolt (2) - Remove [2x]

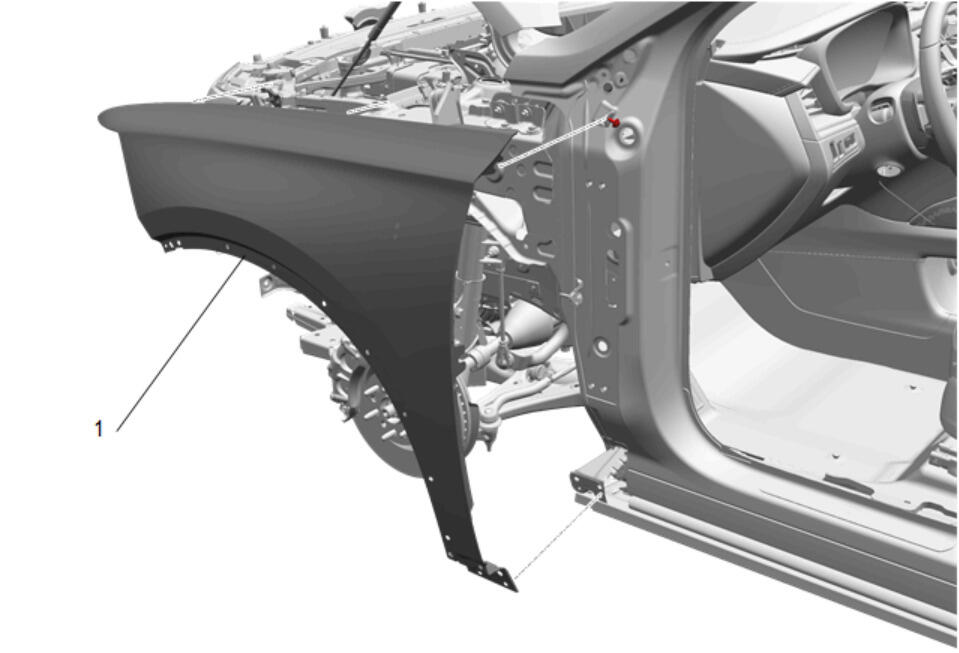

    GM5207044Courtesy of GENERAL MOTORS COMPANY
  11. Front Fender (1) - Remove
  12. Transfer components as necessary.
