Front Bumper Fascia Guide Replacement

Courtesy of GENERAL MOTORS COMPANY

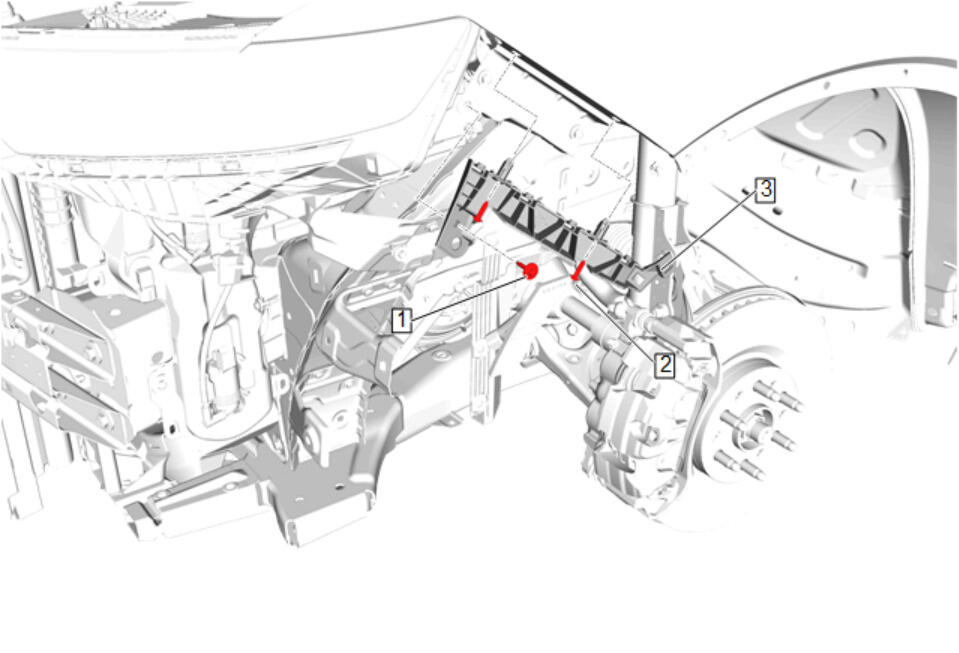

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Removal and Installation
1	Headlamp Bolt Procedure  Remove the headlamp bolt. Front Headlamp Replacement
2	Front Bumper Fascia Guide Bolt [ 2x ] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
3	Front Bumper Fascia Guide
