Fastener Specifications

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

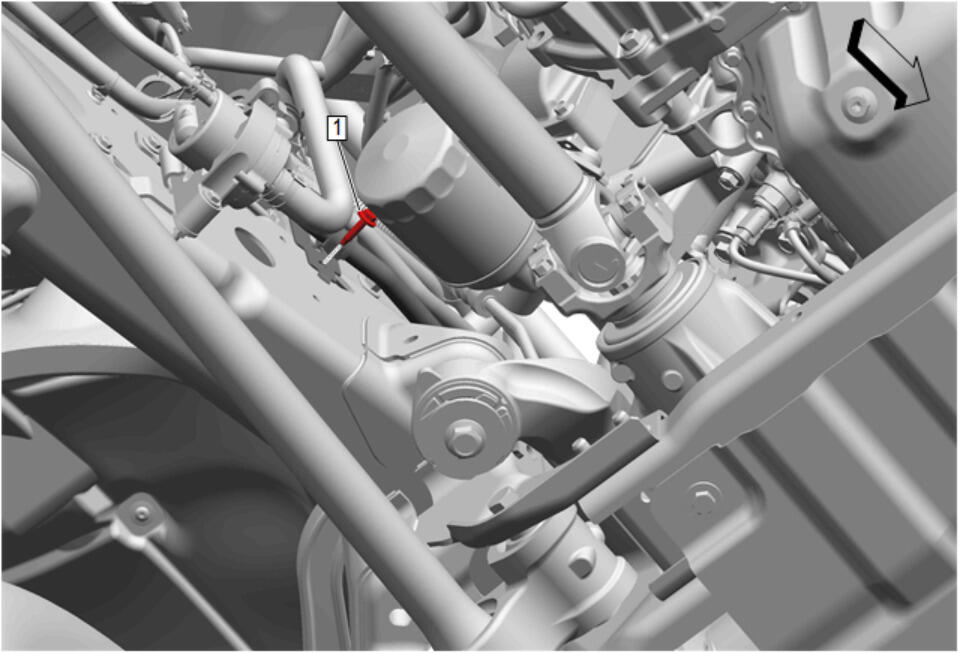

GM5285268Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Auxiliary Radiator Inlet Hose (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Heater Inlet and Outlet Bolt - - 9 N.m (80 lb in) Auxiliary Radiator Inlet Hose Replacement (L5P)

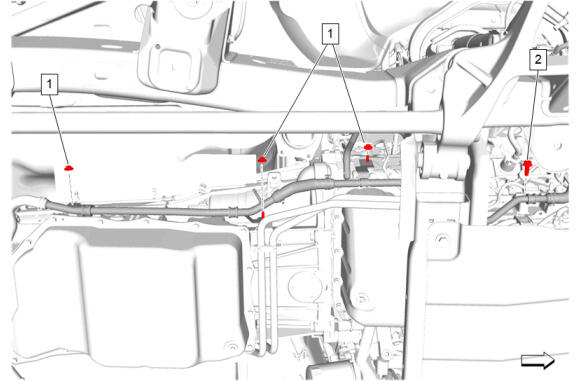

GM5786857Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Auxiliary Radiator Outlet Hose (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Heater Inlet and Outlet Nut [3x] - - 9 N.m (80 lb in) Auxiliary Radiator Outlet Hose Replacement (L5P)
2 Radiator Outlet Hose Clip Bolt - - 58 N.m (43 lb ft) Auxiliary Radiator Outlet Hose Replacement (L5P)

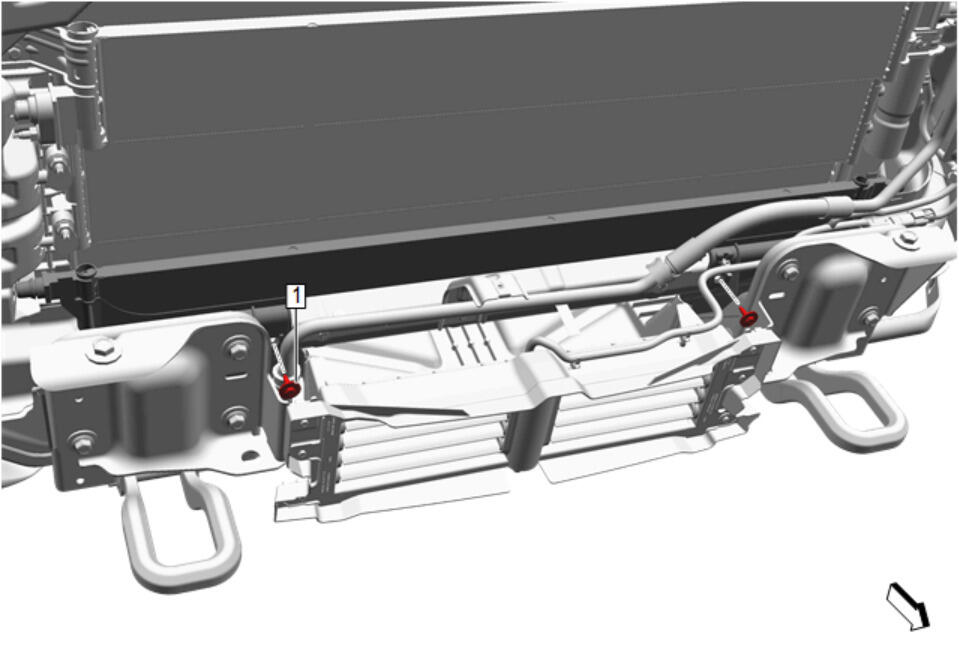

GM5298457Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Auxiliary Radiator (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Radiator Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Auxiliary Radiator Replacement (L5P)

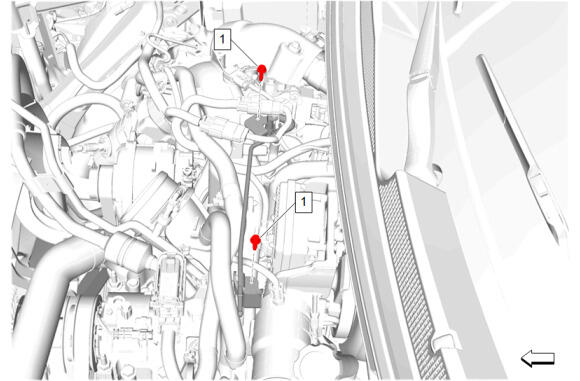

GM5786912Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Air Bleed Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Air Bleed Pipe Bolt [2x] - - 10 N.m (89 lb in) Engine Coolant Air Bleed Pipe Replacement (L5P)

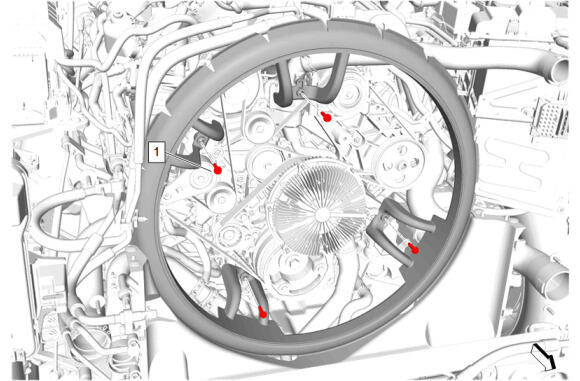

GM5787209Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Fan Rear Shroud (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Fan Bracket Bolt [4x] - - 22 N.m (16 lb ft) Engine Coolant Fan Rear Shroud Replacement (L8T) , or Engine Coolant Fan Rear Shroud Replacement (L5P)

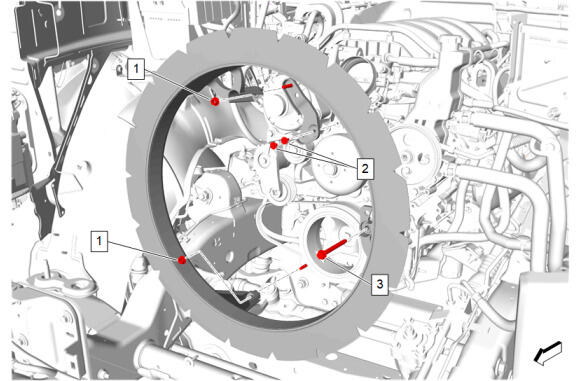

GM5787214Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Fan Rear Shroud (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Fan Nut [2x] - - 22 N.m (16 lb ft) Engine Coolant Fan Rear Shroud Replacement (L8T)
2 Engine Coolant Fan Bracket Bolt@Water Pump [2x] - - 9 N.m (80 lb in) Engine Coolant Fan Rear Shroud Replacement (L8T)
3 Engine Coolant Fan Bracket Bolt - - 22 N.m (16 lb ft) Engine Coolant Fan Rear Shroud Replacement (L8T)

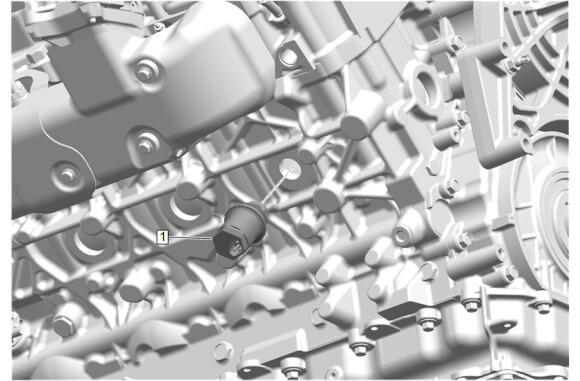

GM5775567Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Heater (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Heater - - 65 N.m (48 lb ft) Engine Coolant Heater Replacement (L5P)

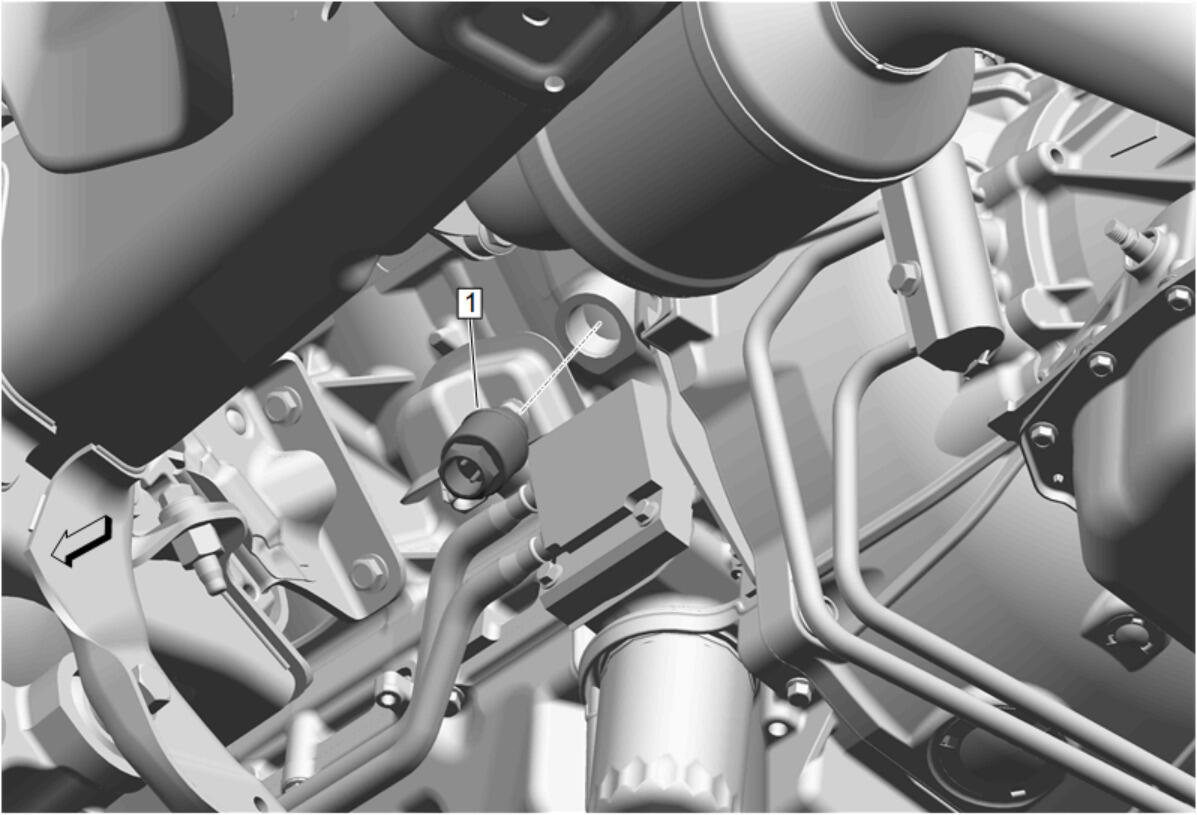

GM5366486Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Heater (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Heater - - 50 N.m (37 lb ft) Engine Coolant Heater Replacement (L8T)
GM5809001Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Thermostat (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Thermostat (Primary Dual Stage) Yes - - Engine Coolant Thermostat Replacement
Engine Coolant Thermostat Housing Replacement (L5P)
Water Outlet Replacement
2 Engine Coolant Thermostat (with Bypass Valve) Yes - - Engine Coolant Thermostat Replacement
Engine Coolant Thermostat Housing Replacement (L5P)
Water Outlet Replacement

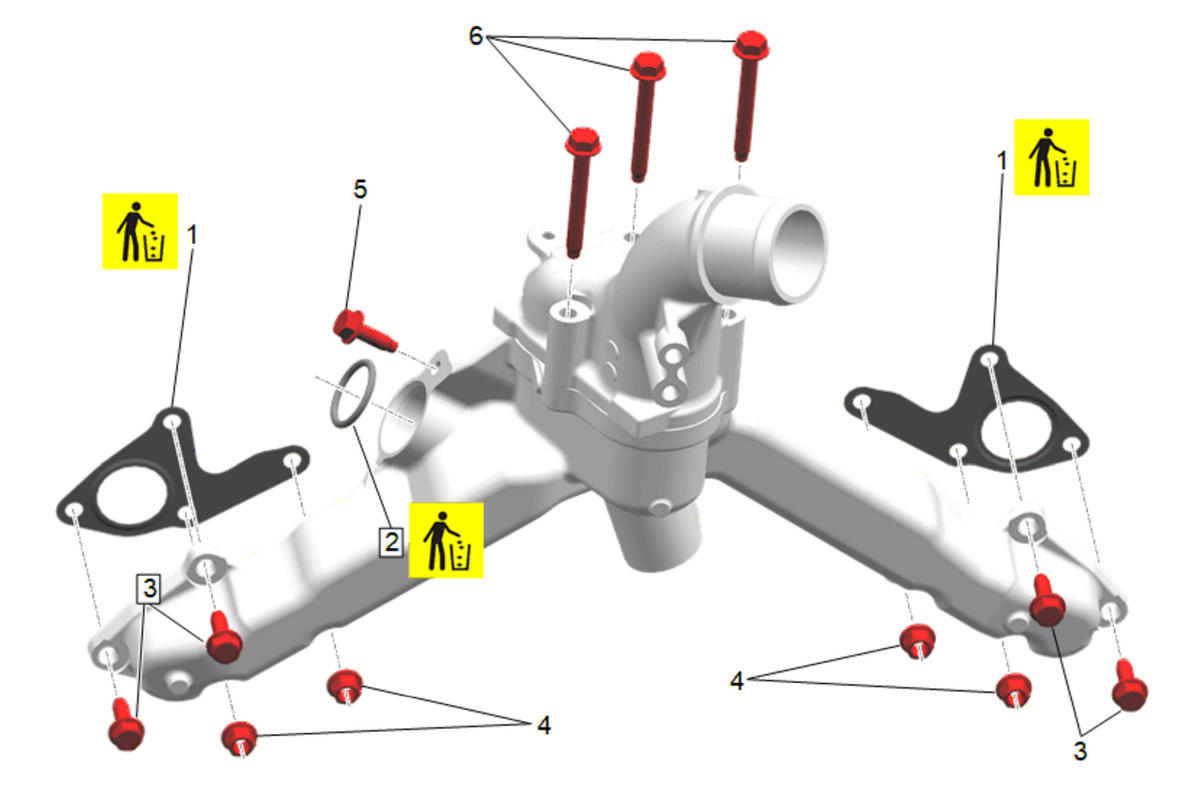

GM5758169Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Coolant Thermostat Housing, Water Outlet (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Coolant Thermostat Housing Gasket [2x] Yes - - Engine Coolant Thermostat Housing Replacement (L5P)
2 Exhaust Gas Recirculation Coolant Feed Pipe Seal Yes - - Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
3 Engine Coolant Thermostat Housing Bolt [4x] - Yes Engine Coolant Thermostat Housing Bolt and Nut Sequence (L5P)  Engine Coolant Thermostat Housing Replacement (L5P)
4 Engine Coolant Thermostat Housing Nut [4x] - - Engine Coolant Thermostat Housing Bolt and Nut Sequence (L5P)  Engine Coolant Thermostat Housing Replacement (L5P)
5 Exhaust Gas Recirculation Coolant Feed Pipe Bolt - - 25 N.m (18 lb ft) Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
6 Water Outlet Bolt [3x] - - 25 N.m (18 lb ft) Water Outlet Replacement
GM5796822Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Oil Cooler Connector, Engine Oil Cooler Pipe Bracket Bolt (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Pipe Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Oil Cooler Connector Replacement - Upper (L8T)
Engine Oil Cooler Connector Replacement - Lower (L8T)
2 Engine Oil Cooler Connector - - 20 N.m (15 lb ft) Engine Oil Cooler Connector Replacement - Upper (L8T)
3 Engine Oil Cooler Connector - - 20 N.m (15 lb ft) Engine Oil Cooler Connector Replacement - Lower (L8T)

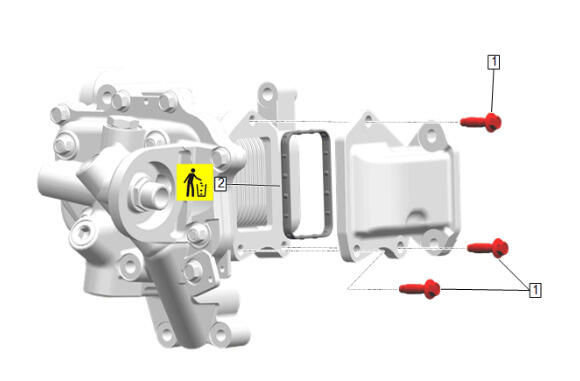

GM5744653Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Oil Cooler Adapter (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Adapter Bolt [3x] - - 25 N.m (18 lb ft) Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
2 Engine Oil Cooler Adapter Gasket Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)

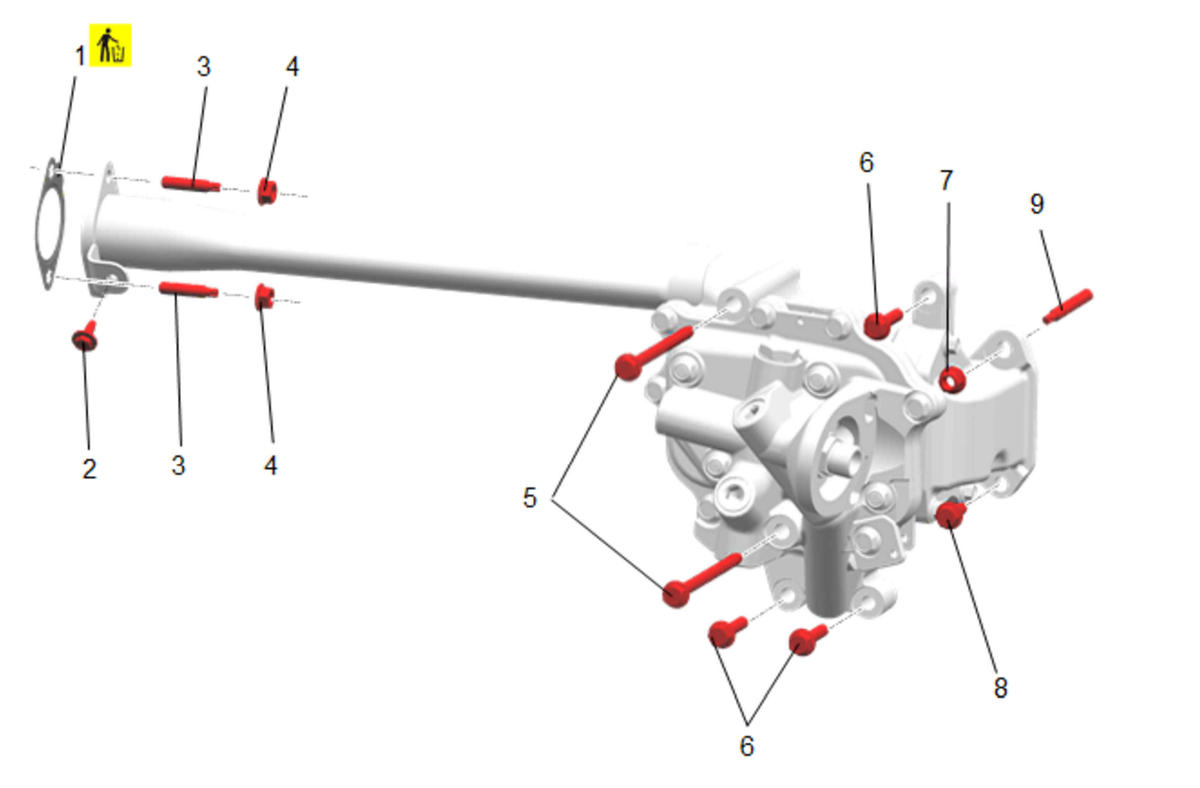

GM5744511Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Oil Cooler, Water Pump Outlet Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Outlet Pipe Gasket Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
2 Engine Wiring Harness Ground Bolt - - 9 N.m (80 lb in) Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
3 Water Pump Outlet Pipe Stud [2x] - - 9 N.m (80 lb in) Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
4 Water Pump Outlet Pipe Nut [2x] - - 25 N.m (18 lb ft) Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
5 Engine Oil Cooler Bolt [2x] - - Engine Oil Cooler Bolt and Nut Torque Sequence (L5P)  Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
6 Engine Oil Cooler Bolt [3x] - - Engine Oil Cooler Bolt and Nut Torque Sequence (L5P)  Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
7 Engine Oil Cooler Nut - - Engine Oil Cooler Bolt and Nut Torque Sequence (L5P)  Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
8 Engine Oil Cooler Adapter Bolt - - Engine Oil Cooler Bolt and Nut Torque Sequence (L5P)  Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
9 Engine Oil Cooler Stud - - 9 N.m (80 lb in) Flywheel Housing Replacement (2WD) , or Flywheel Housing Replacement (4WD)

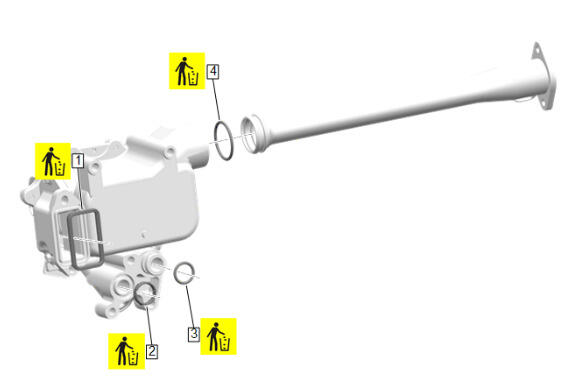

GM5744364Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Oil Cooler, Water Pump Outlet Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Adapter Gasket Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
2 Engine Oil Cooler Seal Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
3 Engine Oil Cooler Seal Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
4 Water Pump Outlet Port Seal Yes - - Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD)
GM5651906Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Engine Oil Cooler Hose, Engine Coolant Heater (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Cooler Hose Bracket Nut - - 9 N.m (80 lb in) Engine Oil Cooler Hose Replacement (L8T with 2WD) , or Engine Oil Cooler Hose Replacement (L8T with 4WD)
2 Auxiliary Heater Front Wiring Harness Vacuum Hose Clip Bolt - - 9 N.m (80 lb in) Engine Oil Cooler Hose Replacement (L8T with 2WD) , or Engine Oil Cooler Hose Replacement (L8T with 4WD)
3 Engine Oil Cooler Hose Bolt [2x] - - 9 N.m (80 lb in) Engine Oil Cooler Hose Replacement (L8T with 2WD) , or Engine Oil Cooler Hose Replacement (L8T with 4WD)
4 Oil Pan Cover Gasket Yes - - Engine Oil Cooler Hose Replacement (L8T with 2WD) , or Engine Oil Cooler Hose Replacement (L8T with 4WD)
5 Engine Coolant Heater - - 50 N.m (37 lb ft) Engine Coolant Heater Replacement (L8T)

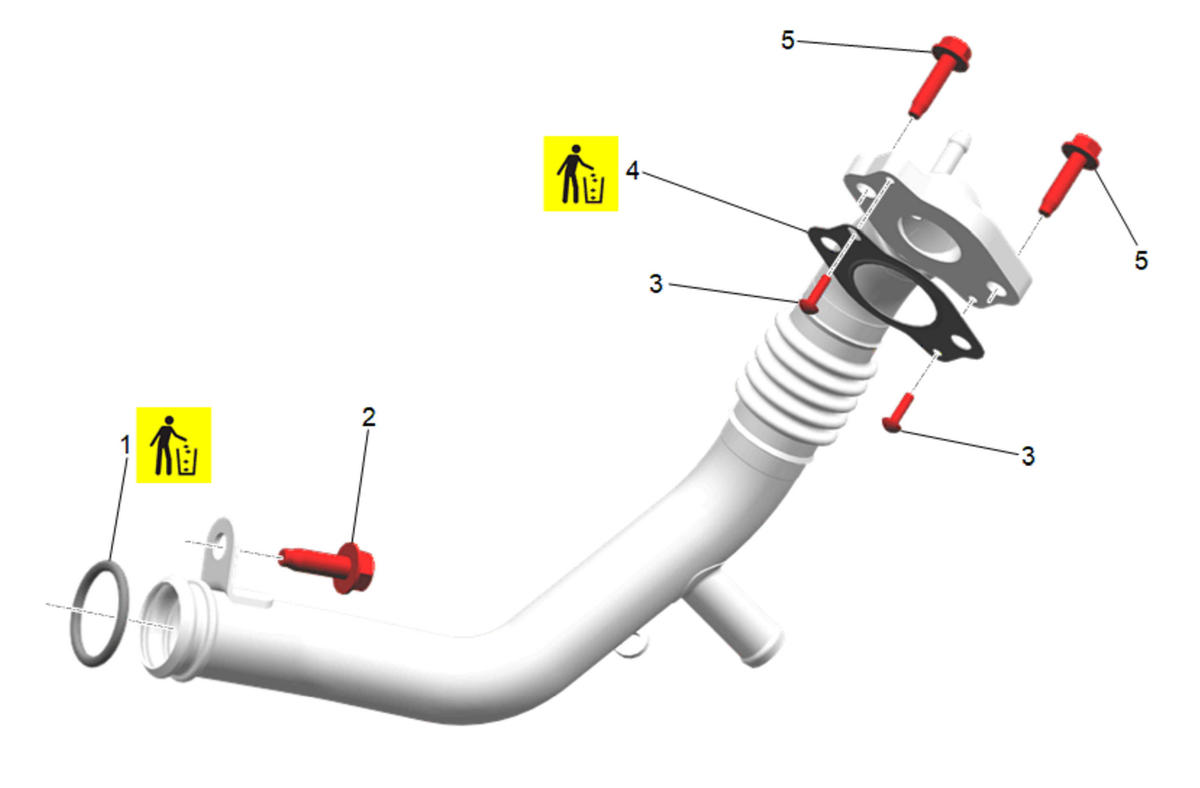

GM5766450Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Exhaust Gas Recirculation Manifold Cooling Feed Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Coolant Feed Pipe Seal Yes - - Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
2 Exhaust Gas Recirculation Manifold Cooling Feed Pipe Bolt - - 25 N.m (18 lb ft) Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
3 Retainer [2x] - - - Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
4 Exhaust Gas Recirculation Manifold Cooling Feed Pipe Gasket Yes - - Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)
5 Exhaust Gas Recirculation Manifold Cooling Feed Pipe Bolt [2x] - - 10 N.m (89 lb in) Exhaust Gas Recirculation Manifold Cooling Feed Pipe Replacement (L5P)

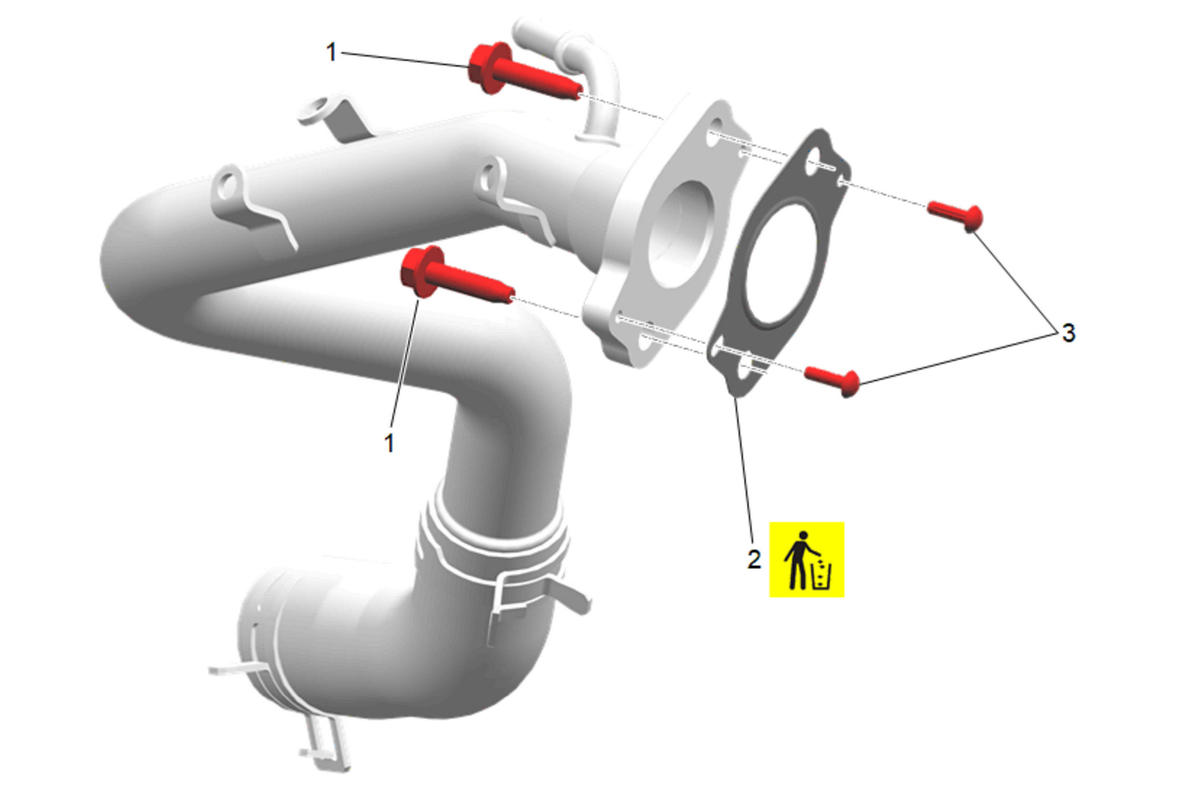

GM5783558Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Exhaust Gas Recirculation Manifold Cooling Return Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Exhaust Gas Recirculation Manifold Cooling Return Pipe Bolt [2x] - - 10 N.m (89 lb in) Exhaust Gas Recirculation Manifold Cooling Return Pipe Replacement (L5P)
2 Exhaust Gas Recirculation Cooler Pipe Gasket Yes - - Exhaust Gas Recirculation Manifold Cooling Return Pipe Replacement (L5P)
3 Retainer [2x] - - - Exhaust Gas Recirculation Manifold Cooling Return Pipe Replacement (L5P)

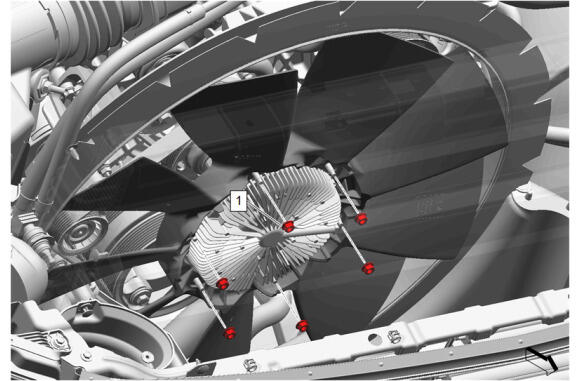

GM5480208Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fan Blade (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fan Blade Nut [6x] - - 22 N.m (16 lb ft) Fan Blade Replacement (L5P)

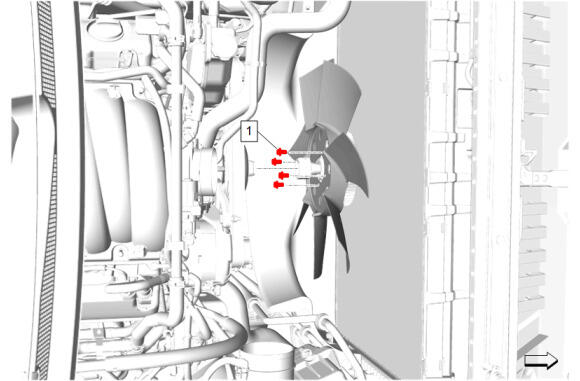

GM5787211Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fan Blade (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fan Blade Bolt [4x] - - 22 N.m (16 lb ft) Fan Blade Replacement (L8T)

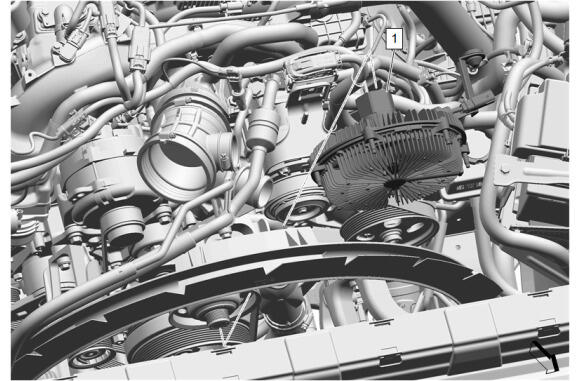

GM5480829Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fan Blade Clutch (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fan Blade Clutch - - 100 N.m (74 lb ft) Fan Blade Clutch Replacement (L5P)

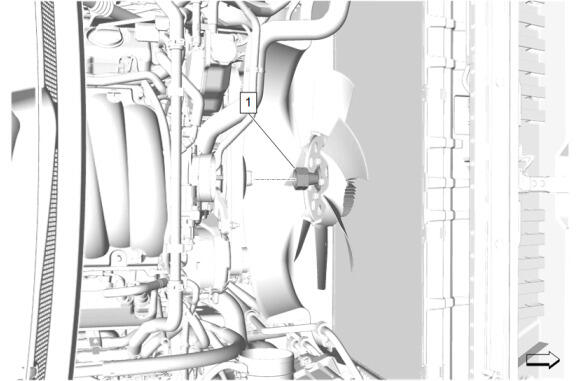

GM5787212Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fan Blade Clutch (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fan Blade Clutch - - 100 N.m (74 lb ft) Fan Blade Clutch Replacement (L8T)

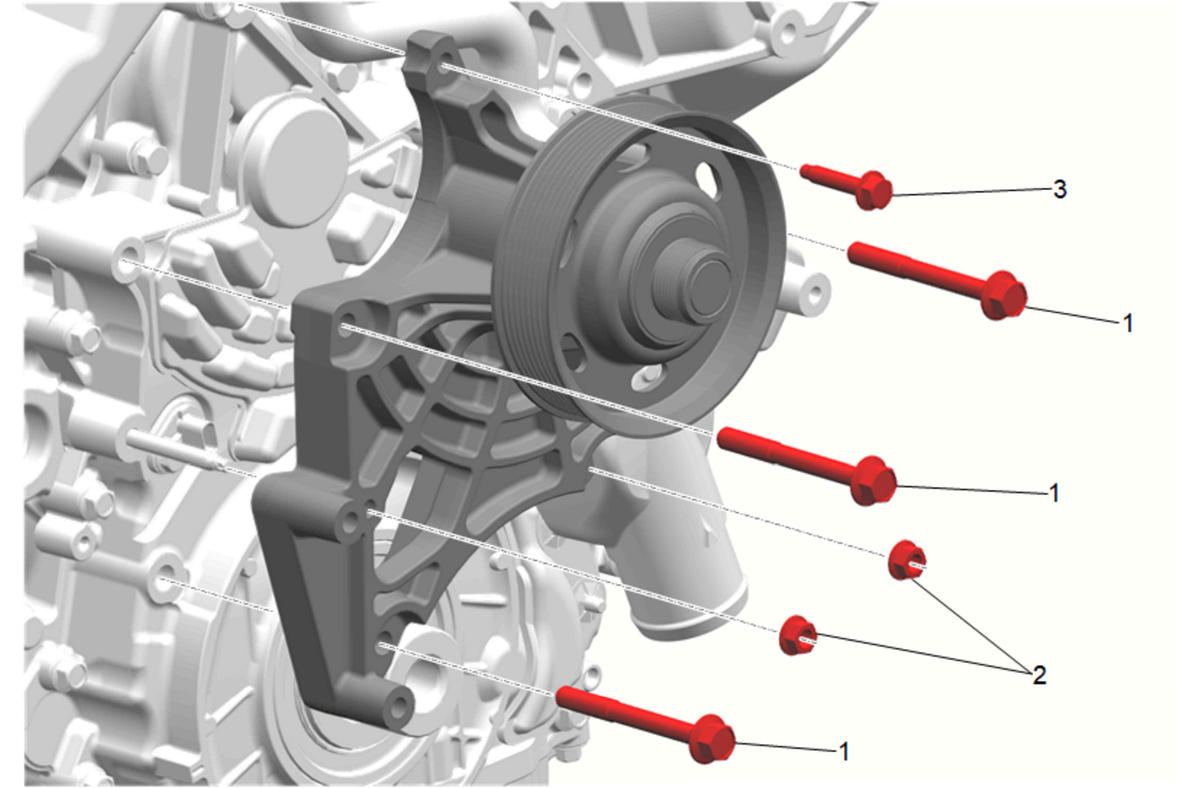

GM5757443Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fan Pulley (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fan Pulley Bolt [3x] - - Fan Pulley Bolt and Nut Sequence (L5P)  Fan Pulley Replacement (L5P)
2 Fan Pulley Nut [2x] - - Fan Pulley Bolt and Nut Sequence (L5P)  Fan Pulley Replacement (L5P)
3 Fan Pulley Bolt - - Fan Pulley Bolt and Nut Sequence (L5P)  Fan Pulley Replacement (L5P)

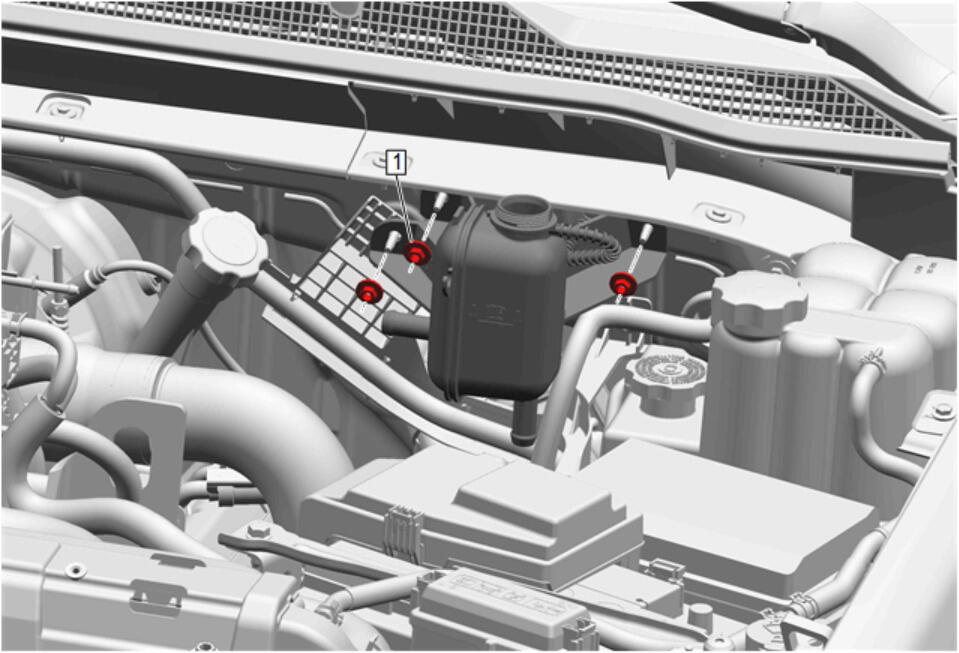

GM5282869Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Fuel Cooler Coolant Surge Tank (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Air Separator Nut [3x] - - 9 N.m (80 lb in) Fuel Cooler Coolant Surge Tank Replacement (L5P)

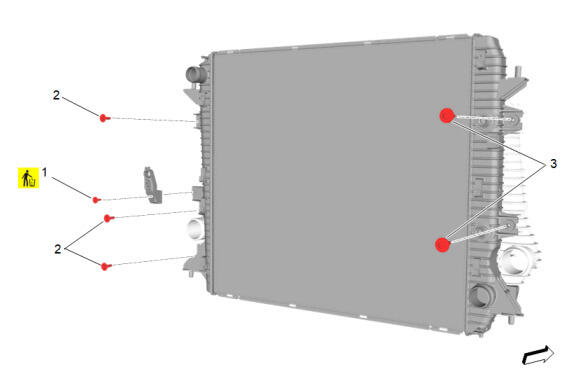

GM5787206Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Power Steering Gear Outlet Hose Bracket Bolt - Yes 7 N.m (62 lb in) Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation (L5P)
2 Charge Air Cooler Bolt- Left Side [3x] - - 22 N.m (16 lb ft) Radiator Replacement (L5P)
3 Charge Air Cooler Bolt- Right Side [2x] - - 22 N.m (16 lb ft) Radiator Replacement (L5P)

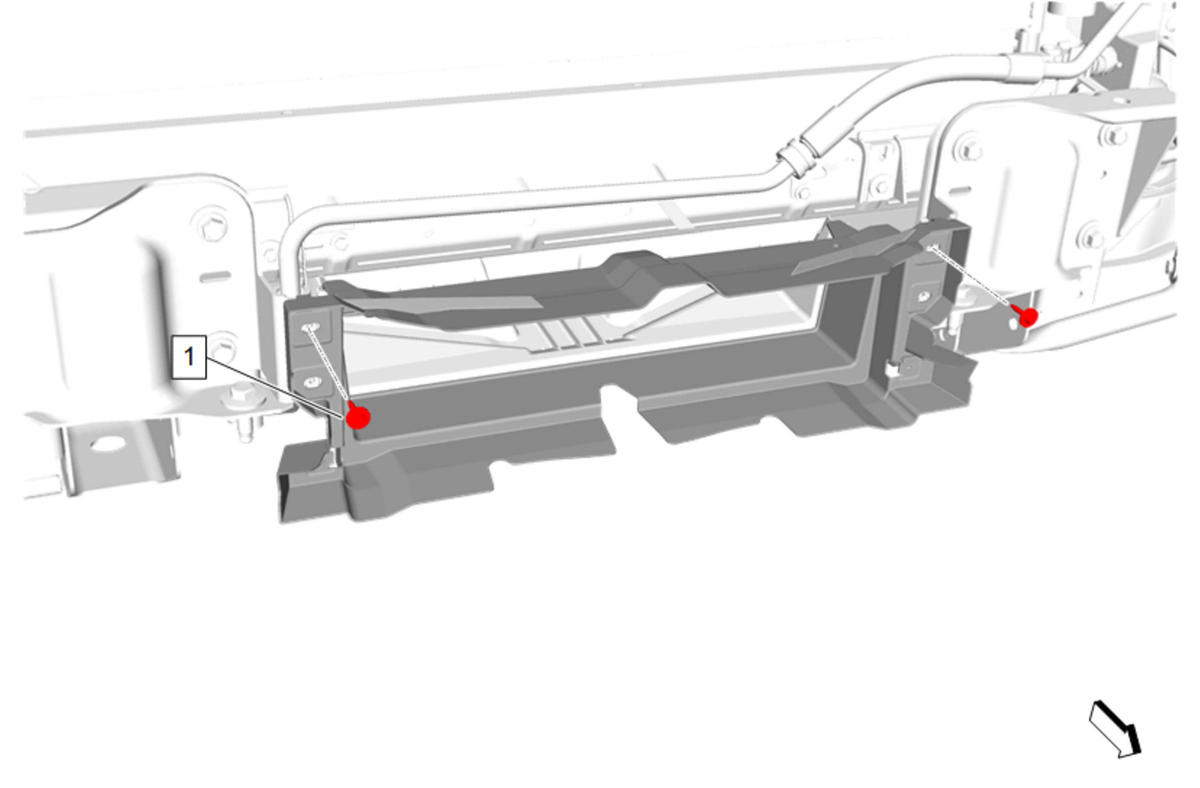

GM5787204Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Air Front Lower Baffle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Air Lower Baffle Bolt [2x] - - 2.5 N.m (22 lb in) Radiator Air Front Lower Baffle Replacement

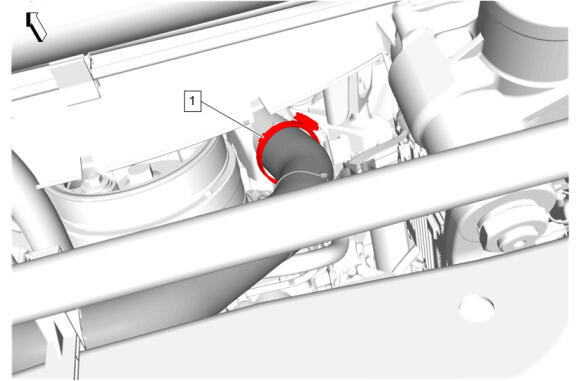

GM5786840Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Outlet Hose (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Outlet Hose Clamp - - 5.5 N.m (49 lb in) Radiator Outlet Hose Replacement (L5P)

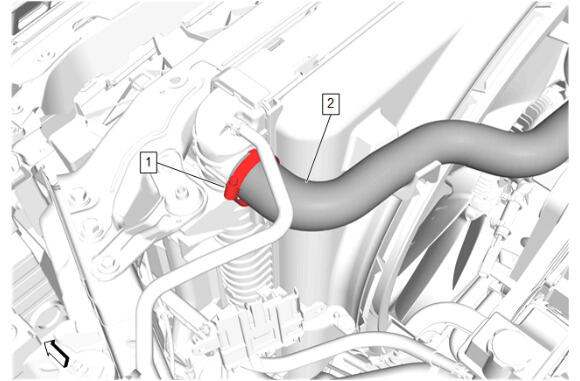

GM5908432Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Inlet Hose (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Inlet Hose Clamp - - 5.5 N.m (49 lb in) Radiator Inlet Hose Replacement (L5P)
GM5786796Courtesy of GENERAL MOTORS COMPANY

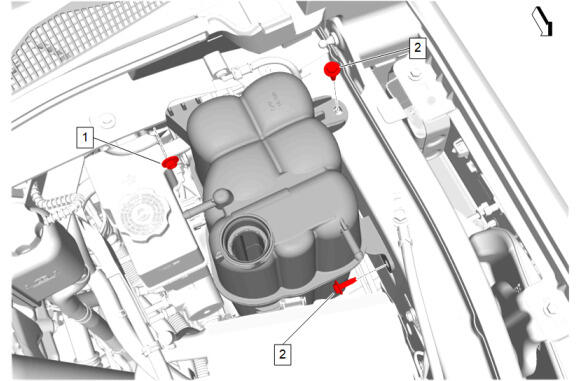

NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Surge Tank (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Nut - - 9 N.m (80 lb in) Radiator Surge Tank Replacement (L5P)
2 Radiator Surge Tank Bolt [2x] - - 9 N.m (80 lb in) Radiator Surge Tank Replacement (L5P)
GM5657096Courtesy of GENERAL MOTORS COMPANY

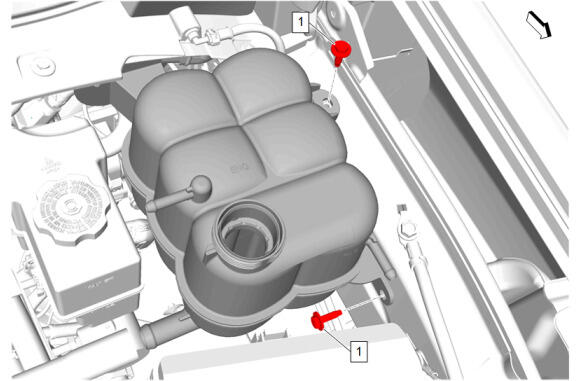

NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Surge Tank (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Bolt [2x] - - 9 N.m (80 lb in) Radiator Surge Tank Replacement (L8T)
GM5279660Courtesy of GENERAL MOTORS COMPANY

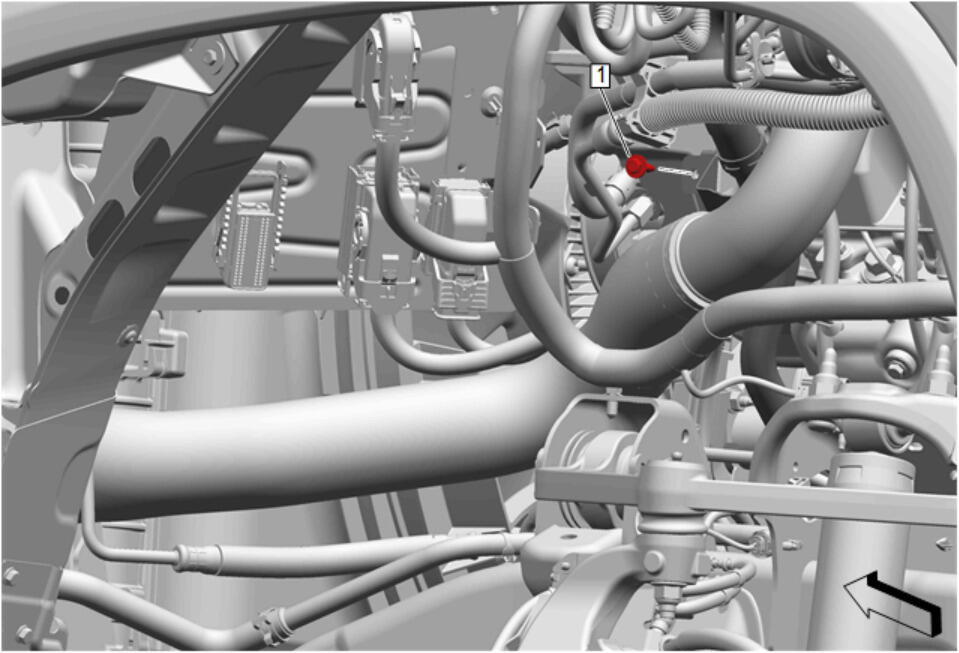

NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Surge Tank Outlet Hose (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Surge Tank Outlet Pipe Bolt - - 9 N.m (80 lb in) Radiator Surge Tank Outlet Hose Replacement (L5P)
GM5253130Courtesy of GENERAL MOTORS COMPANY

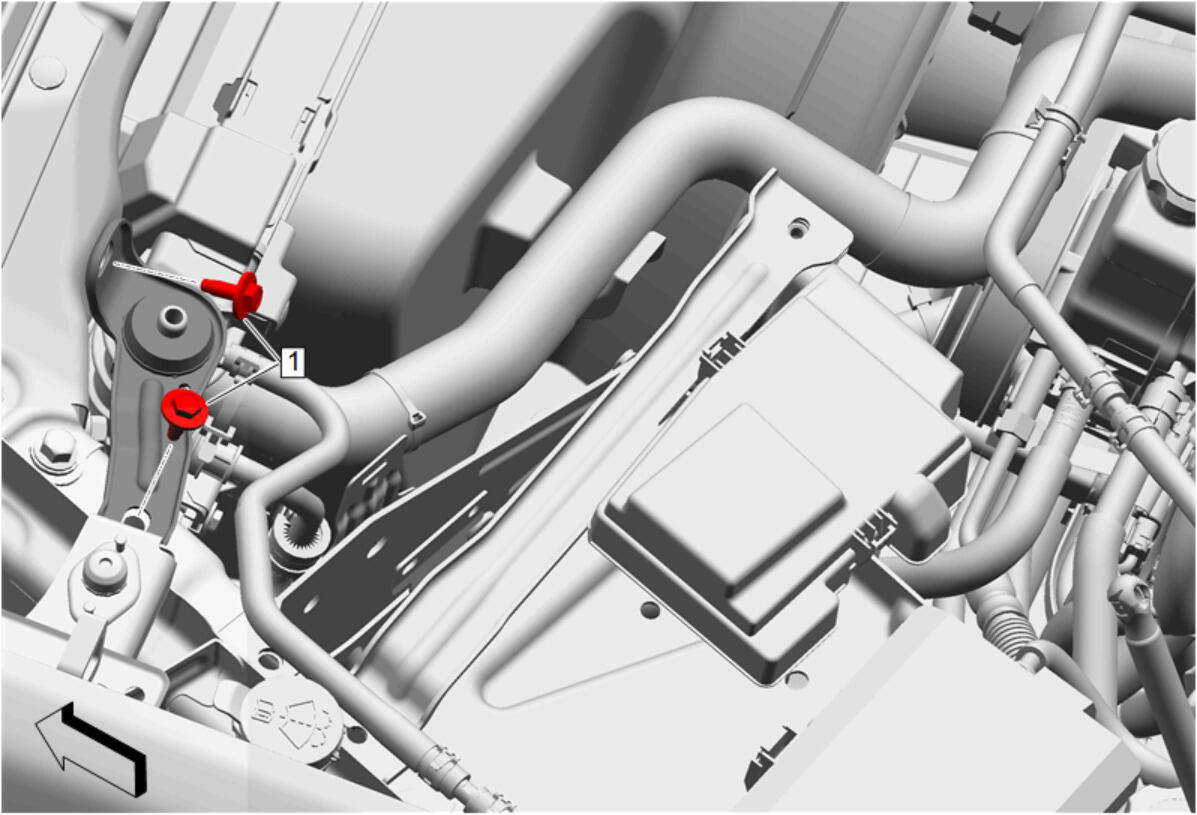

NOTE: Callouts in the following chart represent components shown in graphic above.
Radiator Upper Bracket (L5P, L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Upper Bracket Bolt [2x] - - 22 N.m (16 lb ft) Radiator Upper Bracket Replacement - Left Side (L8T) , or Radiator Upper Bracket Replacement - Left Side (L5P)
Radiator Upper Bracket Replacement - Right Side (L8T) , or Radiator Upper Bracket Replacement - Right Side (L5P)
GM5757448Courtesy of GENERAL MOTORS COMPANY

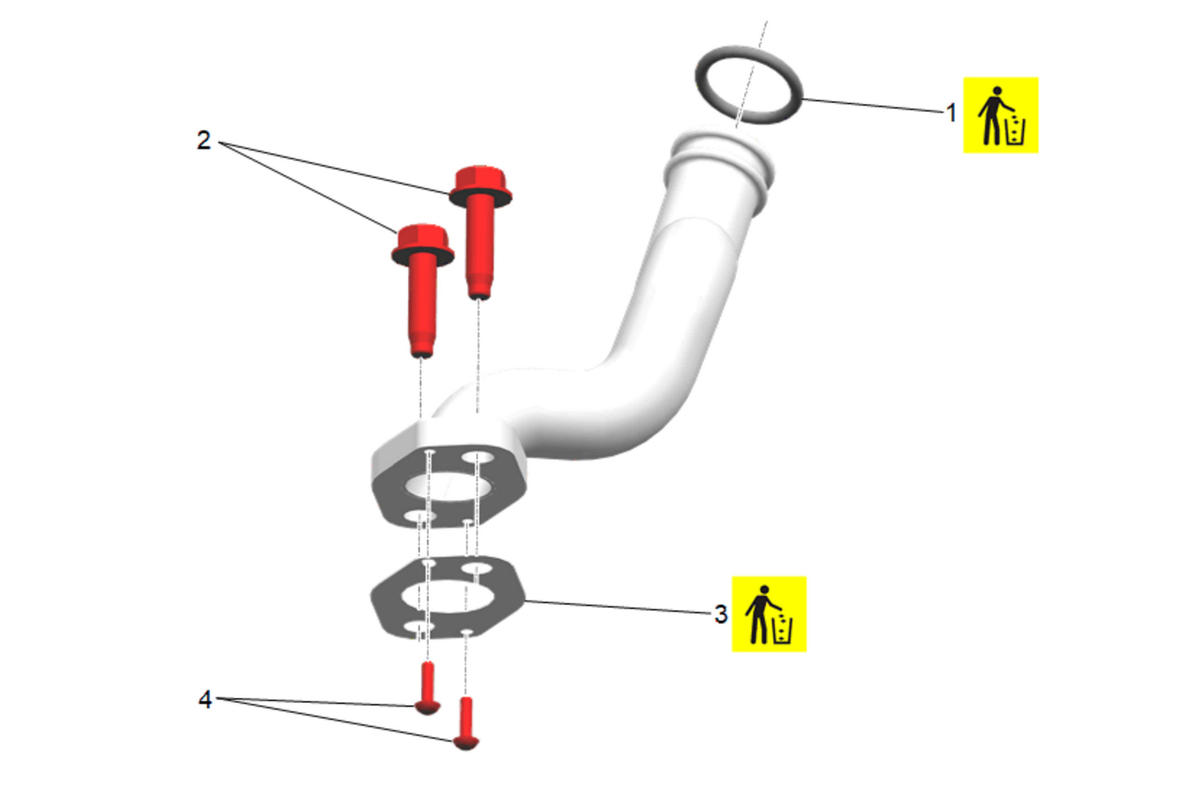

NOTE: Callouts in the following chart represent components shown in graphic above.
Thermostat Bypass Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Thermostat Bypass Pipe Seal Yes - - Thermostat Bypass Pipe Replacement (L5P)
2 Thermostat Bypass Pipe Bolt [2x] - - 25 N.m (18 lb ft) Thermostat Bypass Pipe Replacement (L5P)
3 Thermostat Bypass Pipe Gasket Yes - - Thermostat Bypass Pipe Replacement (L5P)
4 Retainer [2x] - - - Thermostat Bypass Pipe Replacement (L5P)
GM5795260Courtesy of GENERAL MOTORS COMPANY

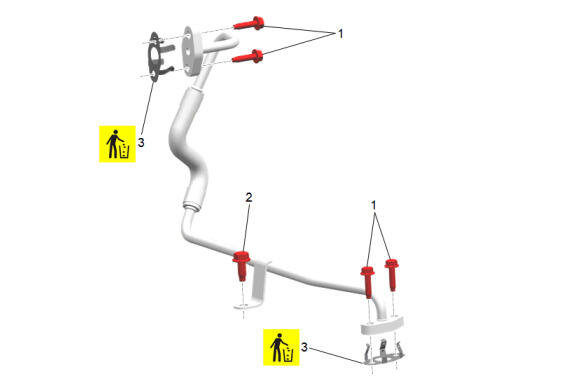

NOTE: Callouts in the following chart represent components shown in graphic above.
Turbocharger Coolant Feed Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Feed and Return Pipe Bolt [4x] - - 10 N.m (89 lb in) Turbocharger Coolant Feed Pipe Replacement (L5P)
2 Turbocharger Coolant Feed and Return Pipe Bolt - - 25 N.m (18 lb ft) Turbocharger Coolant Feed Pipe Replacement (L5P)
3 Turbocharger Coolant Feed Pipe Gasket [2x] Yes - - Turbocharger Coolant Feed Pipe Replacement (L5P)
GM5782924Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Turbocharger Coolant Return Pipe (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Coolant Feed and Return Pipe Bolt [2x] - - 10 N.m (89 lb in) Turbocharger Coolant Return Pipe Replacement (L5P)
2 Turbocharger Coolant Feed and Return Pipe Gasket Yes - - Turbocharger Coolant Return Pipe Replacement (L5P)
GM5357199Courtesy of GENERAL MOTORS COMPANY

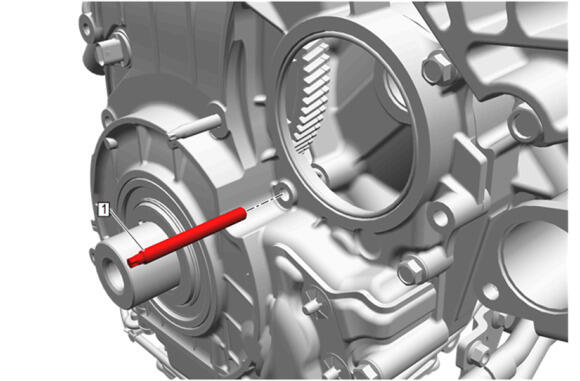

NOTE: Callouts in the following chart represent components shown in graphic above.
Water Pump Stud (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Stud - - 9 N.m (80 lb in) Engine Front Cover Replacement
GM5775548Courtesy of GENERAL MOTORS COMPANY

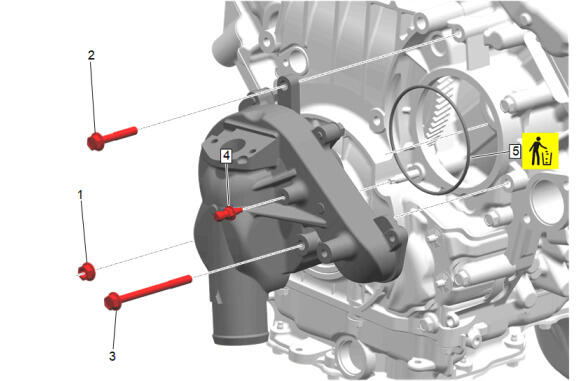

NOTE: Callouts in the following chart represent components shown in graphic above.
Water Pump (L5P)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Nut - - 25 N.m (18 lb ft) Water Pump Replacement (L5P)
2 Water Pump Bolt - - 25 N.m (18 lb ft) Water Pump Replacement (L5P)
3 Water Pump Bolt - - 25 N.m (18 lb ft) Water Pump Replacement (L5P)
4 Engine Sight Shield Stud - - 9 N.m (80 lb in) Water Pump Replacement (L5P)
5 Water Pump Cover Seal Yes - - Water Pump Replacement (L5P)
GM5582616Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Water Pump, Water Pump Inlet (L8T)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Water Pump Inlet Bolt [2x] - - 15 N.m (11 lb ft) Water Pump Inlet Replacement
2 Water Inlet Seal Yes - - Water Pump Inlet Replacement
3 Water Pump Housing Bolt [6x] - - Water Pump Bolt Torque Sequence (L8T)  Water Pump Replacement (L8T)
4 Water Pump Gasket [2x] Yes - - Water Pump Replacement (L8T)
scientia non olet · About LEMON Manuals
