Engine Oil Cooler Bolt and Nut Torque Sequence (L5P)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

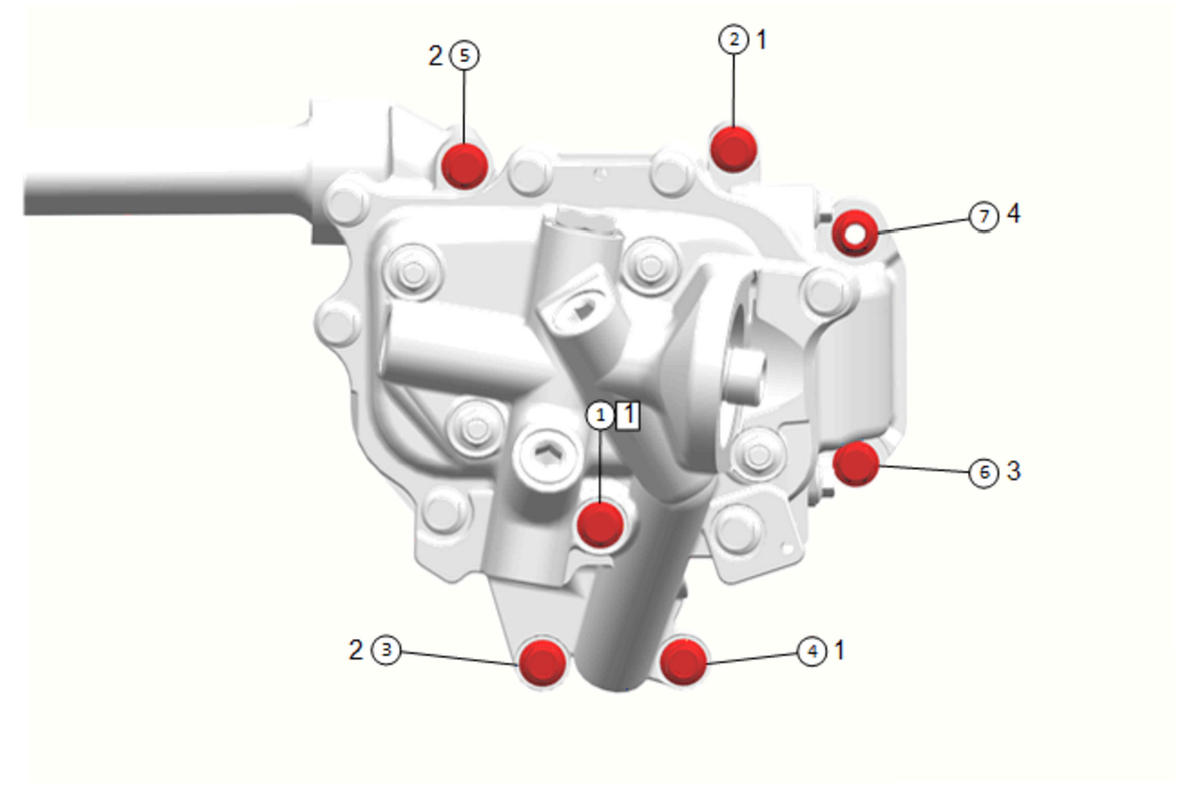

| Engine Oil Cooler Bolt and Nut Torque Sequence (L5P) | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Engine Oil Cooler Bolt [3x] | - | - | 25 N.m (18 lb ft) | Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD) |
| 2 | Engine Oil Cooler Bolt [2x] | - | - | 25 N.m (18 lb ft) | Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD) |
| 3 | Engine Oil Cooler Adapter Bolt | - | - | 25 N.m (18 lb ft) | Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD) |
| 4 | Engine Oil Cooler Nut | - | - | 25 N.m (18 lb ft) | Engine Oil Cooler Replacement (L5P 2WD) , or Engine Oil Cooler Replacement (L5P 4WD) |
