Fan Pulley Bolt and Nut Sequence (L5P)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

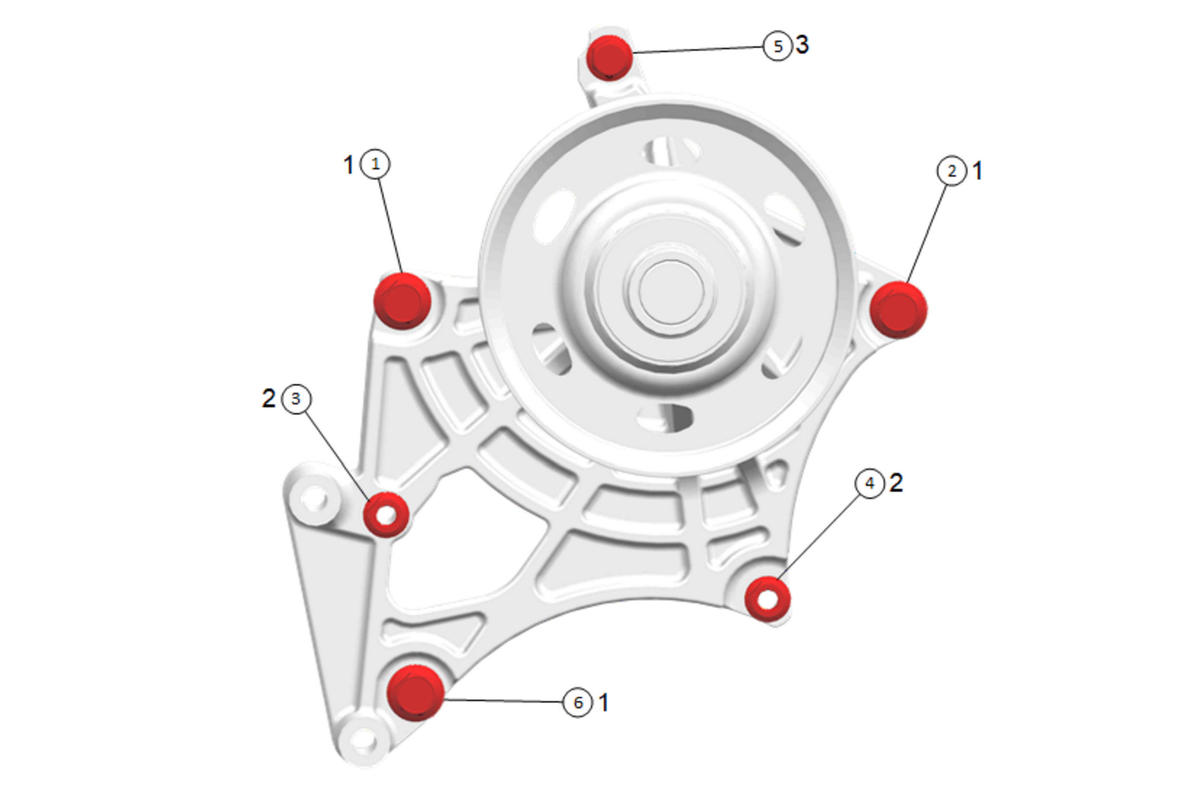

| Fan Pulley Bolt and Nut Sequence (L5P) | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
| Metric (English) | |||||
| 1 | Fan Pulley Bolt [3x] | - | - | 50 N.m (37 lb ft) | Fan Pulley Replacement (L5P) |
| 2 | Fan Pulley Nut [2x] | - | - | 25 N.m (18 lb ft) | Fan Pulley Replacement (L5P) |
| 3 | Fan Pulley Bolt | - | - | 25 N.m (18 lb ft) | Fan Pulley Replacement (L5P) |
