Removal Procedure

  1. GM5300875Courtesy of GENERAL MOTORS COMPANY

    Remove the left and right side front compartment side sight shield (2). Front Compartment Side Sight Shield Replacement

  2. Air Inlet Grille Panel - Remove - Air Inlet Grille Panel Replacement
  3. Windshield Wiper Transmission - Remove - Windshield Wiper Transmission Replacement
  4. Air Inlet Deflector Water Deflector - Remove - Air Inlet Deflector Water Deflector Replacement

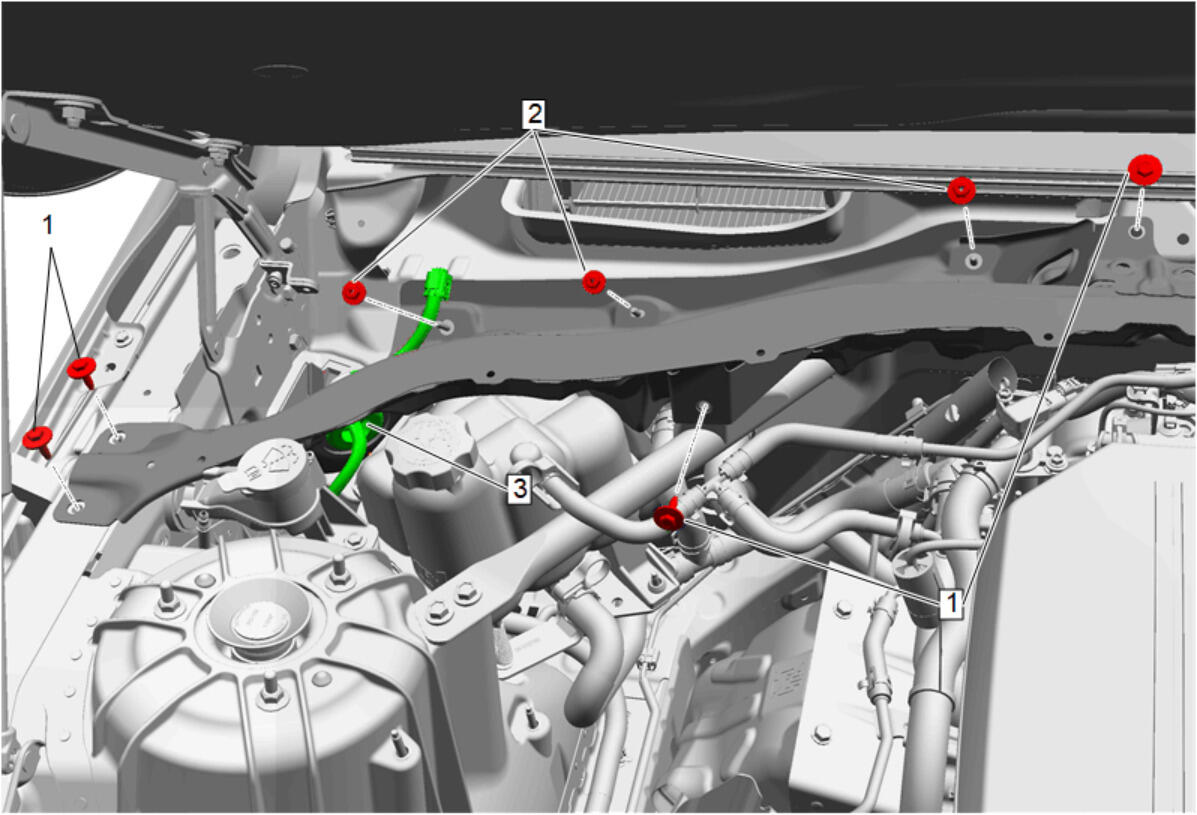

  5. GM5309176Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Remove [ 4x ]

  6. Plenum Front Panel Nut (2) - Remove [ 3x ]
  7. Remove the ambient air quality sensor harness (3) from the plenum front panel.

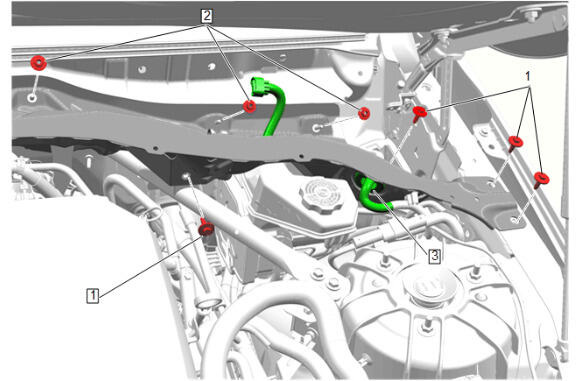

  8. GM5309179Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Remove [ 3x ]

  9. Plenum Front Panel Nut (2) - Remove [ 3x ]
  10. Remove the windshield wiper motor harness (3) from the plenum front panel.

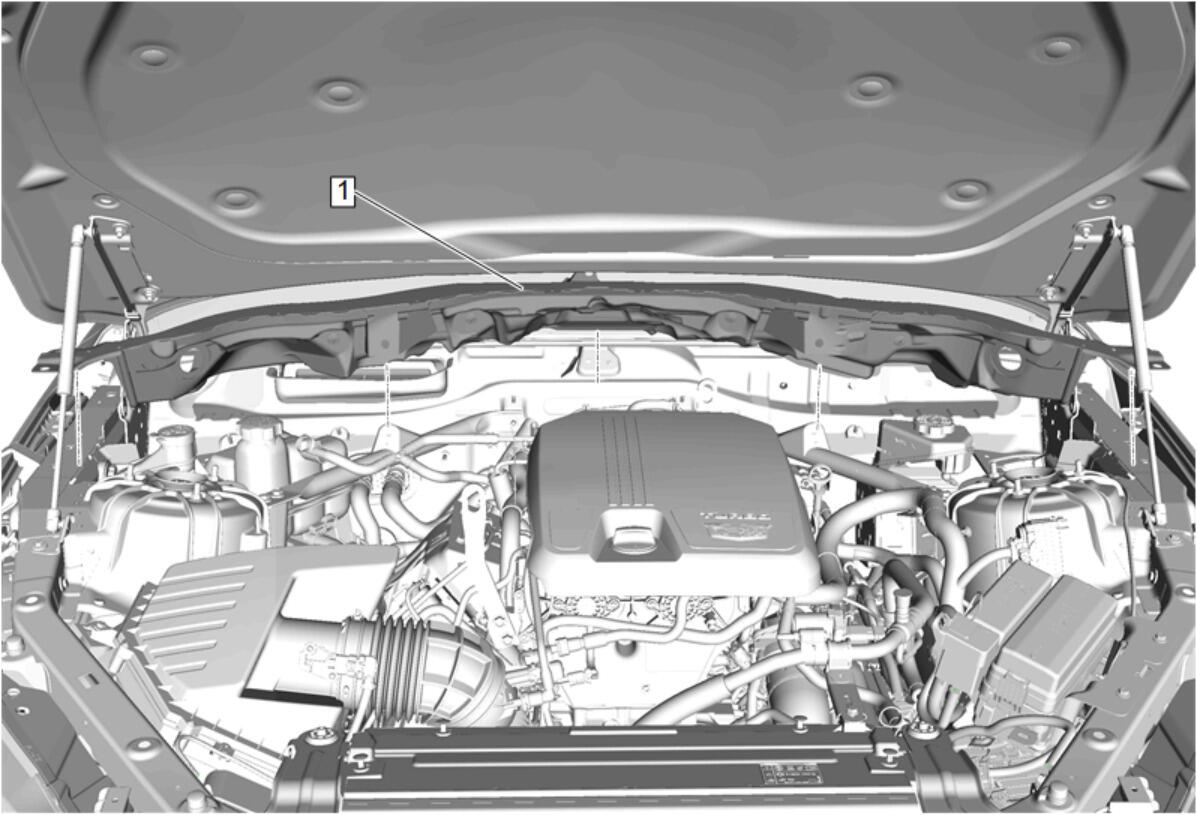

  11. GM5309180Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Remove

  12. Transfer components as necessary.
