Windshield Wiper Transmission Replacement

Courtesy of GENERAL MOTORS COMPANY

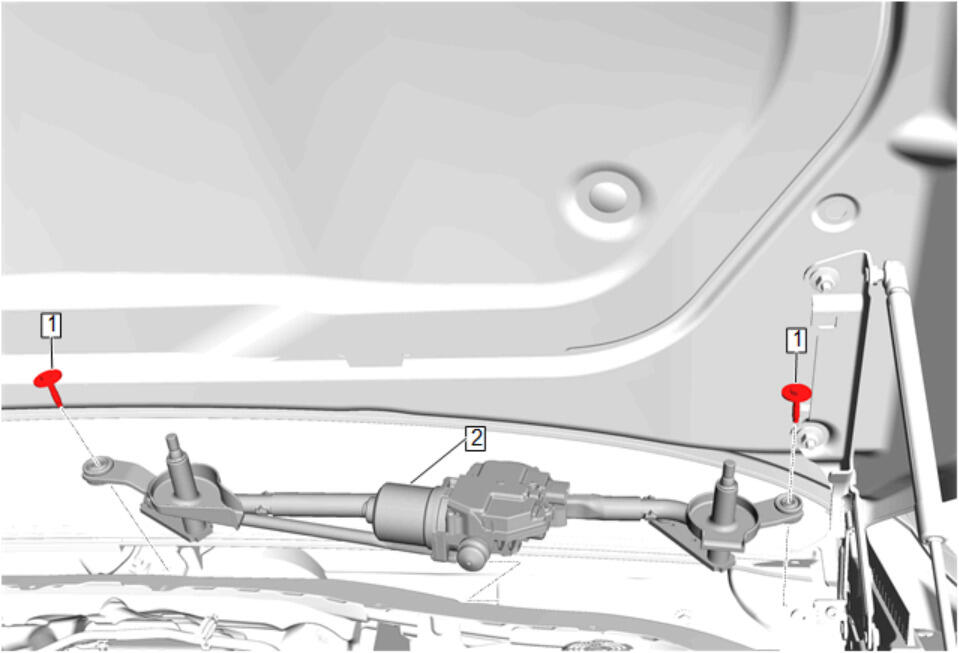

Callout	Component Name
Preliminary Procedures NOTE: To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Windshield Wiper System Module Shield Replacement Disconnect the electrical connector.
1	Windshield Wiper System Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Wiper Transmission Procedure Slide the windshield wiper transmission inboard to release the grommet from the plenum. Remove the windshield wiper transmission from the vehicle. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

NOTE:

To prevent erroneous DTC's, disconnect the battery negative cable before disconnecting the windshield wiper motor electrical connector.

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Windshield Wiper System Module Shield Replacement
Disconnect the electrical connector.

Windshield Wiper System Module Bolt [2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Windshield Wiper Transmission

Procedure

Slide the windshield wiper transmission inboard to release the grommet from the plenum.
Remove the windshield wiper transmission from the vehicle.
Transfer components as necessary.
