Air Inlet Grille Panel Replacement

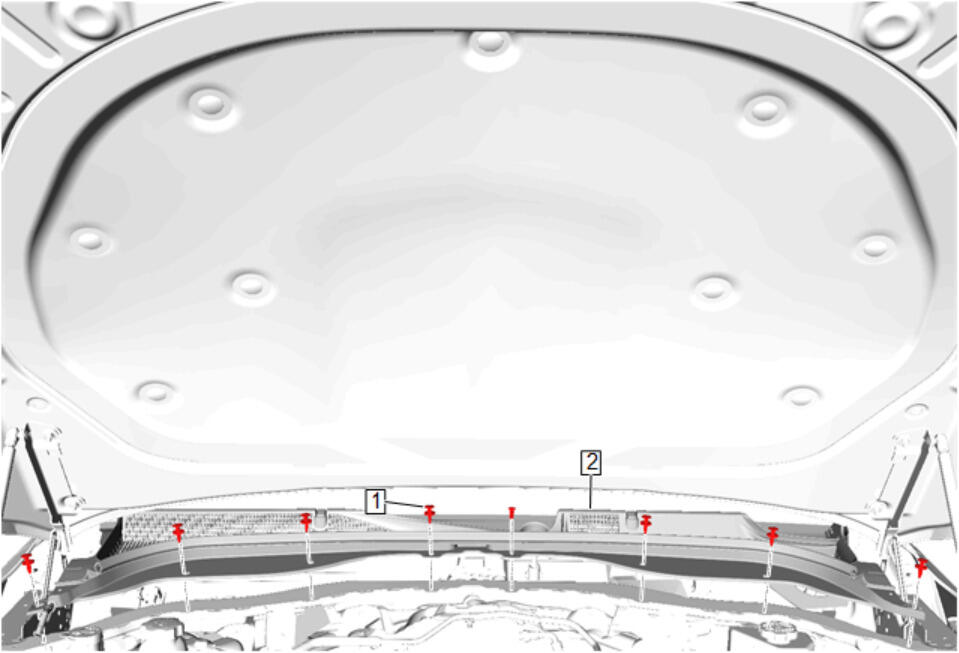

GM5325805Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Hood Rear Outer Air Inlet Seal Replacement
  3. Air Inlet Grille Panel Extension Replacement - Left Side
  4. Air Inlet Grille Panel Extension Replacement - Right Side
1 Air Inlet Grille Panel Retainer [8x]
2 Air Inlet Grille Panel

Procedure

  1. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
  2. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  3. Transfer components as necessary.
