Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

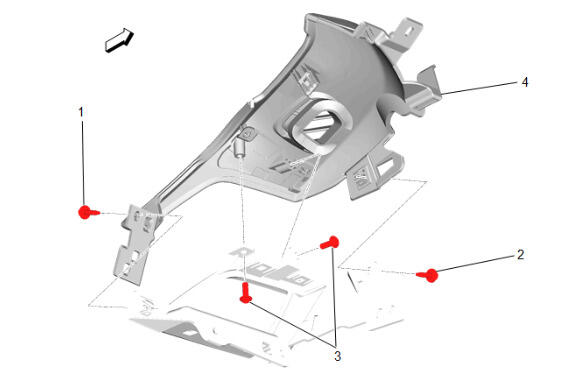

Instrument Panel Upper Trim Panel - Left Side (4) - Install

CAUTION:

Refer to Fastener Caution .

Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Upper Trim Panel (3) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Carrier (2) - Install and tighten - Fastener Specifications
Instrument Panel Outer Upper Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

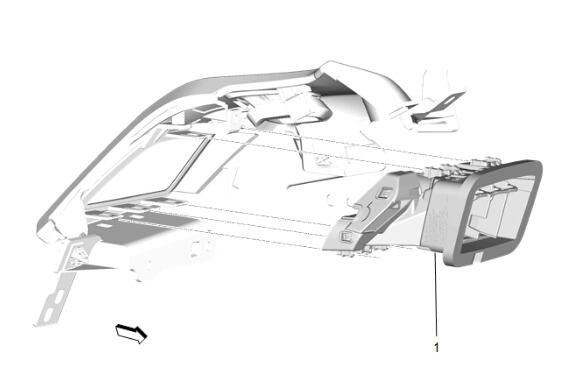

Instrument Panel Outer Air Outlet - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

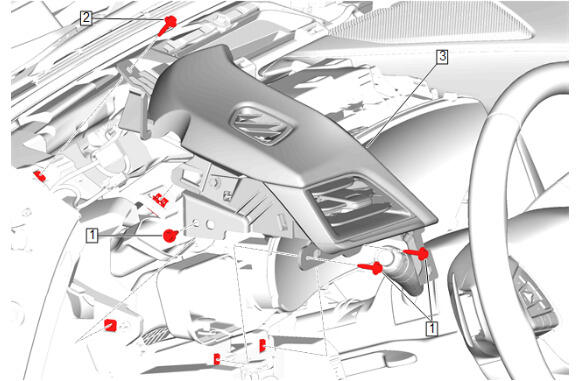

Install the instrument panel upper trim panel and instrument panel trim plate applique assembly (3).
Instrument Panel Outer Upper Bolt (2) - Install and tighten - Fastener Specifications
Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Carrier (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

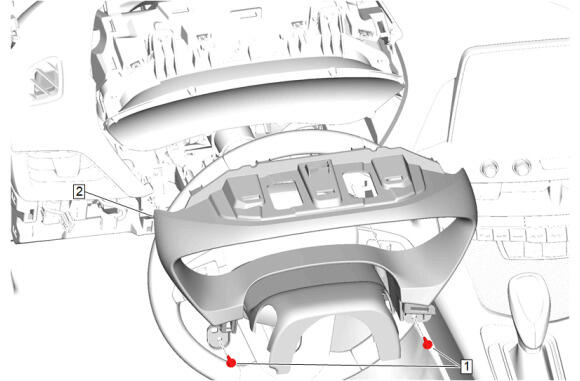

Instrument Panel Cluster Trim Plate (2) - Install
Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Instrument panel steering column upper trim cover is removed for graphic clarity.

{If equipped} Connect the electrical connector (1)
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Instrument Cluster Hood (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Extension (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Windshield Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings (1) into place.
Windshield Garnish Molding (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Connect and position the wiring harness.
Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Center Trim Pad (1) - Install
Return the steering column to its original position.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the tabs into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install
Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Airbag - Driver Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Enable the SIR System. SIR Disabling and Enabling .
