Fastener Specifications

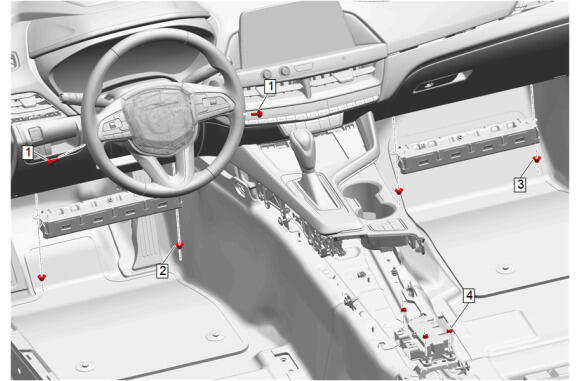

Airbag Driver, Lower and SDM Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Airbag Bolt [2x] | - | - | 9 N.m (80 lb in) | Steering Wheel Airbag Replacement |
| 2 | Instrument Panel Lower Airbag Nut [2x] | - | - | 9 N.m (80 lb in) | Instrument Panel Lower Airbag Replacement - Driver Side |
| 3 | Instrument Panel Lower Airbag Nut [2x] | - | - | 9 N.m (80 lb in) | Instrument Panel Lower Airbag Replacement - Passenger Side |
| 4 | Airbag Sensing and Diagnostic Module Nut [3x] | - | - | 9 N.m (80 lb in) | Restraints Control Module Replacement |

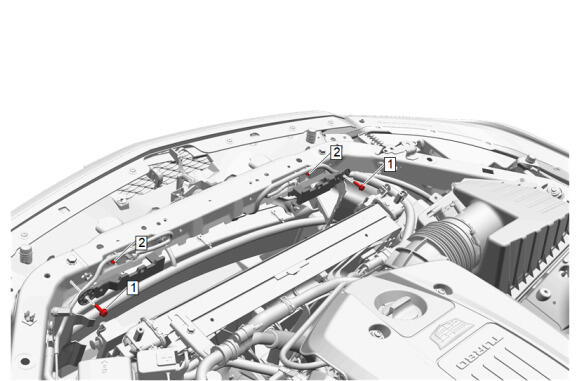

Airbag Front End Discriminating Sensor/Protector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Airbag Front End Discriminating Sensor Bolt @ Protector [2x] | - | - | 9 N.m (80 lb in) | Airbag Front End Discriminating Sensor Protector Replacement |
| 2 | Airbag Front End Discriminating Sensor Bolt [2x] | - | - | 7.5 N.m (66 lb in) | Airbag Front End Discriminating Sensor Replacement |

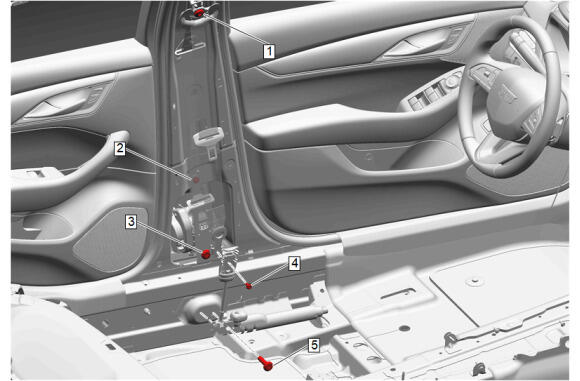

Front Seat Belt Retractor and Tensioner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Retractor D Ring Bolt | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 2 | Front Seat Belt Retractor Bolt-Upper | - | - | 9 N.m (80 lb in) | Front Seat Belt Retractor Replacement |
| 3 | Front Seat Belt Retractor Bolt-Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Retractor Replacement |
| 4 | Front Seat Belt Anchor Plate Tensioner Bolt - Upper | - | - | 6 N.m (53 lb in) | Front Seat Belt Anchor Plate Tensioner Replacement |
| 5 | Front Seat Belt Anchor Plate Tensioner Bolt - Lower | - | - | 45 N.m (33 lb ft) | Front Seat Belt Anchor Plate Tensioner Replacement |

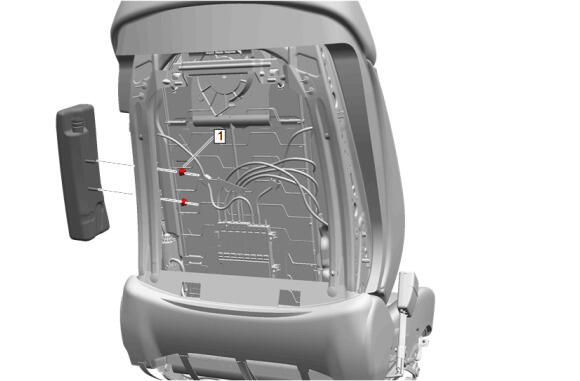

Front Seat Outboard Seat Back Airbag
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Outboard Seat Back Airbag Nut | - | - | 7 N.m (62 lb in) | Front Seat Outboard Seat Back Airbag Replacement (with Seat Back Cushion Finish Panel) , or Front Seat Outboard Seat Back Airbag Replacement (without Seat Back Cushion Finish Panel) |

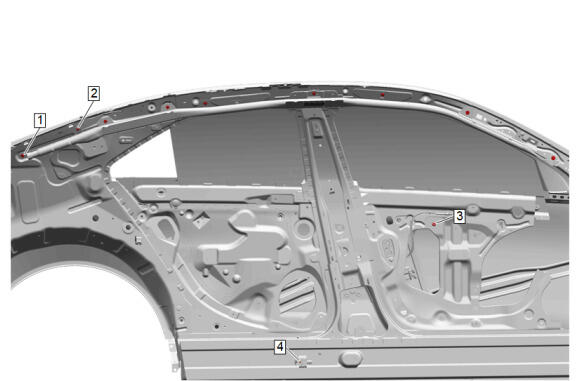

Roof Rail Airbag and Side Impact Sensors
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Rail Airbag Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 2 | Roof Rail Airbag Bolt | - | - | 9 N.m (80 lb in) | Front and Rear Row Roof Rail Airbag Replacement |
| 3 | Airbag Side Impact Sensor Bolt | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Sensor Replacement |
| 4 | Airbag Side Impact Rear Sensor Bolt | - | - | 7.5 N.m (66 lb in) | Airbag Side Impact Rear Sensor Replacement |
