Fastener Specifications

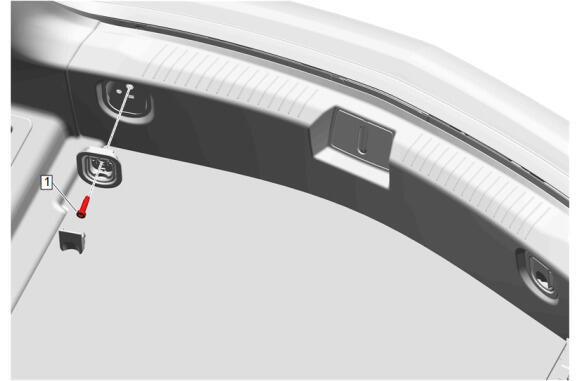

GM5517190Courtesy of GENERAL MOTORS COMPANY
Cargo Tie Down Loop

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Cargo Tie Down Loop Bolt - - 20 N.m (15 lb ft) Cargo Tie Down Loop Replacement

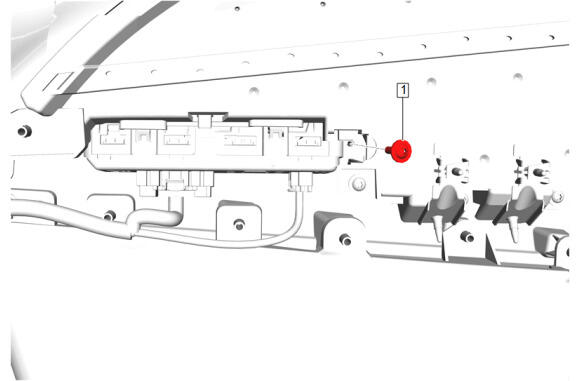

GM5507733Courtesy of GENERAL MOTORS COMPANY
Front Side Door Armrest Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Trim Bolt - - 2.5 N.m (22 lb in) Front Side Door Armrest Switch Mount Plate Replacement - Driver Side
Front Side Door Armrest Switch Mount Plate Replacement - Passenger Side

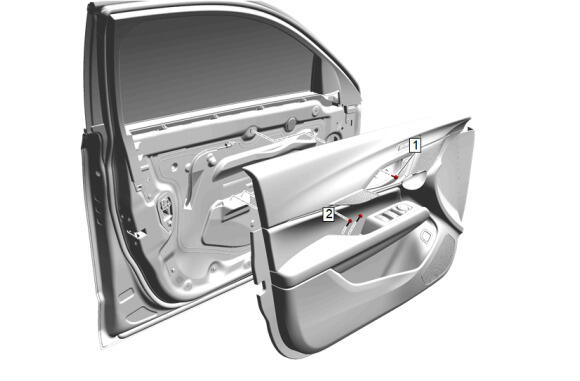

GM5515687Courtesy of GENERAL MOTORS COMPANY
Front Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation
2 Front Side Door Armrest Pull Cup Bolt [2x] - - 2.5 N.m (22 lb in) Front Side Door Trim Removal and Installation

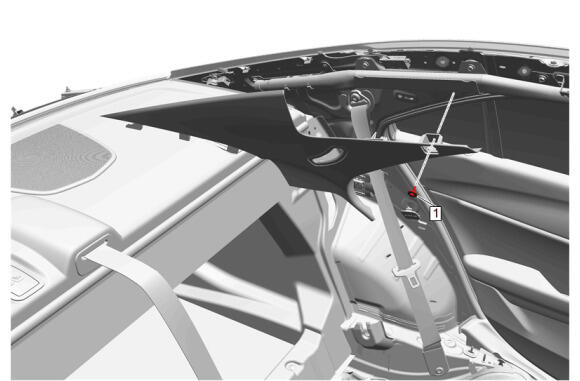

GM5517139Courtesy of GENERAL MOTORS COMPANY
Quarter Upper Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Quarter Window Trim Finish Panel Bolt - - 2.5 N.m (22 lb in) Quarter Upper Trim Panel Replacement

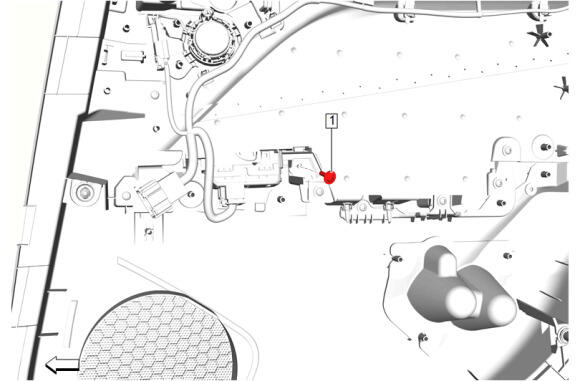

GM5509055Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Armrest Switch Mount Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt - - 2.5 N.m (22 lb in) Rear Side Door Armrest Switch Mount Plate Replacement

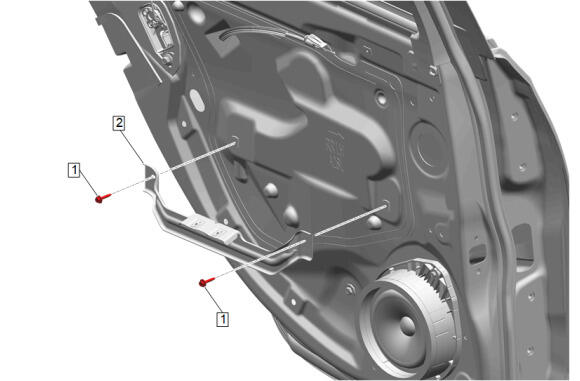

GM5515752Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Pull Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Trim Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Pull Handle Bracket Replacement

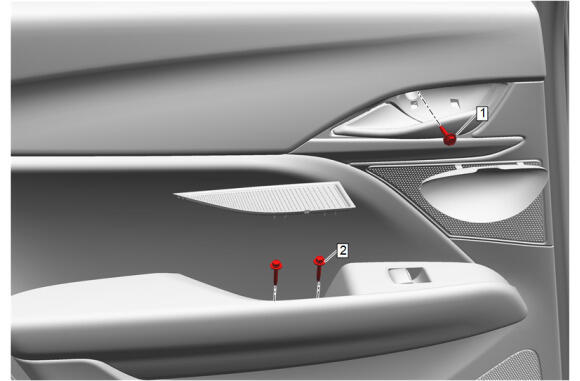

GM5515717Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Trim

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Inside Handle Bolt - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation
2 Rear Side Door Armrest Pull Cup Bolt [2x] - - 2.5 N.m (22 lb in) Rear Side Door Trim Removal and Installation

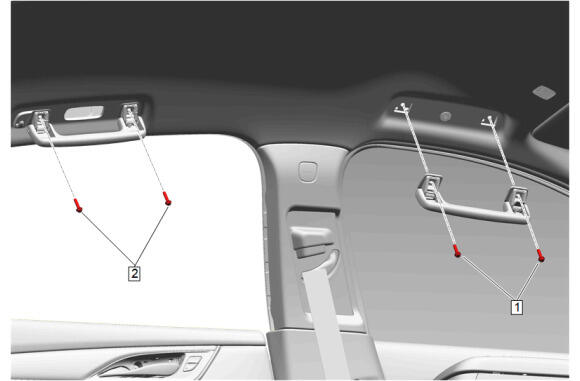

GM5517299Courtesy of GENERAL MOTORS COMPANY
Roof Rail Front and Rear Assist Handle

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Roof Rail Assist Handle Bolt [2x] - - 6 N.m (53 lb in) Roof Rail Assist Handle Replacement
2 Roof Rail Rear Assist Handle [2x] - - 6 N.m (53 lb in) Roof Rail Rear Assist Handle Replacement

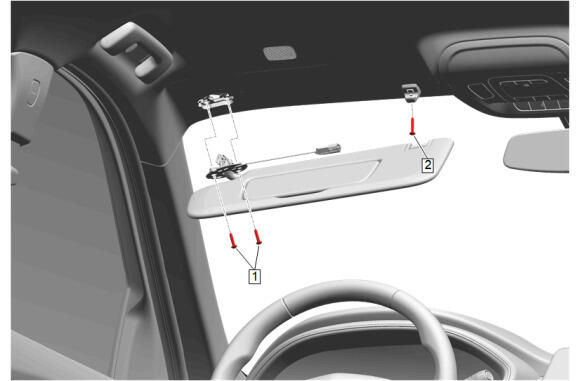

GM5517253Courtesy of GENERAL MOTORS COMPANY
Sunshade and Sunshade Support

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Sunshade Bolt [2x] - - 2 N.m (18 lb in) Sunshade Replacement
2 Sunshade Support Bolt - - 2 N.m (18 lb in) Sunshade Support Replacement

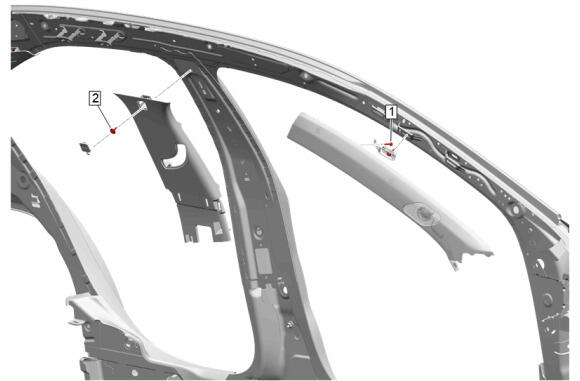

GM5515757Courtesy of GENERAL MOTORS COMPANY
Windshield Garnish Molding/Center Pillar Upper

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Windshield Garnish Molding Bolt [2x] - - 2.5 N.m (22 lb in) Windshield Garnish Molding Replacement
2 Center Pillar Upper Garnish Molding Bolt - - 2.5 N.m (22 lb in) Center Pillar Upper Trim Panel Replacement
