Installation Procedure

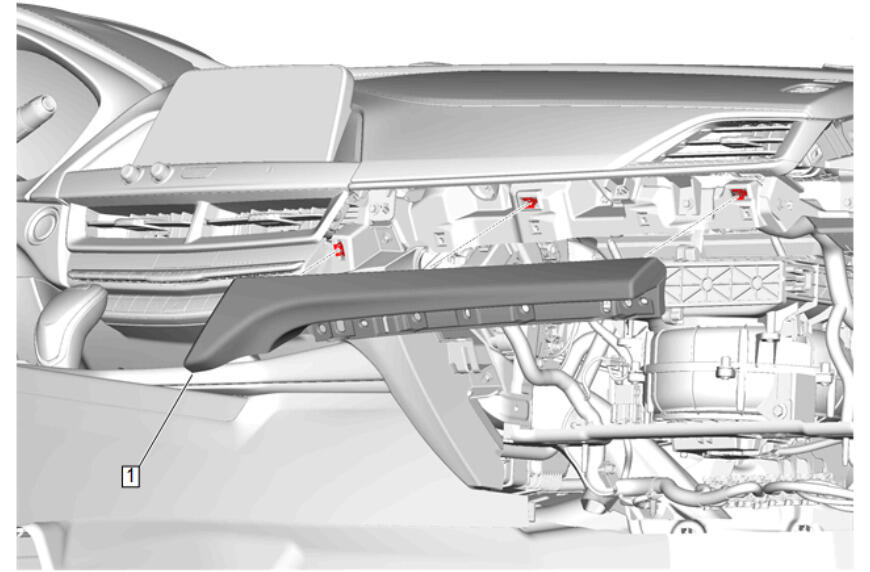

  1. GM5433956Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

  2. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Instrument Panel Compartment (1) - Install
  4. GM5423236Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  5. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  7. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  8. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Install

  9. Install the tab into the instrument panel lower trim panel insulator (1).
  10. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications

  11. Connect and position the wiring harness.
  12. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.

  13. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  14. GM5421737Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  15. Instrument Panel Outer Trim Cover - Right Side (1) - Install
  16. Enable the SIR System. SIR Disabling and Enabling .
  17. Clear DTCs
