Fastener Specifications

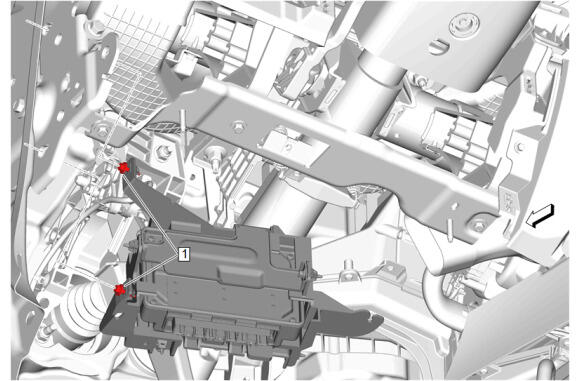

Body Control Module Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Body Control Module Bracket Bolt | - | - | 2.5 N.m (22 lb in) | Body Control Module Bracket Replacement |
Serial Data Gateway Module Bracket
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Serial Data Gateway Module Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Serial Data Gateway Bracket Replacement |
