Installation Procedure

  1. GM5482683Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Instrument Panel Lower Center Trim Panel (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Center Trim Panel Bolt (1) - Install and tighten [6x] - Fastener Specifications

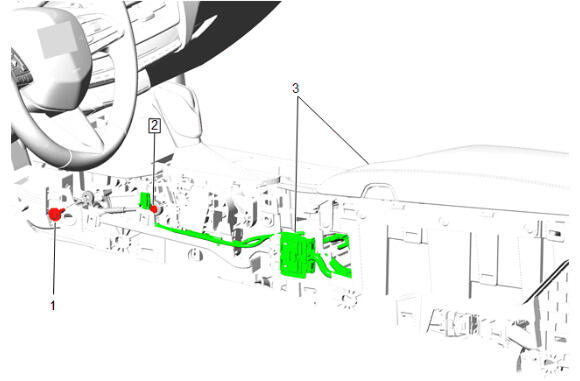

  4. GM5488424Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications

  5. Automatic Transmission Range Selector Lever Cable (2) - Install and tighten - Fastener Specifications
  6. Connect the front floor console wiring harness (3) to the body wiring harness.
  7. GM5487916Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  8. GM5644700Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission control lever knob (1) then press down to engage the retainer.

  9. Carefully pull upward on the automatic transmission control lever knob (1) to ensure that the retainer is engaged.
  10. GM5487915Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (4) - Install and tighten [2x] - Fastener Specifications

  11. Connect the electrical connector (3).
  12. Insert the transmission control lever boot (2) into the front floor console trim plate.
  13. Shift the transmission through each gear and ensure that the shift lever knob operates properly.
  14. Front Floor Console Variable 1 Liner (1) - Install
  15. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  16. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  17. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  18. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  19. Return the seat to its original position.
  20. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  21. Return the seat to its original position.
  22. GM5433956Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Install

  23. GM5423237Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  24. Instrument Panel Compartment (1) - Install
  25. GM5423236Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications

  26. GM5443248Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  27. Instrument Panel Lower Airbag - Passenger Side (2) - Install
  28. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  29. GM5312734Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  30. Instrument Panel Lower Trim Panel Insulator (1) - Install
  31. Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
  32. GM5312733Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications

  33. Connect and position the wiring harness.
  34. GM5312731Courtesy of GENERAL MOTORS COMPANY

    Unlock and lower the body control module bracket (2).

  35. Connect the electrical connectors.
  36. Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
  37. Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
  38. GM5421737Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Connect the electrical connector.

  39. Instrument Panel Outer Trim Cover - Right Side (1) - Install
  40. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  41. Instrument Panel Knee Bolster (1) - Install
  42. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  43. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications
  44. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad (1) - Install

  45. Return the steering column to its original position.
  46. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  47. Instrument Panel Lower Trim Panel Insulator (1) - Install
  48. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  49. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  50. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  51. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  52. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  53. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

  54. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  55. Instrument Panel Lower Airbag - Driver Side (2) - Install
  56. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  57. GM5441313Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  58. Hazard Warning Switch (2) - Install
  59. Firmly secure the hazard warning switch (2) straight forward and ensure it is fully seated.
  60. Hazard Warning Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
  61. GM5482913Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  62. Heater and Air Conditioning User Interface Control (2) - Install
  63. Heater and Air Conditioning Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  64. GM5422150Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (2) - Install

  65. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
  66. Connect the electrical connectors.
  67. GM5422046Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install

  68. Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  69. GM5422026Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  70. GM5422024Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  71. Enable the SIR System. SIR Disabling and Enabling
  72. Clear DTCs
