Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

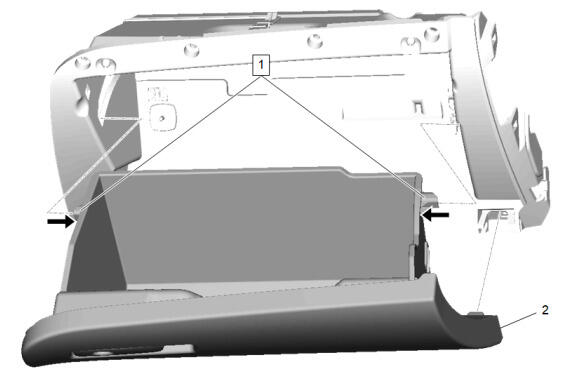

Instrument Panel Compartment Door (2) - Install
Push in the instrument panel compartment door stop (1) to engage the door to the instrument panel compartment frame.
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel compartment door dampener clip (1) to the door.
Courtesy of GENERAL MOTORS COMPANY

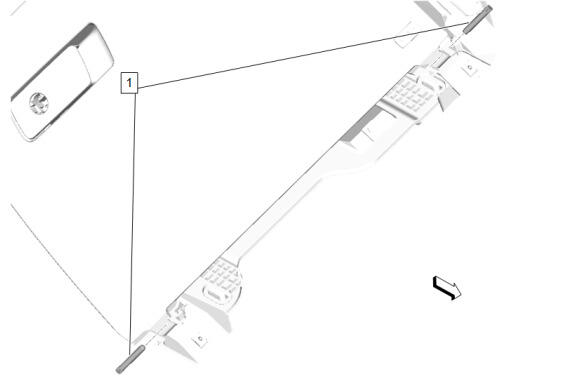

Instrument Panel Compartment Door Dampener Pin (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

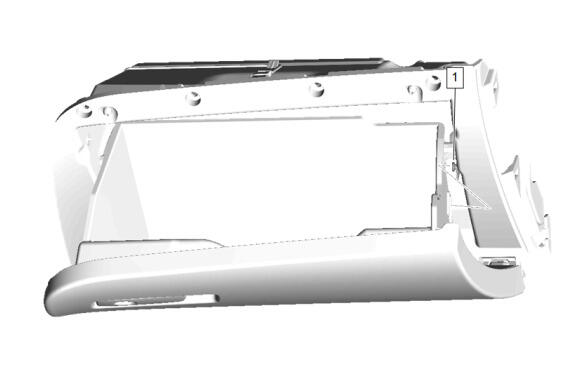

Instrument Panel Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Airbag - Passenger Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Lower Trim Panel Insulator (1) - Install
Install the front edge of the front floor console extension panel into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Unlock and lower the body control module bracket (2).
Connect the electrical connectors.
Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Connect the electrical connector.
Instrument Panel Outer Trim Cover - Right Side (1) - Install
Enable the SIR System. SIR Disabling and Enabling .
Clear DTCs
