Installation Procedure

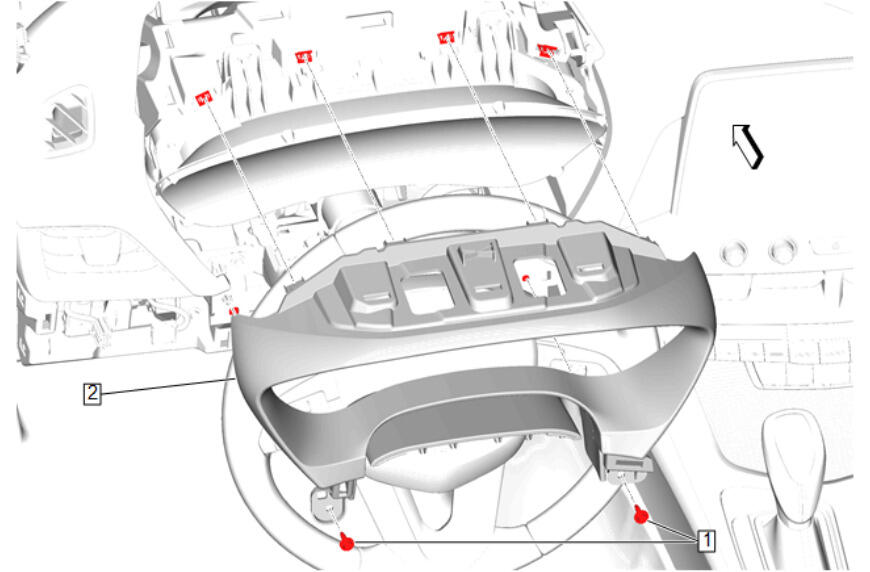

  1. GM5461572Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [2x] - Fastener Specifications

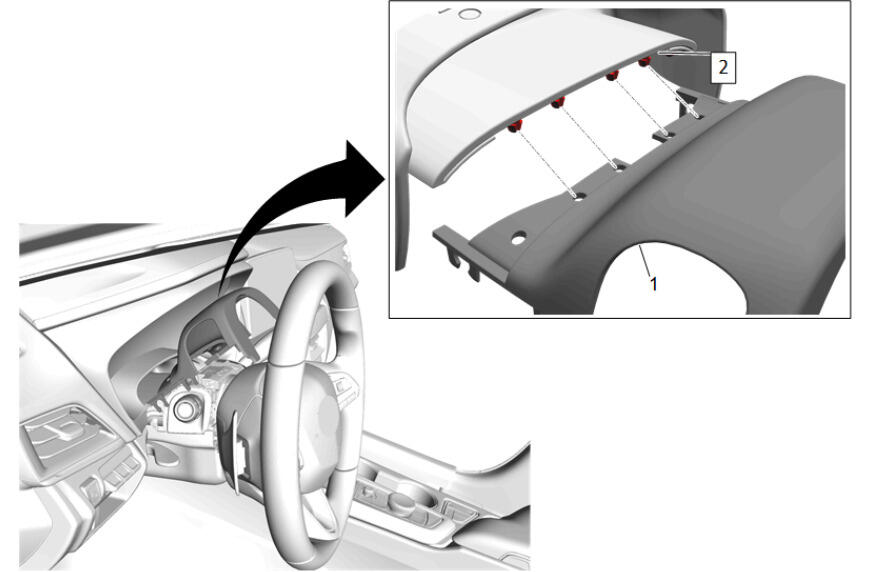

  3. GM5422822Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  4. GM5730572Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Instrument panel steering column upper trim cover is removed for graphic clarity.

    {If equipped} Connect the electrical connector (1)

  5. GM5422815Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

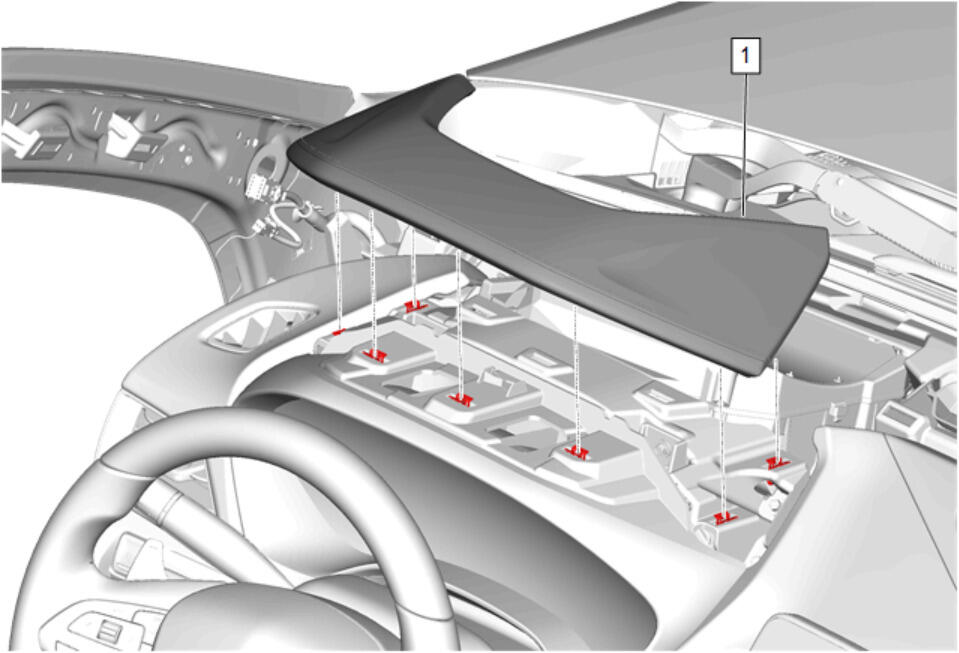

  6. GM5422006Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (1) - Install

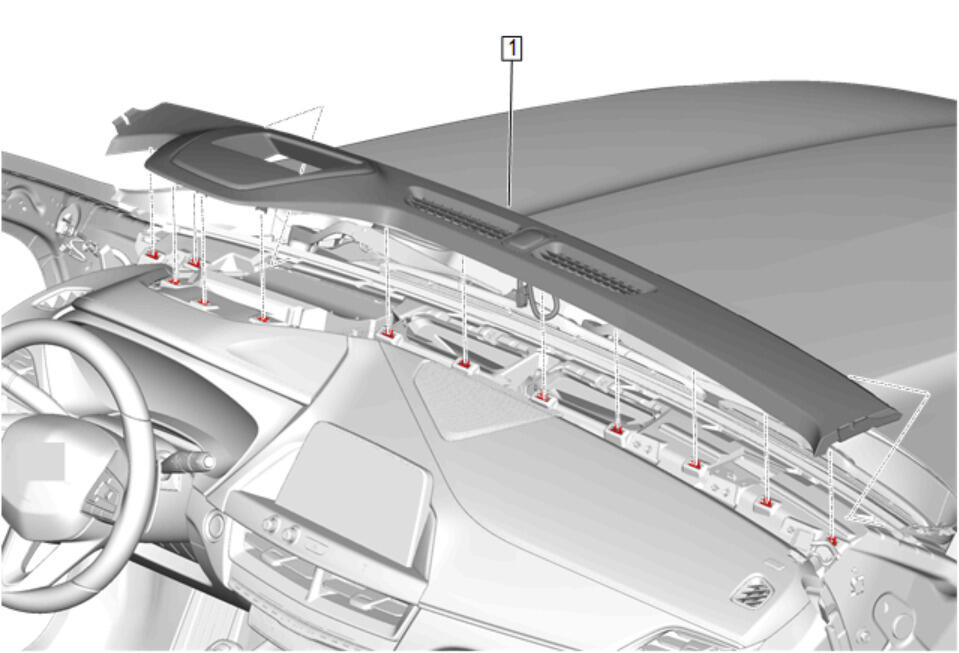

  7. GM5421700Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  8. Instrument Panel Extension (1) - Install

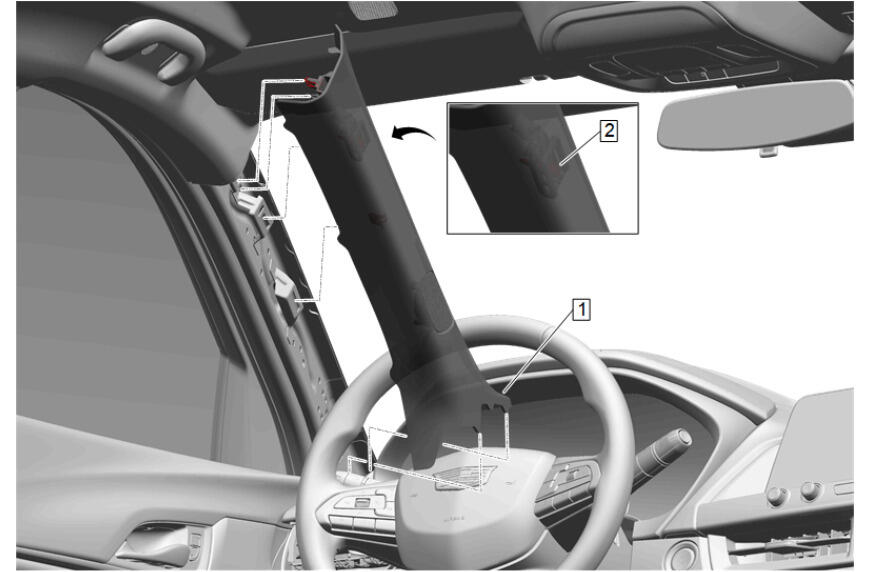

  9. GM5423347Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  10. Windshield Garnish Molding Bolt (2) - Install and tighten [2x] - Fastener Specifications
  11. Align the retainer clips with the slots in the A pillar and press the windshield garnish moldings (1) into place.
  12. Windshield Garnish Molding (1) - Install [2x]

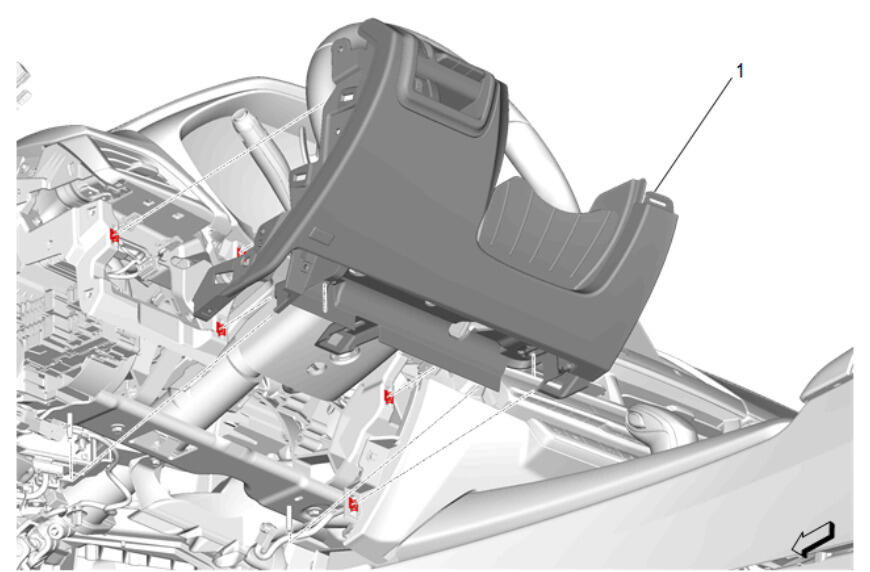

  13. GM5446428Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  14. Instrument Panel Knee Bolster (1) - Install

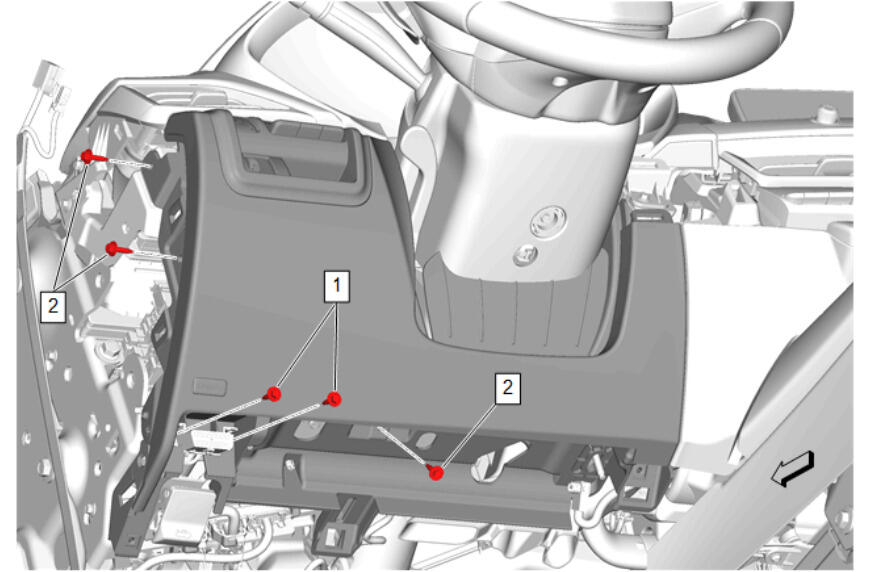

  15. GM5446424Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector Bolt (1) - Install and tighten [2x] - Fastener Specifications

  16. Instrument Panel Knee Bolster Bolt (2) - Install and tighten [3x] - Fastener Specifications

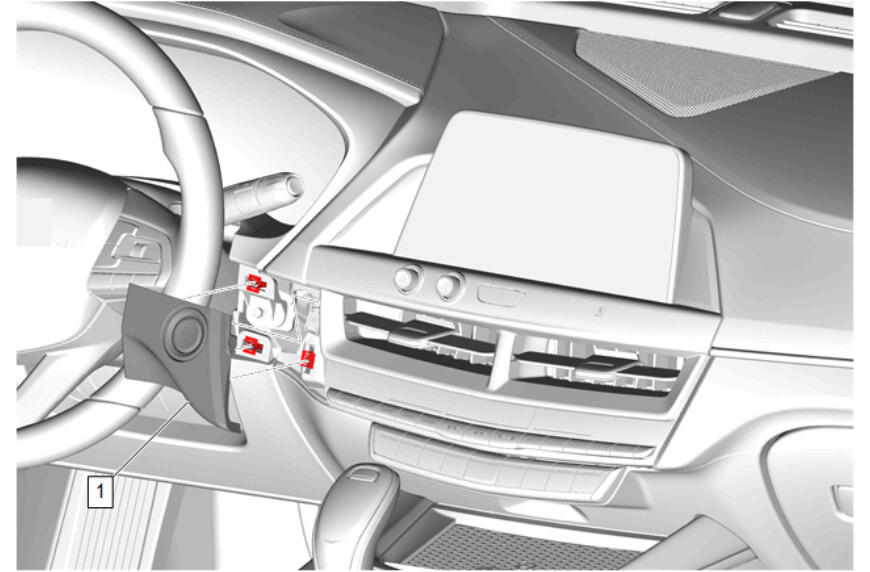

  17. GM5433957Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  18. Instrument Panel Center Trim Pad (1) - Install
  19. Return the steering column to its original position.
  20. GM5310879Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  21. Instrument Panel Lower Trim Panel Insulator (1) - Install
  22. GM5310878Courtesy of GENERAL MOTORS COMPANY

    Install the tabs into the instrument panel lower trim panel insulator (1).

  23. GM5310877Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

  24. Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
  25. Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
  26. GM5300282Courtesy of GENERAL MOTORS COMPANY

    Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).

  27. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install

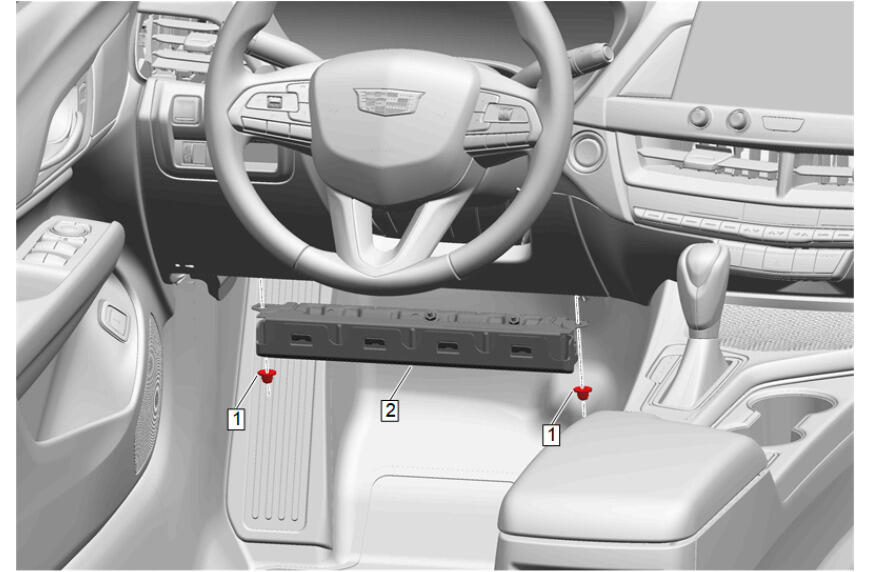

  28. GM5443235Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  29. Instrument Panel Lower Airbag - Driver Side (2) - Install
  30. Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
  31. Enable the SIR System. SIR Disabling and Enabling .
