Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all sealing surfaces.
  2. Spray Low LOC brake cleaner on the LCE sealing surface and wipe off with a clean shop towel. Avoided touching the surface after cleaning and air dry with shop air.
  3. Wipe the positive crankcase oil separator cover sealing surface with the Adhesion Plastic Pan Primer Promoter with a clean shop towel. Allow the cleaner to flash / evaporate. Wipe off the sealing surfaces with a lint free cloth. Do not touch the sealing surface after cleaning to avoid inducing containment debris to the bonding surface area. Adhesives, Fluids, Lubricants, and Sealers
  4. GM5020635
    NOTE:
    • The positive crankcase oil separator cover sealing surface must be free of contamination prior to applying the sealer.
    • Install and align the positive crankcase oil separator cover to engine block within 10 minutes of applying the sealer.
    • The positive crankcase oil separator cover must be fastened to final torque specification within 15 minutes of applying the sealer.
    • Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

    Apply approximately a 4 mm (0.16 in) thick bead of sealant (1) to the positive crankcase oil separator cover. Adhesives, Fluids, Lubricants, and Sealers

  5. GM5020637

    Positive Crankcase Ventilation Oil Separator Cover (1) - Install

  6. Check that the pin of the positive crankcase ventilation oil separator cover sits correct in the right hole.
  7. GM5521720
    CAUTION:

    Refer to Fastener Caution .

    Positive Crankcase Ventilation Oil Separator Cover Bolt (1) - Install and tighten in sequence [11x] - Fastener Specifications

  8. GM5299624

    Install the knock sensor (2).

  9. Install the knock sensor bolt (1). Fastener Specifications
  10. GM5299629

    Install the knock sensor (2).

  11. Install the knock sensor bolt (1). Fastener Specifications
  12. GM4840511
    NOTE:

    DO NOT use any type of lubricant when installing the NEW combustion seals on the fuel injector tip.

    Install EN-51955-1  long protector (1) onto the fuel injector tip, covering the first recessed area closest to the tip. Place a NEW fuel injector nozzle housing seal (2) on EN-51955-1  long protector (1).

  13. Using EN-51955-4  pusher (3), install the NEW fuel injector nozzle housing seal (2) into the recessed area (4) of the fuel injector, then remove the EN-51955-1  long protector.
  14. Compress the NEW fuel injector nozzle housing seal (2) using EN-51955-3  pre-sizer (5).
  15. Using EN-51955-5  sizer (6), resize the NEW fuel injector nozzle housing seal.
  16. Install EN-51955-2  short protector (7) onto the fuel injector tip. Place a second NEW seal (8) on EN-51955-2  short protector (7).
  17. Using EN-51955-4  pusher (3), install the NEW fuel injector nozzle housing seal (8) into the remaining recessed area (9) of the fuel injector, then remove EN-51955-2  short protector.
  18. Compress the NEW fuel injector nozzle housing seal (8) using EN-51955-3  pre-sizer (5).
  19. Using EN-51955-5  sizer (6), resize the NEW fuel injector nozzle housing seal.
  20. GM2918356
    NOTE:

    The NEW fuel injector nozzle housing seal must fit properly in the relative groove. Overlapping of the fuel injector seals with the external surface of the injector must be avoided.

    Check both of the fuel injector combustion seals on each fuel injector for correct seat:

    • The seal must not be too large, buckled, or corrugated (1)
    • The seal must be fixed tight and accurate (2)
  21. If the NEW fuel injector nozzle housing seal are not installed correctly, remove the incorrect seal and replace with a NEW seal.
  22. Clean the fuel injector bores and clean the fuel injectors.
  23. GM4995644
    NOTE:

    Place the fuel injection fuel rail into the position on the cylinder head.

    Fuel Injection Fuel Rail (1) - Install

  24. GM4995756
    NOTE:

    Install the 4 fuel injection fuel rail bolts finger tight.

    Fuel Injection Fuel Rail Bolt (1, 2, 3) - Install and hand tighten [4x]

  25. Tighten the 2 outer fuel injection fuel rail bolt (1, 3) alternating in steps of 1/2 turn, until the fuel injection fuel rail (4) is final positioned.
  26. Fuel Injection Fuel Rail Bolt (1, 2, 3) - Tighten [4x] - Fastener Specifications
  27. Electrical Connector (5, 6) - Connect [2x]
  28. GM4995197
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Injection Fuel Rail Insulator (1) - Install

  29. Wiring Harness (2) @ Fuel Injection Fuel Rail Insulator (1) - Install
  30. GM4966911

    Water Outlet Seal (2) - Install NEW

  31. Engine Coolant Flow Control Valve (1) - Install
  32. GM4966906

    Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [4x] - Fastener Specifications

  33. GM5541656

    Intake Manifold Seal (1) - Install NEW

  34. Install the intake manifold and throttle body as and assembly (2).
  35. Intake Manifold Bolt (3) - Install and tighten in sequence [7x] - Fastener Specifications
  36. Retainer @ Intake Manifold - Clip
  37. GM5068210

    Evaporative Emission Canister Purge Pump (2) - Install

  38. Evaporative Emission Canister Purge Pump Bolt (1, 3) - Install NEW and tighten [3x] - Fastener Specifications
  39. Retainer (4) @ Evaporative Emission Canister Purge Pump Bracket - Clip
  40. GM5541662

    Engine Oil Cooler Seal (2) - Install NEW [2x]

  41. Engine Oil Cooler (4) - Install
  42. Engine Oil Cooler Bolt (3) - Install and tighten [4x] - Fastener Specifications
  43. Clamp (1) - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
  44. GM5125430

    Engine Coolant Manifold Gasket (2) - Install NEW

  45. Engine Coolant Air Bleed Pipe (1) - Install
  46. GM5125429
    CAUTION:

    Refer to Fastener Caution .

    Engine Coolant Air Bleed Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications

  47. GM4962310

    Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

  48. Engine Coolant Heater Exhaust Pipe Bracket Bolt (2) - Install and tighten - Fastener Specifications
  49. GM5323492

    Engine Coolant Manifold Gasket (3) - Install NEW

  50. Engine Coolant Thermostat Housing Pipe (2) - Install
  51. Engine Coolant Heater Exhaust Pipe Bolt (1) - Install, but do NOT tighten [2x]
  52. GM5323487

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Install, but do NOT tighten

  53. GM5323488

    Engine Coolant Heater Exhaust Pipe (3) @ Engine Coolant Flow Control Valve - Install

  54. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  55. Engine Coolant Heater Exhaust Pipe Bolt (1) - Install - Fastener Specifications
  56. GM5323487

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Tighten - Fastener Specifications

  57. GM5323492

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Tighten [2x] - Fastener Specifications

  58. GM5541652

    Water Pump (3) - Install

  59. Water Pump Bolt (4) - Install and tighten [3x] - Fastener Specifications
  60. Clamp (1, 2) [2x] Install - Hose Clamp Replacement Guidelines - Spring Type
  61. GM5129572

    Water Inlet Gasket (1) - Install NEW

  62. Engine Coolant Thermostat Housing Inlet Pipe (2) - Install
  63. GM5129570

    Engine Coolant Thermostat Housing Bolt (1) - Install and tighten [3x] - Fastener Specifications

  64. Clamp (2) - Install - Hose Clamp Replacement Guidelines - Spring Type
  65. GM5067948

    Water Pump Inlet Pipe (2) - Install

  66. Water Pump Inlet Pipe (2) @ Engine Coolant Air Bleed Pipe (7) - Install
  67. Water Pump Inlet Pipe (2) @ Water Pump (4) - Install
  68. Water Pump Inlet Pipe Bolt (5, 6) - Install [2x]
  69. Clamp (1, 3) - InstallRemove [2x] - Hose Clamp Replacement Guidelines - Spring Type
  70. GM5318618

    Engine Coolant Air Bleed Pipe (1) - Install - Hose Clamp Replacement Guidelines - Spring Type

  71. GM5318324

    Engine Coolant Air Bleed Pipe (2) @ Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

  72. GM5318334

    Engine Coolant Air Bleed Pipe (2) @ Engine Coolant Air Bleed Hose - Install

  73. Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  74. GM5402881

    Engine Coolant Air Bleed Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications

  75. GM4967492

    The EN-52443  alignment tool has two ends marked with Number 1 (1) and Number 2 (2).

  76. GM4967236
    NOTE:
    • The camshaft MUST be at the base circle position before the fuel pump is installed.
    • At the base circle position, the EN-52443  alignment tool will sit flush with the cylinder head.

    Install the EN-52443  alignment tool (1) with the Number 2 (1) on the outside and turn the crankshaft until the camshaft lobe is at the base circle position.

  77. Remove the EN-52443  alignment tool (1).
  78. GM4967228

    Lubricate the valve lifter follower (2) with a bit engine oil. Adhesives, Fluids, Lubricants, and Sealers

  79. Valve Lifter Follower (2) - Install
  80. Fuel Pump Seal (3) - Install NEW
  81. Fuel Pump (1) - Install
    82. CAUTION:

    Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.

  82. Fuel Pump Bolt (4) - Install and tighten [2x] - Fastener Specifications
  83. GM5314508

    Fuel Feed Intermediate Pipe (2) - Install NEW

  84. Fuel Injection Fuel Feed Front Pipe Nut - Install and hand tighten [2x]
  85. Fuel Injection Fuel Feed Pipe Bolt (1) - Install and tighten - Fastener Specifications
  86. Fuel Injection Fuel Feed Front Pipe Nut @ Fuel Feed Intermediate Pipe (2) - Tighten [2x] - Fastener Specifications
  87. GM4967233

    Fuel Pump Insulator (1) - Install

  88. GM5422918

    Fuel Pump Cover (2) - Install

  89. Fuel Pump Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications
  90. GM4961570

    Ignition Coil (2) - Install [4x]

  91. Ignition Coil Bolt (1) - Install and tighten [8x] - Fastener Specifications
  92. GM5541642

    Install a NEW turbocharger oil feed pipe gasket (7).

  93. Install a NEW turbocharger oil feed pipe seal ring (6).
  94. Install a NEW turbocharger heat shield (1).
  95. Install the compressor air intake turbocharger (3).
  96. Install and tighten the 2 turbocharger oil feed pipe bolts (4). Fastener Specifications
  97. Install and tighten the turbocharger oil feed pipe bolt (5). Fastener Specifications
  98. Install NEW and tighten in sequence the 4 turbocharger bolts (2). Fastener Specifications
  99. GM5049386

    Turbocharger Coolant Feed and Return Pipe Gasket (6) - Install NEW

  100. Turbocharger Coolant Feed and Return Pipe (4) - Install
  101. Turbocharger Coolant Feed and Return Pipe (4) @ Engine Coolant Heater Exhaust Pipe (1) - Install
  102. Turbocharger Coolant Feed and Return Pipe Bolt (5) - Install and tighten [2x] - Fastener Specifications
  103. Turbocharger Coolant Feed and Return Pipe Bolt (3) - Install and tighten - Fastener Specifications
  104. Clamp (2) - Install - Hose Clamp Replacement Guidelines - Spring Type
  105. GM5049385

    Turbocharger Coolant Feed and Return Pipe (4) @ Engine Coolant Thermostat Housing Inlet Pipe (2) - Install

  106. Turbocharger Coolant Feed Pipe Bracket Bolt (3) - Install and tighten - Fastener Specifications
  107. Clamp (1) - Install - Hose Clamp Replacement Guidelines - Spring Type
  108. GM5135894

    Positive Crankcase Ventilation Hose Fitting Seal (4) - Install NEW [2x]

  109. Positive Crankcase Ventilation Hose (3) - Install
  110. Retainer (2) - Install [2x]
  111. Positive Crankcase Ventilation Hose Connector Bolt (1) - Install [2x]
  112. Connect the electrical connector at the sensor.
  113. GM5335664
    CAUTION:

    Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.

    Inspect each engine mount to ensure the phenolic spacer (1) is in place and not damaged.

  114. If needed, transfer the EN-36857  Engine Lift Bracket Set and EN-51768  Engine Support Fixture Adapter Bolts - M8, to the new engine and attach the engine hoist used for removal.
  115. GM5323001

    EN-36857  Engine Lift Bracket Set (1) - Install

  116. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  117. GM5598887

    EN-36857  Engine Lift Bracket Set (1) - Install

  118. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  119. Lift the engine and install both left and right engine mount brackets to the new engine.
  120. GM5336818

    Engine Mount Bracket- Left Side (2) - Install

  121. Engine Mount Bracket Bolt (1) - Install NEW and tighten [3x] - Fastener Specifications
  122. GM5541638

    Engine Mount Bracket- Right Side (2) - Install

  123. Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
  124. Install a suitable lifting chain and lifting hoist to the EN-36857  Engine Lift Bracket Set.
  125. Remove the engine from the engine stand using a suitable engine hoist.
  126. Using an engine hoist, install the engine to the engine mounts on the cradle.
  127. Remove the J-21366  Converter Holding Strap from the transmission bell housing.
  128. Using the GE-52200  Powertrain and Battery Lifter, mate the transmission and the NEW engine together.
  129. GM5508848

    Transmission Bolt (2) - Install and tighten [4x] - Fastener Specifications

  130. Transmission Stud (1) - Install and tighten [2x] - Fastener Specifications
  131. GM5508846

    Transmission Bolt (2) - Install and tighten [2x] - Fastener Specifications

  132. Transmission Stud (1) - Install and tighten - Fastener Specifications
  133. Remove the engine hoist and lifting hardware, re-install harness retainer bolt at the right front of engine.
  134. GM5335541

    Engine Mount Nut- Left Side (1) - Install and tighten - Fastener Specifications

  135. GM5335537

    Engine Mount Nut- Right Side (1) - Install and tighten - Fastener Specifications

  136. Connect the transmission vent hose to the engine.
  137. Align the torque converter to flex plate orientation marks made during the removal procedure.
  138. GM5333497

    Position harness to new engine.

  139. Connect the electrical connector. (1)
  140. Install the retainers. (2)
  141. GM5335427

    Wiring Harness Retainer (1) - Engage [6X]

  142. GM5342773
    NOTE:

    For proper alignment of all torque converter bolts, install the first torque converted bolt in the oval shaped hole.

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    143. NOTE:

    To prevent loosening the harmonic balancer bolt, rotate the harmonic balancer center bolt clockwise ONLY.

  143. Transmission Torque Converter Bolt (1) - Install and tighten [6x] - Fastener Specifications
  144. GM5319715

    Starter (3) - Install

  145. Starter Bolt (2) - Install and tighten [2x] - Fastener Specifications
  146. Starter Stud (1) - Install and tighten - Fastener Specifications
  147. GM5460947

    Auxiliary Generator Battery Jumper Cable (2) - Install

  148. Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten - Fastener Specifications
  149. GM5460935

    Electrical Connector (1) - Connect

  150. GM5460874

    Auxiliary Generator Battery Jumper Cable (3) - Install

  151. Battery Negative Cable Nut (1) @ Starter Stud - Install and tighten - Fastener Specifications
  152. Engine Wiring Harness Retainer (2) - Engage [2x]
  153. GM5068106

    Oil Level Indicator Tube Seal (2) - Install NEW

  154. Oil Level Indicator Tube (1) - Install
  155. GM5136547

    Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten - Fastener Specifications

  156. Electrical Connector (1) @ Oil Level Indicator (3) - Clip
  157. GM5335764

    Oil Level Indicator (1) - Install

  158. GM5395328

    Install the generator (1) and the generator lower mounting bolt (2) to the NEW engine.

  159. GM5395311

    Generator Bolt (2) - Install and tighten - Fastener Specifications

  160. Generator Bolt (1) Install and tighten - Fastener Specifications
  161. GM5541821

    Drive Belt Tensioner (2) - Install

  162. Drive Belt Tensioner Bolt (1) - Install and tighten - Fastener Specifications
  163. GM5541666

    Air Conditioning Compressor Stud (5) - Install and tighten - Fastener Specifications

  164. Air Conditioning Compressor (4) - Install
  165. Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
  166. Air Conditioning Compressor Nut (2) - Install and tighten - Fastener Specifications
  167. Air Conditioning Compressor Bolt (3) - Install and tighten - Fastener Specifications
  168. GM5129599

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise and hold.

  169. GM5129786

    Accessory Drive Primary Belt (1) - Install

  170. Slowly release tension on the drive belt tensioner.

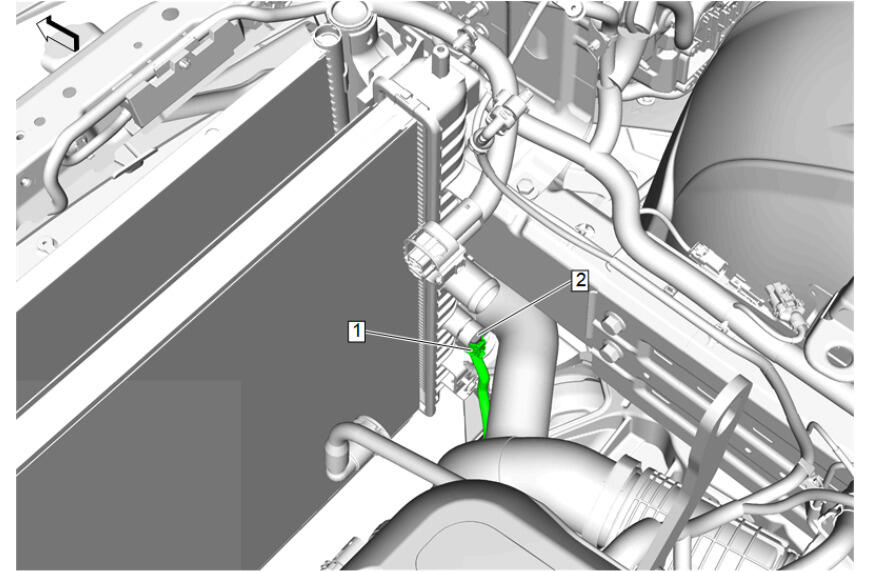

  171. GM5430387

    Engine Radiator - Install

  172. Throttle Inlet Absolute Pressure Sensor - Connect
  173. Engine Coolant Temperature Indicator Switch Connector (1) @ Engine Coolant Temperature Sensor (2) - Connect
  174. GM5313295

    Radiator Outlet Hose (2) @ Engine - Install

  175. Radiator Outlet Hose Clamp (1) @ Engine - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  176. GM5313262

    Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install

  177. Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  178. GM5071195

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  179. Retainer Spring (1) - Engage
  180. GM5314511

    Charge Air Cooler Inlet Air Tube (2) @ Turbocharger (3) - Install

  181. Retainer Spring (1) - Engage
  182. GM5311076

    Catalytic Converter Brace Bracket (2) - Install

  183. Catalytic Converter Brace Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  184. GM5525783

    Catalytic Converter Gasket (2) - Install NEW

  185. Warm Up Three-Way Catalytic Converter (1) - Install
  186. GM5310863

    Exhaust Pipe Clamp (1) - Install NEW

  187. GM5310881

    Catalytic Converter Brace Bolt (1) - Install and tighten - Fastener Specifications

  188. GM5310876

    Catalytic Converter Brace Bolt (1) - Install and tighten - Fastener Specifications

  189. GM5310863

    Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications

  190. Connect both heated oxygen sensor electrical connectors.
  191. GM5310178

    Catalytic Converter Heat Shield (1) - Install

  192. GM5310138

    Catalytic Converter Heat Shield Nut (2) - Install and tighten - Fastener Specifications

  193. Catalytic Converter Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  194. GM5309997

    Turbocharger Heat Shield (1) - Install

  195. GM5309985

    Turbocharger Heat Shield Bolt (1) - Install [3x] - Fastener Specifications

  196. Reposition and connect the heated oxygen sensor electrical connector.
  197. GM5129535

    Engine Coolant Air Bleed Pipe Bolt (2) - Install and tighten [2x] - Fastener Specifications

  198. GM5415576

    Automatic Transmission Fluid Cooling Exchanger (2) - Install

  199. Transmission Fluid Auxiliary Cooler Bracket Nut (1) - Install and tighten - Fastener Specifications
  200. GM5411958

    Transmission Fluid Auxiliary Cooler Bolt (1) - Install and tighten [2x] - Fastener Specifications

  201. GM5411943

    Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) - Install

  202. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
  203. GM5411944

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) - Install

  204. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
  205. Connect the remaining electrical connectors and hoses as necessary.
  206. Ensure the following components are clear from the frame:
    • Vacuum lines
    • Steering knuckles
    • Electrical wiring harnesses
    • Oil cooler lines
  207. GM5541631

    Position the engine and transmission (1) on the GE-52200  Powertrain and Battery Lifter (2) to the vehicle and raise into position.

  208. GM5538431

    Drivetrain and Front Suspension Cradle Front Bolt (1) - Install and tighten [4x] - Fastener Specifications

  209. Drivetrain and Front Suspension Cradle Rear Bolt (2) - Install and tighten [2x] - Fastener Specifications
  210. GM5427478

    Transmission Mount (2) - Install

    211. NOTE:

    For proper bolt alignment, loosely install all mount bolts prior to tightening to specifications.

  211. Transmission Mount Bolt (1) - Loosely install [2x]
  212. GM5427472

    Transmission Mount Bracket Bolt (1) - Loosely install [4x]

  213. Remove the straps and binders securing the powertrain to the support table.
  214. Remove the GE-52200  Powertrain and Battery Lifter from under the vehicle.
  215. GM5336424

    Intermediate Steering Shaft (1) - Install

  216. GM5336440

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    217. CAUTION:

    Refer to Fastener Caution .

  217. Intermediate Steering Shaft Lower Bolt (1) - Install and tighten - Fastener Specifications
  218. GM5336153

    Install the mid intermediate steering shaft to the intermediate steering shaft by sliding the upper portion of the intermediate shaft (1) upward.

  219. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  220. Mid Intermediate Steering Shaft Bolt (2) - Install - Fastener Specifications
  221. Unlock the steering column.
  222. GM5317837

    Front Crossmember Brace-Left Side (3) - Install

  223. Front Crossmember Brace Nut-Left Side (2) - Install and tighten - Fastener Specifications
  224. Front Crossmember Brace Bolt-Left Side (1) - Install and tighten [4x] - Fastener Specifications
  225. GM5318200

    Front Crossmember Brace-Right Side (3) - Install

  226. Front Crossmember Brace Nut-Right Side (2) - Install and tighten - Fastener Specifications
  227. Front Crossmember Brace Bolt-Right Side (1) - Install and tighten [4x] - Fastener Specifications
  228. GM5312788
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner (3) - Install [2x]

  229. Front Wheelhouse Liner Retainer (2) - Install [6x]
  230. Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] Fastener Specifications
  231. GM5312762
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner Retainer (3) - Install

  232. Front Wheelhouse Liner Bolt (2) - Install and tighten [10x] Fastener Specifications
  233. Front Bumper Fascia Bolt (1) - Install [6x] - Fastener Specifications
  234. GM5423336

    Radiator Air Front Lower Baffle (1) - Install

  235. GM5423335

    Radiator Air Front Lower Baffle Retainer (1) - Install [3x]

  236. GM5420502

    Front Compartment Air Deflector (2) - Install

  237. Front Compartment Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
  238. GM5396496

    Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications

  239. Engine Front Splash Shield Retainer (2) - Install [2x]
  240. Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
  241. GM5396453

    Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications

  242. Engine Front Splash Shield Retainer (2) - Install [2x]
  243. Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications
  244. GM5421515
    NOTE:

    Left side shown, right side similar.

    Engine Front Splash Shield (3) - Install [2x]

  245. Engine Front Splash Shield Retainer (2) - Install [2x]
  246. Engine Front Splash Shield Bolt (1) - Install [10x] - Fastener Specifications
  247. GM5394612
    NOTE:

    Left side shown, right side similar.

    Front Tire Front Air Deflector Bolt (1) - Install [8x] - Fastener Specifications

  248. Front Tire Front Air Deflector (2) - Install [2x]
  249. Reposition and connect wiring harness and hoses as needed.
  250. GM5334765

    Apply a thin layer of grease to the transmission output shaft splines (1). Adhesives, Fluids, Lubricants, and Sealers

  251. Loosely install a NEW propeller shaft hub clamp (3) to the propeller shaft joint boot.
  252. Support and secure the propeller shaft (2) to a suitable hydraulic jack stand.
  253. Propeller Shaft (2) - Install
  254. GM5317838

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  255. Propeller Shaft Bearing Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
  256. Remove the hydraulic jack stand supporting the propeller shaft.
  257. GM5317835

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  258. Align the relationship marks (2) made on the propeller shaft and the rear differential flange.
  259. Rear Propeller Shaft Bolt (1) - Install [3x]
  260. Rear Propeller Shaft Nut (3) - Loosely install [3x]
  261. Rear Propeller Shaft Bolt (1) - Tighten [3x] - Fastener Specifications
  262. Using a suitable jack stand, support the rear of the transmission.
  263. GM5427472

    Transmission Mount Bracket Bolt (1) - Remove [4x]

  264. Transmission Mount Bracket - Remove
  265. GM5427478

    Transmission Mount Bolt (1) - Remove [2x]

  266. Transmission Mount (2) - Remove
  267. GM5317844
  268. Ensure that the drive shaft boot is completely seated in the output shaft groove prior to crimping the propeller shaft hub clamp (2).
  269. Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the propeller shaft hub clamp (2) until the final crimped outer diameter (a) is 39 - 41 mm (1.54 - 1.61 in).
  270. GM5427478

    Transmission Mount (2) - Install

    271. NOTE:

    For proper bolt alignment, loosely install all mount bolts prior to tightening to specifications.

  271. Transmission Mount Bolt (1) - Tighten [2x] - Fastener Specifications
  272. GM5427472

    Transmission Mount Bracket Bolt (1) - Tighten [4x] - Fastener Specifications

  273. Remove the jack stand.
  274. GM5471168

    Floor Panel Number 2 Cross Bar Reinforcement (1) - Install

  275. Floor Panel Number 2 Cross Bar Reinforcement Bolt (2) - Install and tighten [4x] - Fastener Specifications
  276. GM5309833

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  277. Exhaust Heat Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications
  278. GM5309214
    NOTE:

    With the aid of an assistant.

    Catalytic Converter Gasket (2) - Install NEW

  279. Exhaust Muffler (1) - Install
  280. GM5309211

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Right Side (3) - Install

  281. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Right Side (2) - Install
  282. GM5309202

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Left Side (3) - Install

  283. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Left Side (2) - Install
  284. GM5399464

    { If equipped } Front Crossmember Brace (2) - Install

  285. { If equipped } Front Crossmember Brace Nut (1) - Install and tighten [4x] - Fastener Specifications
  286. GM5309188

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  287. GM5471236

    Floor Panel Reinforcement (1) - Install

  288. Floor Panel Number 4 Cross Bar Reinforcement Bolt (2) - Install and tighten [6x] - Fastener Specifications
  289. GM5400642

    Underbody Rear Air Deflector- Right Side (5) - Install

  290. Underbody Rear Air Deflector Plastic Nut (3) - Install and tighten [3x] - Fastener Specifications
  291. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  292. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  293. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  294. GM5471237

    Rear Tire Front Air Deflector- Right Side (1) - Install

  295. Rear Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  296. GM5400553

    Underbody Rear Air Deflector- Left Side (5) - Install

  297. Underbody Rear Air Deflector Plastic Nut (2) - Install and tighten [3x] - Fastener Specifications
  298. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  299. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  300. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  301. GM5395705

    Rear Tire Front Air Deflector- Left Side (2) - Install

  302. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  303. GM5471847
    NOTE:

    Ensure the transmission control is in the park position and the automatic transmission range selector lever is in the park position.

    Slide the automatic transmission range selector locking ring (1) in the direction of the arrow then install the automatic transmission range selector (3) into the automatic transmission range selector lever (4).

  304. Ensure the automatic transmission range selector cable retainer (2) is fully engaged then slide the automatic transmission range selector locking ring (1) in the opposite direction of the arrow to lock the automatic transmission range selector cable (3) into the automatic transmission range selector lever (4).
  305. GM5471853

    Install the automatic transmission range selector cable (2) into the automatic transmission range selector lever cable bracket.

  306. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    307. WARNING:

    Ensure that the cable is properly aligned to the transmission bracket prior to tightening the fastener in order to avoid any damage to the cable and/or bracket. Failure to perform this task can result in the shifter moving out of the Park position unintentionally, causing potential vehicle damage and bodily injury.

    NOTE:

    Ensure the automatic transmission range selector cable is aligned to the automatic transmission range selector lever cable bracket prior to tightening.

  307. Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications
  308. If necessary, adjust the automatic transmission range selector lever cable. Automatic Transmission Range Selector Lever Cable Adjustment
  309. Partially lower vehicle.
  310. GM5448424
    NOTE:

    Left side shown, right side similar.

    Steering Knuckle Bolt (2) - Install [4x]

  311. Steering Knuckle Nut (1) - Install and tighten [4x] - Fastener Specifications
  312. GM5326436
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link (1) @ Stabilizer Shaft - Reposition [2x]

  313. GM5326435
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link Nut- Lower (1) - Install and tighten [2x] - Fastener Specifications

  314. GM5472805
    NOTE:

    Left side shown, right side similar.

    Front Wheel Speed Sensor (2) - Install [2x]

  315. Front Wheel Speed Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  316. GM5430376
    NOTE:

    Left side shown, right side similar.

    Front Brake Caliper - Install (1) [2x]

  317. Front Brake Caliper Bolt (2) - Install and tighten [4x] - Fastener Specifications
  318. Lower the vehicle.
  319. GM5314157
    CAUTION:

    Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

    Air Conditioning Condenser Hose Seal (2) - Install NEW

  320. Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
  321. GM5314143

    Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW

  322. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
  323. GM5315482

    Air Conditioning Condenser Tube Clip (2) - Install

  324. Air Conditioning Condenser Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
  325. GM5314114

    Position the air conditioning refrigerant heat exchanger to its original position.

  326. Air Conditioning Evaporator Tube Clip Bracket Bolt (4) - Install and tighten - Fastener Specifications
  327. Air Conditioning Evaporator Thermal Expansion Valve Seal (3) - Install NEW
  328. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Refrigerant Heat Exchanger - Install
  329. Air Conditioning Compressor Hose Nut (1) - Install and tighten - Fastener Specifications
  330. GM5460376

    Air Conditioning Compressor Hose Seal (3) - Install NEW

  331. Air Conditioning Evaporator Thermal Expansion Valve Seal (2) - Install NEW
  332. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Compressor - Install
  333. GM5315475

    Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Compressor - Install and tighten [2x] - Fastener Specifications

  334. Connect the electrical connector.
  335. GM5417160

    Reconnect the 3 electrical connectors (1) to the engine control module.

  336. Connect the remaining portion of the Engine harness connectors retainers and ground wires as needed.
  337. GM5315881

    Body Wiring Harness Junction Block Bracket (2) - Install

  338. Body Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  339. GM5315648

    Install the engine wiring harness fuse block bracket (2) to the body wiring harness junction block bracket (3). Re-engage the 3 retaining tabs (1).

  340. GM5315623

    Install the 2 electrical connectors (1) and engage the 2 retaining covers (2).

  341. GM5314788

    Engine Wiring Harness Junction Block (3) - Install

  342. Retaining Tab (2) - Engage [4x]
  343. Engine Wiring Harness Junction Block Bolt (1) - Install and tighten - Fastener Specifications
  344. GM5311887

    Engine Wiring Harness Fuse Block Cover (2) - Install

  345. Retainer (1) - Engage [2x]
  346. GM5315620
    NOTE:

    Nut is captured with the wire.

    Battery Positive Cable (3) - Install

  347. Auxiliary Generator Battery Jumper Cable (2) - Install
  348. Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
  349. GM5314636

    Battery Distribution Engine Compartment Fuse Block (2) - Install

  350. Retaining Tab (1) - Engage [2x]
  351. GM5314604
    NOTE:

    Nut is captured with the wire.

    Battery Positive Cable (7) - Install

  352. Battery Positive Cable Nut (6) - Install and tighten - Fastener Specifications
  353. Auxiliary Generator Battery Jumper Cable (8) - Install
  354. Auxiliary Generator Battery Jumper Cable Nut (5) - Install and tighten - Fastener Specifications
  355. Engine Wiring Harness Conduit Nut (4) - Install and tighten - Fastener Specifications
  356. Engine Wiring Harness Conduit Nut (3) - Install and tighten - Fastener Specifications
  357. Engine Wiring Harness Conduit Nut (2) - Install and tighten [2x] - Fastener Specifications
  358. Battery Distribution Engine Compartment Fuse Block Cover (1) - Install
  359. GM5117932

    Engine Coolant Air Bleed Hose (3) @ Engine Coolant Heater Exhaust Pipe - Install

  360. Engine Coolant Air Bleed Hose Clamp (2) @ Engine Coolant Heater Exhaust Pipe - Engage - Hose Clamp Replacement Guidelines - Spring Type
  361. GM5124218
    NOTE:

    The compressor air intake turbocharger is removed for illustration purposes only.

    Heater Water Auxiliary Pump Inlet Hose (2) @ Auxiliary Water Pump Inlet Pipe - Install

  362. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  363. GM5312791

    Heater Inlet Hose (2) @ Engine Coolant Thermostat Housing Pipe - Install

  364. Heater Inlet Hose Retainer (1) - Engage - Plastic Collar Quick Connect Fitting Service
  365. GM5427430

    Radiator Upper Bracket (2) - Install [2x]

  366. Radiator Upper Bracket Bolt (3) - Install and tighten [4x] - Fastener Specifications
  367. Wiring Harness Retainer (1) - Install
  368. GM5420297

    Radiator Air Upper Baffle (2) - Reposition

  369. Install the front 3 radiator air upper baffle retainers (1).
  370. Connect the cooling fan electrical connector.
  371. GM5427525

    Install the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

  372. GM5427523

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  373. Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
  374. GM5427515

    Wiring Harness Retainer (1) @ Air Cleaner Assembly - Install [4x]

  375. Connect the electrical connector.
  376. GM5334198

    Positive Crankcase Ventilation Tube (1) - Install

  377. Positive Crankcase Ventilation Tube (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  378. Retainer (2) - Clip
  379. GM5080707

    Evaporative Emission Canister Purge Tube (1) - Install

  380. Connect the quick disconnects and install the retainer. Plastic Collar Quick Connect Fitting Service
  381. GM5137016

    Upper Intake Manifold Bracket (2) - Install

  382. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
  383. GM5137013

    Upper Intake Manifold Cover Bracket Bolt (1) @ Upper Intake Manifold Bracket (2) - Install and tighten [2x] - Fastener Specifications

  384. GM5137012

    Wiring Harness (4) - Reposition

  385. Retainer (2) @ Upper Intake Manifold Bracket (3) - Install
  386. Electrical Connector (1) - Connect [3x]
  387. GM5312610

    Radiator Surge Tank Outlet Pipe (3) - Install

  388. Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Install
  389. Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Install
  390. GM5312607

    Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Install

  391. Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Install
  392. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Install
  393. GM5420763

    Radiator Surge Tank Inlet Hose (2) @ Radiator Surge Tank Outlet Pipe (3) - Install [2x]

  394. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Outlet Pipe (3) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  395. Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  396. Connect the battery. Battery Negative Cable Disconnection and Connection
  397. Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
  398. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement (RWD) , or Engine Oil and Oil Filter Replacement (AWD)
    399. NOTE:

    Prelube is necessary if the engine is replaced or overhauled.

  399. If the engine is replaced with a new engine or has been overhauled, perform the Engine Prelubing procedure. Engine Prelubing
  400. Recharge the refrigerant. Refrigerant Recovery and Recharging
  401. Perform the engine oil life reset. GM Oil Life System Resetting (With Scan Tool) , or GM Oil Life System Resetting (Without Scan Tool)
  402. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
  403. Perform the turbocharger wastegate learn. Turbocharger Wastegate Learn
  404. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
  405. Inspect for fuel leaks using the following procedure:
    1. Turn ON the ignition with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition with the engine OFF.
    4. Inspect for fuel leaks.
  406. Perform front end alignment due to struts being disconnected. Wheel Alignment Measurement
  407. GM5335089

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  408. GM5335087
    NOTE:

    Ensure the engine sight shield retainers fully engage the intake manifold cover studs.

    Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.

    Install the oil fill cap.

scientia non olet · About LEMON Manuals
