Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Charge Air Cooler Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Charge Air Cooler Bracket Bolt [2x] | - | - | 22 N.m (16 lb ft) | Front Bumper Energy Absorber Replacement - Left Side (LSY) , or Front Bumper Energy Absorber Replacement - Left Side (L3B) |
Front Bumper
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Center Support Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Center Support Replacement |
| 2 | Front Bumper Fascia Support Brace Bolt [3x] | - | - | 9 N.m (80 lb in) | Front Bumper Fascia Support Brace Replacement |
| 3 | Front Bumper Impact Bar Bolt [8x] | - | - | 32 N.m (24 lb ft) | Front Bumper Impact Bar Replacement (without Forward Radar) , or Front Bumper Impact Bar Replacement (with Forward Radar) , or Front Bumper Impact Bar Replacement (with Blackwing) |
Front Bumper Energy Absorber
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Energy Absorber Bolt [5x] | - | - | 100 N.m (74 lb ft) | Front Bumper Energy Absorber Replacement - Left Side (LSY) , or Front Bumper Energy Absorber Replacement - Left Side (L3B) |
Front Bumper Fascia
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ) |
| 2 | Front Bumper Fascia Outer Air Duct Bolt [2x] | - | - | 9 N.m (80 lb in) | Front Bumper Fascia Outer Air Duct Replacement |
| 3 | Front Bumper Shutter Bolt [6x] | - | - | 4.7 N.m (42 lb in) | Front Bumper Shutter Replacement |
Front Bumper Fascia Air Deflector- Inner
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

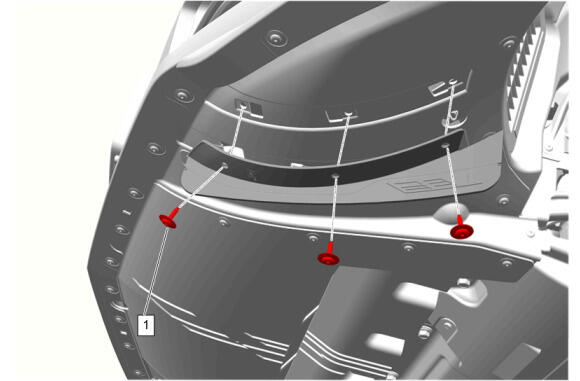

| 1 | Front Bumper Fascia Air Deflector Bolt- Inner [3x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Air Deflector Replacement - Inner (Blackwing) |
Front Bumper Fascia Air Deflector- Outer
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

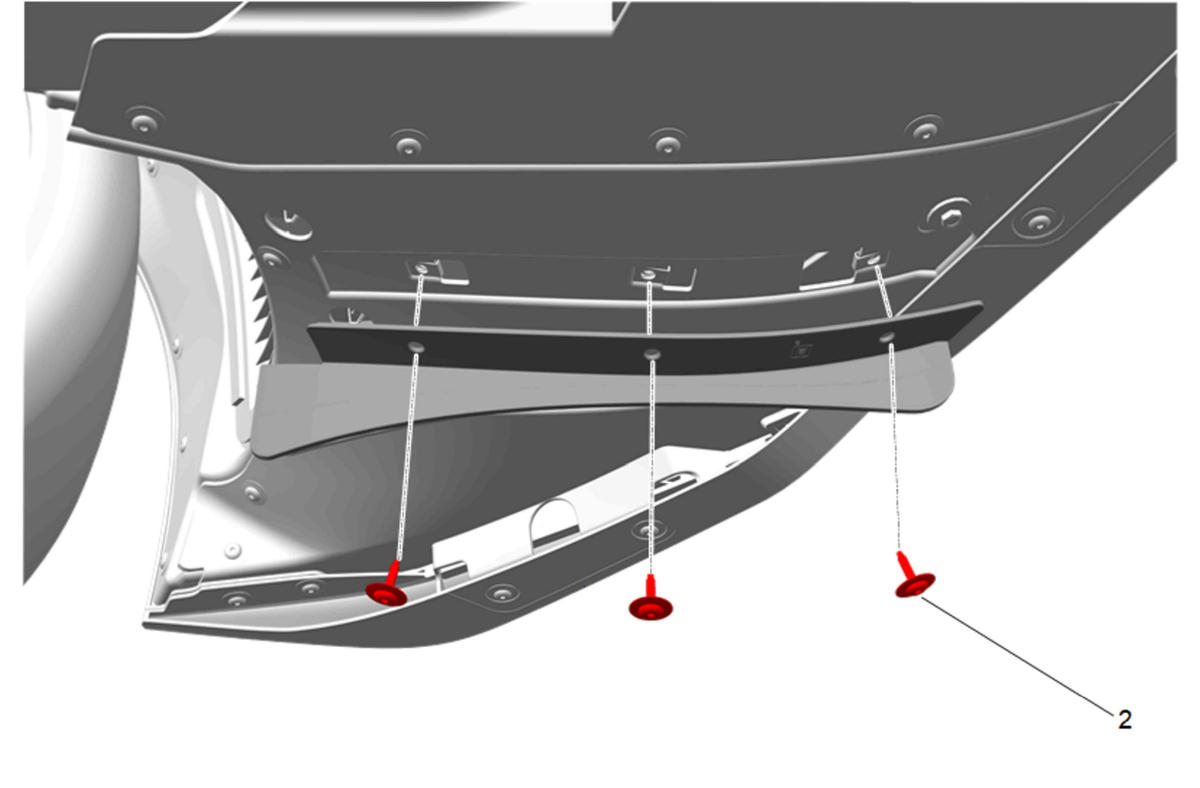

| 1 | Front Bumper Fascia Air Deflector Bolt- Outer [3x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Air Deflector Replacement - Outer , or Front Bumper Fascia Air Deflector Replacement - Outer (Blackwing) |
Front Bumper Fascia Center Air Deflector
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Center Air Deflector Bolt [5x] | - | - | 5 N.m (44 lb in) | Front Bumper Fascia Center Air Deflector Replacement (without Blackwing) , or Front Bumper Fascia Center Air Deflector Replacement (with Blackwing) |
| 2 | Front Bumper Fascia Center Air Deflector Screw [19x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Center Air Deflector Replacement (without Blackwing) , or Front Bumper Fascia Center Air Deflector Replacement (with Blackwing) |
Front Bumper Fascia Center Air Deflector Blackwing
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Air Deflector Bolt [4x] | - | - | 5 N.m (44 lb in) | Front Bumper Fascia Center Air Deflector Replacement (without Blackwing) , or Front Bumper Fascia Center Air Deflector Replacement (with Blackwing) |
| 2 | Front Bumper Fascia Center Air Deflector Screw [14x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Center Air Deflector Replacement (without Blackwing) , or Front Bumper Fascia Center Air Deflector Replacement (with Blackwing) |
Front Bumper Fascia Energy Outer Absorber
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

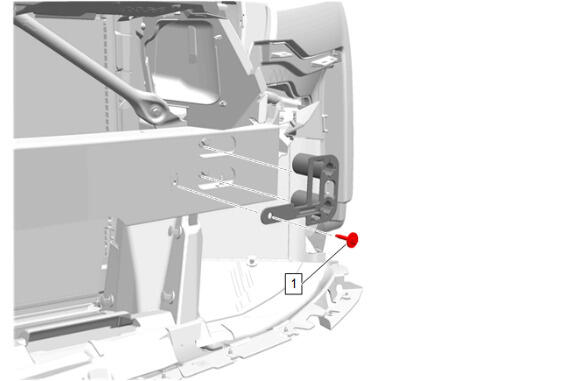

| 1 | Front Bumper Impact Bar Bolt | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Energy Outer Absorber Replacement (Blackwing) |
Front Bumper Fascia Guide
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Guide Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Guide Replacement |
Front Bumper Fascia Lower Reinforcement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Air Deflector Bolt [5x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Lower Reinforcement Replacement (Blackwing) |
| 2 | Front Bumper Fascia Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Bumper Fascia Lower Reinforcement Replacement (Blackwing) |
| 3 | Front Bumper Fascia Lower Stiffener Bolt | - | - | 5 N.m (44 lb in) | Front Bumper Fascia Lower Reinforcement Replacement (Blackwing) |
Front Bumper Fascia Support Outer Brace
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Bumper Fascia Support Outer Brace Bolt [2x] | - | - | 9 N.m (80 lb in) | Front Compartment Front Panel Replacement (LSY) , or Front Compartment Front Panel Replacement (L3B) |
Rear Bumper
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Guide Rivet [5x] | Yes | - | - | Rear Bumper Fascia Guide Replacement |
| 2 | Rear Bumper Impact Bar Bolt [4x] | - | - | 58 N.m (43 lb ft) | Rear Bumper Impact Bar Replacement |
Rear Bumper Fascia
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Exhaust Tail Pipe Heat Sleeve Rivet [2x] | Yes | - | - | Exhaust Tail Pipe Heat Sleeve Replacement |
| 2 | Rear Bumper Fascia Energy Absorber Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Bumper Energy Absorber Replacement |
| 3 | Rear Bumper Fascia Bolt [13x] | - | - | 2.5 N.m (22 lb in) | Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing) |
| 4 | Exhaust Tail Pipe Heat Sleeve Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing) |
Rear Bumper Fascia Diffuser and Extension
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Bumper Fascia Diffuser Rivet [2x] | Yes | - | - | Rear Bumper Fascia Diffuser Replacement |
| 2 | Rear Bumper Fascia Extension Rivet [8x] | Yes | - | - | Rear Bumper Fascia Extension Replacement |
