Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all sealing surfaces.
  2. Spray Low LOC brake cleaner on the LCE sealing surface and wipe off with a clean shop towel. Avoided touching the surface after cleaning and air dry with shop air.
  3. Wipe the positive crankcase oil separator cover sealing surface with the Adhesion Plastic Pan Primer Promoter with a clean shop towel. Allow the cleaner to flash / evaporate. Wipe off the sealing surfaces with a lint free cloth. Do not touch the sealing surface after cleaning to avoid inducing containment debris to the bonding surface area. Adhesives, Fluids, Lubricants, and Sealers
  4. GM5020635
    NOTE:
    • The positive crankcase oil separator cover sealing surface must be free of contamination prior to applying the sealer.
    • Install and align the positive crankcase oil separator cover to engine block within 10 minutes of applying the sealer.
    • The positive crankcase oil separator cover must be fastened to final torque specification within 15 minutes of applying the sealer.
    • Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

    Apply approximately a 4 mm (0.16 in) thick bead of sealant (1) to the positive crankcase oil separator cover. Adhesives, Fluids, Lubricants, and Sealers

  5. GM5020637

    Positive Crankcase Ventilation Oil Separator Cover (1) - Install

  6. Check that the pin of the positive crankcase ventilation oil separator cover sits correct in the right hole.
  7. GM5521720
    CAUTION:

    Refer to Fastener Caution .

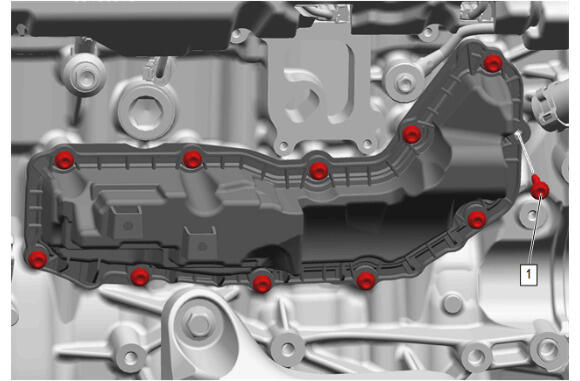

    Positive Crankcase Ventilation Oil Separator Cover Bolt (1) - Install and tighten in sequence [11x] - Fastener Specifications

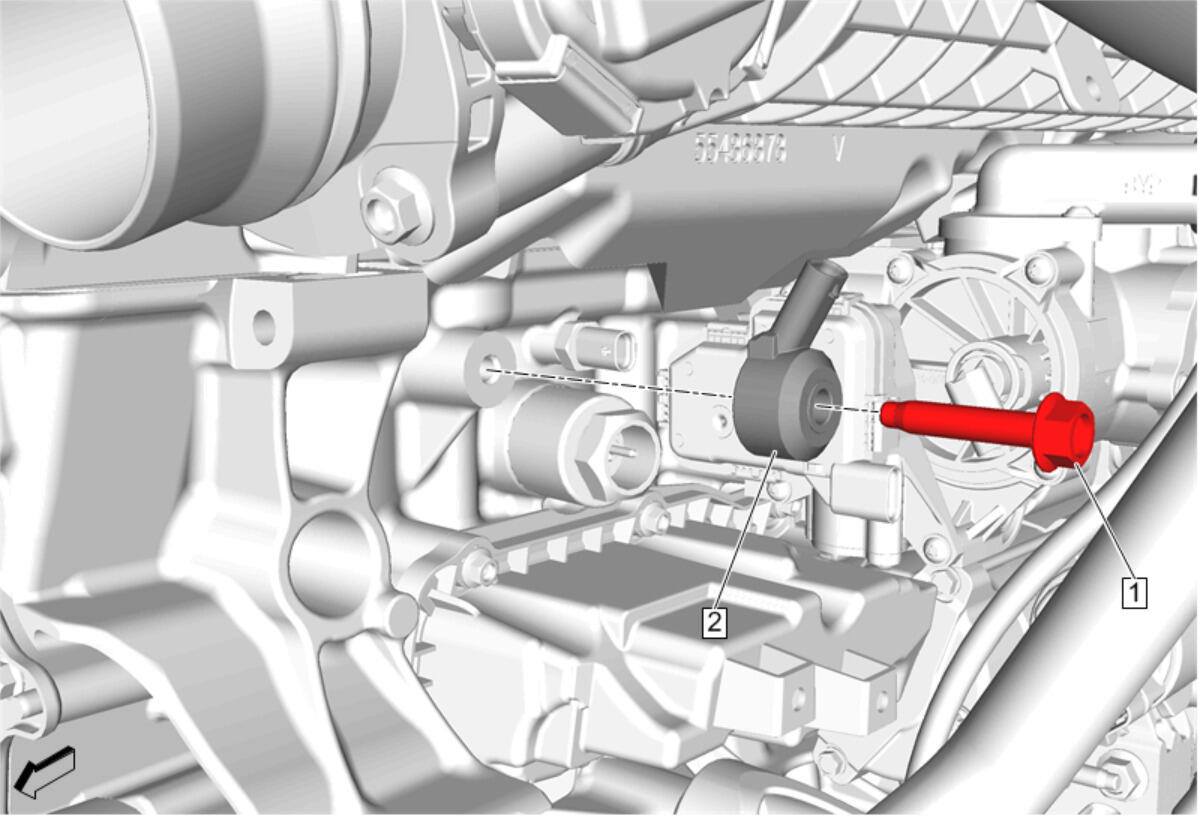

  8. GM5299624

    Install the knock sensor (2).

  9. Install the knock sensor bolt (1).

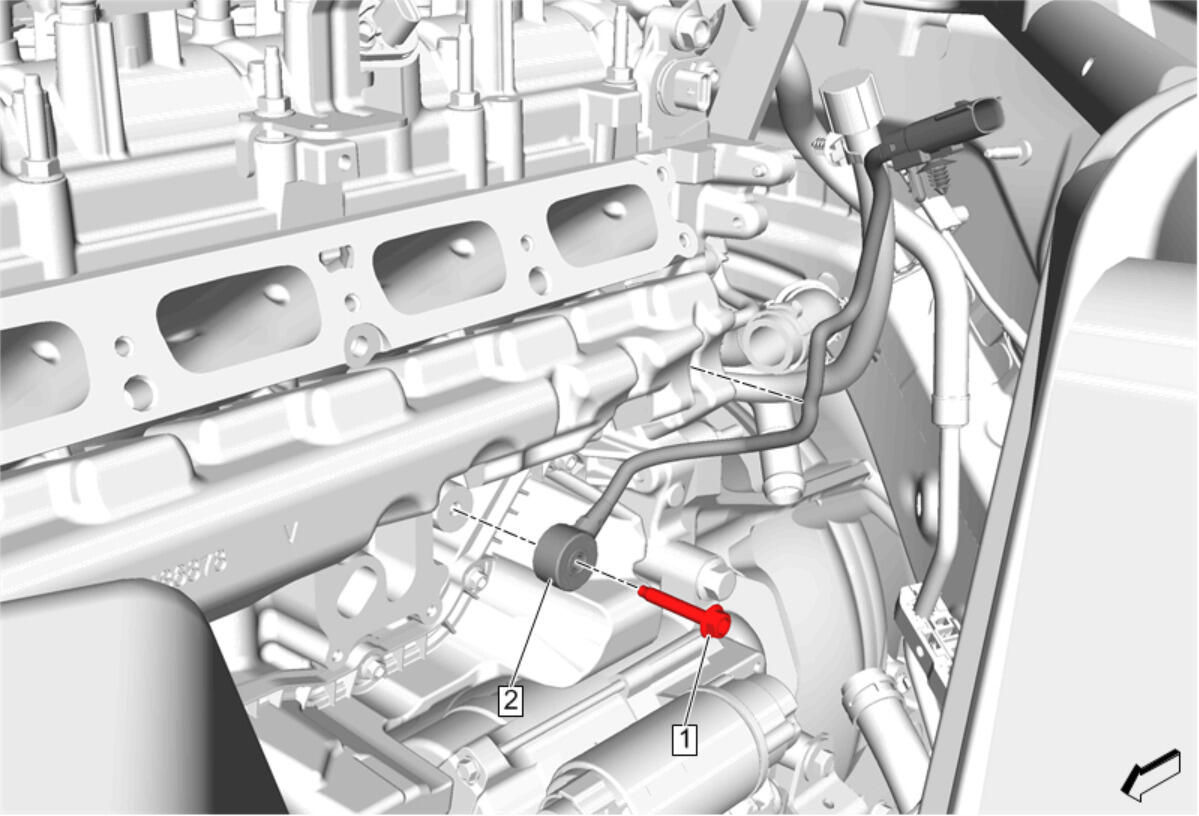

  10. GM5299629

    Install the knock sensor (2).

  11. Install the knock sensor bolt (1).

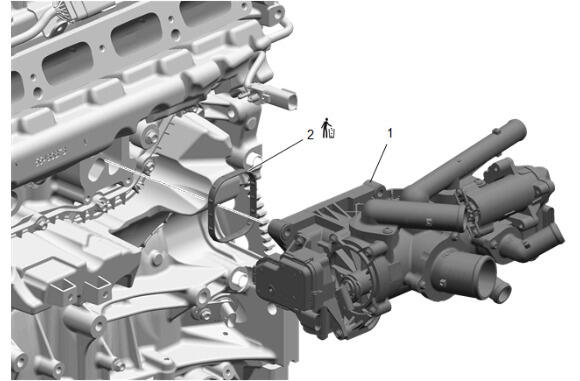

  12. GM4966911

    Water Outlet Seal (2) - Install NEW

  13. Engine Coolant Flow Control Valve (1) - Install

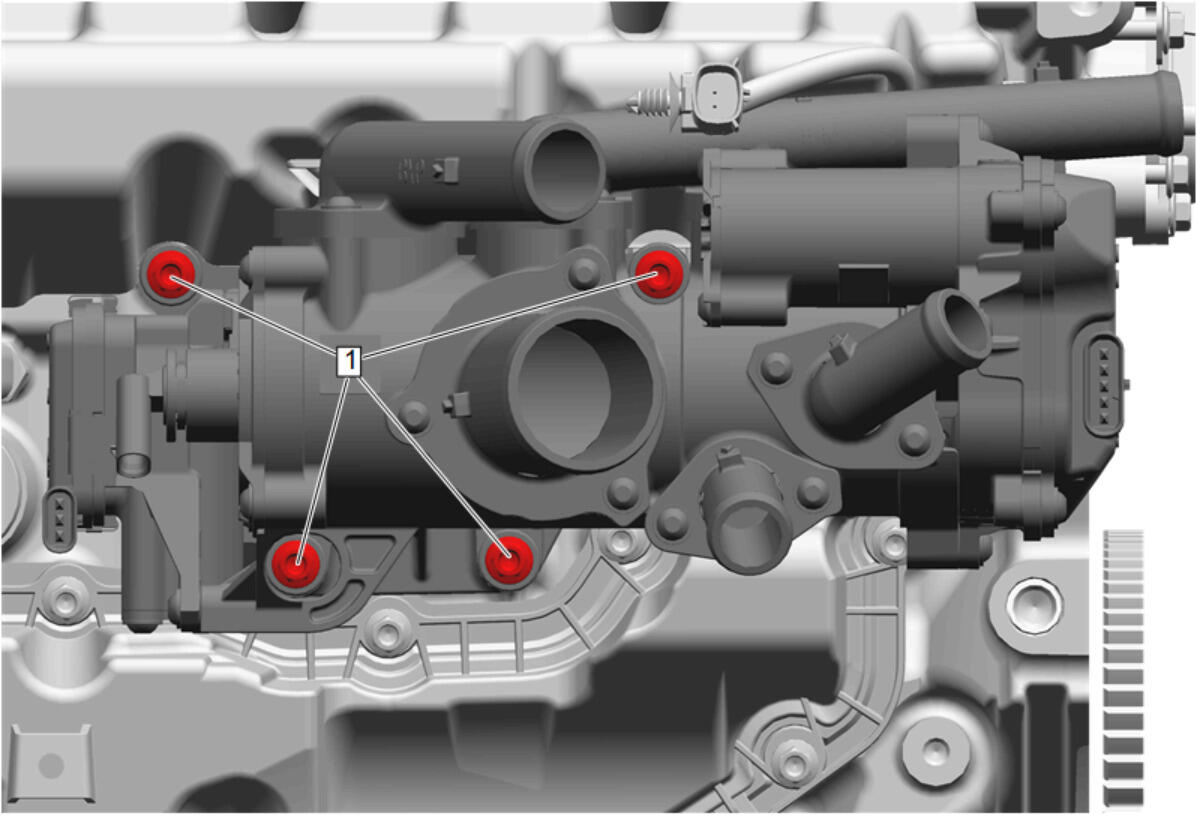

  14. GM4966906

    Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [4x] - Fastener Specifications

  15. GM4840511
    NOTE:

    DO NOT use any type of lubricant when installing the NEW combustion seals on the fuel injector tip.

    Install EN-51955-1  long protector (1) onto the fuel injector tip, covering the first recessed area closest to the tip. Place a NEW fuel injector nozzle housing seal (2) on EN-51955-1  long protector (1).

  16. Using EN-51955-4  pusher (3), install the NEW fuel injector nozzle housing seal (2) into the recessed area (4) of the fuel injector, then remove the EN-51955-1  long protector.
  17. Compress the NEW fuel injector nozzle housing seal (2) using EN-51955-3  pre-sizer (5).
  18. Using EN-51955-5  sizer (6), resize the NEW fuel injector nozzle housing seal.
  19. Install EN-51955-2  short protector (7) onto the fuel injector tip. Place a second NEW seal (8) on EN-51955-2  short protector (7).
  20. Using EN-51955-4  pusher (3), install the NEW fuel injector nozzle housing seal (8) into the remaining recessed area (9) of the fuel injector, then remove EN-51955-2  short protector.
  21. Compress the NEW fuel injector nozzle housing seal (8) using EN-51955-3  pre-sizer (5).
  22. Using EN-51955-5  sizer (6), resize the NEW fuel injector nozzle housing seal.
  23. GM2918356
    NOTE:

    The NEW fuel injector nozzle housing seal must fit properly in the relative groove. Overlapping of the fuel injector seals with the external surface of the injector must be avoided.

    Check both of the fuel injector combustion seals on each fuel injector for correct seat:

    • The seal must not be too large, buckled, or corrugated (1)
    • The seal must be fixed tight and accurate (2)
  24. If the NEW fuel injector nozzle housing seal are not installed correctly, remove the incorrect seal and replace with a NEW seal.
  25. Clean the fuel injector bores and clean the fuel injectors.
  26. GM4995644
    NOTE:

    Place the fuel injection fuel rail into the position on the cylinder head.

    Fuel Injection Fuel Rail (1) - Install

  27. GM4995756
    NOTE:

    Install the 4 fuel injection fuel rail bolts finger tight.

    Fuel Injection Fuel Rail Bolt (1, 2, 3) - Install [4x]

  28. Tighten the 2 outer fuel injection fuel rail bolt (1, 3) alternating in steps of 1/2 turn, until the fuel injection fuel rail (4) is final positioned.
  29. Fuel Injection Fuel Rail Bolt (1, 2, 3) - Tighten [4x] - Fastener Specifications
  30. Electrical Connector (5, 6) - Connect [2x]
  31. GM4995197
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Injection Fuel Rail Insulator (1) - Install

  32. Wiring Harness (2) @ Fuel Injection Fuel Rail Insulator (1) - Install
  33. GM5541656

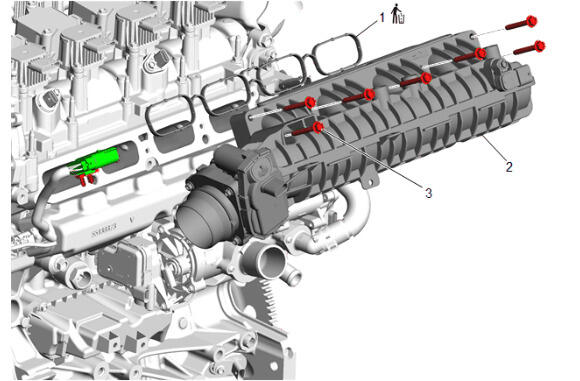

    Intake Manifold Seal (1) - Install NEW

  34. Install the intake manifold and throttle body as and assembly (2).
  35. Intake Manifold Bolt (3) - Install and tighten in sequence [7x] - Fastener Specifications

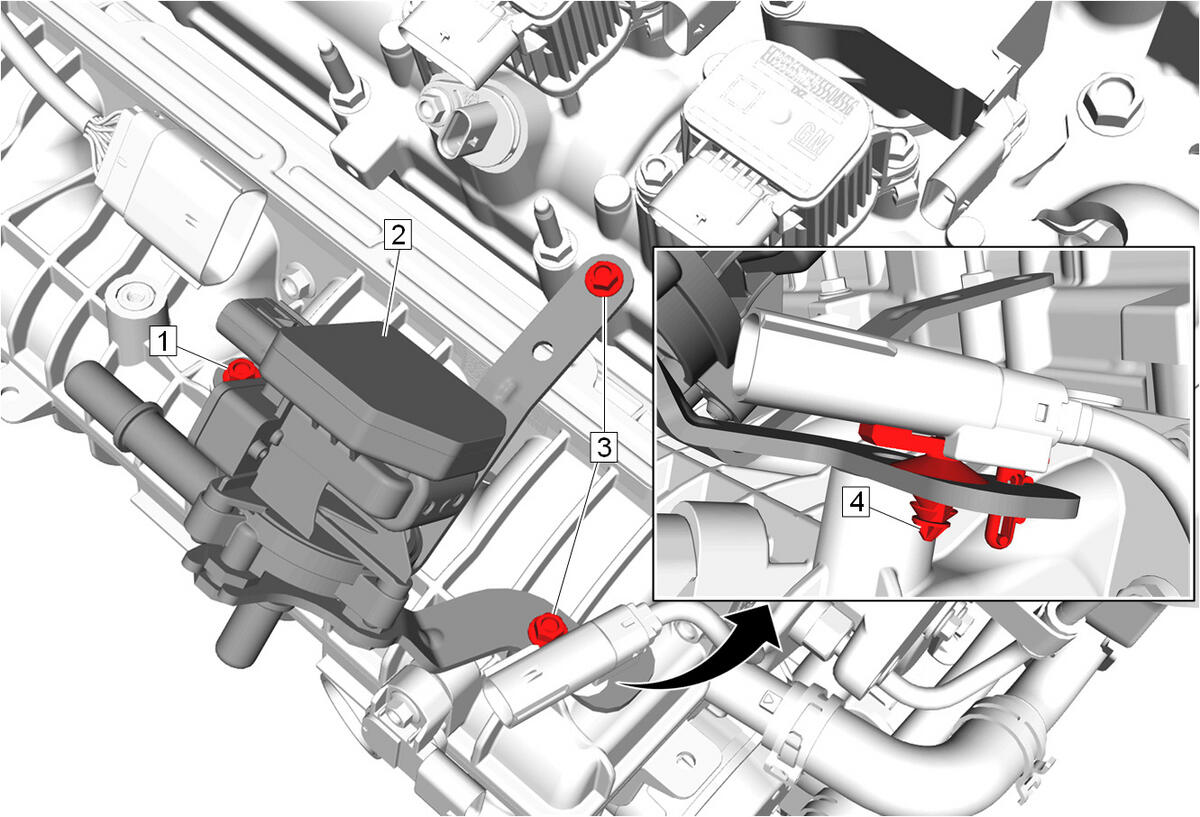

  36. GM5068210

    Evaporative Emission Canister Purge Pump (2) - Install

  37. Evaporative Emission Canister Purge Pump Bolt (1, 3) - Install NEW and tighten [3x] - Fastener Specifications
  38. GM5541662

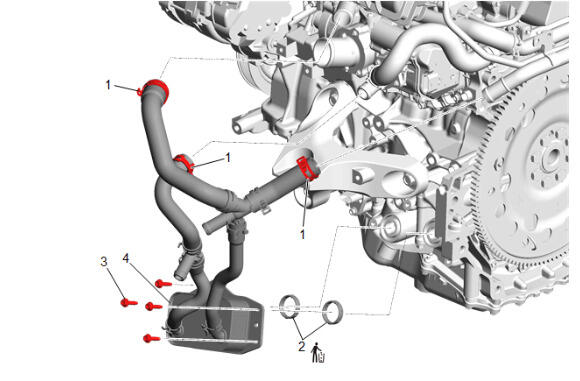

    Engine Oil Cooler Seal (2) - Install NEW [2x]

  39. Engine Oil Cooler (4) - Install
  40. Engine Oil Cooler Bolt (3) - Install and tighten [4x] - Fastener Specifications
  41. Clamp (1) - Install [3x] - Hose Clamp Replacement Guidelines - Spring Type

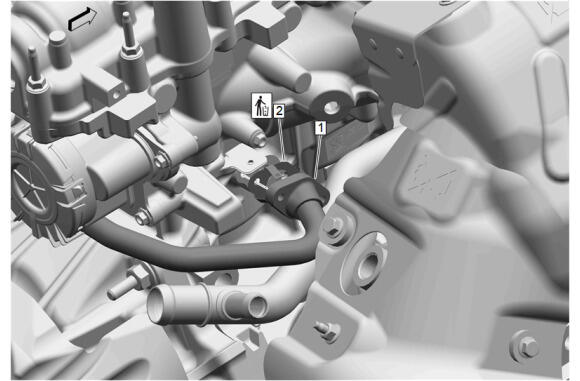

  42. GM5125430

    Engine Coolant Manifold Gasket (2) - Install NEW

  43. Engine Coolant Air Bleed Pipe (1) - Install

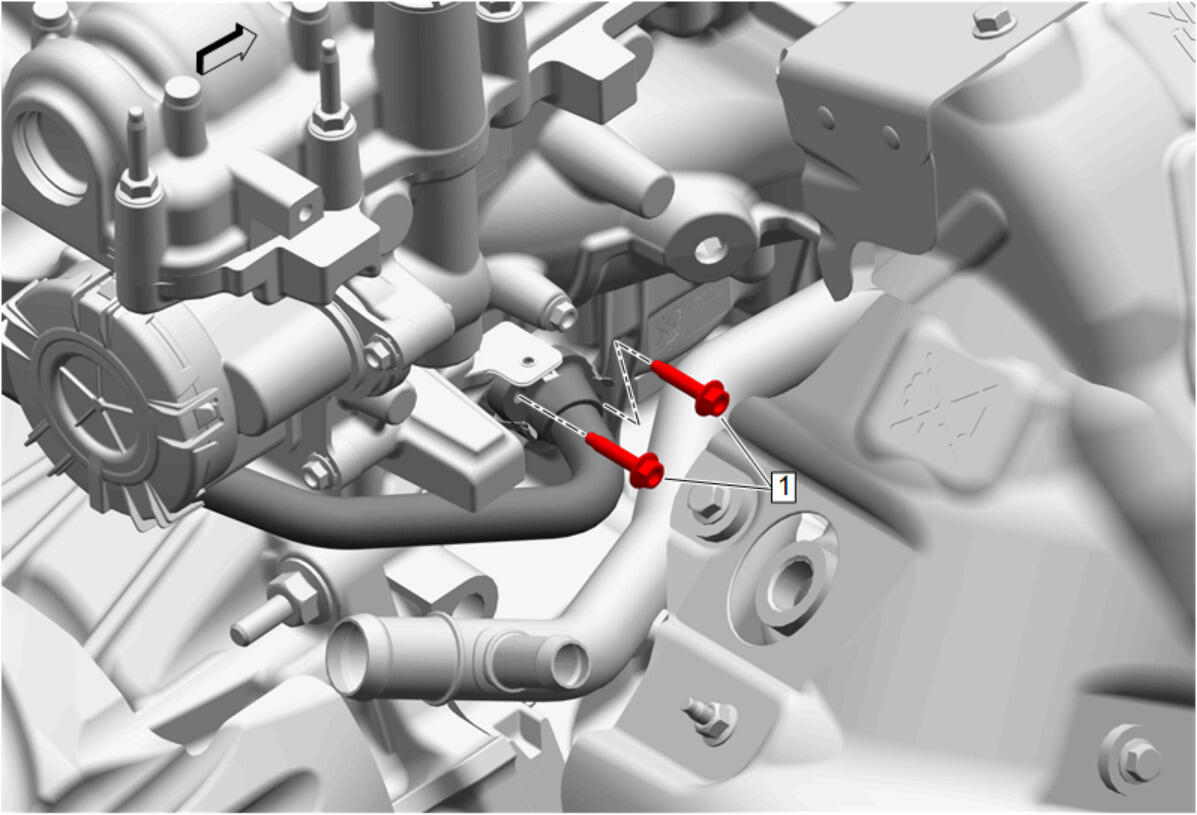

  44. GM5125429

    Engine Coolant Air Bleed Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications

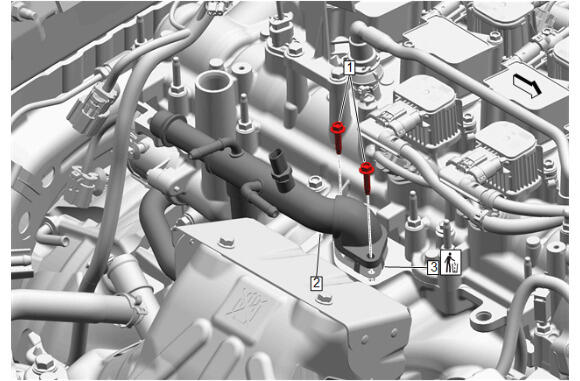

  45. GM5323492

    Engine Coolant Manifold Gasket (3) - Install NEW

  46. Engine Coolant Thermostat Housing Pipe (2) - Install
  47. Engine Coolant Heater Exhaust Pipe Bolt (1) - Install, but do NOT tighten [2x]

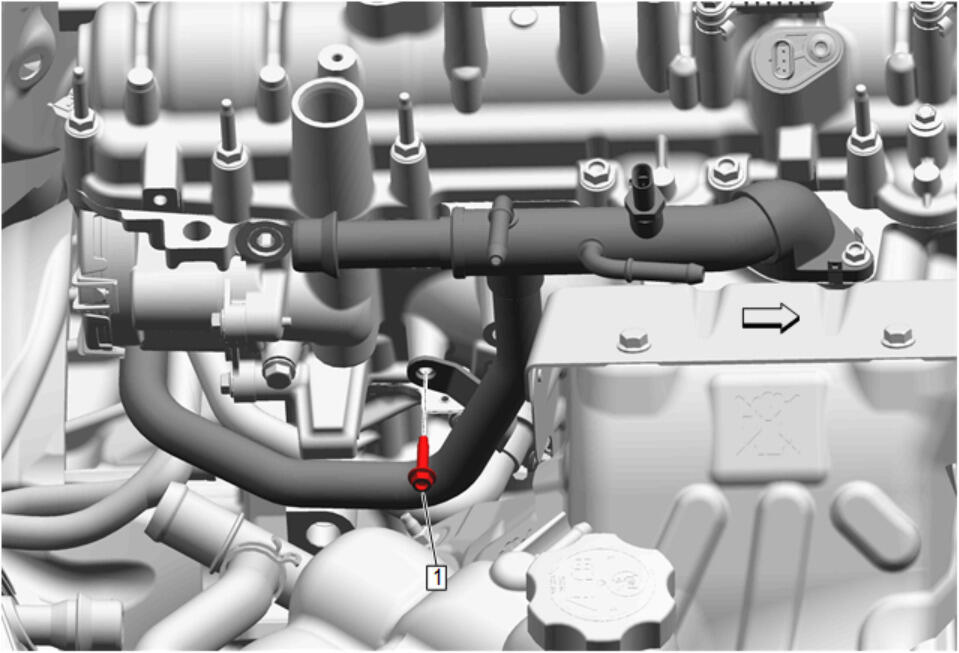

  48. GM5323487

    Engine Coolant Heater Exhaust Pipe Bolt (1) - Install, but do NOT tighten

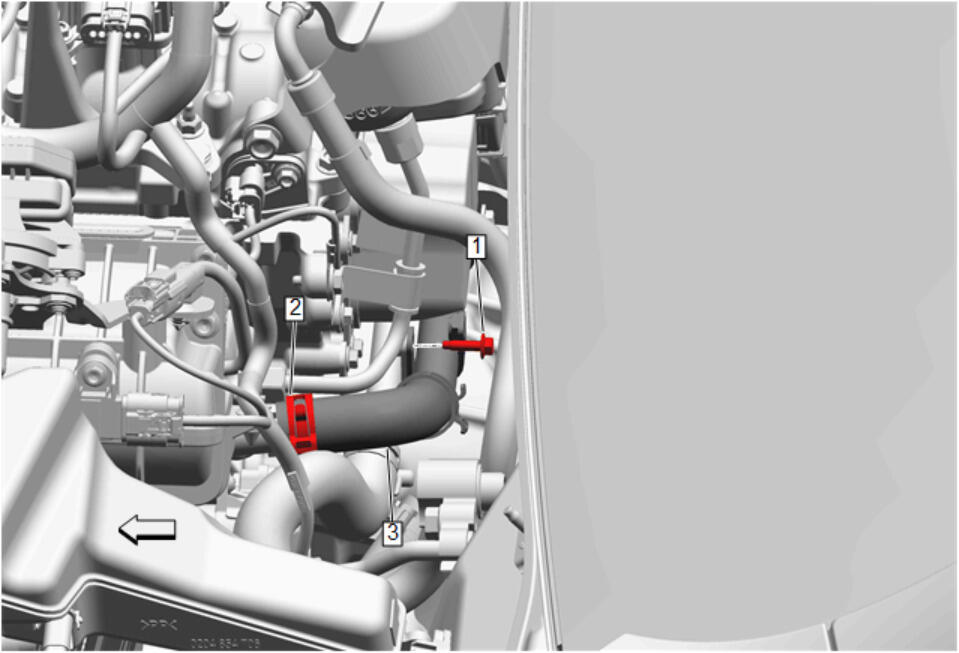

  49. GM5323488

    Engine Coolant Heater Exhaust Pipe (3) @ Engine Coolant Flow Control Valve - Install

  50. Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  51. Engine Coolant Heater Exhaust Pipe Bolt (1) - Install - Fastener Specifications

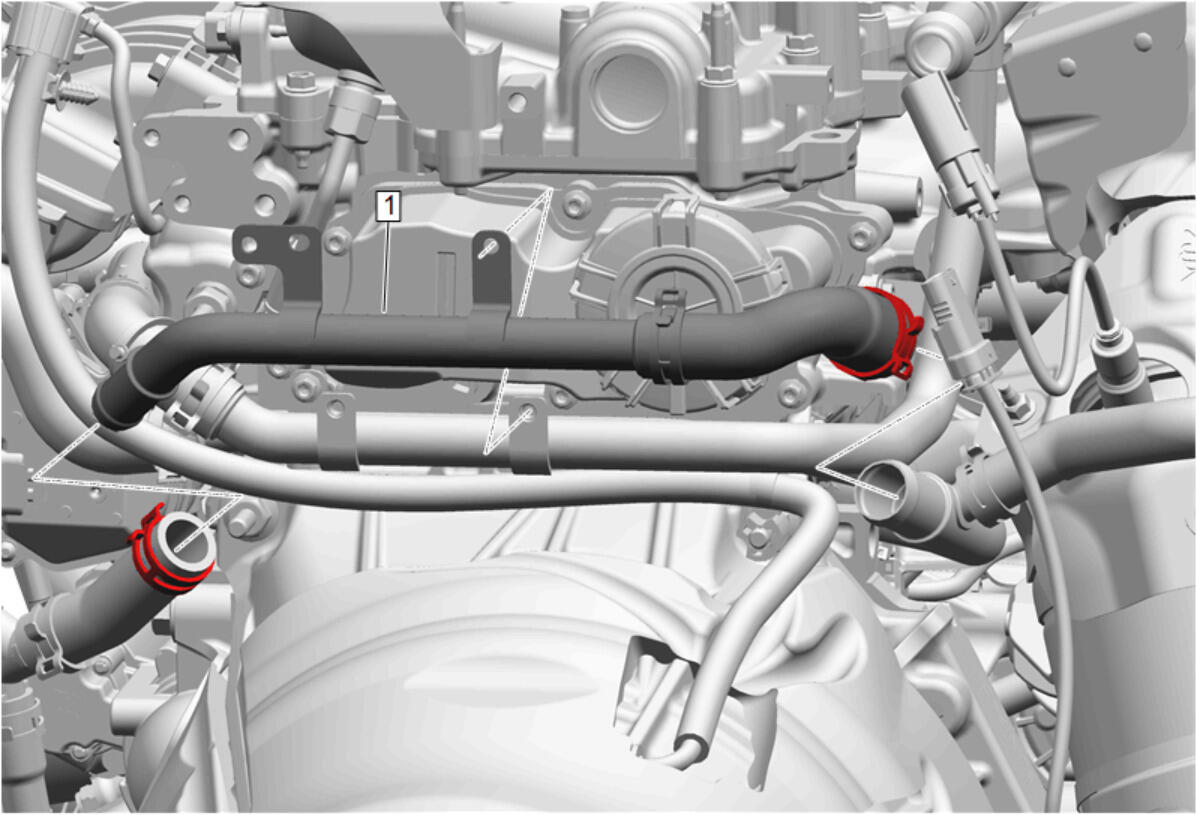

  52. GM5318618

    Engine Coolant Air Bleed Pipe (1) - Install

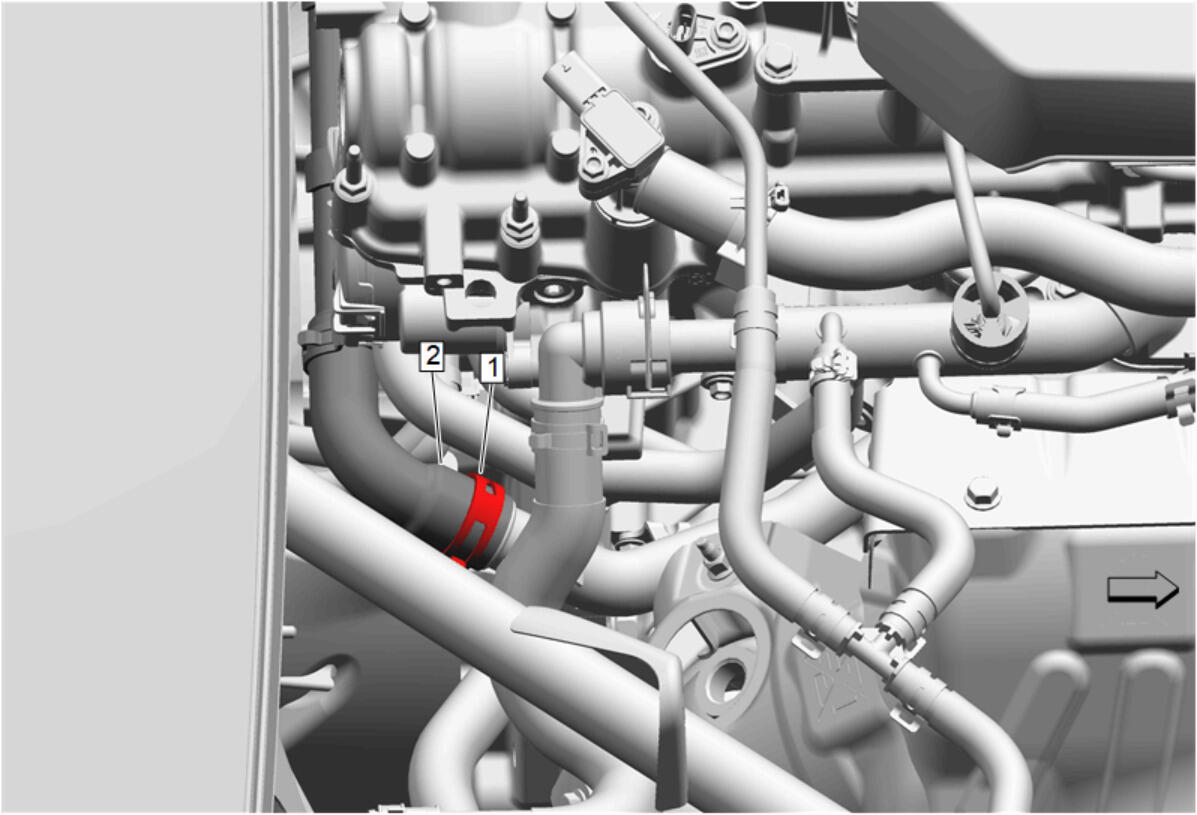

  53. GM5318324

    Engine Coolant Air Bleed Pipe (2) @ Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

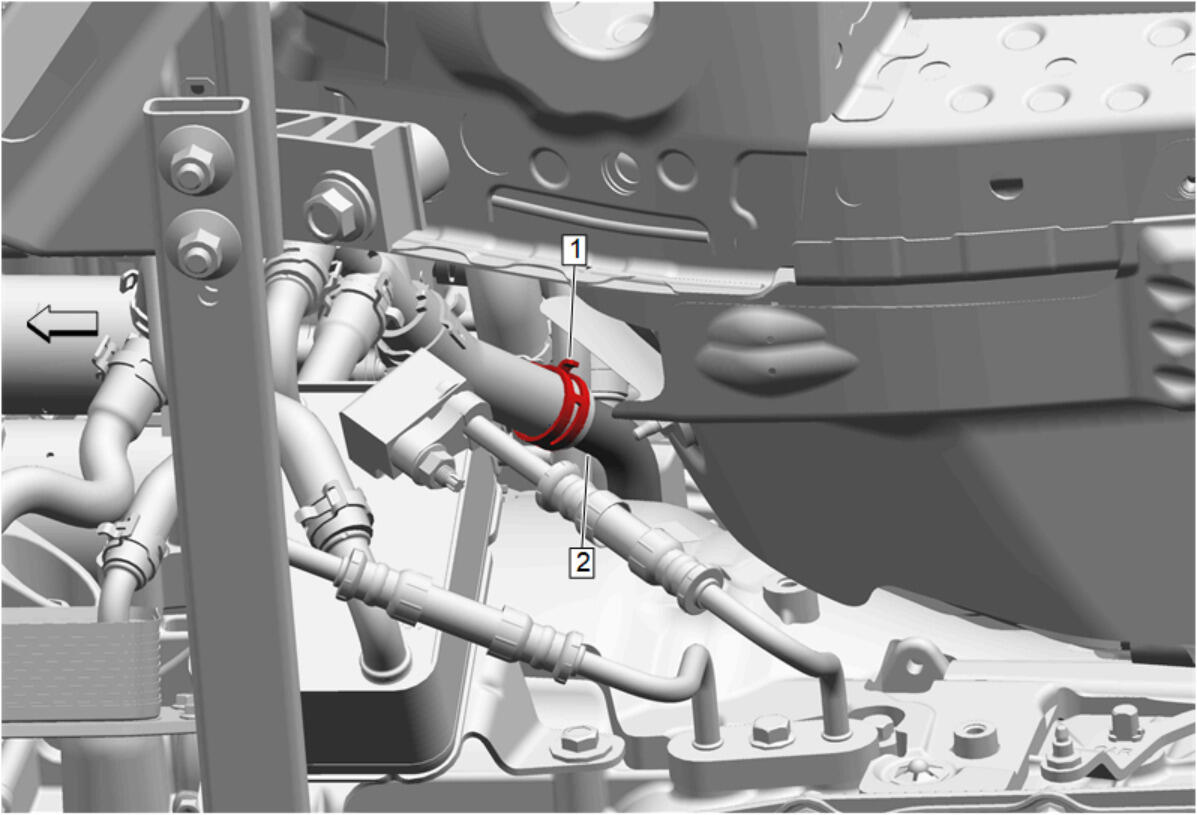

  54. GM5318334

    Engine Coolant Air Bleed Pipe (2) @ Engine Coolant Air Bleed Hose - Install

  55. Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

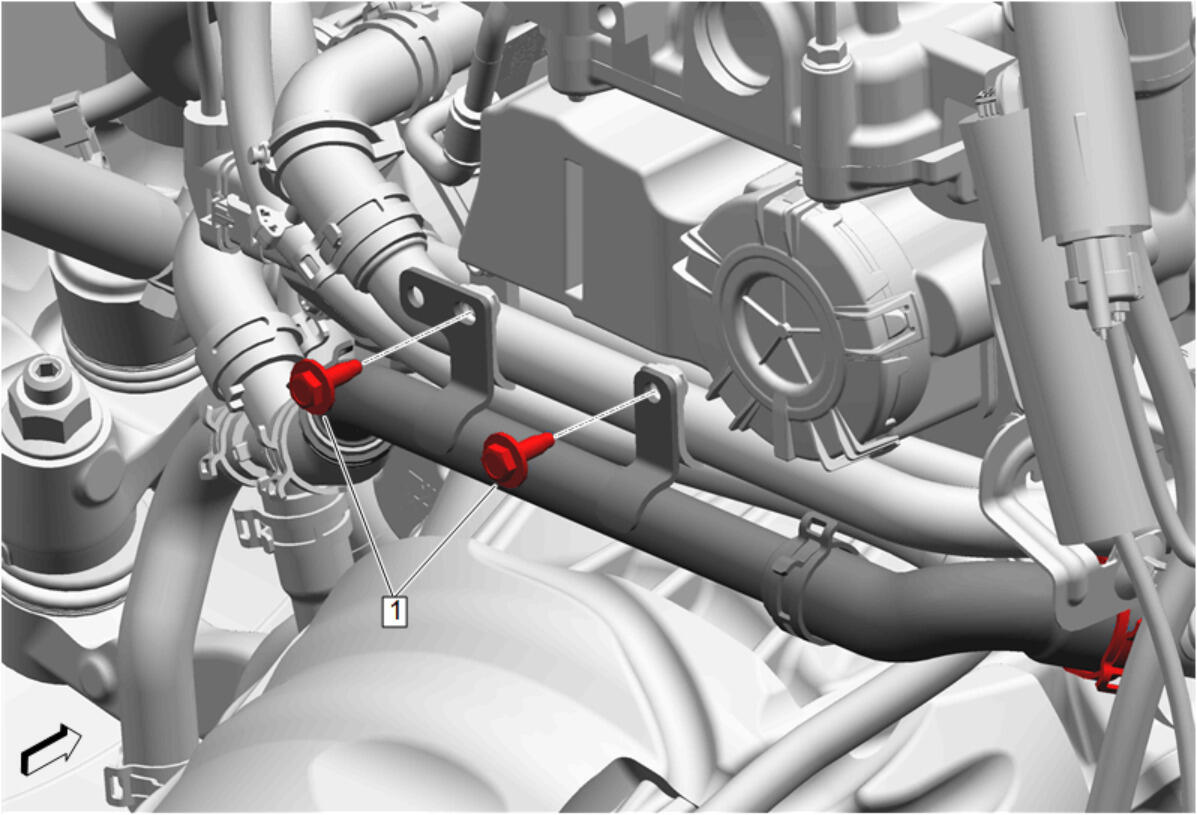

  56. GM5402881

    Engine Coolant Air Bleed Pipe Bolt (1) - Install and tighten [2x] - Fastener Specifications

  57. GM4967492

    The EN-52443  High Pressure Fuel Pump Alignment Tool has two ends marked with Number 1 (1) and Number 2 (2).

  58. GM4967236
    NOTE:
    • The camshaft MUST be at the base circle position before the fuel pump is installed.
    • At the base circle position, the EN-52443  High Pressure Fuel Pump Alignment Tool will sit flush with the cylinder head.

    Install the EN-52443  High Pressure Fuel Pump Alignment Tool (1) with the Number 2 (1) on the outside and turn the crankshaft until the camshaft lobe is at the base circle position.

  59. Remove the EN-52443  High Pressure Fuel Pump Alignment Tool (1).

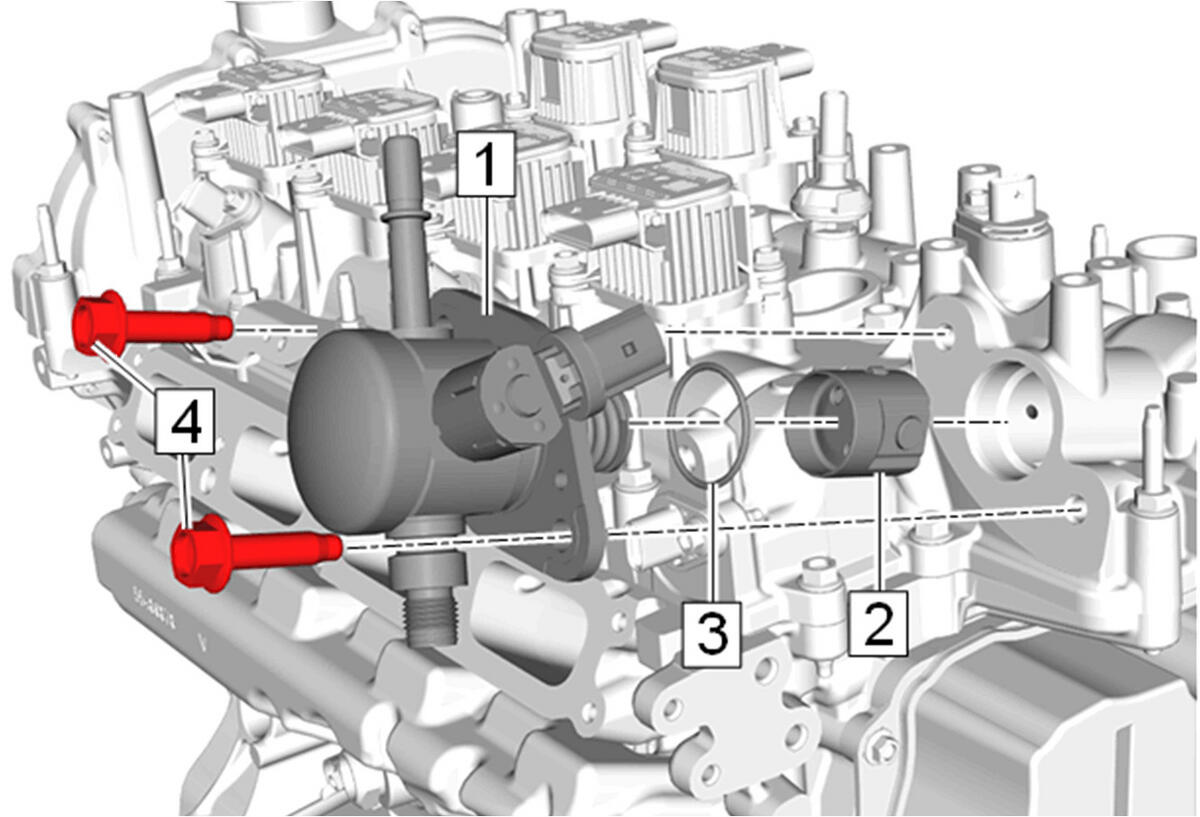

  60. GM5129397

    Lubricate the valve lifter follower (2) with a bit engine oil. Adhesives, Fluids, Lubricants, and Sealers

  61. Valve Lifter Follower (2) - Install
  62. Fuel Pump Seal (3) - Install NEW
  63. Fuel Pump (1) - Install
    64. CAUTION:

    Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.

  64. Fuel Pump Bolt (4) - Install and tighten [2x] - Fastener Specifications

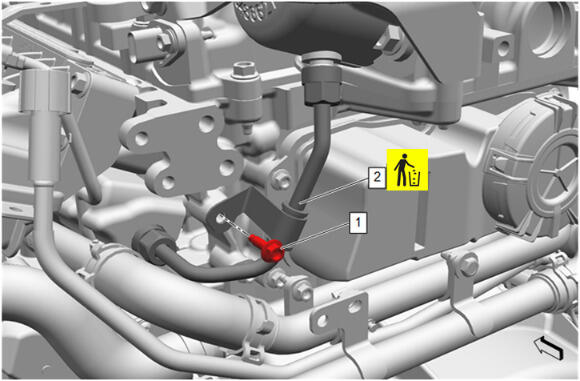

  65. GM5314508
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Fuel Feed Intermediate Pipe (2) - Install NEW

  66. Fuel Injection Fuel Feed Front Pipe Nut - Install and hand tighten [2x]
  67. Fuel Injection Fuel Feed Pipe Bolt (1) - Install and tighten - Fastener Specifications
  68. Fuel Injection Fuel Feed Front Pipe Nut @ Fuel Feed Intermediate Pipe (2) - Tighten [2x] - Fastener Specifications
  69. GM4967233

    Fuel Pump Insulator (1) - Install

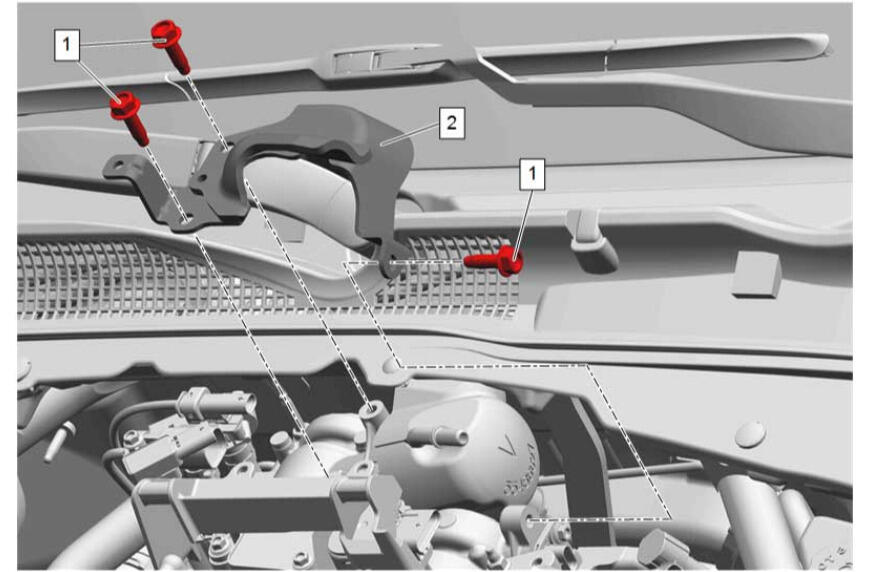

  70. GM5422918

    Fuel Pump Cover (2) - Install

  71. Fuel Pump Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

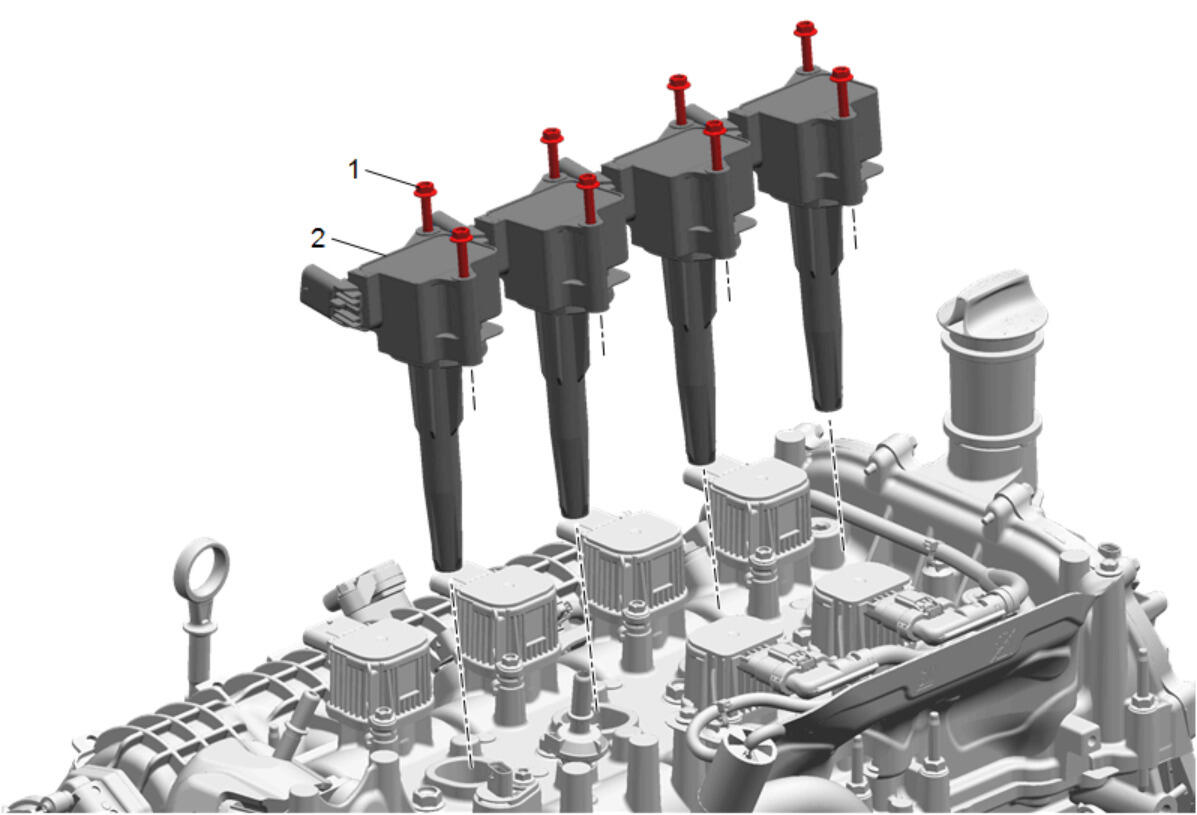

  72. GM4961570

    Ignition Coil (2) - Install [4x]

  73. Ignition Coil Bolt (1) - Install and tighten [8x] - Fastener Specifications

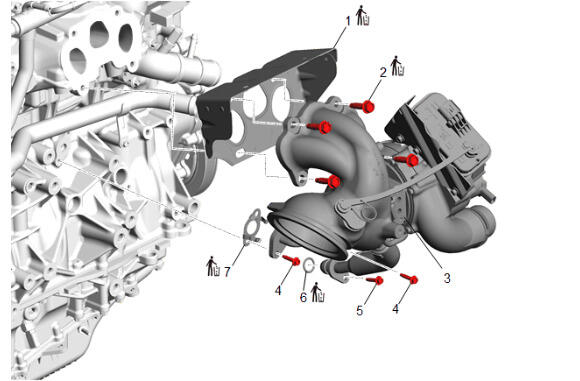

  74. GM5541642

    Install a NEW turbocharger oil feed pipe gasket (7).

  75. Install a NEW turbocharger oil return pipe seal (6).
  76. Install a NEW turbocharger heat shield (1).
  77. Install the compressor air intake turbocharger (3).
  78. Install and tighten the 2 turbocharger oil feed pipe bolts (4). Fastener Specifications
  79. Install and tighten the turbocharger oil feed pipe bolt (5). Fastener Specifications
  80. Install NEW and tighten in sequence the 4 turbocharger bolts (2). Fastener Specifications

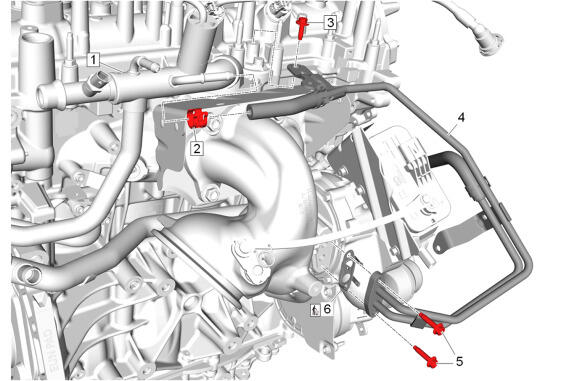

  81. GM5049386

    Turbocharger Coolant Feed and Return Pipe Gasket (6) - Install NEW

  82. Turbocharger Coolant Feed and Return Pipe (4) - Install
  83. Turbocharger Coolant Feed and Return Pipe Bolt (5) - Install and tighten [2x] - Fastener Specifications
  84. Turbocharger Coolant Feed Pipe Bracket Bolt (3) - Install and tighten - Fastener Specifications
  85. Clamp (2) - Install - Hose Clamp Replacement Guidelines - Spring Type

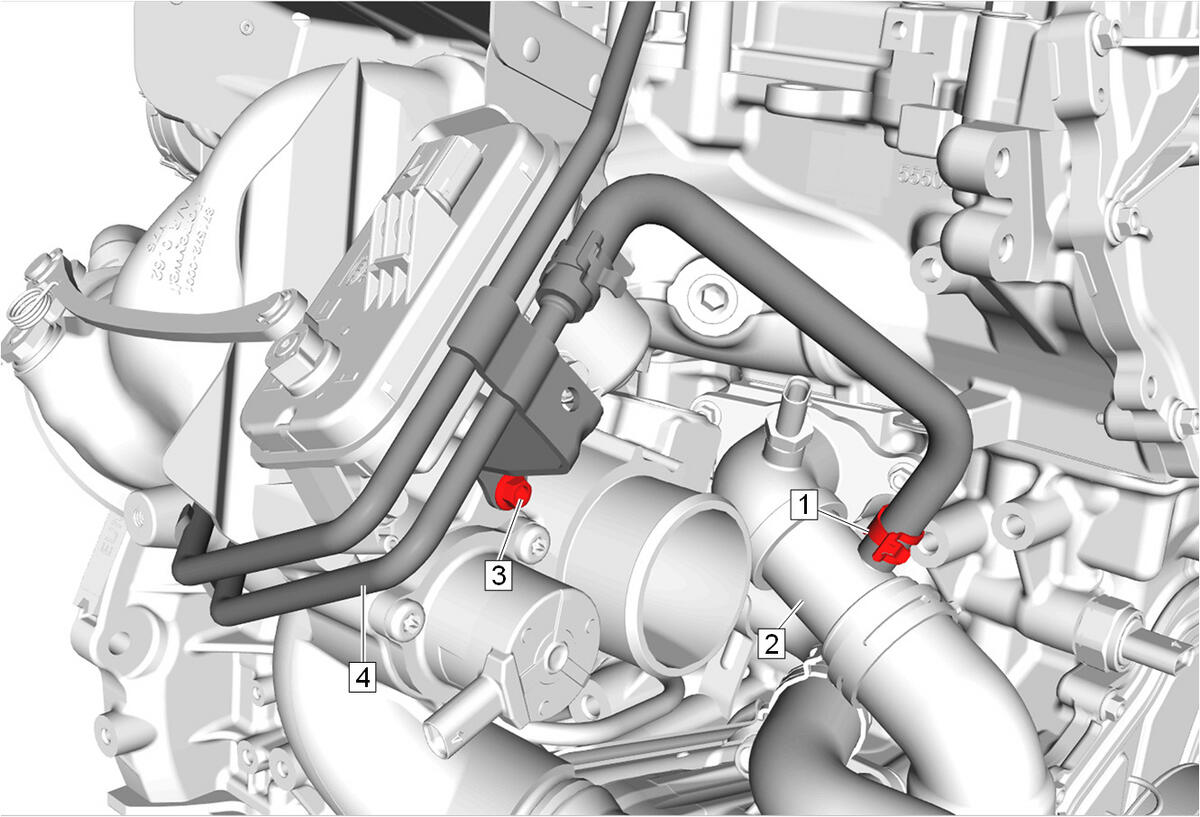

  86. GM5049385

    Turbocharger Coolant Feed and Return Pipe (4) @ Engine Coolant Thermostat Housing Inlet Pipe (2) - Install

  87. Turbocharger Coolant Feed and Return Pipe Bolt (3) - Install and tighten - Fastener Specifications
  88. Clamp (1) - Install - Hose Clamp Replacement Guidelines - Spring Type

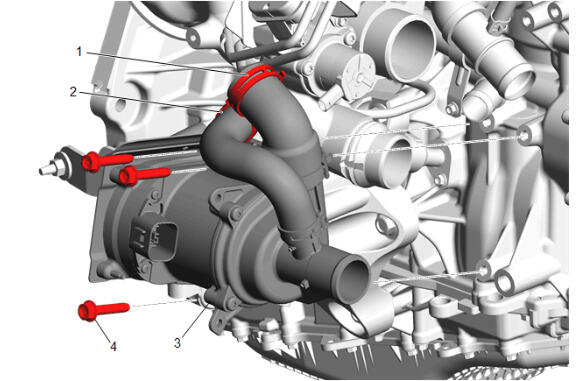

  89. GM5541652

    Water Pump (3) - Install

  90. Water Pump Bolt (4) - Install and tighten [3x] - Fastener Specifications
  91. Clamp (1, 2) Install [2x] - Hose Clamp Replacement Guidelines - Spring Type

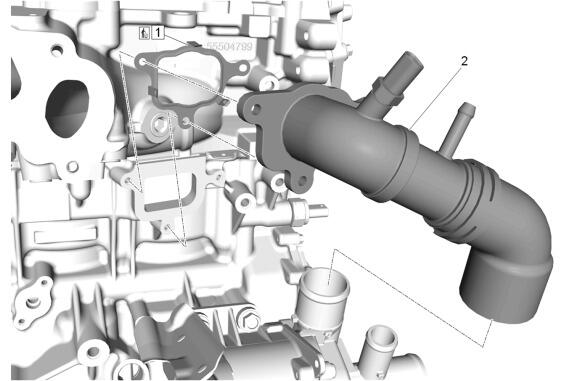

  92. GM5129572

    Water Inlet Gasket (1) - Install NEW

  93. Engine Coolant Thermostat Housing Inlet Pipe (2) - Install

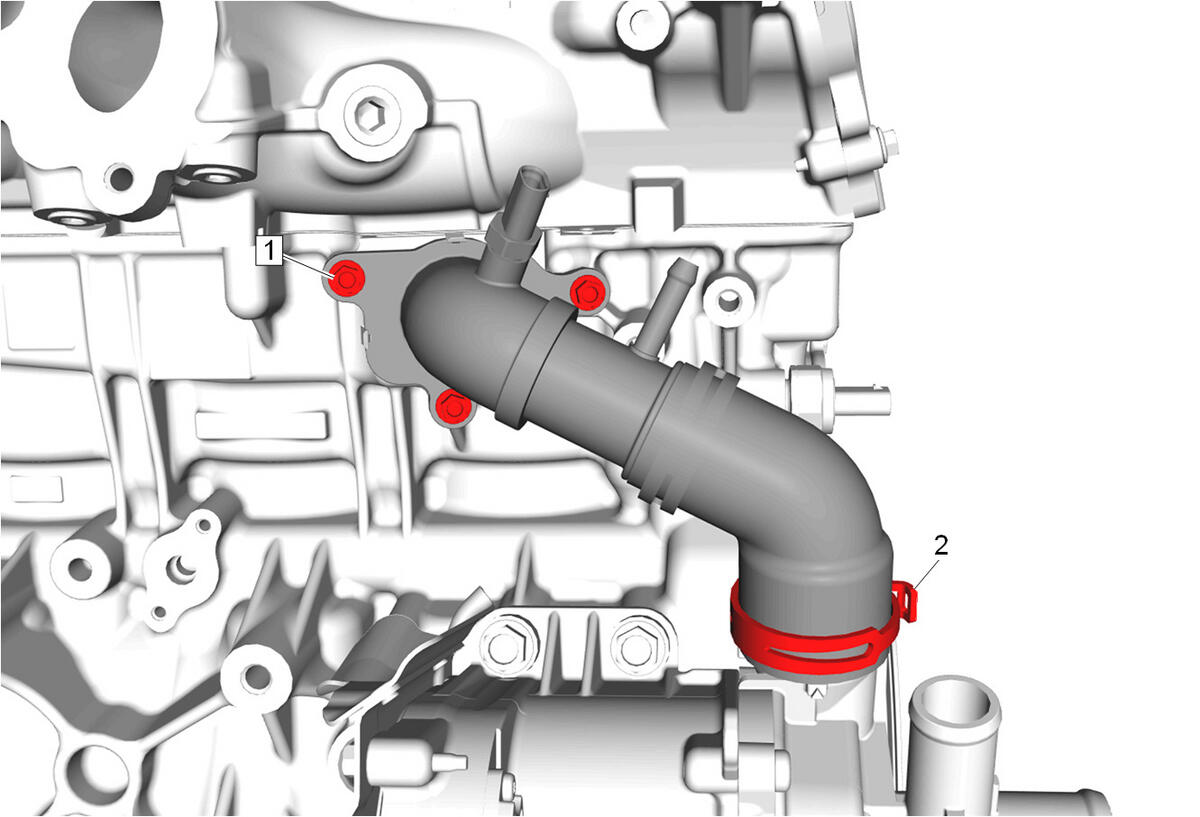

  94. GM5129570

    Engine Coolant Thermostat Housing Bolt (1) - Install and tighten [3x] - Fastener Specifications

  95. Clamp (2) - Install - Hose Clamp Replacement Guidelines - Spring Type
  96. GM5335664
    CAUTION:

    Phenolic spacer must be present to prevent galvanic/corrosive reaction and/or excessive temperature conduction between engine mount bracket and engine mount. Replace mount if phenolic spacer is missing or damaged. Failure to ensure phenolic spacer is intact and not damaged can lead to premature failure of engine mount and/or engine mount bracket.

    Inspect each engine mount to ensure the phenolic spacer (1) is in place and not damaged.

  97. If needed, transfer the EN-36857  Engine Lift Bracket Set and EN-51768  Engine Support Fixture Adapter Bolts - M8, to the new engine and attach the engine hoist used for removal.
  98. GM5323001

    EN-36857  Engine Lift Bracket Set (1) - Install

  99. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  100. GM5598887

    EN-36857  Engine Lift Bracket Set (1) - Install

  101. EN-51768  Engine Support Fixture Adapter Bolts - M8 (2) - Install and tighten 65 N.m (48 lb ft)
  102. Lift the engine and install both left and right engine mount brackets to the new engine.

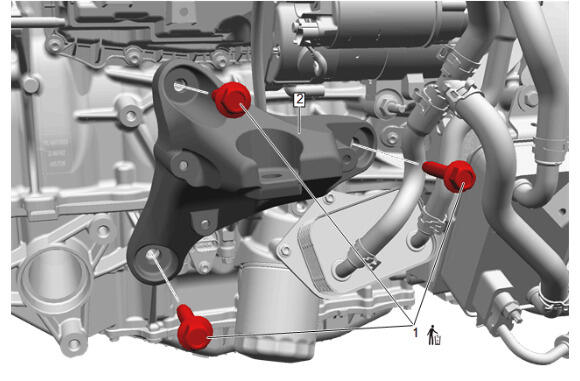

  103. GM5336818

    Engine Mount Bracket- Left Side (2) - Install

    104. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  104. Engine Mount Bracket Bolt (1) - Install NEW and tighten [3x] - Fastener Specifications

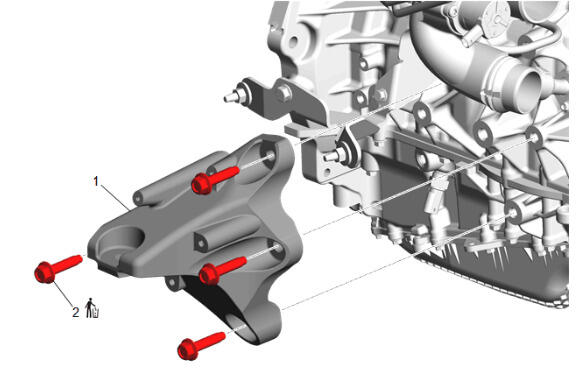

  105. GM5541638

    Engine Mount Bracket- Right Side (2) - Install

    106. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  106. Engine Mount Bracket Bolt (1) - Install NEW and tighten [4x] - Fastener Specifications
  107. Using an engine hoist, install the engine to the engine mounts on the cradle.
  108. Remove the J-21366  Converter Holding Strap from the transmission bell housing.
  109. Using the GE-52200  Powertrain and Battery Lifter, mate the transmission and the NEW engine together.
  110. GM5525793

    Front Wheel Drive Intermediate Shaft Retaining Ring (1) - Install NEW

  111. Apply a small amount of lubricant to the front wheel drive intermediate shaft (2) splines. Adhesives, Fluids, Lubricants, and Sealers
  112. Install the front wheel drive intermediate shaft (2) into the front differential carrier (3).
  113. GM5525786
    NOTE:

    The Front Wheel Drive Intermediate Shaft and Front Differential Carrier are to be installed as a assembly.

    Position and secure the front differential carrier (2) on a transmission jack.

  114. Install the front wheel drive intermediate shaft (1) and the front differential carrier (2).
  115. GM5344075

    Front Differential Carrier Bolt (1) - Install and hand tighten

  116. GM5344077

    Front Differential Carrier Bolt (1) - Install and hand tighten [2x]

  117. Front Differential Carrier Bolt (2) - Install and hand tighten
  118. Front Differential Carrier Bolt - Tighten [4x] - Fastener Specifications
  119. GM5458092

    Install the front axle vent hose (1).

  120. Support the transmission with a suitable jack.
  121. Remove the J-21366  Converter Holding Strap from the transmission bell housing.
  122. GM5508848

    Transmission Bolt (2) - Install and tighten [3x] - Fastener Specifications

  123. Transmission Stud (1) - Install and tighten [2x] - Fastener Specifications
  124. GM5508846

    Transmission Bolt (2) - Install and tighten [2x] - Fastener Specifications

  125. Transmission Stud (1) - Install and tighten - Fastener Specifications
  126. Remove the engine hoist and lifting hardware, re-install harness retainer bolt at the right front of engine.
  127. GM5335541

    Engine Mount Nut- Left Side (1) - Install and tighten - Fastener Specifications

  128. GM5335537

    Engine Mount Nut- Right Side (1) - Install and tighten - Fastener Specifications

  129. Connect the transmission vent hose to the transmission.
  130. Connect the transmission vent hose to the engine.
  131. Align the torque converter to flex plate orientation marks made during the removal procedure.
  132. GM5333497

    Position harness to new engine.

  133. Connect the electrical connector. (1)
  134. Install the retainers. (2)
  135. GM5335427

    Wiring Harness Retainer (1) - Engage [6X]

  136. Connect electrical connectors, retainers at engine mounts, and related components as needed.
  137. GM5342773
    NOTE:

    For proper alignment of all torque converter bolts, install the first torque converted bolt in the oval shaped hole.

    Prepare the transmission torque converter bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    138. NOTE:

    To prevent loosening the harmonic balancer bolt, rotate the harmonic balancer center bolt clockwise ONLY.

  138. Transmission Torque Converter Bolt (1) - Install and tighten [6x] - Fastener Specifications
  139. GM5344068

    Front Wheel Drive Intermediate Shaft Bracket (1) - Install

  140. Front Wheel Drive Intermediate Shaft Bracket Bolt (2) - Install and tighten [3x] - Fastener Specifications
  141. GM5504525

    Apply a small amount of lubricant to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers

  142. Front Wheel Drive Intermediate Shaft Seal (2) - Install NEW
  143. Front Wheel Drive Intermediate Shaft Retaining Ring (1) - Install NEW
  144. GM5341102

    Apply a small amount of grease to the front wheel drive intermediate shaft splines. Adhesives, Fluids, Lubricants, and Sealers

    NOTE:

    Ensure that the front wheel drive half shaft (1) is securely engaged to the front wheel drive intermediate shaft.

    Front Wheel Drive Half Shaft (1) - Install

  145. GM5504571

    Steering Linkage Outer Tie Rod (1) @ Steering Knuckle - Install

  146. Steering Linkage Outer Tie Rod Nut (2) - Install and tighten - Fastener Specifications

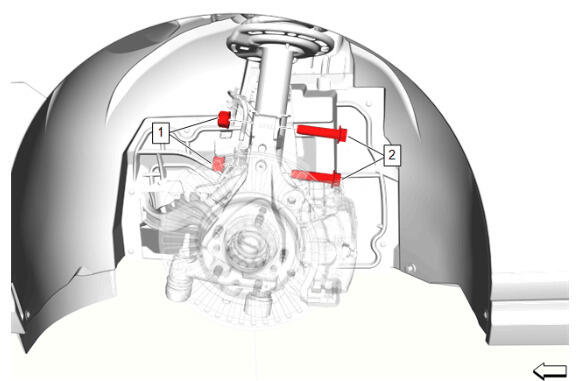

  147. GM5492444
    NOTE:

    The final torque on the steering knuckle nut (1) is to be applied during the front camber adjustment procedure.

    Front Suspension Strut @ Steering Knuckle - Install

  148. Steering Knuckle Bolt (2) - Install [2x]
  149. Steering Knuckle Nut (1) - Install and hand tighten [2x]
  150. Have an assistant apply the brakes.
  151. GM5504544
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Front Wheel Drive Shaft Nut (1) - Install NEW and tighten - Fastener Specifications

  152. GM5341525

    Retaining Ring (2) @ Front Wheel Drive Half Shaft (1) - Install NEW

  153. GM5507536

    Front Wheel Drive Shaft Retaining Ring (2) @ Front Wheel Drive Half Shaft (1) - Install NEW

  154. GM5341523

    Front Wheel Drive Half Shaft (1) - Install

  155. GM5341521

    Partially install the front wheel drive half shaft (1) into the front differential carrier.

  156. Remove the DT-51504  Seal Protector (2) from the front axle shaft seal.
    157. NOTE:

    Ensure that the front wheel drive half shaft (1) is securely engaged to the front wheel drive intermediate shaft.

  157. Completely install the front wheel drive half shaft (1) into the front differential carrier.
  158. GM5507513

    Steering Linkage Outer Tie Rod (2) @ Steering Knuckle - Install

  159. Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
  160. GM5507502
    NOTE:

    The final torque on the steering knuckle nut (2) is to be applied during the front camber adjustment procedure.

    Front Suspension Strut @ Steering Knuckle - Install

  161. Steering Knuckle Bolt (1) - Install [2x]
  162. Steering Knuckle Nut (2) - Install and hand tighten [2x]
  163. Have an assistant apply the brakes.
  164. GM5507500
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Front Wheel Drive Shaft Nut (1) - Install NEW and tighten - Fastener Specifications

  165. GM5339607

    If the transfer case front output shaft boot (1) was removed, perform the following:

    1. Loosely install a NEW transfer case front output shaft boot clamp (2) to the groove of the transfer case front output shaft boot (1).
    2. Install the transfer case front output shaft boot (1) to the front axle propeller shaft groove ensuring that it is completely engaged.
    3. Using the DT-35910  Drive Axle Seal Clamp Pliers (3), crimp the transfer case front output shaft boot clamp (2) until the final crimped diameter (a) of 37.5 mm (1.48 in) is achieved.
  166. GM5339608

    Loosely install a NEW transfer case front output shaft boot clamp (3) into the groove of the transfer case front output shaft boot (2).

  167. Front Axle Propeller Shaft (1) - Install
  168. GM5339603

    Prepare the 6 front axle propeller shaft bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  169. Align the marks made between the front axle propeller shaft (2) and the front differential carrier flange.
  170. Front Axle Propeller Shaft Washer (3) - Install [3x]
  171. Install and tighten the 6 front axle propeller shaft bolts (1) in a crisscross pattern. Fastener Specifications
  172. GM5481383

    Ensure that the front transfer case front output shaft boot (2) is completely engaged into the transfer case front output shaft.

  173. Ensure that the front transfer case front output shaft boot clamp (1) is completely engaged into the front transfer case front output shaft boot (2).
  174. GM5339609

    Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the transfer case front output shaft boot clamp (2) until the final crimped diameter (a) of 37.5 mm (1.48 in) is achieved.

  175. GM5326445

    Transmission Mount Bracket Bolt (1) - Loosely install [4x]

  176. GM5326445

    Transmission Mount Bracket Bolt (1) - Tighten [4x] - Fastener Specifications

  177. Remove the jack from beneath the transmission.
  178. GM5334107

    Front Axle Propeller Shaft Heat Shield (3) - Install

  179. Front Axle Propeller Shaft Heat Shield Bolt (1) - Install and tighten - Fastener Specifications
  180. Front Axle Propeller Shaft Heat Shield Stud (2) - Install and tighten - Fastener Specifications
  181. GM5319715

    Starter (3) - Install

  182. Starter Bolt (2) - Install and tighten [2x] - Fastener Specifications
  183. Starter Stud (1) - Install and tighten - Fastener Specifications
  184. GM5460947

    Auxiliary Generator Battery Jumper Cable (2) - Install

  185. Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten - Fastener Specifications
  186. GM5460935

    Electrical Connector (1) - Connect

  187. GM5460874

    Auxiliary Generator Battery Jumper Cable (3) - Install

  188. Battery Negative Cable Nut (1) @ Starter Stud - Install and tighten - Fastener Specifications
  189. Engine Wiring Harness Retainer (2) - Engage [2x]
  190. GM5068106

    Oil Level Indicator Tube Seal (2) - Install NEW

  191. Oil Level Indicator Tube (1) - Install
  192. GM5136547

    Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten - Fastener Specifications

  193. Electrical Connector (1) @ Oil Level Indicator (3) - Clip
  194. GM5335764

    Oil Level Indicator (1) - Install

  195. GM5395328

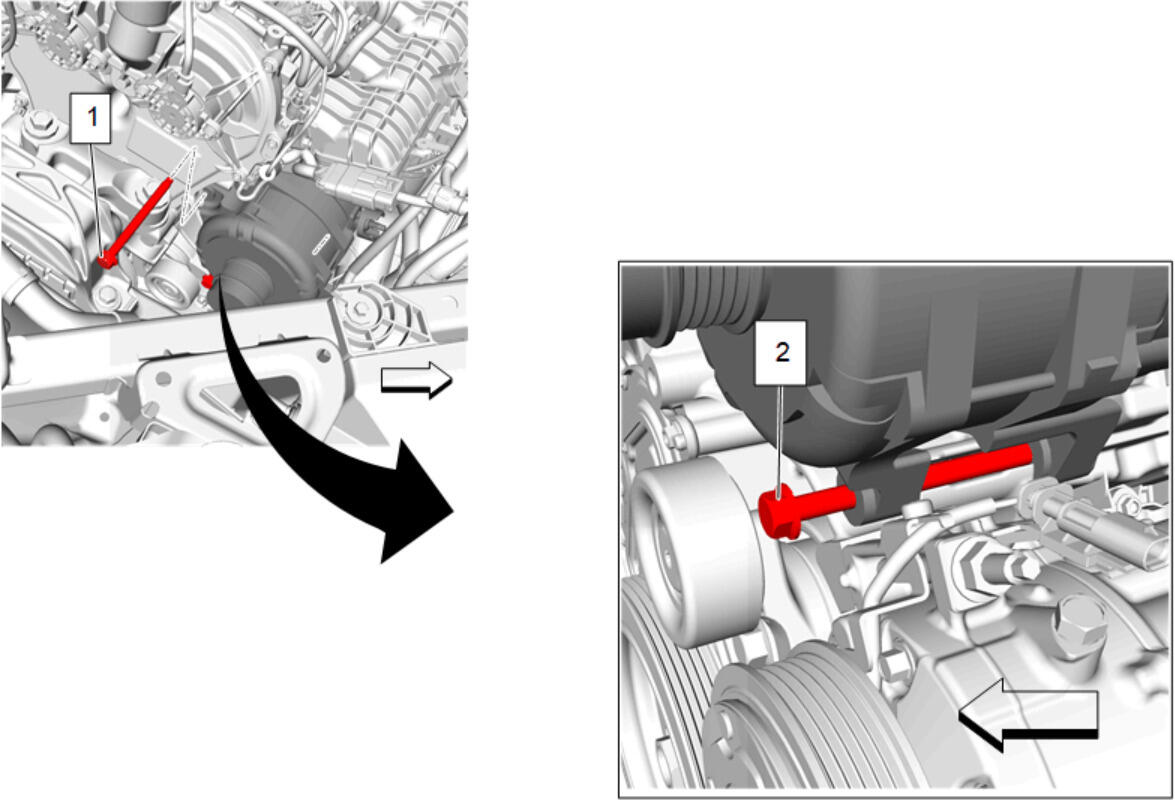

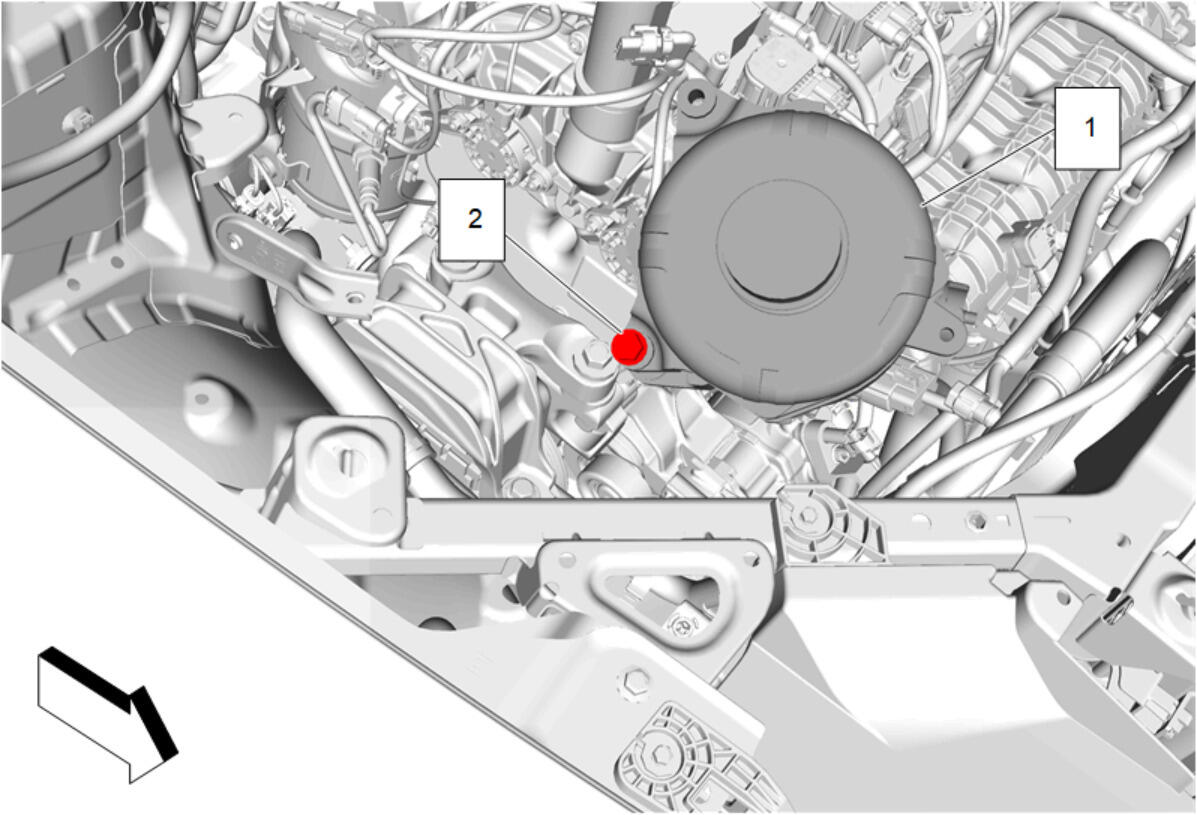

    Install the generator (1) and the generator lower mounting bolt (2) to the NEW engine.

  196. GM5395311

    Generator Bolt (2) - Install and tighten - Fastener Specifications

  197. Generator Bolt (1) Install and tighten - Fastener Specifications
  198. GM5541821

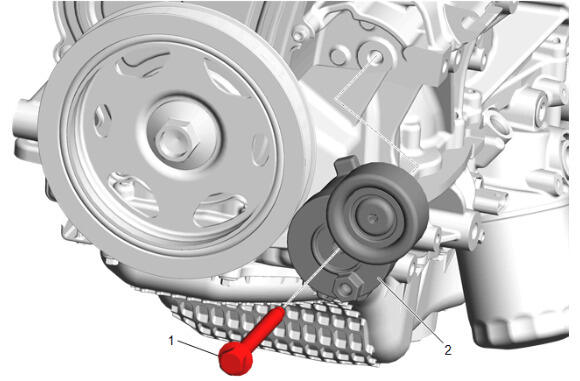

    Drive Belt Tensioner (2) - Install

  199. Drive Belt Tensioner Bolt (1) - Install and tighten - Fastener Specifications
  200. GM5541666

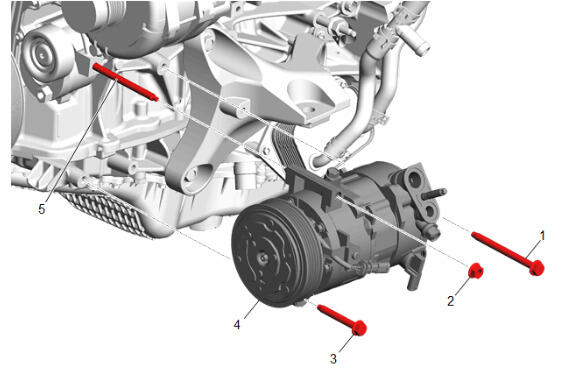

    Air Conditioning Compressor Stud (5) - Install and tighten - Fastener Specifications

  201. Air Conditioning Compressor (4) - Install
  202. Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
  203. Air Conditioning Compressor Nut (2) - Install and tighten - Fastener Specifications
  204. Air Conditioning Compressor Bolt (3) - Install and tighten - Fastener Specifications
  205. GM5129599

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise and hold.

  206. GM5129786

    Accessory Drive Primary Belt (1) - Install NEW

  207. Slowly release tension on the drive belt tensioner.

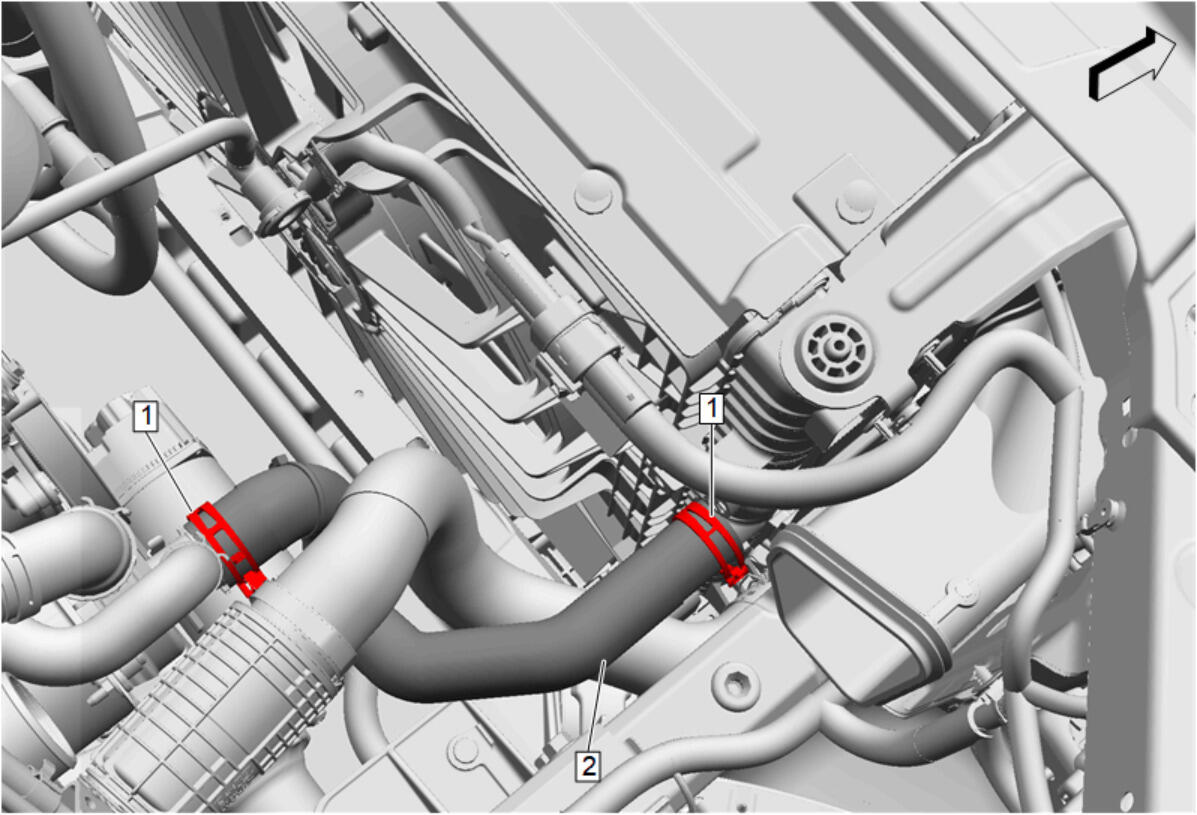

  208. GM5313295

    Radiator Outlet Hose (2) @ Engine - Install

  209. Radiator Outlet Hose Clamp (1) @ Engine - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  210. GM5313262

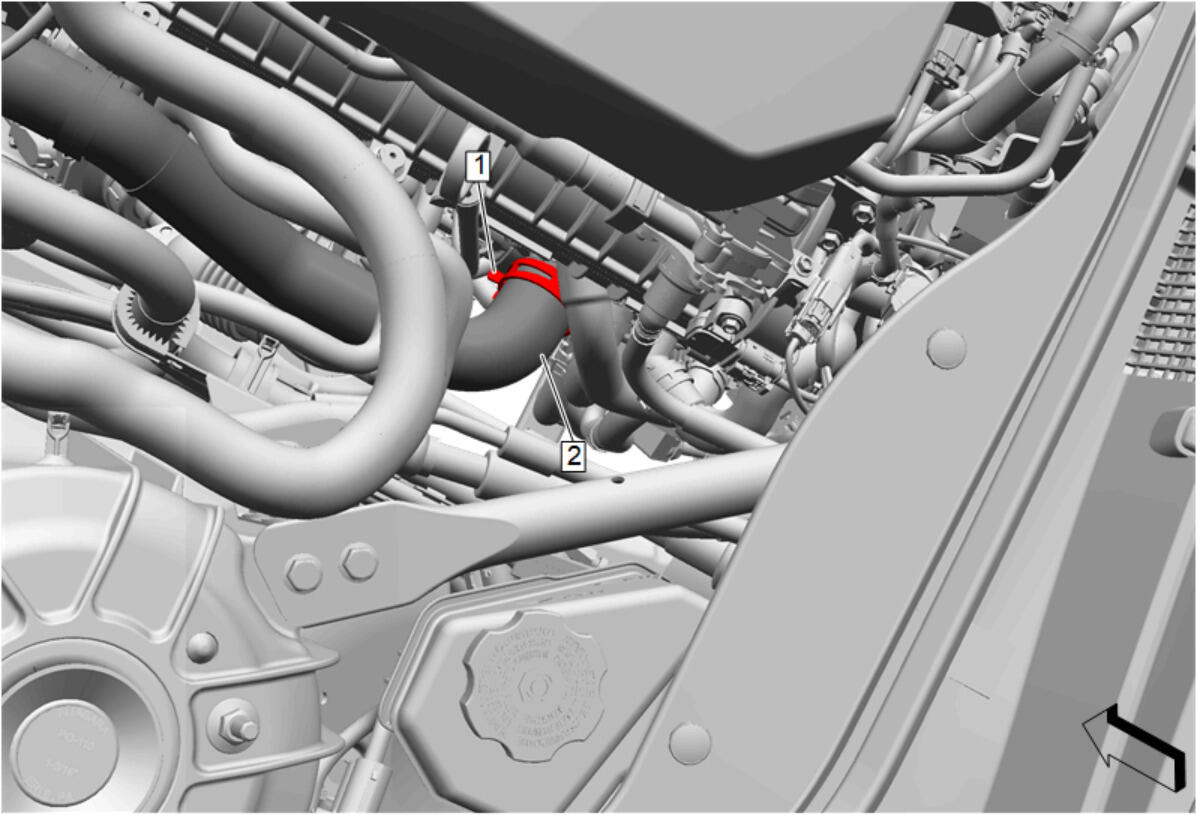

    Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install

  211. Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

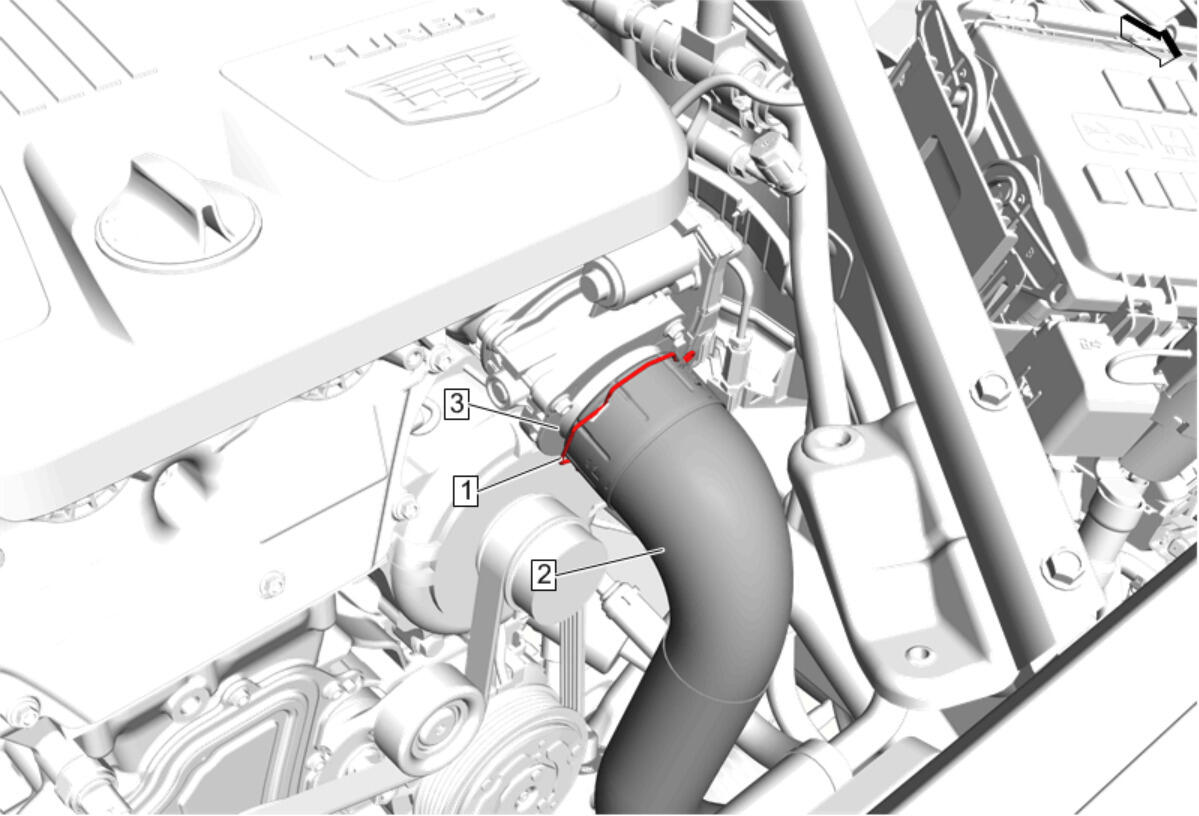

  212. GM5071195

    Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install

  213. Retainer Spring (1) - Engage
  214. GM5314511

    Charge Air Cooler Inlet Air Tube (2) @ Turbocharger (3) - Install

  215. Retainer Spring (1) - Engage
  216. GM5311076

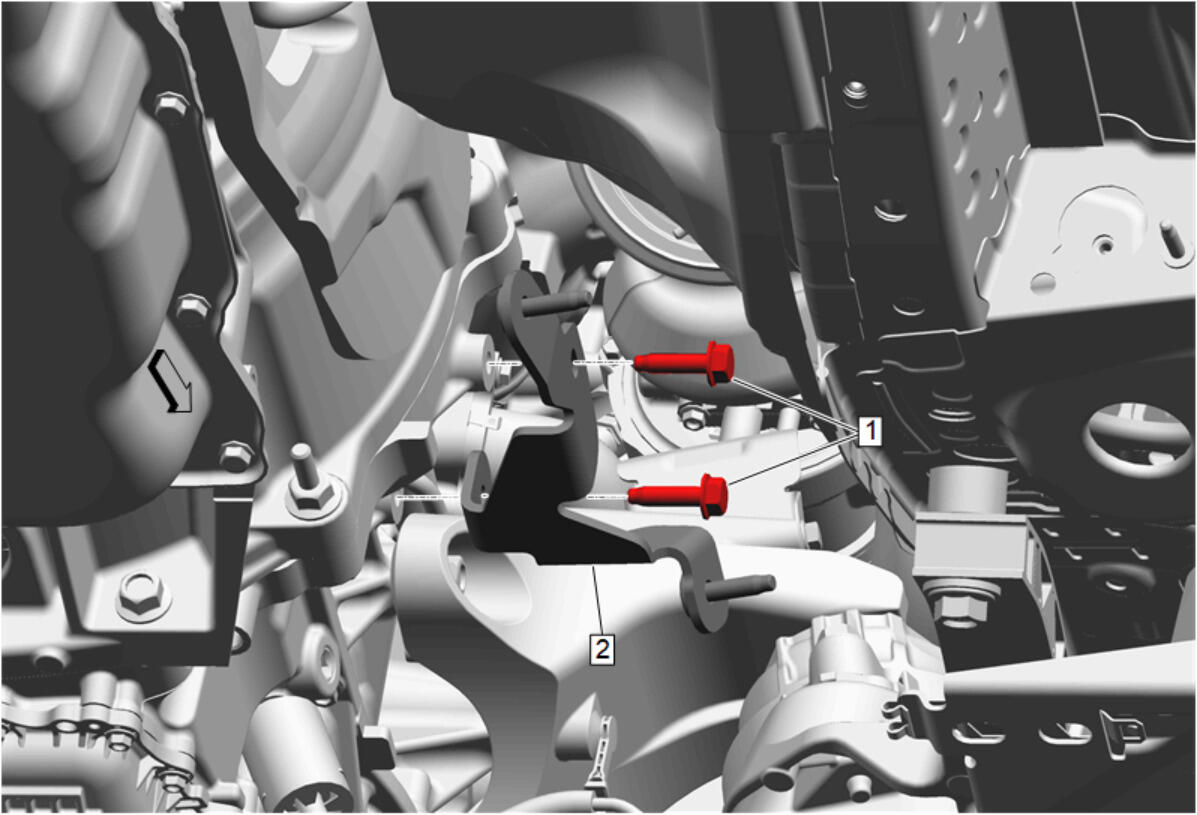

    Catalytic Converter Brace Bracket (2) - Install

  217. Catalytic Converter Brace Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  218. GM5311061

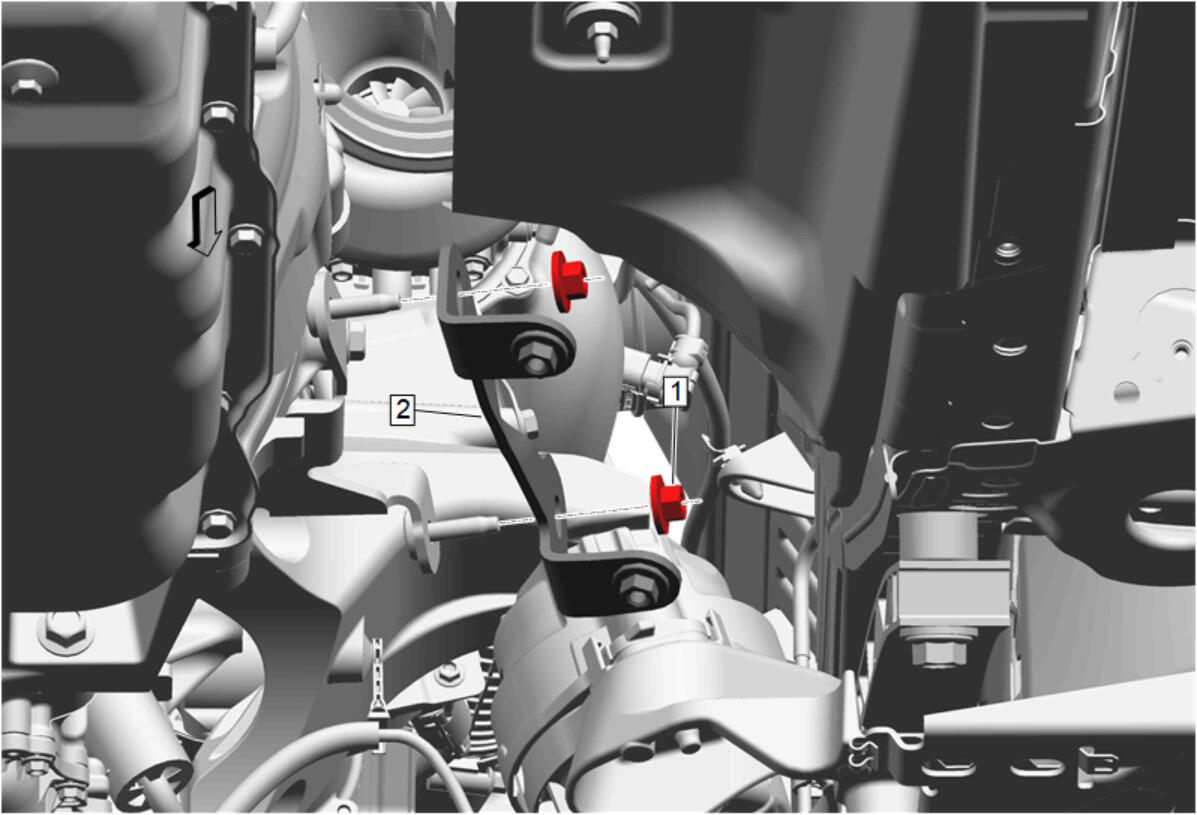

    Catalytic Converter Brace Bracket (2) - Install

  219. Catalytic Converter Brace Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications

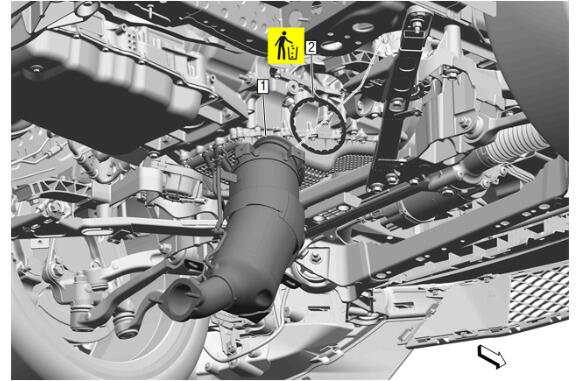

  220. GM5525783

    Catalytic Converter Gasket (2) - Install NEW

  221. Warm Up Three-Way Catalytic Converter (1) - Install
  222. GM5310863

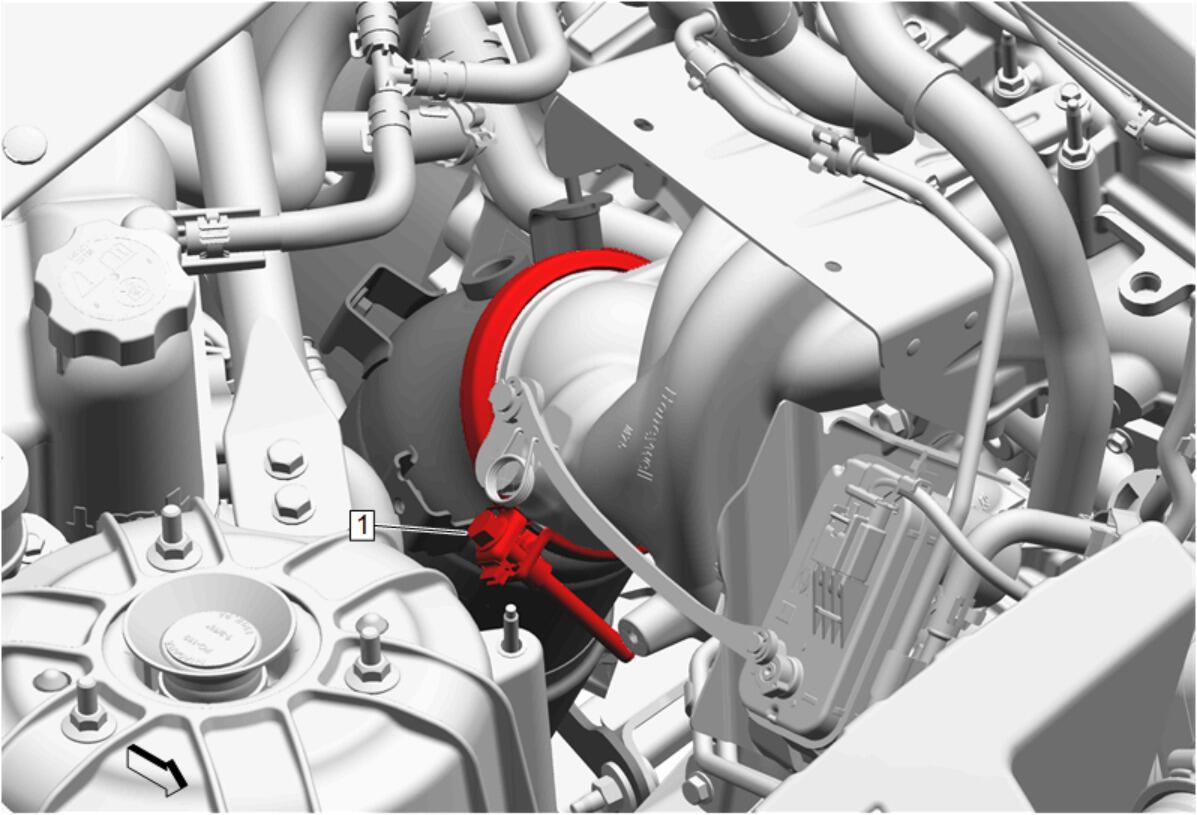

    Exhaust Pipe Clamp (1) - Install NEW

  223. GM5310881

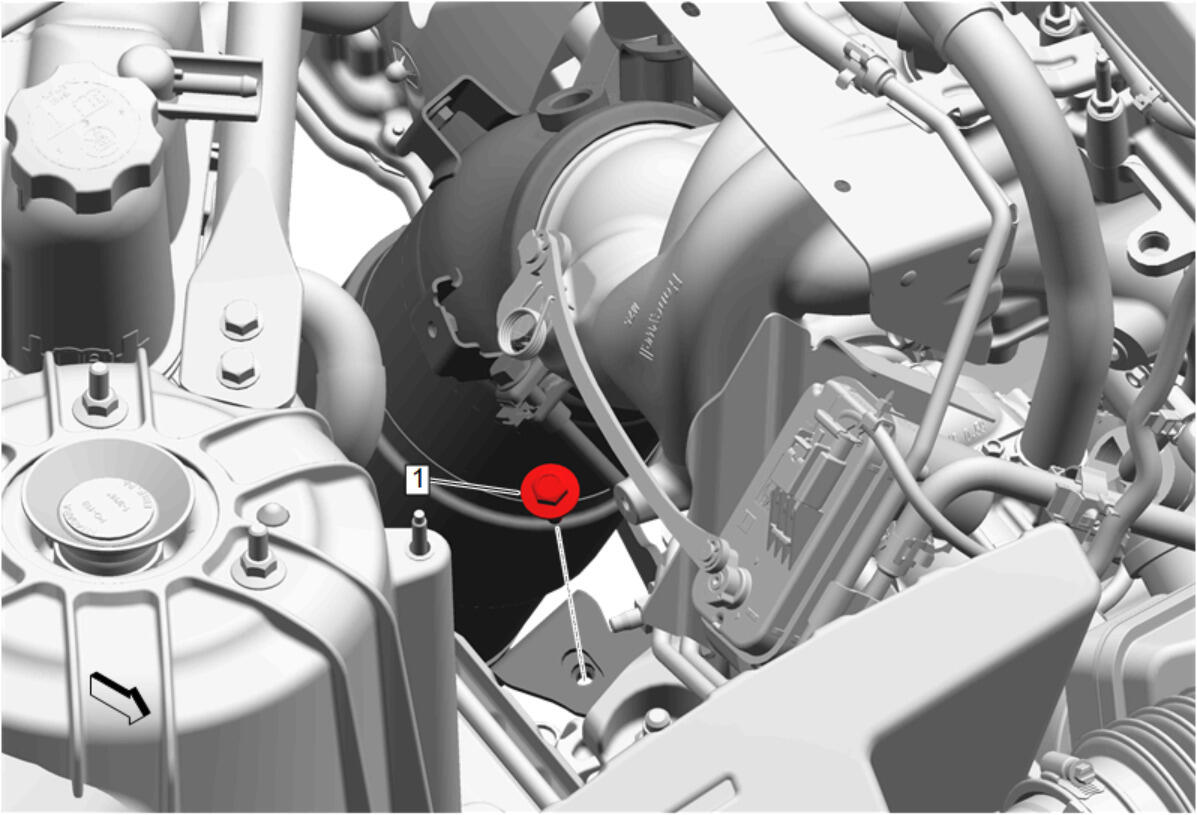

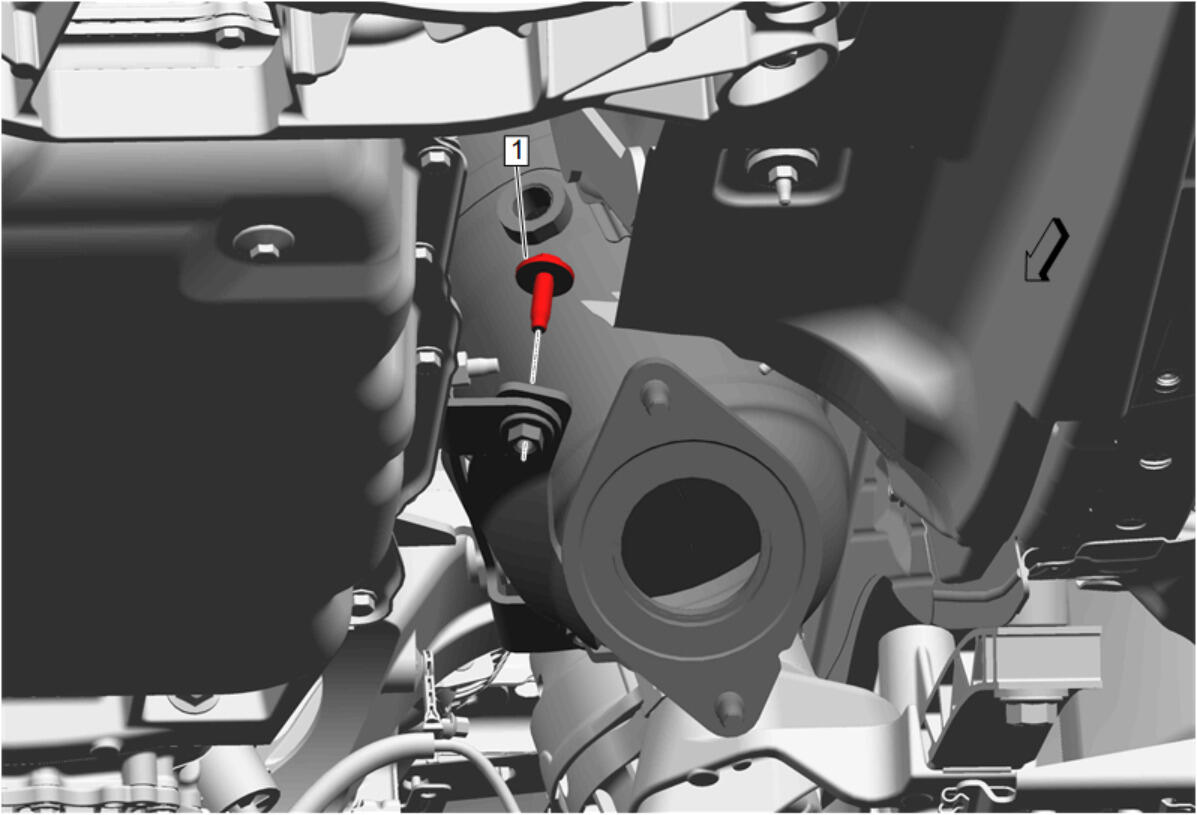

    Catalytic Converter Brace Bolt (1) - Install and tighten - Fastener Specifications

  224. GM5310876

    Catalytic Converter Brace Bolt (1) - Install and tighten - Fastener Specifications

  225. GM5310863

    Exhaust Pipe Clamp (1) - Tighten - Fastener Specifications

  226. Connect both heated oxygen sensor electrical connectors.

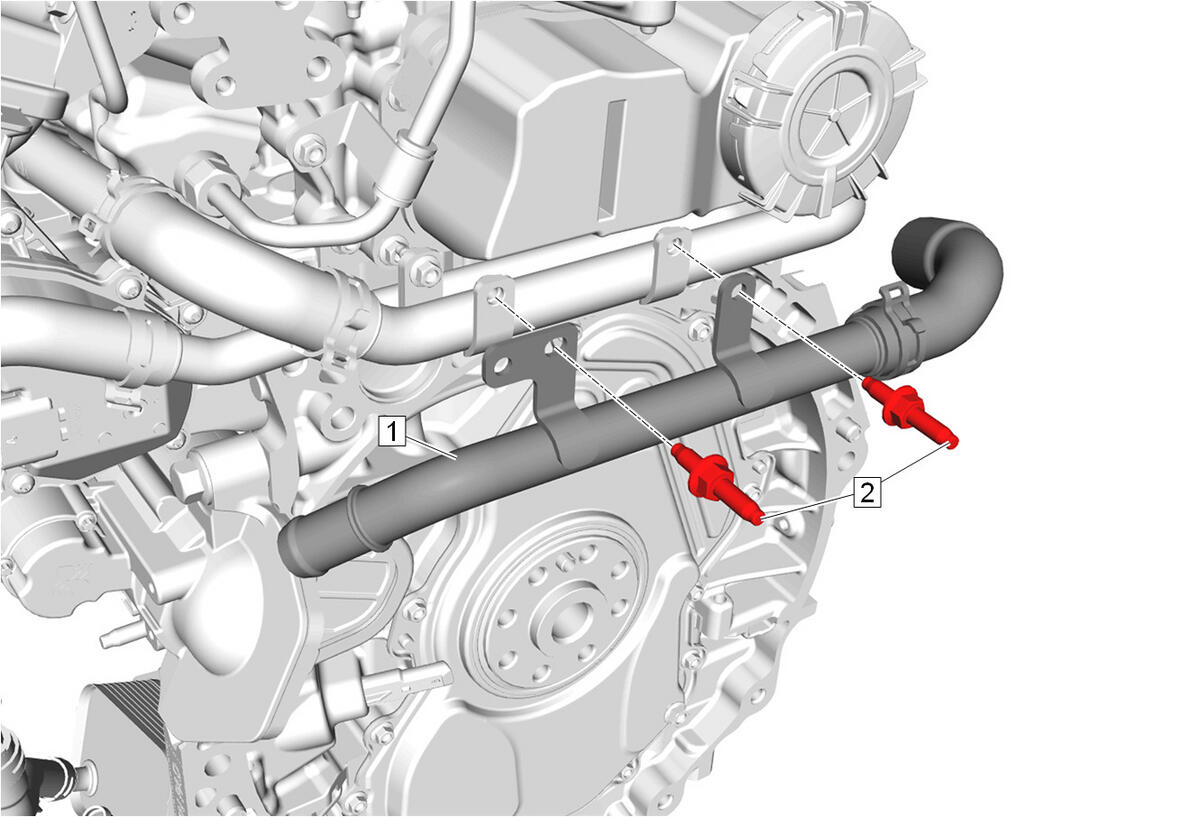

  227. GM5129535

    Engine Coolant Air Bleed Pipe Bolt (2) - Install and tighten [2x] - Fastener Specifications

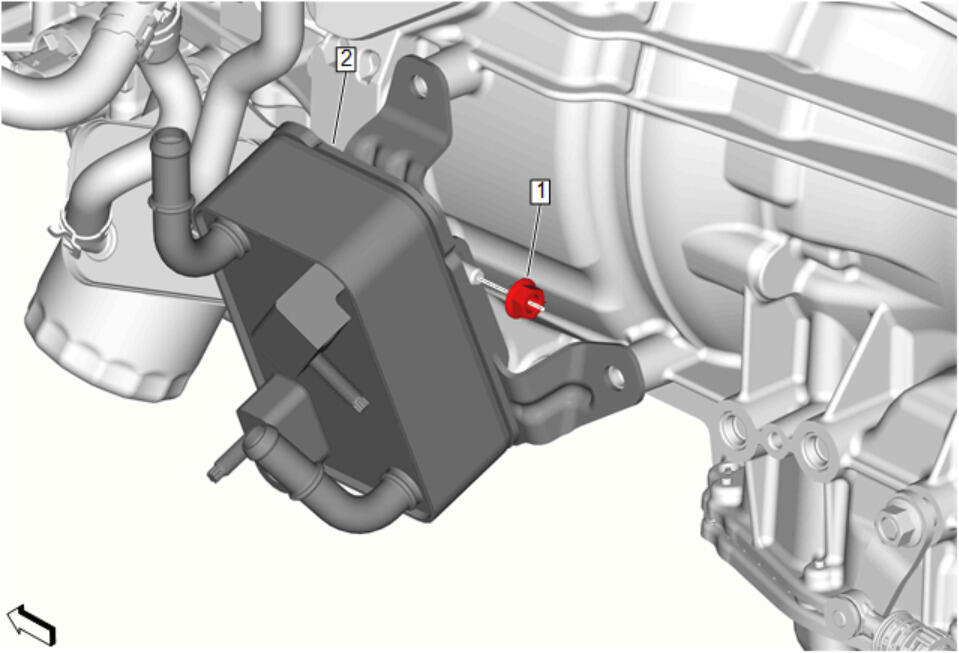

  228. GM5415576

    Automatic Transmission Fluid Cooling Exchanger (2) - Install

  229. Transmission Fluid Auxiliary Cooler Bracket Nut (1) - Install and tighten - Fastener Specifications
  230. GM5411958

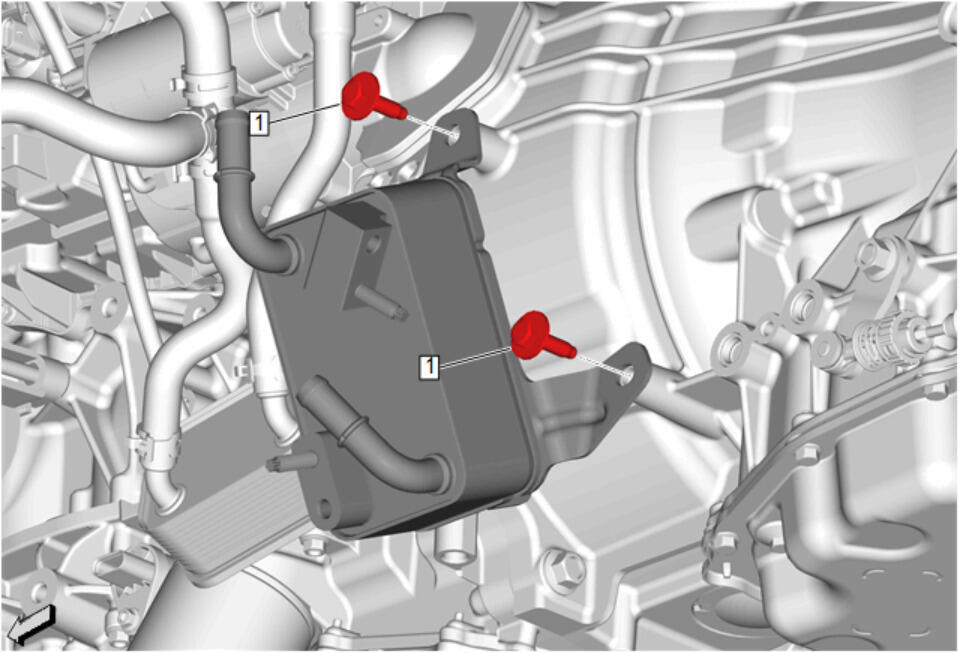

    Transmission Fluid Auxiliary Cooler Bolt (1) - Install and tighten [2x] - Fastener Specifications

  231. GM5411943

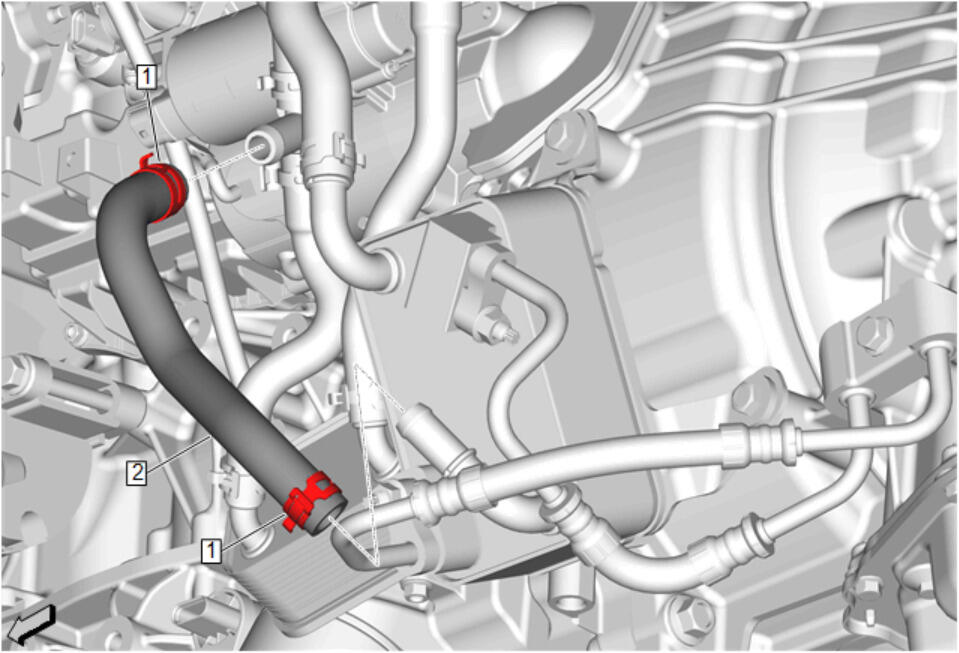

    Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) - Install

  232. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type

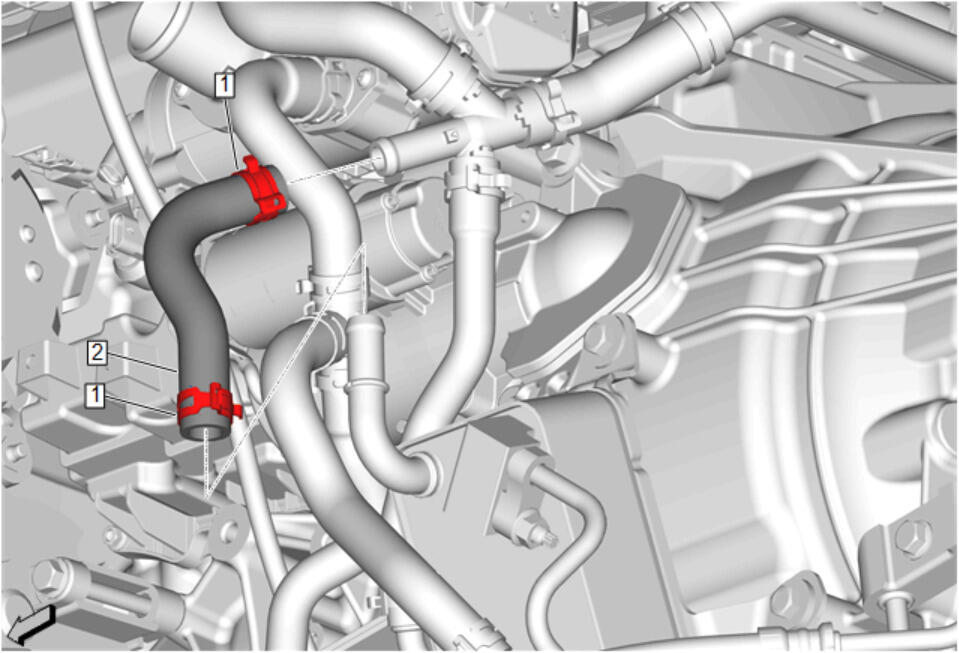

  233. GM5411944

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) - Install

  234. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Install [2x] - Hose Clamp Replacement Guidelines - Spring Type
  235. Connect the remaining electrical connectors and hoses as necessary.
  236. Remove the straps and binders securing the powertrain to the support table.
  237. Ensure the following components are clear from the frame:
    • Vacuum lines
    • Steering knuckles
    • Electrical wiring harnesses
    • Oil cooler lines
  238. GM5541631

    Position the engine and transmission (1) on the GE-52200  Powertrain and Battery Lifter (2) to the vehicle and raise into position.

  239. GM5538431

    Drivetrain and Front Suspension Cradle Front Bolt (1) - Install and tighten [4x] - Fastener Specifications

  240. Drivetrain and Front Suspension Cradle Rear Bolt (2) - Install and tighten [2x] - Fastener Specifications
  241. GM5427472

    Transmission Mount Bracket Bolt (1) - Loosely install [4x]

  242. GM5427472

    Transmission Mount Bracket Bolt (1) - Tighten [4x] - Fastener Specifications

  243. Remove the GE-52200  Powertrain and Battery Lifter from under the vehicle.
  244. GM5330297

    Position the intermediate steering shaft (1) in the vehicle.

  245. Intermediate Steering Shaft (1) @ Electric Belt Drive Rack and Pinion Steering Gear - Install
  246. GM5330303

    Prepare the intermediate steering shaft lower bolt (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  247. Intermediate Steering Shaft Lower Bolt (1) - Install and tighten - Fastener Specifications

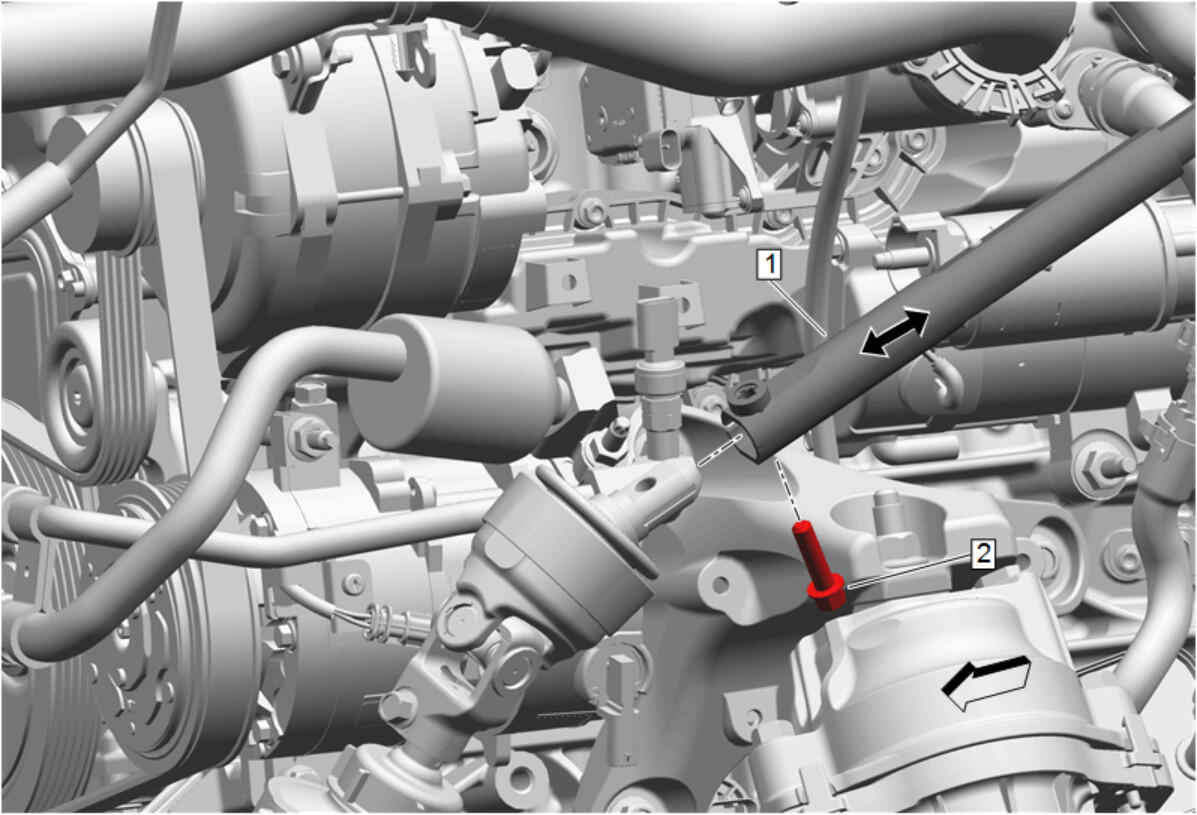

  248. GM5330305

    Mid Lower Intermediate Steering Shaft (1) @ Intermediate Steering Shaft - Install

  249. Prepare the mid intermediate steering shaft bolt (2) for installation as follows:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  250. Mid Intermediate Steering Shaft Bolt (2) @ Intermediate Steering Shaft - Install - Fastener Specifications
  251. Remove the device preventing the steering column from rotating.
  252. GM5317837

    Front Crossmember Brace-Left Side (3) - Install

  253. Front Crossmember Brace Nut-Left Side (2) - Install and tighten - Fastener Specifications
  254. Front Crossmember Brace Bolt-Left Side (1) - Install and tighten [4x] - Fastener Specifications
  255. GM5318200

    Front Crossmember Brace-Right Side (3) - Install

  256. Front Crossmember Brace Nut-Right Side (2) - Install and tighten - Fastener Specifications
  257. Front Crossmember Brace Bolt-Right Side (1) - Install and tighten [4x] - Fastener Specifications
  258. Radiator Air Front Lower Baffle - INSTALL
  259. GM5312788
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner (3) - Install [2x]

  260. Front Wheelhouse Liner Retainer (2) - Install [6x]
  261. Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] Fastener Specifications
  262. GM5312762
    NOTE:

    Left side shown, right side similar.

    Front Wheelhouse Liner Retainer (3) - Install

  263. Front Wheelhouse Liner Bolt (2) - Install and tighten [10x] Fastener Specifications
  264. Front Bumper Fascia Bolt (1) - Install [6x] - Fastener Specifications
  265. GM5423336

    Radiator Air Front Lower Baffle (1) - Install

  266. GM5423335

    Radiator Air Front Lower Baffle Retainer (1) - Install [3x]

  267. GM5407648

    Front Bumper Fascia Center Air Deflector (1) - Install

  268. GM5407644

    Front Bumper Fascia Center Air Deflector Retainer (3) - Install [2x]

  269. Front Bumper Fascia Center Air Deflector Bolt (2) - Install and tighten [5x] Fastener Specifications
  270. Front Bumper Fascia Center Air Deflector Screw (1) - Install and tighten [6x] Fastener Specifications
  271. GM5468709

    Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [3x] Fastener Specifications

  272. GM5407645

    Front Bumper Fascia Center Air Deflector Screws (1) - Install and tighten [10x] Fastener Specifications .

  273. GM5420502

    Front Compartment Air Deflector (2) - Install

  274. Front Compartment Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications
  275. GM5396496

    Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications

  276. Engine Front Splash Shield Retainer (2) - Install [2x]
  277. Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
  278. GM5396453

    Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications

  279. Engine Front Splash Shield Retainer (2) - Install [2x]
  280. Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications
  281. GM5396438

    Front Bumper Fascia Air Deflector Retainer (2) - Install [2x]

  282. Front Bumper Fascia Center Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
  283. Lower the vehicle.
  284. GM5421515
    NOTE:

    Left side shown, right side similar.

    Engine Front Splash Shield (3) - Install [2x]

  285. Engine Front Splash Shield Retainer (2) - Install [2x]
  286. Engine Front Splash Shield Bolt (1) - Install [10x] - Fastener Specifications
  287. GM5394612
    NOTE:

    Left side shown, right side similar.

    Front Tire Front Air Deflector Bolt (1) - Install [8x] - Fastener Specifications

  288. Front Tire Front Air Deflector (2) - Install [2x]
  289. Reposition and connect wiring harness and hoses as needed.
  290. GM5334765

    Apply a thin layer of grease to the transmission output shaft splines (1). Adhesives, Fluids, Lubricants, and Sealers

  291. Loosely install a NEW propeller shaft hub clamp (3) to the propeller shaft joint boot.
  292. Support and secure the propeller shaft (2) to a suitable hydraulic jack stand.
  293. Propeller Shaft (2) - Install
  294. GM5317838

    Prepare the 2 propeller shaft bearing support bolts (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  295. Propeller Shaft Bearing Support Bolt (1) - Install and tighten [2x] - Fastener Specifications
  296. Remove the hydraulic jack stand supporting the propeller shaft.
  297. GM5317835

    Prepare the 3 rear propeller shaft bolts (1) and nuts (3) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  298. Align the relationship marks (2) made on the propeller shaft and the rear differential flange.
  299. Rear Propeller Shaft Bolt (1) - Install [3x]
  300. Rear Propeller Shaft Nut (3) - Loosely install [3x]
  301. Rear Propeller Shaft Bolt (1) - Tighten [3x] - Fastener Specifications
  302. GM5317844
  303. Ensure that the drive shaft boot is completely seated in the output shaft groove prior to crimping the propeller shaft hub clamp (2).
  304. Using the DT-35910  Drive Axle Seal Clamp Pliers (1), crimp the propeller shaft hub clamp (2) until the final crimped outer diameter (a) is 39 - 41 mm (1.54 - 1.61 in).
  305. GM5471168

    Floor Panel Number 2 Cross Bar Reinforcement (1) - Install

  306. Floor Panel Number 2 Cross Bar Reinforcement Bolt (2) - Install and tighten [4x] - Fastener Specifications
  307. GM5309833

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  308. Exhaust Heat Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications
  309. GM5309214
    NOTE:

    With the aid of an assistant.

    Catalytic Converter Gasket (2) - Install NEW

  310. Exhaust Muffler (1) - Install
  311. GM5309211

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Right Side (3) - Install

  312. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Right Side (2) - Install
  313. GM5309202

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator- Left Side (3) - Install

  314. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator- Left Side (2) - Install
  315. GM5399464

    { If equipped } Front Crossmember Brace (2) - Install

  316. { If equipped } Front Crossmember Brace Nut (1) - Install and tighten [4x] - Fastener Specifications
  317. GM5309188

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  318. GM5471236

    Floor Panel Reinforcement (1) - Install

  319. Floor Panel Number 4 Cross Bar Reinforcement Bolt (2) - Install and tighten [6x] - Fastener Specifications
  320. GM5400642

    Underbody Rear Air Deflector- Right Side (5) - Install

  321. Underbody Rear Air Deflector Plastic Nut (3) - Install and tighten [3x] - Fastener Specifications
  322. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  323. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  324. Rear Wheelhouse Liner Screw (1) - Install and tighten - Fastener Specifications
  325. GM5471237

    Rear Tire Front Air Deflector- Right Side (1) - Install

  326. Rear Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  327. GM5400553

    Underbody Rear Air Deflector- Left Side (5) - Install

  328. Underbody Rear Air Deflector Plastic Nut (2) - Install and tighten [3x] - Fastener Specifications
  329. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  330. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  331. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  332. GM5395705

    Rear Tire Front Air Deflector- Left Side (2) - Install

  333. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications

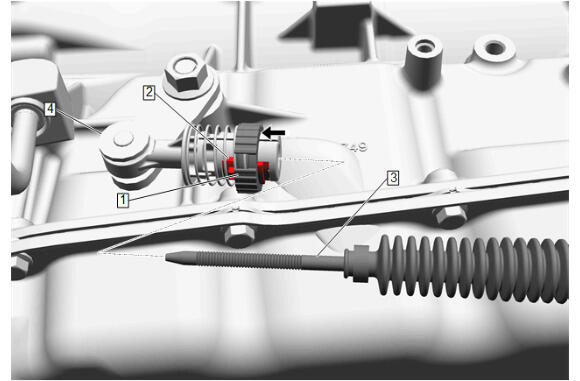

  334. GM5471847
    NOTE:

    Ensure the transmission control is in the park position and the automatic transmission range selector lever is in the park position.

    Slide the automatic transmission range selector locking ring (1) in the direction of the arrow then install the automatic transmission range selector (3) into the automatic transmission range selector lever (4).

  335. Ensure the automatic transmission range selector cable retainer (2) is fully engaged then slide the automatic transmission range selector locking ring (1) in the opposite direction of the arrow to lock the automatic transmission range selector cable (3) into the automatic transmission range selector lever (4).

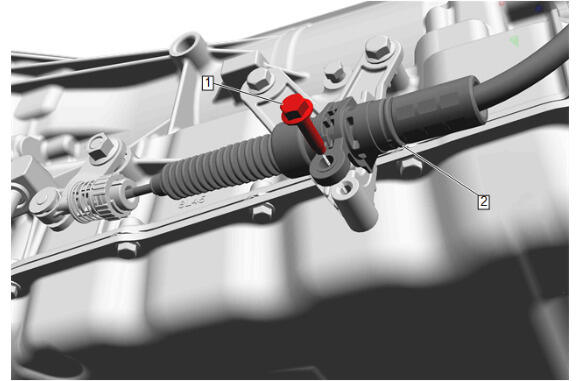

  336. GM5471853

    Install the automatic transmission range selector cable (2) into the automatic transmission range selector lever cable bracket.

  337. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    338. WARNING:

    Ensure that the cable is properly aligned to the transmission bracket prior to tightening the fastener in order to avoid any damage to the cable and/or bracket. Failure to perform this task can result in the shifter moving out of the Park position unintentionally, causing potential vehicle damage and bodily injury.

    NOTE:

    Ensure the automatic transmission range selector cable is aligned to the automatic transmission range selector lever cable bracket prior to tightening.

  338. Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications
  339. If necessary, adjust the automatic transmission range selector lever cable. Automatic Transmission Range Selector Lever Cable Adjustment
  340. Partially lower vehicle.
  341. GM5326436
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link (1) @ Stabilizer Shaft - Reposition [2x]

  342. GM5326435
    NOTE:

    Left side shown, right side similar.

    Front Stabilizer Shaft Link Nut- Lower (1) - Install and tighten [2x] - Fastener Specifications

  343. GM5472805
    NOTE:

    Left side shown, right side similar.

    Front Wheel Speed Sensor (2) - Install [2x]

  344. Front Wheel Speed Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  345. GM5430376
    NOTE:

    Left side shown, right side similar.

    Front Brake Caliper - Install (1) [2x]

  346. Front Brake Caliper Bolt (2) - Install and tighten [4x] - Fastener Specifications
  347. Lower the vehicle.
  348. GM5314157

    Air Conditioning Condenser Hose Seal (2) - Install NEW

  349. Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
  350. GM5314143

    Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW

  351. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
  352. GM5315482

    Air Conditioning Condenser Tube Clip (2) - Install

  353. Air Conditioning Condenser Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
  354. GM5314114

    Position the air conditioning refrigerant heat exchanger to its original position.

  355. Air Conditioning Evaporator Tube Clip Bracket Bolt (4) - Install and tighten - Fastener Specifications
  356. Air Conditioning Evaporator Thermal Expansion Valve Seal (3) - Install NEW
  357. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Refrigerant Heat Exchanger - Install
  358. Air Conditioning Compressor Hose Nut (1) - Install and tighten - Fastener Specifications
  359. GM5460376

    Air Conditioning Compressor Hose Seal (3) - Install NEW

  360. Air Conditioning Evaporator Thermal Expansion Valve Seal (2) - Install NEW
  361. Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Compressor - Install
  362. GM5315475

    Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Compressor - Install and tighten [2x] - Fastener Specifications

  363. Connect the electrical connector.
  364. GM5417160

    Reconnect the 3 electrical connectors (1) to the engine control module.

  365. Connect the remaining portion of the Engine harness connectors retainers and ground wires as needed.
  366. GM5315881

    Body Wiring Harness Junction Block Bracket (2) - Install

  367. Body Wiring Harness Fuse Block Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  368. GM5315648

    Install the engine wiring harness fuse block bracket (2) to the body wiring harness junction block bracket (3). Re-engage the 3 retaining tabs (1).

  369. GM5315623

    Install the 2 electrical connectors (1) and engage the 2 retaining covers (2).

  370. GM5314788

    Engine Wiring Harness Junction Block (3) - Install

  371. Retaining Tab (2) - Engage [4x]
  372. Engine Wiring Harness Junction Block Bolt (1) - Install and tighten - Fastener Specifications
  373. GM5311887

    Engine Wiring Harness Fuse Block Cover (2) - Install

  374. Retainer (1) - Engage [2x]
  375. GM5315620
    NOTE:

    Nut is captured with the wire.

    Battery Positive Cable (3) - Install

  376. Auxiliary Generator Battery Jumper Cable (2) - Install
  377. Battery Positive Cable Nut (1) - Install and tighten - Fastener Specifications
  378. GM5314636

    Battery Distribution Engine Compartment Fuse Block (2) - Install

  379. Retaining Tab (1) - Engage [2x]
  380. GM5314604
    NOTE:

    Nut is captured with the wire.

    Battery Positive Cable (7) - Install

  381. Battery Positive Cable Nut (6) - Install and tighten - Fastener Specifications
  382. Auxiliary Generator Battery Jumper Cable (8) - Install
  383. Auxiliary Generator Battery Jumper Cable Nut (5) - Install and tighten - Fastener Specifications
  384. Engine Wiring Harness Conduit Nut (4) - Install and tighten - Fastener Specifications
  385. Engine Wiring Harness Conduit Nut (3) - Install and tighten - Fastener Specifications
  386. Engine Wiring Harness Conduit Nut (2) - Install and tighten [2x] - Fastener Specifications
  387. Battery Distribution Engine Compartment Fuse Block Cover (1) - Install

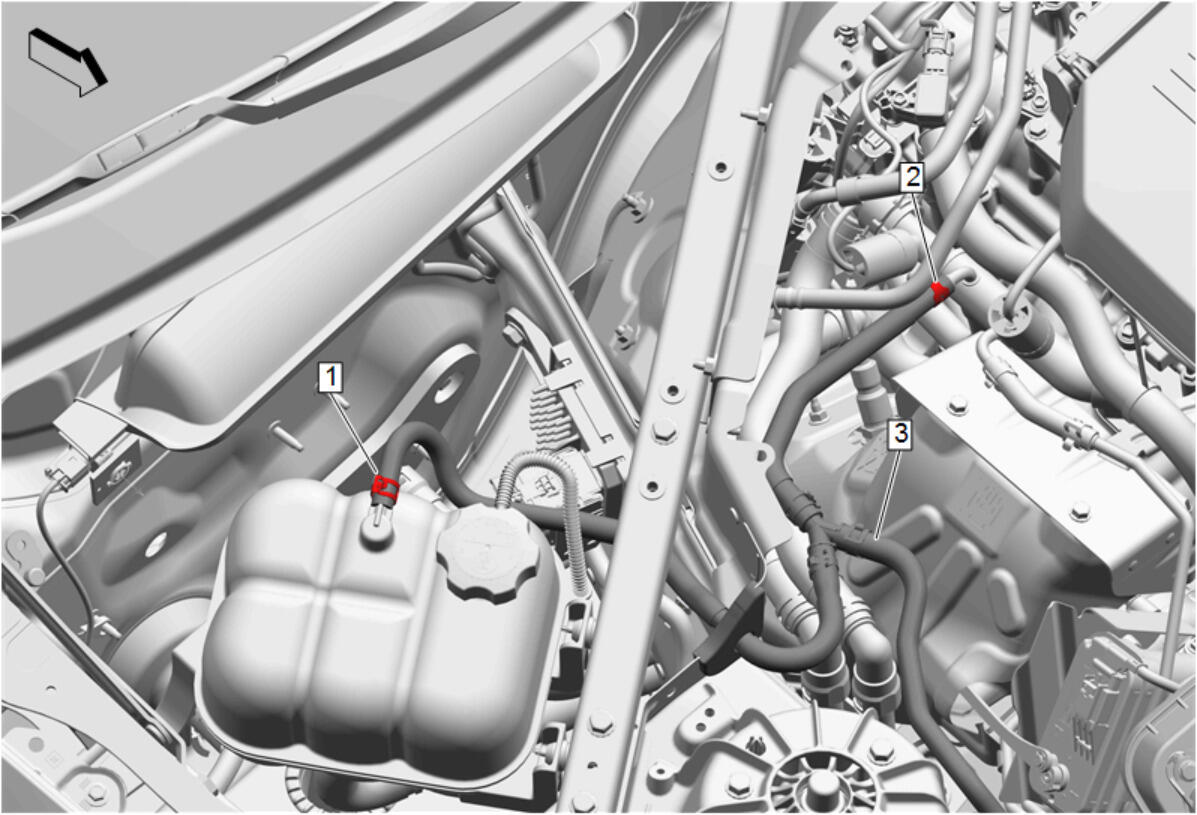

  388. GM5117932

    Engine Coolant Air Bleed Hose (3) @ Engine Coolant Heater Exhaust Pipe - Install

  389. Engine Coolant Air Bleed Hose Clamp (2) @ Engine Coolant Heater Exhaust Pipe - Engage - Hose Clamp Replacement Guidelines - Spring Type

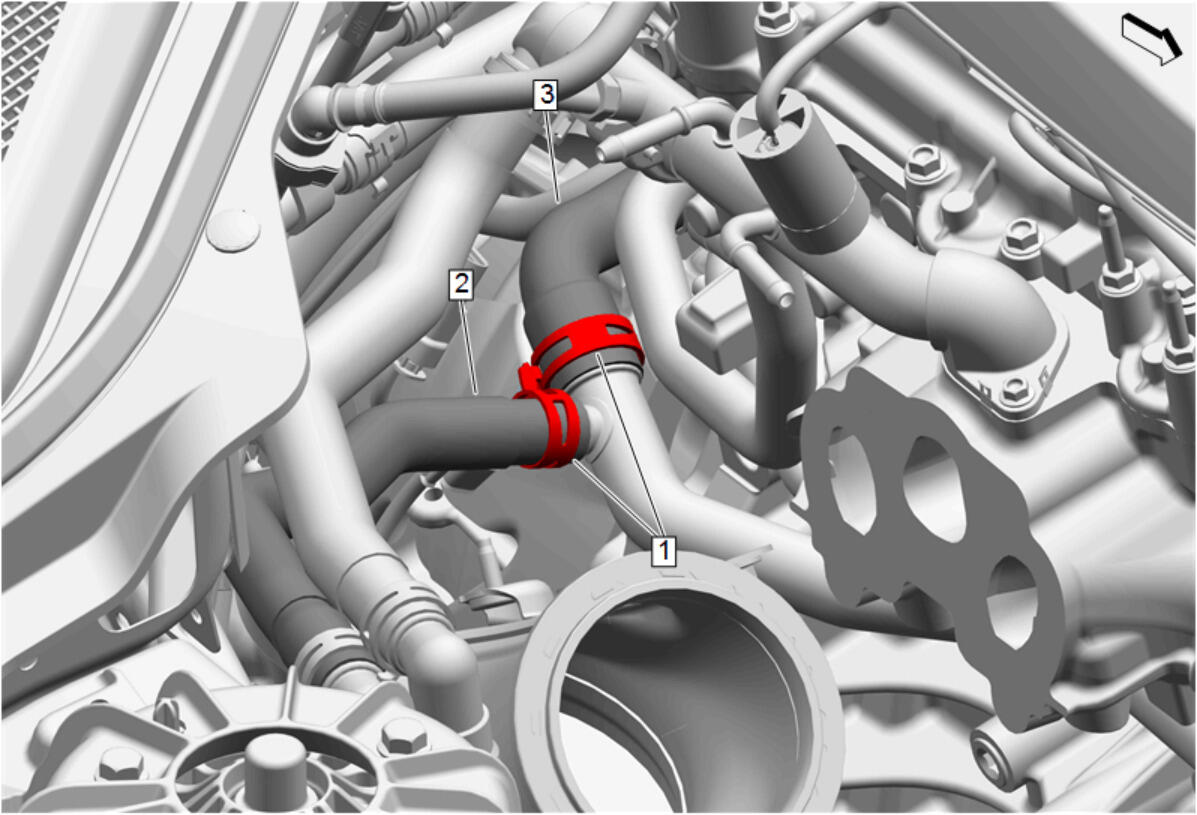

  390. GM5124218
    NOTE:

    The compressor air intake turbocharger is removed for illustration purposes only.

    Heater Water Auxiliary Pump Inlet Hose (2) @ Auxiliary Water Pump Inlet Pipe - Install

  391. Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  392. GM5312791

    Heater Inlet Hose (2) @ Engine Coolant Thermostat Housing Pipe - Install

  393. Heater Inlet Hose Retainer (1) - Engage - Plastic Collar Quick Connect Fitting Service
  394. GM5427430

    Radiator Upper Bracket (2) - Install [2x]

  395. Radiator Upper Bracket Bolt (3) - Install and tighten [4x] - Fastener Specifications
  396. Wiring Harness Retainer (1) - Install
  397. GM5420297

    Radiator Air Upper Baffle (2) - Reposition

  398. Install the front 3 radiator air upper baffle retainers (1).
  399. Connect the cooling fan electrical connector.
  400. Connect the ground wire on the frame before installing the air cleaner.
  401. GM5427525

    Install the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

  402. GM5427523

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  403. Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
  404. GM5427515

    Wiring Harness Retainer (1) @ Air Cleaner Assembly - Install [4x]

  405. Connect the electrical connector.

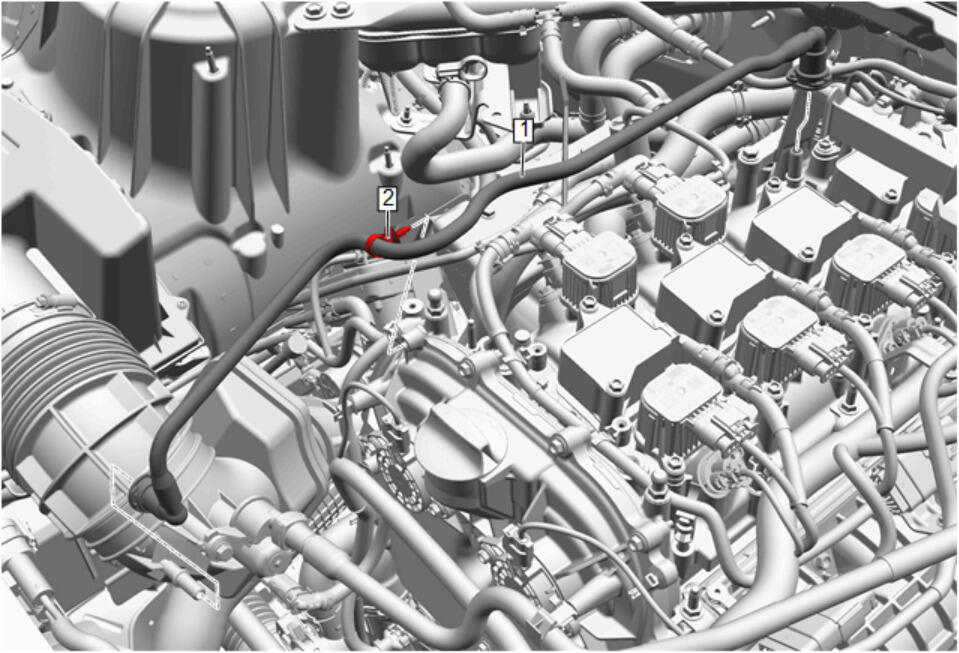

  406. GM5334198

    Positive Crankcase Ventilation Tube (1) - Install

  407. Positive Crankcase Ventilation Tube (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  408. Retainer (2) - Clip
  409. GM5080707

    Evaporative Emission Canister Purge Tube (1) - Install

  410. Connect the quick disconnects and install the retainer. Plastic Collar Quick Connect Fitting Service
  411. GM5137016

    Upper Intake Manifold Bracket (2) - Install

  412. Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
  413. GM5137013

    Upper Intake Manifold Cover Bracket Bolt (1) @ Upper Intake Manifold Bracket (2) - Install and tighten [2x] - Fastener Specifications

  414. GM5137012

    Wiring Harness (4) - Reposition

  415. Retainer (2) @ Upper Intake Manifold Bracket (3) - Install
  416. Electrical Connector (1) - Connect [3x]

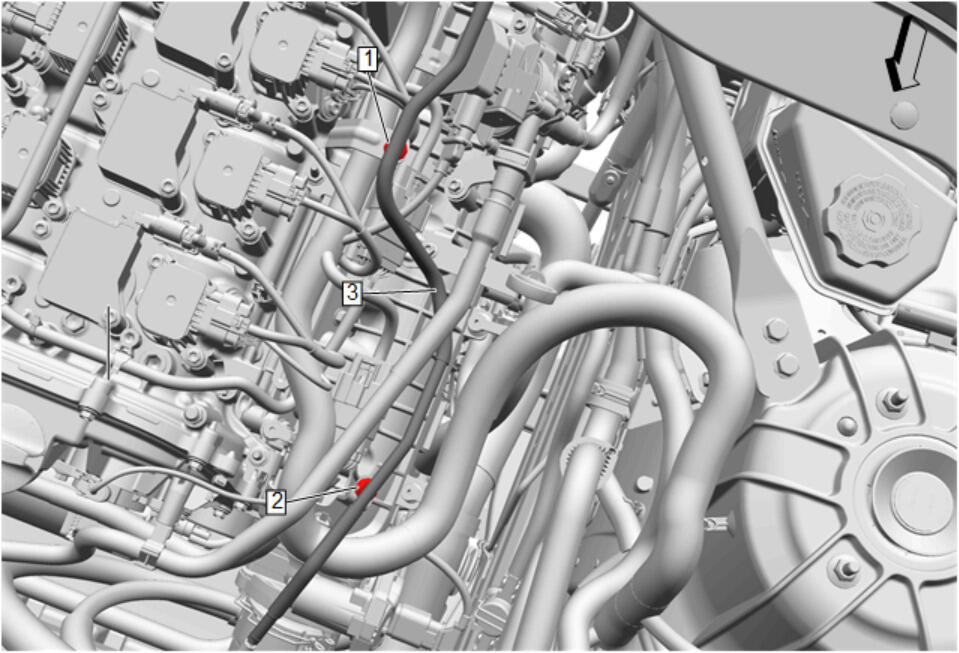

  417. GM5312610

    Radiator Surge Tank Outlet Pipe (3) - Install

  418. Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Install
  419. Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Install

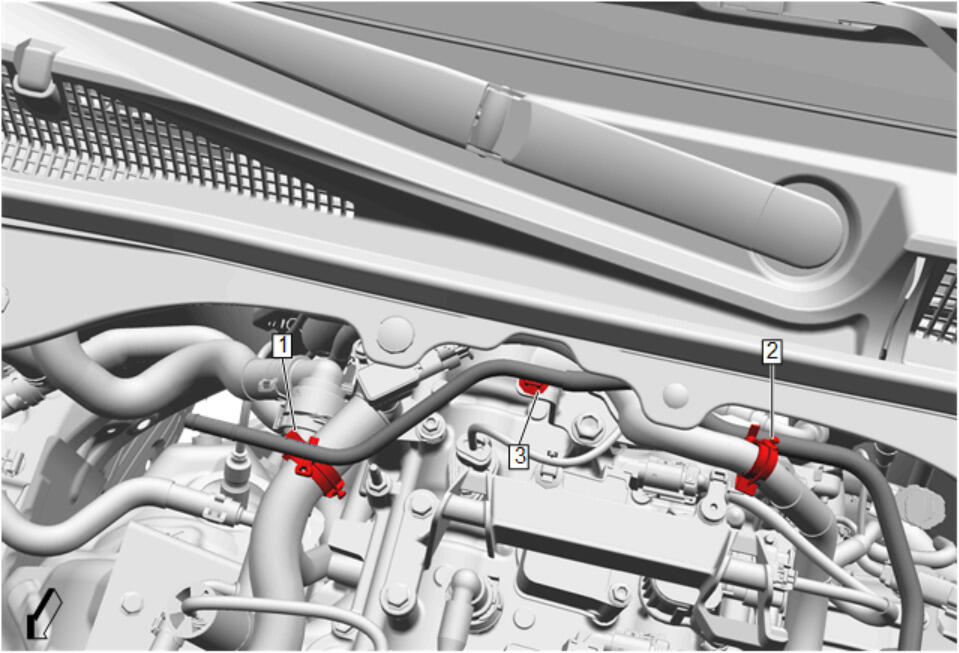

  420. GM5312607

    Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Install

  421. Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Install
  422. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Install

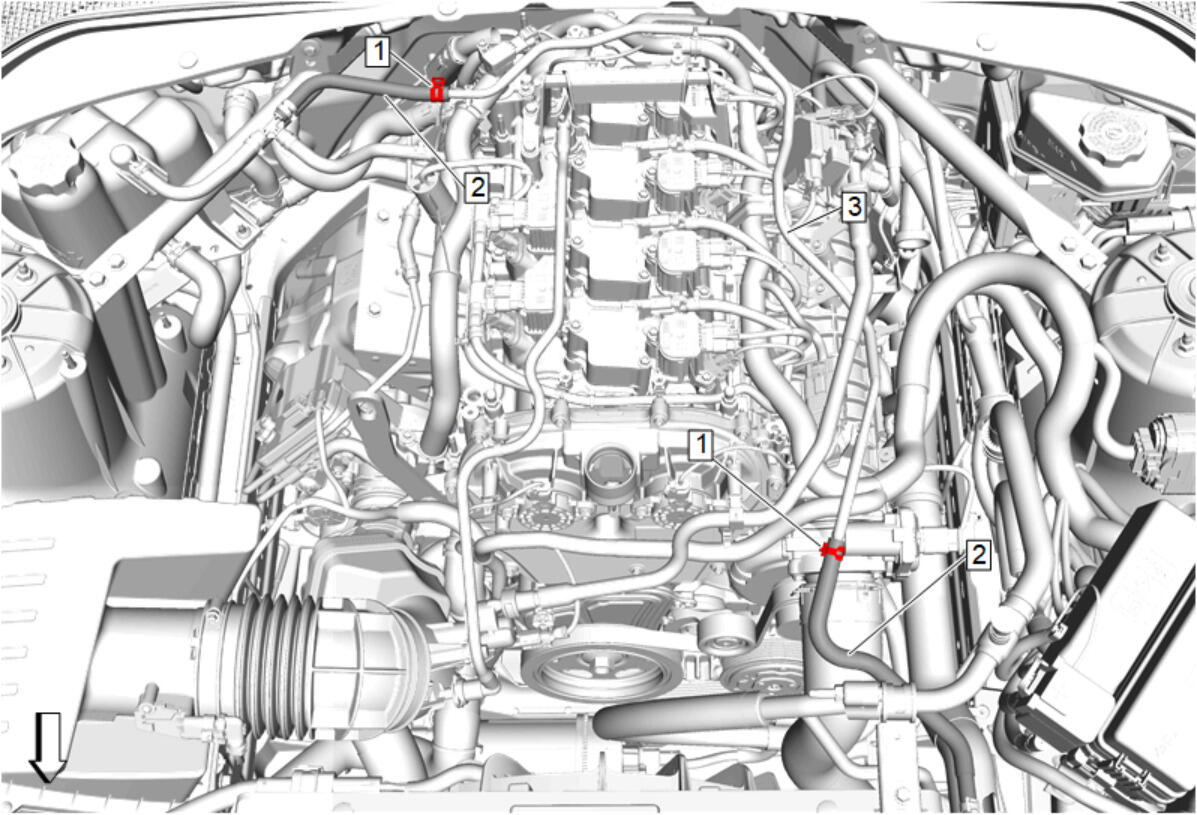

  423. GM5420763

    Radiator Surge Tank Inlet Hose (2) @ Radiator Surge Tank Outlet Pipe (3) - Install [2x]

  424. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Outlet Pipe (3) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  425. Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  426. Connect the battery. Battery Negative Cable Disconnection and Connection
  427. Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
  428. Fill the engine oil to proper level with NEW engine oil. Engine Oil and Oil Filter Replacement (RWD) , or Engine Oil and Oil Filter Replacement (AWD)
    429. NOTE:

    Prelube is necessary if the engine is replaced or overhauled.

  429. If the engine is replaced with a new engine or has been overhauled, perform the Engine Prelubing procedure. Engine Prelubing
  430. Recharge the refrigerant. Refrigerant Recovery and Recharging
  431. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
  432. Perform the turbocharger wastegate learn. Turbocharger Wastegate Learn
  433. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
  434. Inspect for fuel leaks using the following procedure:
    1. Turn ON the ignition with the engine OFF for 2 seconds.
    2. Turn OFF the ignition for 10 seconds.
    3. Turn ON the ignition with the engine OFF.
    4. Inspect for fuel leaks.
  435. Perform front end alignment due to struts being disconnected. Wheel Alignment Measurement
  436. Perform the engine oil life reset. GM Oil Life System Resetting (With Scan Tool) , or GM Oil Life System Resetting (Without Scan Tool)
  437. GM5335089

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  438. GM5335087
    NOTE:

    Ensure the engine sight shield retainers fully engage the intake manifold cover studs.

    Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.

    Install the oil fill cap.

scientia non olet · About LEMON Manuals
