Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5318224Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Panel (1) - Install

  2. GM5318217Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the 3 left side upper front compartment front panel bolt (1) and tighten to 22 N.m (16 lb ft)

  3. GM5318219Courtesy of GENERAL MOTORS COMPANY

    Install the 5 left side lower front compartment front panel bolt (1) and tighten to 22 N.m (16 lb ft)

  4. GM5318222Courtesy of GENERAL MOTORS COMPANY

    Install the 3 right side upper front compartment front panel bolt (1) and tighten to 22 N.m (16 lb ft)

  5. GM5318223Courtesy of GENERAL MOTORS COMPANY

    Install the 5 right side lower front compartment front panel bolt (1) and tighten to 22 N.m (16 lb ft)

  6. Position the wiring harness.
  7. GM5323208Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module Bracket(2) - Install - Transmission Control Module Bracket Replacement

  8. GM5310572Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket(1) - Install - Engine Control Module Bracket Replacement

  9. Engine Wiring Harness Fuse Block Bracket - Install - Engine Wiring Harness Fuse Block Bracket Replacement
  10. GM5482168Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Terminal (2) - Install

  11. Battery Negative Cable Ground Bolt(1) - Install and tighten9 N.m (80 lb in)
  12. GM5522059Courtesy of GENERAL MOTORS COMPANY

    Forward Lamp Wire Harness Ground Terminal (2) - Install [2x]

  13. Forward Lamp Wire Harness Ground Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
  14. GM5522057Courtesy of GENERAL MOTORS COMPANY

    Engine Wire Harness Ground Terminal (2) - Install

  15. Engine Wire Harness Ground Bolt (1) - Install and tighten9 N.m (80 lb in)
  16. GM5303289Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch (2) - Install Hood Primary and Secondary Latch Replacement

  17. GM5319422Courtesy of GENERAL MOTORS COMPANY

    Airbag Front End Discriminating Sensor(1) - Install [2x] Airbag Front End Discriminating Sensor Replacement

  18. GM5314549Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle(1) - Install - Radiator Air Front Upper Baffle Replacement (LSY)

  19. GM5313359Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle(1) - Install - Radiator Air Upper Baffle Replacement (LSY)

  20. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Left Side(2) - Install - Radiator Upper Bracket Replacement - Left Side (LGY, LSY)

  21. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket - Right Side(3) - Install - Radiator Upper Bracket Replacement - Right Side (LGY, LSY)

  22. GM5299866Courtesy of GENERAL MOTORS COMPANY

    Front Fender Front Brace(3) - Install - Front Fender Front Brace Replacement

  23. Install both front headlamps. Front Headlamp Replacement (With T87) , or Front Headlamp Replacement (Without T87) , or Front Headlamp Replacement (Blackwing)
  24. GM5318432Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct(1) - Install - Intake Air Duct Replacement

  25. GM5299630Courtesy of GENERAL MOTORS COMPANY

    Install the front end sheet metal cross brace at the impact bar. Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum without Blackwing) , or Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing)

  26. GM5287230Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar(3) - Install - Front Bumper Impact Bar Replacement (LSY)

  27. GM5286315Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Support(3) - Install - Front Bumper Fascia Center Support Replacement

  28. GM5285908Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Support Brace (2) - Install - Front Bumper Fascia Support Brace Replacement (Without Radar) , or Front Bumper Fascia Support Brace Replacement (With Radar)

  29. Front Bumper Fascia Support Brace Bolt(1) - Install and tighten [3x] 9 N.m (80 lb in)
  30. { If equipped }Connect the electrical connector.
  31. GM5312788Courtesy of GENERAL MOTORS COMPANY

    Install the left and right side front wheelhouse panels (3). Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)

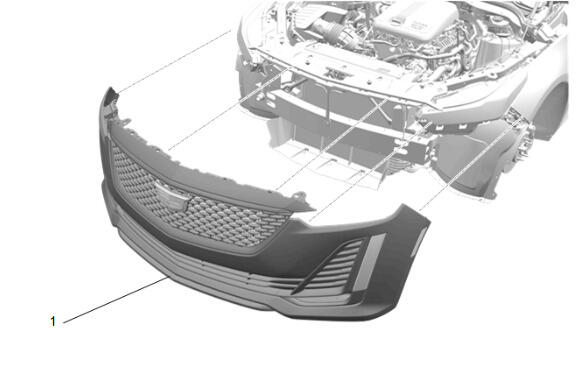

  32. GM5659985Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing)

  33. GM5300389Courtesy of GENERAL MOTORS COMPANY

    Hood(2) - Install - Hood Replacement
