Rear Seat Belt Retractor Replacement (Platinum)

Courtesy of GENERAL MOTORS COMPANY

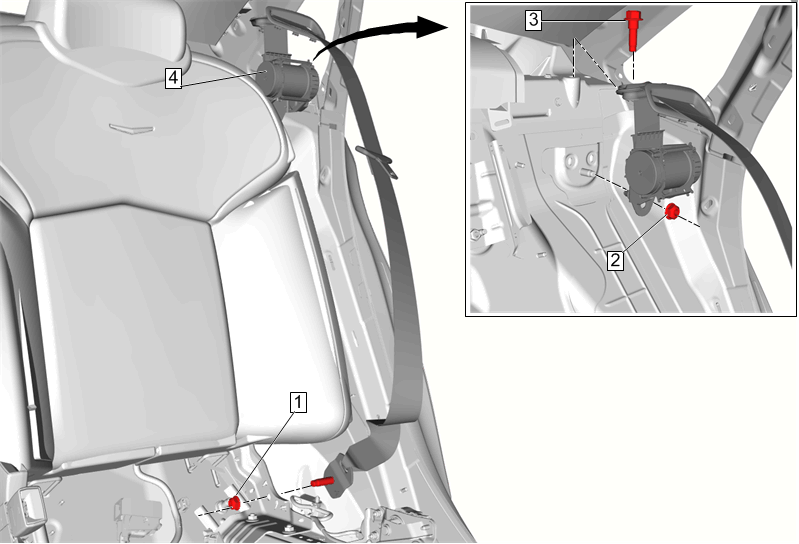

Callout	Component Name
Preliminary Procedures Rear Seat Cushion Removal and Installation (except Platinum)Rear Seat Cushion Removal and Installation (Platinum 40%)Rear Seat Cushion Removal and Installation (Platinum 20%) Body Side Rear Window Lower Garnish Molding Replacement
1	Rear Seat Belt Retractor Anchor Plate Nut CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Fastener Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Belt Retractor Procedure Release the retainers.
