Heater Outlet Hose Replacement (At Heater Core Tube LGX)

Courtesy of GENERAL MOTORS COMPANY

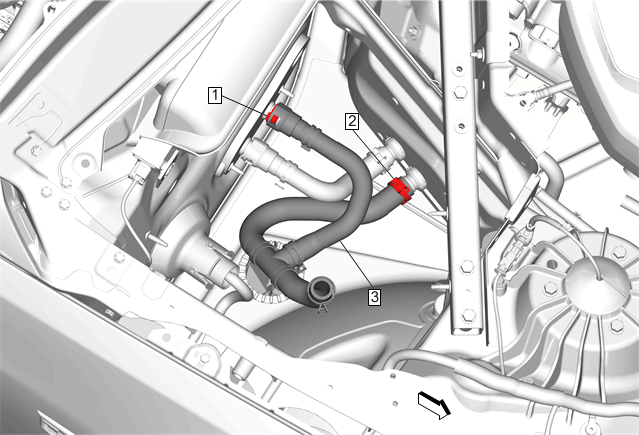

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static, LGX)Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (LTA Static) Air Inlet Grille Panel Replacement - Remove Radiator Surge Tank Replacement (LGX)Radiator Surge Tank Replacement (LTA) - Remove Transfer Case Control Module Bracket Replacement - Remove
1	Heater Outlet Hose Retainer Procedure Squeeze the plastic quick connect fitting release tabs.
2	Heater Outlet Hose Clamp Procedure Hose Clamp Replacement Guidelines - Spring Type
3	Heater Outlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (Static, LGX)Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (LTA Static) Start the engine and check for coolant leaks.
