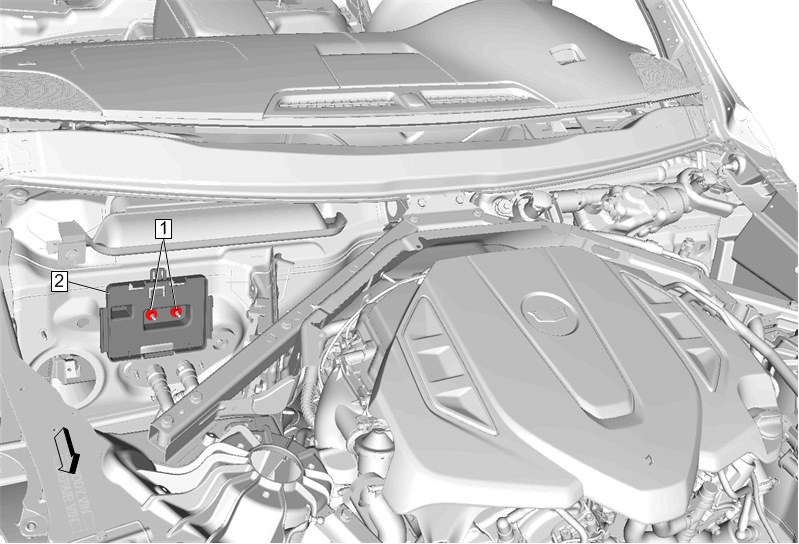

Transfer Case Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Transfer Case Control Module Replacement
1	Transfer Case Control Module Bracket Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Transfer Case Control Module Bracket
