Air Inlet Grille Panel Replacement

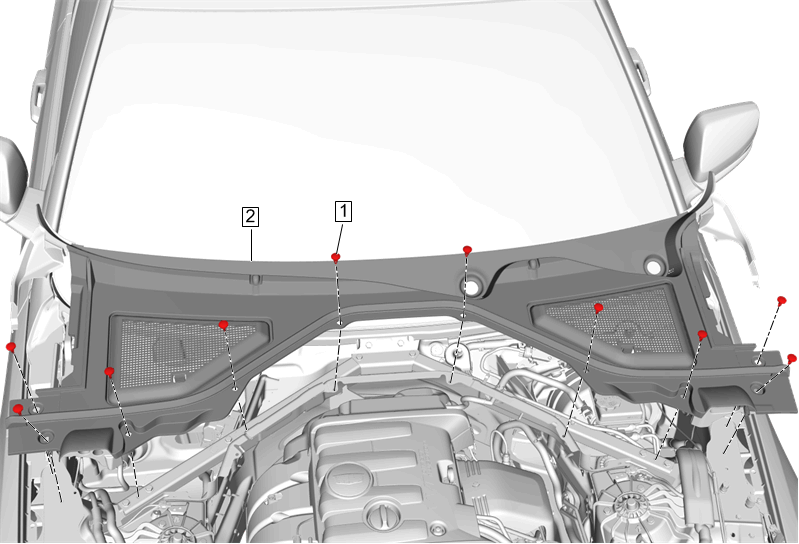

GM4242573Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Windshield Wiper Arm Replacement
1 Air Inlet Grille Panel Retainer [10x]
2 Air Inlet Grille Panel

Procedure

  1. Using an appropriate tool, disengage the center air inlet grille panel retainer.
  2. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
  3. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  4. Disconnect the windshield washer nozzle hose from the windshield washer nozzle hose connector hose.
  5. Transfer components as necessary.
