Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

Callout	Component Name
Preliminary Procedures Front Wheelhouse Panel Brace Replacement (Rear)Front Wheelhouse Panel Brace Replacement (Front) @ Front - Remove Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Cut the tie strap retaining the mass air flow harness.

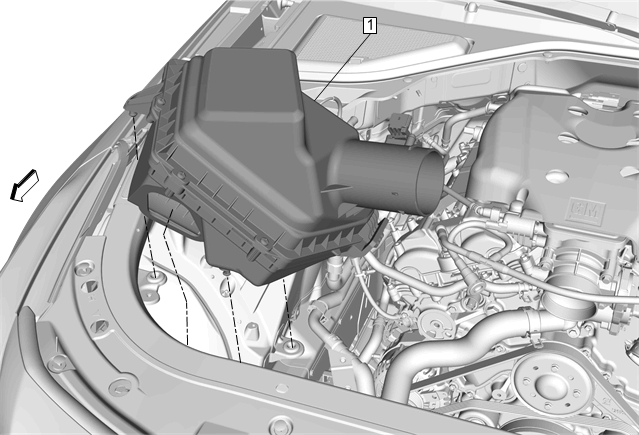

1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers, while guiding the housing out of the intake air duct. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Air Cleaner Assembly

Procedure

Remove the air cleaner housing from the retainers, while guiding the housing out of the intake air duct.
Transfer parts as necessary.
